Sharp AR-F152 Manual de usuario

MODEL

AR-F152

•GETTING STARTED

•MAKING COPIES

•SPECIAL FUNCTIONS

•SUPPLIES AND

USER MAINTENANCE

•COPIER TROUBLE?

•APPENDIX

DIGITAL LASER COPIER/FACSIMILE

OPERATION MANUAL

Page

FOR YOUR RECORDS ...

To protect against loss or theft, record and retain for reference the

copier’s serial number located on the back of the unit.

Model Number

Serial Number

Date of Purchase

Place of Purchase

Authorized Sharp Copier

Service Department Number

As an ENERGY STA R ®Partner, SHARP has determined

that this product meets the ENERGY STA R ®guidelines

for energy efficiency.

This product contains a lithium-ion battery, and must be disposed of

properly.

Contact your local environmental officials for disposal instructions.

CAUTION:

To reduce the risk of fire, use only UL-Listed NO.26 AWG or larger

telecommunication line cord.

CONTENTS

1GETTING STARTED

INTRODUCTION 3

CAUTIONS 4

MAIN FEATURES 5

PART NAMES 6

OPERATION PANEL 7

COPIER INSTALLATION 8

CAUTIONS ON HANDLING 9

LOADING COPY PAPER 10

2MAKING COPIES

NORMAL COPYING 12

– Stream feeding mode 15

EXPOSURE ADJUSTMENT/PHOTO COPYING 15

REDUCTION/ENLARGEMENT/ZOOM 16

BYPASS FEED (including special paper) 17

TWO-SIDED COPYING 18

3SPECIAL FUNCTIONS

DESCRIPTION OF SPECIAL FUNCTIONS 20

TONER SAVE MODE 20

USER PROGRAMS (power save modes, auto clear time,

stream feeding mode) 21

– Setting the power save modes, auto clear time, and

stream feeding mode 21

DISPLAYING TOTAL NUMBER OF COPIES 22

4SUPPLIES AND USER MAINTENANCE

TONER CARTRIDGE REPLACEMENT 23

–Toner cartridge life 25

USER MAINTENANCE 25

–Cabinet 25

–Original table and original cover 25

–Transfer charger 26

–When copier is not in use 26

5COPIER TROUBLE?

MISFEED REMOVAL 27

–A Misfeed in the paper feed area 28

–B Misfeed in the fusing area 28

–C Misfeed in the transport area 29

–D Misfeed in the lower paper feed area 30

–E Misfeed in the SPF 31

DEVELOPER REQUIRED 32

MAINTENANCE REQUIRED 32

TROUBLESHOOTING 33

STATUS INDICATORS 34

AUTOMATIC EXPOSURE ADJUSTMENT 35

6APPENDIX

SPECIFICATIONS 36

SUPPLIES 38

–Types and sizes of copy paper 38

INDEX

CONTENTS

Getting started

GETTING STARTED

This chapter provides basic information for using the copier.

INTRODUCTION

This copier has been designed to provide intuitive operating ease while requiring a minimum

amount of space. To get full use of all copier features, be sure to familiarize yourself with this

manual and the copier.

For quick reference during copier use, keep this manual in a handy location.

This copier can be used as a facsimile machine. This copier can also be used

as a laser printer if an optional printer expansion kit is installed. This manual

describes only the copier features. For description of the facsimile and printer

features, see their separate manual.

Conventions used in this manual

In this manual, the following icons are used to provide the user with information pertinent to the

use of the copier.

Warns the user that injury to the user or damage to the copier may result if the

contents of the warning are not properly followed.

Cautions the user that damage to the copier or one of its components may

result if the contents of the caution are not properly followed.

Notes provide information relevant to the copier regarding specifications,

functions, performance, operation and such, that may be useful to the user.

Indicates a letter displayed in the display.

Getting started

CAUTIONS

Follow the cautions below when using this copier.

●The fusing area is hot. Exercise care in this area when removing misfed paper.

●Do not look directly at the light source. Doing so may damage your eyes.

●Do not switch the copier rapidly on and off. After turning the copier off, wait 10

to 15 seconds before turning it back on.

●Copier power must be turned off before installing any supplies.

●Place the copier on a firm, level surface.

●Do not install the copier in a humid or dusty location.

●When the copier is not used for a long time, for example, for consecutive

holidays, turn the power switch off and remove the power cord from the outlet.

●When moving the copier, be sure to turn the power switch off and remove the

power cord from the outlet.

●Do not cover the copier with a dust cover, cloth or plastic film while the power

is on. Doing so may prevent heat radiation, damaging the copier.

●Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

SAFETY PRECAUTIONS

This Digital Copier is rated Class 1 and complies with 21 CFR 1040.10 and 1040.11 of the

CDRH standards.This means that the copier does not produce hazardous laser radiation.

For your safety, observe the precautions below.

●Do not remove the cabinet, operation panel or any other covers.

●The copier’s exterior covers contain several safety interlock switches. Do not bypass

any safety interlock by inserting wedges or other items into switch slots.

Getting started

MAIN FEATURES

High-speed laser copying

●Since warm-up time is zero, copying can be started immediately after the power switch is

turned on.

●First-copy time is only 9.6 seconds (normal mode).

●Copying speed is 15 copies/min., which adapts to business use, allowing improvement

of working efficiency.

High-quality digital image

●High-quality image copying at 600 dpi can be performed.

●In addition to the automatic exposure mode, the manual exposure can be adjusted in five

steps.

●The photo mode copying function allows clear copying of delicate halftone original images

such as monochrome photos and color photos.

Substantial copying functions

●Zoom copying from 50% to 200% in 1% increments can be performed.

●Continuous copying of maximum 99 sheets can also be performed.

●Automatic document feeding through the single pass feeder (SPF) can be performed.

●Toner save mode reduces toner consumption by approximately 10%.

●User programs allow setting/modification of functions for customer’s needs.

Scan once/ Print many

●This copier is equipped with a 1-page memory buffer. This Memory allows the

copier to scan an original once only and make up to 99 copies. This feature allows for

improved workflow, reduced operating noise from the copier and reduced wear and tear

on the scanning mechanism. This feature provides for a higher reliability.

Printer feature

●This copier can be used as a laser printer by installing an optional printer expansion kit.

Environmentally friendly design

●Paper output tray is housed in the copier for space saving.

●Preheat and auto power shut-off modes are provided to reduce power consumption in

standby mode.

Getting started

Toner cartridge lock release

lever

Toner cartridge

SPF exit area Original guides

Feeding roller cover

Document

feeder tray

Transfer charger

Fusing unit

release lever Charger cleaner

Original table

Operation

panel

Paper tray

Front cover

Original cover

Side cover

Power cord socket

Power switch Handle

Cover for optional printer interface

* A GDI expansion kit is optional.

Bypass tray guides

Bypass tray

Paper output

tray

Paper output tray

extension

Handle

Side cover

open button

Photoconductive drum

PART NAMES

Getting started

OPERATION PANEL

Exposure mode selector key and

indicators

Use to sequentially select the exposure

modes: AUTO, MANUAL or PHOTO.

Selected mode is shown by a lit indicator.

(p. 15)

Light and dark keys and exposure

indicators

Use to adjust the MANUAL or PHOTO

exposure level. Selected exposure level is

shown by a lit indicator. (p. 15)

Use to start and terminate user program

setting. (p. 21)

Alarm indicators

: Developer replacement required

indicator (p. 32)

: Misfeed indicator (p. 27)

: Toner cartridge replacement

required indicator (p. 23)

: Maintenance indicator (p. 32)

SPF indicator (p. 13)

SPF misfeed indicator (p. 27)

Copy ratio selector key and copy ratio

indicators

Use to sequentially select preset reduction/

enlargement copy ratios.

Selected copy ratio is shown by a lit indica-

tor. (p. 16)

Zoom indicator (p. 16)

Copy ratio display (%) key (p. 16)

Display

Displays the specified copy quantity, zoom

copy ratio, user program code, and error

code.

ON LINE indicator

Lights up when the machine is used as a

printer. To use as a printer, an optional

printer expansion kit is needed.

Power save indicator

Lights up when the copier is in a power save

mode. (p. 20, 21)

Tray select key

Use to select a paper feed station (paper

tray or bypass tray). (p. 18)

Paper feed location indicators

Light up to show the selected paper feed

station.

Zoom keys

Use to select any reduction or enlargement

copy ratio from 50% to 200% in 1%

increments. (p. 16)

Copy quantity keys

●Use to select the desired copy quantity

(1 to 99). (p. 14)

●Use to make user program entries.

(p. 21)

Clear key

●Press to clear the display, or press during

a copy run to terminate copying. (p. 14)

●Press and hold down during standby to

display the total number of copies made

to date. (p. 22)

Print key and ready indicator

●Copying is possible when the indicator is

on.

●Use to set a user program.

Getting started

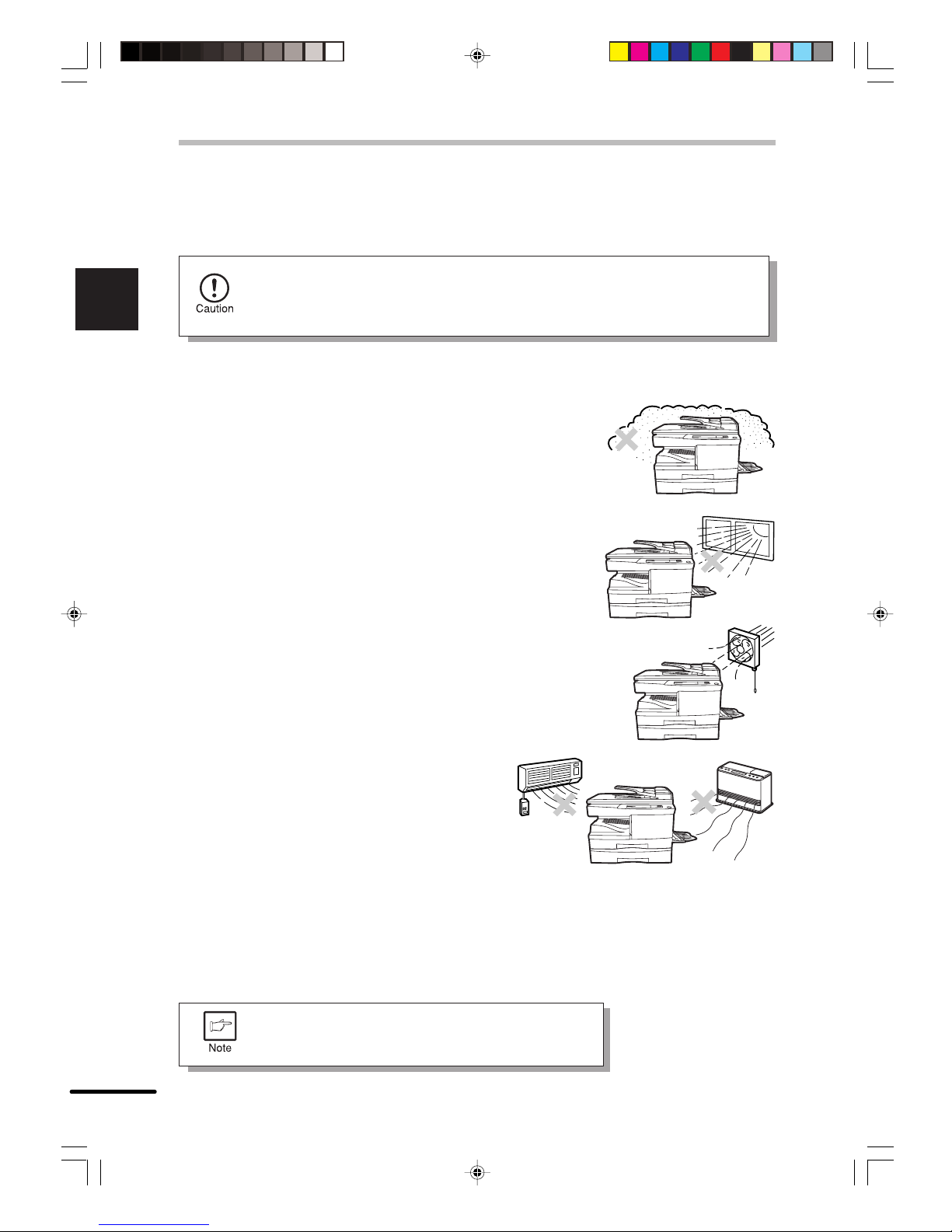

COPIER INSTALLATION

Improper installation may damage the copier. Please note the following during initial installation

and whenever the copier is moved.

If the copier is moved from a cool place to a warm place, condensation may

form inside the copier. Operation in this condition will cause poor copy quality

and malfunctions. Leave the copier at room temperature for at least 2 hours

before use.

Do not install your copier in areas that are:

●damp, humid, or very dusty

●exposed to direct sunlight

●poorly ventilated

●subject to extreme temperature or humidity

changes, e.g., near an air conditioner or

heater.

The copier should be installed near an accessible power outlet

for easy connection.

Be sure to connect the power cord only to a power outlet that

meets the specified voltage and current requirements.

Also make certain the outlet is properly grounded.

Connect the copier to a power outlet which is not used

for other electric appliances. If a lighting fixture is

connected to the same outlet, the light may flicker.

Otros manuales para AR-F152

Tabla de contenidos

Otros manuales de Impresora todo en uno de Sharp

Sharp

Sharp MX-M1100 Manual de usuario

Sharp

Sharp AR-M237 IMAGERs Manual de usuario

Sharp

Sharp Gemini II Plus MX-2614N Manual de usuario

Sharp

Sharp MX-C250 Manual de usuario

Sharp

Sharp AR M162 - B/W Laser - All-in-One Manual de usuario

Sharp

Sharp Advanced MXM565N Manual de usuario

Sharp

Sharp AR-M236 Manual de usuario

Sharp

Sharp Advanced MXM365N Manual de usuario

Sharp

Sharp AR-M257 - Digital Imager B/W Laser Manual de usuario

Sharp

Sharp AR-M257 - Digital Imager B/W Laser Manual de usuario

Sharp

Sharp MX 5500N - Color Laser - Copier Manual de usuario

Sharp

Sharp MX-C301 Manual de usuario

Sharp

Sharp AR-208S Guía de configuración

Sharp

Sharp MX-M904 Manual de usuario

Sharp

Sharp MX-C407F Manual de usuario

Sharp

Sharp MX-B402SC Manual de usuario

Sharp

Sharp MX 5500N - Color Laser - Copier Manual de usuario

Sharp

Sharp MX-4501N Manual de usuario

Sharp

Sharp MX-C528F Manual de usuario

Sharp

Sharp CR4 Cloud Series Manual de usuario

Sharp

Sharp BP-20M22 Manual de instrucciones

Sharp

Sharp MX-M266N Manual de usuario

Sharp

Sharp CPD-3830 Manual de usuario

Sharp

Sharp AR-M237 IMAGERs Manual de usuario

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Brother

Brother MFC-J430w Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Brother

Brother MFC-9760 Manual de usuario

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario

Oce

Oce VarioLink 5022 Manual de usuario
