Sharp AL-1655CS Manual de usuario

DIGITAL MULTIFUNCTIONAL

SYSTEM

OPERATION MANUAL

Page

PREPARATIONS

LOADING PAPER

MAKING COPIES

PRINTER/SCANNER

FUNCTIONS

USER SETTINGS

TROUBLESHOOTING AND

MAINTENANCE

CONVENIENT COPY

FUNCTIONS 30

APPENDIX

AL-1655CS

MODEL

MODEL AL-1655CS

SETTING UP THE

SOFTWARE 40

ED IN CHINA

04J

KS1

SE1396QSZZ

FOR YOUR PROTECTION...

To aid in reporting this unit in case of loss or theft, please record below the model number

and serial number located on the back of the unit. We also suggest you record all the

information listed and retain for future reference.

MODEL NUMBER SERIAL NUMBER

DATE OF PURCHASE

Dealer

Address City

State Zip Telephone

Service Station

Address City

State Zip Telephone

To obtain service, or to obtain product literature, accessories, or

supplies,

please call 1-(630)378-3590 in the USA

or 905-568-7140 in Canada.

For customer assistance, please visit http://www.sharpusa.com/

(for USA) or http://www.sharp.ca/ (for Canada) on the World Wide Web

or call 1-(630)378-3590 (for USA).

Do not make copies of anything which is prohibited from copying by law. The

following items are normally prohibited from copying by national law. Other

items may be prohibited by local law.

Money Stamps Bonds Stocks Bank drafts

Checks Passports Driver's licenses

AL-1655CS.book 1 ページ２００４年８月２２日　日曜日　午後６時４４分

CAUTIONS................................................................................................................ 3

ENVIRONMENTAL INFORMATION ......................................................................... 5

INTRODUCTION....................................................................................................... 6

MAIN FEATURES ..................................................................................................... 7

1PREPARATIONS

PART NAMES ................................................................................................... 9

CHECKING PACKED COMPONENTS AND ACCESSORIES ....................... 12

PREPARING THE MACHINE FOR INSTALLATION ...................................... 13

INSTALLING THE TD CARTRIDGE ............................................................... 14

POWER ON AND OFF.................................................................................... 16

2LOADING PAPER

PAPER ............................................................................................................ 18

LOADING THE PAPER TRAY 1 and 2 ........................................................... 19

BYPASS FEED (including special paper)........................................................ 21

CHANGING A TRAY'S PAPER SIZE SETTING ............................................. 23

3MAKING COPIES

NORMAL COPYING........................................................................................ 24

SELECTING THE TRAY ................................................................................. 27

MAKING A COPY DARKER OR LIGHTER..................................................... 28

REDUCTION/ENLARGEMENT/ZOOM........................................................... 29

4CONVENIENT COPY FUNCTIONS

AUTOMATIC TWO-SIDED COPYING ............................................................ 30

SORT COPY ................................................................................................... 33

COPYING MULTIPLE ORIGINALS ONTO A SINGLE SHEET OF PAPER

(2 IN 1 copy) .................................................................................................... 35

CREATING MARGINS WHEN COPYING (Margin shift)................................. 38

5SET UP THE SOFTWARE

SOFTWARE FOR AL-1655CS........................................................................ 40

BEFORE INSTALLATION ............................................................................... 41

INSTALLING THE SOFTWARE ...................................................................... 42

SETTING UP BUTTON MANAGER ................................................................ 55

CONTENTS

AL-1655CS.book 1 ページ２００４年８月２２日　日曜日　午後６時４４分

6PRINTER/SCANNER FUNCTIONS

USING THE PRINTER MODE ........................................................................ 60

BASIC PROCEDURE FOR PRINTING ........................................................... 60

USING THE SCANNER MODE....................................................................... 61

SCANNING USING THE KEYS ON THE MACHINE ...................................... 61

SCANNING FROM YOUR COMPUTER ......................................................... 62

OPERATION IN COPY, PRINTER, AND SCANNER MODES ....................... 62

HOW TO USE THE ONLINE MANUAL........................................................... 63

7USER SETTINGS

USER PROGRAMS......................................................................................... 64

SELECTING A SETTING FOR A USER PROGRAM...................................... 69

8TROUBLESHOOTING AND MAINTENANCE

DISPLAY MESSAGES .................................................................................... 71

TROUBLESHOOTING THE MACHINE........................................................... 73

PROBLEMS DURING SETUP OF THE SOFTWARE..................................... 77

MISFEED REMOVAL ...................................................................................... 80

TD CARTRIDGE REPLACEMENT.................................................................. 85

DRUM CARTRIDGE REPLACEMENT............................................................ 87

CHECKING THE TOTAL COUNT AND DRUM CARTRIDGE LIFE................ 88

CLEANING THE MACHINE ............................................................................ 89

ABOUT SUPPLIES AND OPTIONS................................................................ 92

9APPENDIX

SPECIFICATIONS........................................................................................... 93

SOFTWARE LICENSE.................................................................................... 97

IMPORTANT SERVICE INFORMATION (U.S.A. only)................................... 99

END-USER LIMITED WARRANTY (Valid in U.S.A. only)............................. 100

MATERIAL SAFETY DATA SHEET.............................................................. 101

INDEX............................................................................................................ 117

AL-1655CS.book 2 ページ２００４年８月２２日　日曜日　午後６時４４分

CAUTIONS

Caution label on the machine

The label ( , ) in the fusing area of the machine indicates the following:

: Caution, risk of danger

: Caution, hot surface

Cautions on using the machine

Follow the cautions below when using this machine.

Warning:

• The fusing area is hot. Exercise care in this area when removing misfed paper.

• Do not look directly at the light source. Doing so may damage your eyes.

Caution:

• Place the machine on a firm, level surface.

• Do not install the machine in a humid or dusty location.

• When the machine is not used for a long time, for example for consecutive

holidays, turn the power switch off and remove the power cord from the outlet.

• When moving the machine, be sure to turn the power switch off and remove the

power cord from the outlet.

• Do not switch the machine rapidly on and off. After turning the machine off, wait 10

to 15 seconds before turning it back on.

• Do not cover the machine with a dust cover, cloth or plastic film while the power is

on. Doing so may prevent heat radiation, damaging the machine.

• Use of controls or adjustments or performance of procedures other than those

specified herein may result in hazardous radiation exposure.

• The socket-outlet shall be installed near the machine and shall be easily

accessible.

Important points when selecting an installation site

Do not install your machine in areas that are:

• damp, humid, or very dusty

• exposed to direct sunlight

• poorly ventilated

• subject to extreme temperature or humidity changes, e.g., near an air conditioner

or heater.

Be sure to allow the required space around the

machine for servicing and proper ventilation.

8" (20 cm)

(10 cm)

AL-1655CS.book 3 ページ２００４年８月２３日　月曜日　午後１時４８分

Cautions on handling the machine

Be careful in handling the machine as follows to maintain the performance of this

machine.

Do not drop the machine, subject it to shock or strike it against any object.

Do not expose the drum cartridge to direct sunlight.

•Doing so will damage the surface (green portion) of the drum cartridge, causing

smudges on copies.

Store spare supplies such as drum cartridges and TD cartridges in a dark

place without removing from the package before use.

•If they are exposed to direct sunlight, smudges on copies may result.

Do not touch the surface (green portion) of the drum cartridge.

•Doing so will damage the surface of the cartridge, causing smudges on copies.

Trademark acknowledgements

•Sharpdesk is a trademark of Sharp Corporation.

•Microsoft®, Windows®, Windows®95, Windows®98, Windows®Me, Windows

NT®4.0, Windows®2000, Windows®XP and Internet Explorer®are registered

trademarks or trademarks of Microsoft Corporation in the U.S.A. and other

countries.

•IBM, PC/AT, and PowerPC are trademarks of International Business Machines

Corporation.

reserved.

Adobe, the Adobe logo, Acrobat, and the Acrobat logo are trademarks of Adobe

Systems Incorporated.

•All other trademarks and copyrights are the property of their respective owners.

Supply and Consumables

The supply of spare parts for a repair of the appliance is guaranteed for at least 7

years following the termination of production. Spare parts are those parts of the

apparatus which may break down within the scope of the ordinary use of the

product - whereas those parts which normally exceed the life of the product are not

to be considered as spare parts. Consumables too, are available for 7 years

following the termination of production.

AL-1655CS.book 4 ページ２００４年８月２２日　日曜日　午後６時４４分

ENVIRONMENTAL INFORMATION

For users in the USA

As an ENERGY STAR®Partner, SHARP has determined that

this product meets the ENERGY STAR®guidelines for energy

efficiency.

Safety precautions:

This Digital Copier is rated Class 1 and complies with 21 CFR 1040.10 and

1040.11 of the CDRH standards. This means that the unit does not produce

hazardous laser radiation. For your safety, observe the precautions below.

• Do not remove the cabinet, operation panel or any other covers.

• The unit’s exterior covers contain several safety interlock switches. Do not

bypass any safety interlock by inserting wedges or other items into switch slots.

A small amount of ozone is produced within the unit during operation. The

emission level is insufficient to cause any health hazard.

Note:

The present recommended long term exposure limit for ozone is 0.1 ppm

(0.2 mg/m3) calculated as an 8hr. time-weighted average concentration.

However, since the small amount that is emitted may have an objectionable odor, it

is advisable to place the unit in a ventilated area.

USB 2.0 compatible

When connecting the machine by USB 2.0 (Hi-Speed mode),

be sure to read "System requirements for USB 2.0 (Hi-Speed

mode)" (p.59) to verify that your system and the machine

settings are configured appropriately.

!002-Cautions.fm 5 ページ２００４年９月１６日　木曜日　午後４時５３分

INTRODUCTION

Using the manual

This machine has been designed to provide convenient copying features in a

minimum amount of office space and with maximum operational ease. To get full use

of all machine features, be sure to familiarize yourself with this manual and the

machine. For quick reference during machine use, keep this manual in a handy

location.

About the operation manuals

The operation manuals for the machine are as follows:

Operation Manual (this manual)

Explains the machine and how to use it as a copier. Also explains how to install the

software that allows the machine to be used as a printer and scanner for your

computer.

Online Manual (on the accessory CD-ROM)

This manual explains the procedures for using the machine as a printer or a

scanner.

Conventions used in this manual and online manual

•Illustrations of driver screens and other computer screens show the screens that

appear in Windows XP Home Edition. Some of the names that appear in these

illustrations may differ slightly from the screens that appear in other operating systems.

•The explanations in this manual assume that the person who will install the product

and the users of the product have a working knowledge of Microsoft Windows.

•This operation manual refers to the Reversing Single Pass Feeder as the "RSPF".

•In this manual, the following icons are used to provide the user with information

pertinent to the use of the machine.

Warns that injury may result if the contents of the warning are

not properly followed.

Cautions that damage to the machine or one of its components may

result if the contents of the caution are not properly followed.

Notes provide useful information on the specifications, functions,

performance, and operation of the machine.

The display screens, messages, and key names shown in the manual may differ

from those on the actual machine due to product improvements and modifications.

Warning

Caution

Note

AL-1655CS.book 6 ページ２００４年８月２２日　日曜日　午後６時４４分

MAIN FEATURES

High-speed laser copying

• First-copy time*1at 300 dpi*2is only 9.6 seconds.

• Copying speed is 16 copies per minute. This is ideal for business use and provides

a big boost to workplace productivity.

*1The copy time in the case when the power is turned on and copying using the

document glass is started immediately after the power save indicator goes off

(8-1/2" x 11", paper fed from paper tray).

The first-copy time may vary depending on machine operating conditions and

ambient conditions such as temperature.

*2"dpi" ("dots per inch") is unit that is used to measure resolution. Resolution

indicates how much detail can be reproduced in a printed or scanned image.

High-quality digital image

• High-quality copying at 600 dpi is performed.

• In addition to automatic exposure adjustment, two original modes can be selected:

"TEXT" for text-only originals, and "PHOTO" for photographs. The exposure can

be adjusted to five levels in each mode.

• The photo mode copying function allows clear copying of delicate halftone original

images such as monochrome photos and color photos.

Enhanced copying features

• Zoom copies can be made from 25% to 400% in increments of 1%. (When the

RSPF is being used, the zoom copy ratio range is 50% to 200%.)

• Continuous copying of up to 99 copies is possible.

• Sets of output can be offset from each other for easy separation (offset function).

• Sorting by sets is possible without the need for a sorter or other special device

(Sort copy).

• Includes convenient features such as margin shift, 2 IN 1 copy, and automatic two-

sided copying.

Scan once/Print many

• The machine is equipped with a memory buffer allowing the machine to scan an

original once and make up to 99 copies of the scanned image. This improves

workflow, reduces operating noise from the machine and reduces wear and tear

on the scanning mechanism, which provides for a higher reliability.

LCD panel displays messages

• The LCD panel displays messages that show function settings and the status of

the machine.

Margin shift

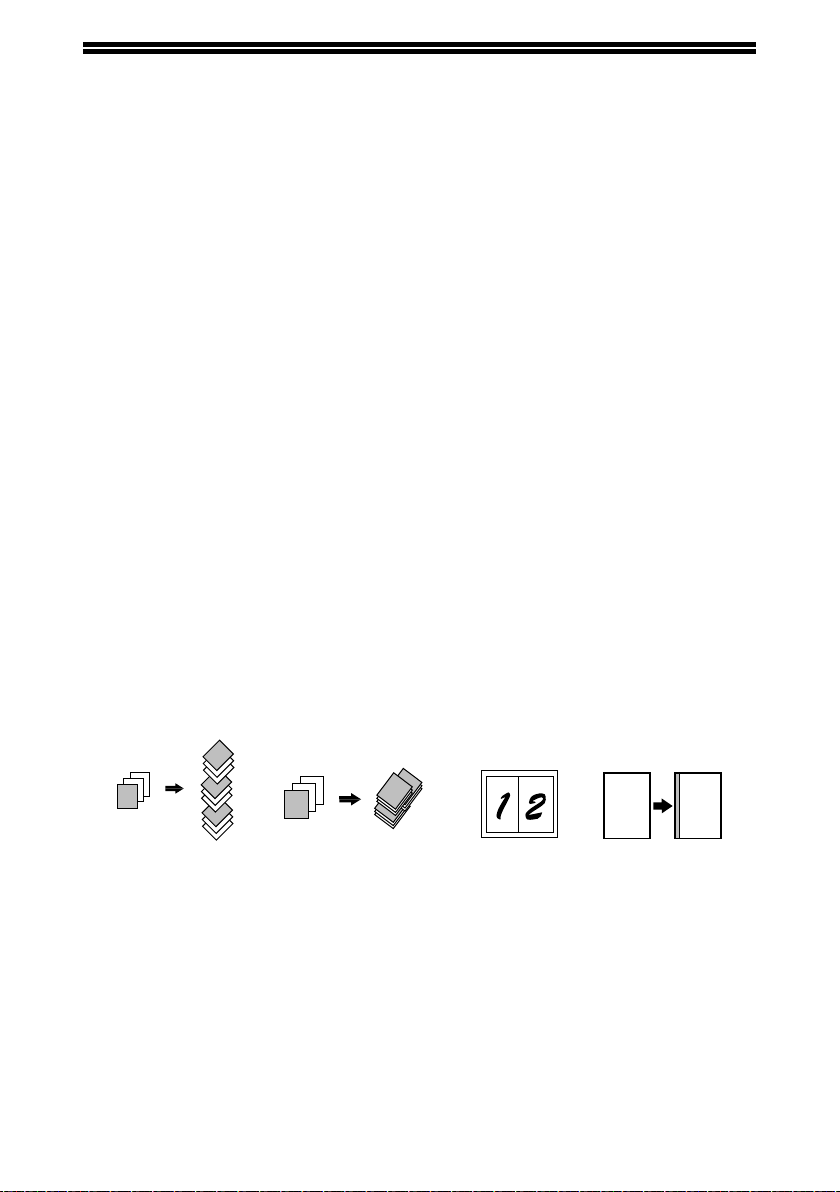

Sort copy Offset function 2 IN 1 copy

!002-Cautions.fm 7 ページ２００４年９月１６日　木曜日　午後４時５４分

Laser printer function

• Printer function

The accompanying printer driver can be installed to enable use of the machine as a

printer.

• Network printer function

A LAN connector is provided as a standard feature that allows the machine to be

used as a network printer.

Color scanner function

•The accompanying scanner driver can be installed and the machine connected to

a computer using a USB cable to enable use as a scanner.

Environment and people friendly design

•Preheat mode and auto power shut-off mode are provided to reduce power

consumption when the machine is not in use.

•A universal design has been implemented in the product whereby the height of the

operation panel and shape of the keys are designed to be usable by as many

people as possible.

AL-1655CS.book 8 ページ２００４年８月２２日　日曜日　午後６時４４分

Otros manuales para AL-1655CS

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora todo en uno de Sharp

Sharp

Sharp MX-2610N Manual de usuario

Sharp

Sharp AR-M236 Manual de usuario

Sharp

Sharp FO-3800M Instrucciones de construcción

Sharp

Sharp MX-M266N Manual de usuario

Sharp

Sharp MX-M503N Manual de usuario

Sharp

Sharp MX-M502N Guía

Sharp

Sharp AR-550 Manual de usuario

Sharp

Sharp AR M550N - B/W Laser - Copier Manual de usuario

Sharp

Sharp MX-M753U Manual de usuario

Sharp

Sharp FO-2150 Manual de usuario

Sharp

Sharp MX-M700U Manual de usuario

Sharp

Sharp MX 5500N - Color Laser - Copier Manual de instalación y funcionamiento

Sharp

Sharp AR-M270 Series Guía de configuración

Sharp

Sharp AR-M160 Manual de usuario

Sharp

Sharp AL-1633 Manual de usuario

Sharp

Sharp MX-C250F Manual de usuario

Sharp

Sharp MX-7090N Manual de usuario

Sharp

Sharp MX-C312 Manual de usuario

Sharp

Sharp MX-B402 Manual de usuario

Sharp

Sharp MX-M753 Manual de usuario

Sharp

Sharp MX-5141N Guía de instalación

Sharp

Sharp AR-800 imager Manual de usuario

Sharp

Sharp MX 5500N - Color Laser - Copier Manual de usuario

Sharp

Sharp AR-M237 IMAGERs Manual de usuario

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Brother

Brother MFC-J430w Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Brother

Brother MFC-9760 Manual de usuario

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario

Oce

Oce VarioLink 5022 Manual de usuario
