Sharp AL-1642CS Manual de usuario

CONTENTS

Parts marked with “ ” are important for maintaining the safety of the machine. Be sure to replace these parts

with the replacement parts specified to maintain the safety and performance of the machine.

SHARP CORPORATION This document has been published to be used

for after sales service only.

The contents are subject to change without notice.

SERVICE MANUAL

CODE : 00ZAL1642CS1E

DIGITAL LASER COPIER/

DIGITAL MULTIFUNCTIONAL

SYSTEM

MODEL AL-1642CS

(AL-1642CS)

The AL-1642CS Service Manual describes only changed from AL-1215/AL-1530CS/

AL-1540CS/AL-1551CS Service Manual.

For the common contents, please refer to the AL-1215/AL-1530CS/AL-1540CS/

AL-1551CS Service Manual (Code: 00ZAL1551CS1E)

[ 1 ] GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1

•Parts Guide

MODEL Reference MODEL

1 AL-1642CS AL-1215/AL-1540CS (SPF section)

AL-1551CS (Duplex section, second cassette unit)

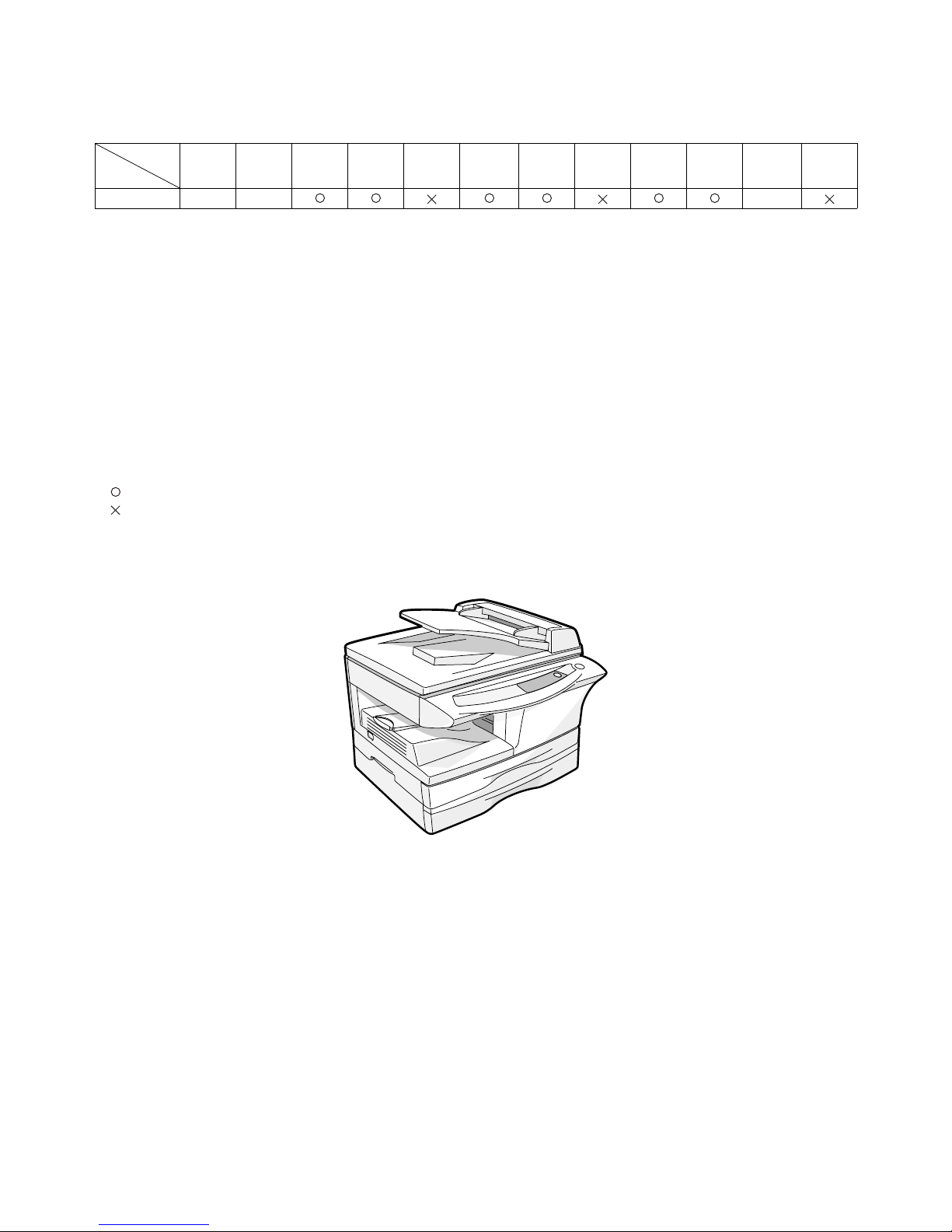

AL-1642CS GENERAL 1 - 1

[1] GENERAL

1. Major functions

Configurations

Descriptions of items

CPM: Copy speed (Copies Per Minute)

SB/MB: SB = Manual feed single bypass, MB = Manual feed multi bypass

2 tray: Second cassette unit.

SPF: Original feed unit

R-SPF: Duplex original feed unit

Color scanner: Color scanner function

GDI printer: GDI printer function with USB.

PCL printer: PCL printer function with USB.

SOPM: Scan Once Print Many function (Many copies are made by one scan.)

Duplex: Auto duplex copy/print function

Memory: Standard page memory

FAX: FAX function.

Descriptions of table

: Standard provision

: No function or no option available

Opt: Option

Item CPM

(LT) SB/MB 2 Tray SPF R-SPF Color

Scanner

GDI

printer

PCL

printer SOPM Duplex Memory FAX

Model

AL-1642CS 16CPM MB 16M

(AL-1642CS)

qPARTS GUIDE

CONTENTS

SHARP CORPORATION

This document has been published to be used

for after sales service only.

The contents are subject to change without

once.

CODE:00ZAL1642CSP1

DIGITAL LASER COPIER /

DIGITAL MULTIFUNCTIONAL

SYSTEM

MODEL AL-1642CS

1Exteriors

2SPF exteriors

3SPF transport unit

4SPF pick up unit

5Operation panel

6Side door unit

7Optical frame

8LSU unit

9Delivery paper guide unit

FMiddle frame

GBase plate unit 1

HBase plate unit 2

IFusing unit

JDrive unit

K Multi manual paper feeding cover unit

L Multi manual paper feeding unit

MSocket holder unit

NTC case unit

O250 sheets tray

PHarness

Q2ND frame unit

R2ND paper feeding unit

SPacking material & accessories

TOperation PWB

UMCU PWB

VIF PWB

WDC power supply PWB

■Index

– 1 –

DEFINITION

The definition of each Rank is as follows and also noted in the list

Rank A : Maintenance parts, and consumable parts which are not included in but closely related to maintenance parts

Rank B : Performance/function parts (sensors, clutches, and other electrical parts), consumable parts

Rank E : Unit parts including PWB

Rank D : Preparation parts (External fitting, packing, parts packed together)

Rank C : Parts other than the above (excluding sub components of PWB)

Because parts marked with "!" is indispensable for the machine safety maintenance and operation, it must be replaced with

the parts specific to the product specification.

FOther than this Parts Guide, please refer to documents Service Manual(including Circuit Diagram)of this model.

FPlease use the 13 digit code described in the right hand corner of front cover of the document, when you place an order.

FFor U.S. only-Use order codes provided in advertising literature. Do not order from parts department.

1Exteriors

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

1CCAB-0003QS22 AS D Front cover

2LSOU-0001QSJZ AY D Delivery tray

3XEBS730P08000 AC C Screw(3×8)

4LSOU-0008QSJZ AH D Extension tray

5XEBS740P12000 AA C Screw(4×12)

6PTPE-0041QSZZ AB C Glass fixing tape B

7DHAI-0285QSZZ AK C OP-MCU harness

8PSHEZ0369QSZZ AE C Shading sheet

9XBBS730P08000 AA C Screw(3×8)

10 GCAB-0061QSZ1 AK D Left cabinet

11 TLABH0387QSZZ AF D Operation instruction label

12 GCOV-0045QSZ6 AK D Rear cover ABS

13 CFIX-0021QS11 AH D Glass fixing plate

14 PGLSP0007QSZZ AV B Table glass

15 PTPE-0040QSZZ AC C Glass fixing tape A

16 PCOVP0040QSJZ AL D Rear cabinet cover SPF

17 GCAB-0062QSZ2 AN D Right cabinet SPF

18 GCAB-0026QSJ2 AZ D Rear cabinet SPF

19 TCAUA0770FCZZ AB D Service caution label

20 P LT-0024QSZZ AC C Fan cushion

21 PFILZ0002QSZZ AL A Ozone filter

22 PTPE-0044QSZZ AC C Slit glass tape

23 PGLSP0008QSZZ AH B SPF glass

24 PSHEZ0181QSJZ AC C Rear cabinet maylar

25 PTPE-0010QSZZ AC C Slit glass tape

501 CFIX-0021RS51 BB E Table unit

–2 –

1Exteriors

PRP02711

501

–3 –

2SPF exteriors

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

1LSOU-0035QSZZ AR D Original tray

2LPLTP0011QSJ2 AH C Control plate F

3LPLTP0012QSJ2 AH C Control plate R

4NGERR0377FCZZ AD C Manual feeding rack gear

5XEPS730P08X00 AA C Screw(3×8X)

6NGERH0193FCZZ AB C Manual feeding gear

7SPRP0059QSZZ AD C Control plate spring

11 CFR -0011RS58 BF E SPF pick up unit

13 XEBS740P10000 AA C Screw(4×10)

14 CFR -0013RS57 BP E SPF transport unit

15 LBNDJ0013FCZ1 AE C Wire band

16 PSHEZ0384QSZZ AD C Base tray sheet

17 PSHEP0063QSZZ AC C Transport sheet

18 SPRP0113QSZ1 AD C Earth spring

19 PSHEZ0379QSZZ AD C OC sheet

20 XEBS730P08000 AC C Screw(3×8)

21 HNG-0017QSZZ AQ C SPF hinge

22 XEBS740P14000 AB C Screw(4×14)

23 NROLP0011QSZZ AD C Delivery roller

24 PSPO-0001QSZZ AB C Sponge

25 NSFTZ0010QSZZ AE C Delivery shaft

26 SPRT0061QSZZ AC C Delivery spring

27 SPRP0060QSZZ AD C Transport spring

28 NROLP0010QSZZ AD C Transport roller

29 NSFTZ0009QSZZ AE C Transport shaft

30 LPLT 0096QSZ1 AF C Base tray reinforce plate

31 LX-BZ0016QSZZ AC C Screw(3×8)

33 LSOU-0005QSJ4 BA D Base tray

34 PCUSS0025QSZ1 AQ D OC mat

35 PSHEZ0102QSZZ AD C Motor pressure sheet

36 PSHEZ0112QSZZ AE C Delivery earth sheet SPF

37 SPRC0149QSZZ AC C PS earth spring SPF

38 PSHEZ0386QSZZ AB D Rear side mylar A

39 PSHEZ0387QSZZ AB D Rear side mylar B

40 PSHEZ0388QSZZ AD C OC sheet mylar 2

45 PSHEZ0383QSZZ AC C Book detect sheet

501 CSOU-0035RS51 AZ E SPF original tray unit

(Unit)

901 DUNT-0032RS17 BY E SPF unit[Except No.34]

18 40

22 23

26 27

30 31

PRP02712

501

–4 –

3SPF transport unit

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

1PGID 0042QSJZ AL C U-turn paper guide

2XEBS730P12000 AC C Screw(3×12)

3LX-BZ0012QSZZ AC C Screw

4NGERH0972FCZZ AB C Gear(27T)

5AR P0001QSZZ AF C Drive arm

6XBPS730P05K00 AA C Screw(3×5K)

7R OTP0013QSZZ BB B SPF motor

9DHAI-0290QSZZ AN C SPF interface harness

10 LBNDJ0013FCZ1 AE C Wire band

11 SPRT0064QSZ1 AC C Drive arm spring

12 LFR -0013QSZZ AG C Drive frame

13 XRESP50-06000 AA C E-ring(E5)

14 PSHEP3029FCZZ AA C Flange sheet DUP2

15 NBLTT0046QSZZ AE B Belt(83MXL3.2)

16 NGERH0047QSZZ AF C Gear(48T/15T)

17 LPINS0019QSZZ AA C Spring pin(φ2.5-9)

18 NBRGC0017QSZZ AC C Bearing

19 NBRG 0501FCZZ AB C Metal D

20 LFR -0012QSZZ AD C Frame R

21 PSHEZ0445QSZZ AC C Sheet

22 LPLTP0013QSZ1 AC C Plate

23 SPRC0062QSZZ AC C Pressure spring

24 SPRP0065QSZZ AD C Open and shut lock spring

25 PSHEZ2174FCZZ AB C Paper feeding sheet

26 NPLYZ0146FCZZ AB C 22MXL pulley

27 NBLTT0003QSZ1 AF B Belt(B91MXL4.8)

28 JKNBZ0004QSZZ AD C JAM release knob

29 SPRC0063QSZZ AB C Delivery paper guide spring

30 PGID 0024QSZ3 AN C Transport paper guide

31 RDTCT0004QSZZ AL B Inlet detect sensor

32 NROL 0023QSZ1 AP C Delivery roller

33 PBRSR0003QSZ2 AG B Discharge brush

34 PGIDH0029QSZ1 AL C Delivery paper guide

35 PSHEP0044QSZZ AF C White sheet

36 NROL 0022QSZ1 AL C PS roller

37 PCOVP0037QSJZ AH D Front cover

38 PCOVP0038QSJ1 AL D Rear cover

39 XEBS730P10000 AC C Screw(3×10)

40 CPLT 0298QS01 AF C SPF tension plate

41 SPRT0294QSZZ AC C SPF tension spring

(Unit)

901 CFR -0013RS57 BP E SPF transport unit

30 31

PRP02713

3 SPF transport unit

–5 –

4SPF pick up unit

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

1GCAB-0008QSJ3 AM D Open and shut cabinet

2PSPO-0002QSZZ AC C Stopper sponge

4AR P0003QSZ1 AD C Stopper arm

5LSTPP0001QSZ1 AD C Paper stopper R

6XEBS730P08000 AC C Screw(3×8)

7CPWBF0155QSE1 AM E SPF sensor PWB

8DHAI-0293QSZZ AE C Sensor harness

9LEVP0009QSZZ AD C Set detect lever ACT

10 LEVP0010QSZZ AE C Open and shut detect lever ACT

11 RPLU-0004QSZ1 AQ B PU solenoid

12 XBPS730P06KS0 AB C Screw(3×6KS)

13 AR P0002QSZZ AD C Solenoid arm

14 SPRT0067QSZ1 AB C Solenoid arm spring

15 XRESP40-06000 AA C E-ring(E4)

16 NGERH0073QSZZ AE C Clutch gear(20T)

17 PPIPP0008QSZZ AD C Clutch sleeve R

18 SPRC1316FCZ1 AE C MF clutch spring B

19 LBOSZ1851FCZZ AC C STK clutch boss

20 LBSHZ0303FCZZ AC C M bushing C

21 NSFTZ0012QSZZ AG C Clutch shaft

22 LBSHZ0006QSZZ AC C M Bushing 2

23 NPLYZ0010QSZZ AE C 20MXL pulley

24 XRESP30-06000 AA C E-ring(E3)

25 SPRT0066QSZ1 AC C Clutch pawl spring

26 PT E-0019QSZZ AD C Clutch pawl

27 NROLP0024QSZ1 AH B Pick up roller

28 NGERH0990FCZZ AB C Gear(16T)

29 XPSSP20-07000 AA C Spring pin(φ2-7)

30 NGERH0992FCZZ AB C Gear(20T)

31 NROLR0922FCZ2 AR B Manual feeding roller

32 NSFTZ0011QSZ2 AF C PF shaft

33 SPRC0115QSZZ AB C Paper feeding spring

34 AR P0004QSZZ AF C Pick up arm

35 LFR -0011QSJ2 AL D Paper feeding frame

36 SPRD0114QSZ1 AD C PF frame spring

(Unit)

901 CFR -0011RS58 BF E SPF pick up unit

PRP02714

28 30

910

16 17 18 19

23 24

25 26

29 30 31

–6 –

5Operation panel

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

1CPNLH0023QS0W AR N D Panel

2CBTN-0019QS02 AF C Copy key

3JBTN-0020QSZZ AC C Copy key light

4JBTN-0005QSZZ AC C % Key

5CBTN-0050QS01 AE C Operation key R

6JBTN-0049QSZZ AF C Operation key L

8CPWBF0113QSG3 BB E Operation PWB

9XEBS730P08000 AC C Screw(3×8)

10 GCAB-0063QSZZ AT D Operation cabinet

11 XEBS730P10000 AC C Screw(3×10)

12 GCAB-0064QSZZ AN D Operation panel

PRP02715

–7 –

6Side door unit

NO. PARTS CODE PRICE

RANK

NEW

MARK

PART

RANK DESCRIPTION

1GCAB-0007QSJ2 AU D Side door

2PT E-0004QSZZ AG C Lock pawl

3SPRT0029QSZZ AC C Lock pawl spring

4PGID 0008QSZZ AD C Hinge guide

5LPLT 0132QSZZ AH C Earth plate

6SPRD0076QSZ1 AD C Earth spring

7XHBS730P06000 AC C Screw(3×6)

8XEBS730P06000 AA C Screw(3×6)

9LFR -0003QSJ3 AN D Side door inner frame

10 XEBS730P10000 AC C Screw(3×10)

11 SPRC0032QSZZ AB C Transfer pressure spring

12 DHAI-0291QSZZ AC C TCFB harness

13 SPRC0031QSZZ AB C PS earth spring

14 SPRC0030QSZZ AC C PS pressure spring

15 NSFTZ0006QSZZ AG C PS shaft

16 XRESP30-06000 AA C E-ring(E3)

17 NROLP1122FCZZ AF C PS upper roller

18 CHLDZ0010RS52 AU E Transfer holder unit

21 XEPS730P08X00 AA C Screw(3×8)

22 NGERH0048QSZZ AE C DUP drive gear

23 NGERH0051QSZZ AE C DUP drive gear A

24 NROLP0025QSZZ AM C DUP drive roller

25 SPRC0050QSZZ AB C DUP pressure spring

26 NROLP1122FCZZ AF C PS upper roller

27 XBPS730P04KS0 AB C Screw(3×4KS)

28 XBBS740P08000 AA C Screw(4×8)

PRP02716

14 15

22 23

Otros manuales para AL-1642CS

Tabla de contenidos

Otros manuales de Impresora todo en uno de Sharp

Sharp

Sharp AR-M280N Imager Manual de usuario

Sharp

Sharp AR-M355U Manual de usuario

Sharp

Sharp AR M207 - B/W Laser - All-in-One Manual de usuario

Sharp

Sharp MX-3050V Manual de usuario

Sharp

Sharp MX-C300P Guía

Sharp

Sharp AR-M355N Manual de usuario

Sharp

Sharp MX-M654N Guía

Sharp

Sharp MX-C380 Manual de usuario

Sharp

Sharp MX-C311 Manual de usuario

Sharp

Sharp MX-2600N Manual de usuario

Sharp

Sharp MX-M264U N Manual de usuario

Sharp

Sharp MX-6240N Manual de usuario

Sharp

Sharp MX-4110N Manual de usuario

Sharp

Sharp MX-2610N Manual de usuario

Sharp

Sharp MX 5500N - Color Laser - Copier Instrucciones de funcionamiento

Sharp

Sharp MX-M1204 Manual de usuario

Sharp

Sharp MX-M950 Guía de inicio rápido

Sharp

Sharp MX-NB10 Manual de usuario

Sharp

Sharp MX-3114N Operation Manual de usuario

Sharp

Sharp AR-NB3 Instrucciones de instalación y mantenimiento

Sharp

Sharp MX-C402SC Manual de usuario

Sharp

Sharp MX-C250E Guía

Sharp

Sharp MX-M260 Manual

Sharp

Sharp AJ-6020 Manual de usuario

Manuales populares de Impresora todo en uno de otras marcas

Triumph Adler

Triumph Adler DC 2016 Manual

Epson

Epson WorkForce WF-2510 Guía del usuario

Epson

Epson Stylus Scan 2000 Manual de instalación y operación

Epson

Epson PictureMate Snap PM 240 Manual de instrucciones

Konica Minolta

Konica Minolta bizhub C35 Manual de usuario

Brother

Brother MFC-J430w Manual de usuario

Konica Minolta

Konica Minolta BIZHUB 558 Manual de usuario

Lexmark

Lexmark MX710 Series Manual

Brother

Brother MFC-9760 Manual de usuario

Lexmark

Lexmark XC8155 Manual de usuario

Lexmark

Lexmark X642E Manual de usuario

Aficio

Aficio 200 Manual de usuario

Canon

Canon ImageCLASS 2300 Manual

Ricoh

Ricoh Pro C900 Manual de usuario

Lexmark

Lexmark X925 Manual de usuario

Brother

Brother Business Smart MFC-J4510dw Manual de usuario

Epson

Epson Stylus CX8400 Series Manual de usuario

Oce

Oce VarioLink 5022 Manual de usuario
