Please read before operating your new Air Purifier

Some odour ingredients absorbed by the filters may become separated and may be

discharged through the air outlet and result in additional odour. Depending on the

usage environment, especially when the product is used in a condition significantly

more severe than household use, this odour may become strong in a shorter period

than expected.

The air purifier is designed to remove air-suspended dust and odour, but not harm-

ful gases (for example, carbon monoxide contained in cigarette smoke). If the odour

sources still exist, it cannot completely remove the odour (for example, odours from

construction materials and pet odours).

It is suggested to open the window a bit when you are smoking in order to facilitate

ventilation.

In this case we recommend purchasing the optional replacement.

HEPA filter (white)

Deodorizing Pre filter (black)

Dust

pollen, dust, particles of cigarette

smoke, pet dander

Odour

cigarette smoke odour,household odour

OP_FU-A80E-EN+CL+ML.indb 2OP_FU-A80E-EN+CL+ML.indb 2 8/4/11 5:06:31 PM8/4/11 5:06:31 PM

E-1

ENGLISH

FEATURES

Exclusive Combination of Air Treatment

Technologies

Filtration System + Plasmacluster Ion

DECREASES ODOURS

Deodorizing Pre filter absorbs many com-

mon household odours.

REDUCES DUST, POLLEN, DANDER &

MOULD*

HEPA filter traps 99.97% of particles as

small as 0.3 microns.*

REFRESHES

Plasmacluster refreshes the air similar to

the way nature cleans the environment by

emitting a balance of positive and negative

ions.

*From that air is drawn through the filter

system.

Room size : 62m2

Thank you for purchasing the SHARP Air Pu-

rifier. Please read this manual carefully. Be-

fore using this product, be sure to read the

section: “Important Safety Instructions.”

After reading this manual, keep it in a conven-

ient location for future reference.

For your reference, we recommend to keep

this manual in the place where you can read

at any time.

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS

.....E-2

PART NAMES ...........................................E-4

FILTER INSTALLATION ...........................E-6

OPERATION .............................................E-7

MAINTENANCE........................................E-8

TROUBLESHOOTING............................E-10

SPECIFICATIONS................................... E-11

OP_FU-A80E-EN+CL+ML.indb 1OP_FU-A80E-EN+CL+ML.indb 1 8/4/11 5:06:32 PM8/4/11 5:06:32 PM

E-2

Read all instructions before using the unit.

When using electrical appliances, basic safety precautions should be followed, including the

following:

WARNING - To reduce the risk of electrical shock, fire or injury to persons:

•Connect the power plug to a dedicated electrical outlet for 220-240V,50/60Hz.

• Do not use the unit if the power cord or plug is damaged or the connection to the wall outlet is

loosened.

•Periodically remove dust from the power plug.

•Do not use an extension cord.

•Do not insert fingers or any objects into the air inlet or air outlet.

•Do not unplug by pulling on cord. To unplug, grasp the plug.

• Do not handle plug or unit with wet hands.

•Unplug the electrical cord before performing any maintenance.

• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, a Sharp

authorized Service Centre or similarly qualified person in order to avoid a hazard.

•Do not use near flammable gases and material such as insecticides, fragrances, and lit cigarettes.

•Do not use in humid place such as bathrooms.

• Contact the nearest Sharp Approved Service Centre for any problems, adjustments, or repairs.

•This appliance is not intended for use by persons (including children) with reduced physical, sen-

sory or mental capabilities, or lack of experience and knowledge, unless they have been given su-

pervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure they do not play with the appliance.

NOTE - Radio or TV Interference

If this air purifier should cause interference to radio or television reception, try to correct the interfer-

ence by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the unit and radio/TV receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is con-

nected.

•Contact the dealer or an experienced radio/TV technician for help.

IMPORTANT SAFETY INSTRUCTIONS

OP_FU-A80E-EN+CL+ML.indb 2OP_FU-A80E-EN+CL+ML.indb 2 8/4/11 5:06:33 PM8/4/11 5:06:33 PM

E-3

ENGLISH

CAUTIONS CONCERNING OPERATION

•Do not block any opening.

•Do not use the unit near or on hot objects, such as stoves or heaters or radiators.

•Do not use the unit with the wrong position.

• Always hold the handle on both sides of the unit when moving it.

Holding the front panel when carrying may cause it to detach, thus dropping the unit and resulting

in bodily injury.

• Do not use without filters inside the unit.

• Do not wash and reuse the filter.

Not only does it not improve filter performance, but also may cause electrical shock or malfunc-

tion.

• Clean the exterior with a soft cloth only.

Do not use corrosive cleansers, volatile fluids and/or detergents when cleaning the unit.

The unit surface may be damaged or cracked.

In addition, the sensor may malfunction as a result.

INSTALLATION GUIDELINES

• Avoid locations where curtains, etc., come into contact with any opening.

It may become dirty or a malfunction may occur.

• Avoid locations where the unit is exposed to condensation, due to rapid temperature changes.

(If it is unavoidable please allow unit to stand for 1 hour before switching on.)

(Use under appropriate conditions between 0 - 35˚C room temperature.)

• Place on a stable surface with sufficient air circulation.

When placing the unit on a heavily carpeted area, it may cause the unit to vibrate slightly.

• Avoid use in locations where greasy or oily smoke is generated (such as in a kitchen, etc.).

The unit surface may crack or the sensor may malfunction as a result.

FILTER GUIDELINES

• Follow the instructions to handle carefully and keep maintenance.

Do not install any other type of filters.

OP_FU-A80E-EN+CL+ML.indb 3OP_FU-A80E-EN+CL+ML.indb 3 8/4/11 5:06:35 PM8/4/11 5:06:35 PM

E-4

PART NAMES

ILLUSTRATIVE DIAGRAM

INCLUDED

• Operation manual

BACK

1 Air Outlet

2 Air Inlet

3 Handle

4 Main Unit

5 HEPA Filter

6 Deodorizing Pre Filter

7 Dust Sensor

8 Date Label

9 Power Cord

10 Plug

OP_FU-A80E-EN+CL+ML.indb 4OP_FU-A80E-EN+CL+ML.indb 4 8/4/11 5:06:36 PM8/4/11 5:06:36 PM

E-5

ENGLISH

MAIN UNIT DISPLAY

11 12 14 15 16 17 18

11 SHOWER Button /

SHOWER Indicator Light (green)

12 Plasmacluster ON / OFF Button /

Plasmacluster ON / OFF Indicator Light (green)

13 CHILD LOCK Button / CHILD LOCK Indicator Light (green)

14 CLEAN SIGN

The colour changes according to the air condition.

15 Plasmacluster Sign (blue)

16 FAN SPEED Indicator Light (green)

17 FAN SPEED Button

18 POWER Button

Green Yellow Red

Clean VeryImpure

OP_FU-A80E-EN+CL+ML.indb 5OP_FU-A80E-EN+CL+ML.indb 5 8/4/11 5:06:38 PM8/4/11 5:06:38 PM

E-6

FILTER INSTALLATION

Unplug the electrical cord before

performing any maintenance.

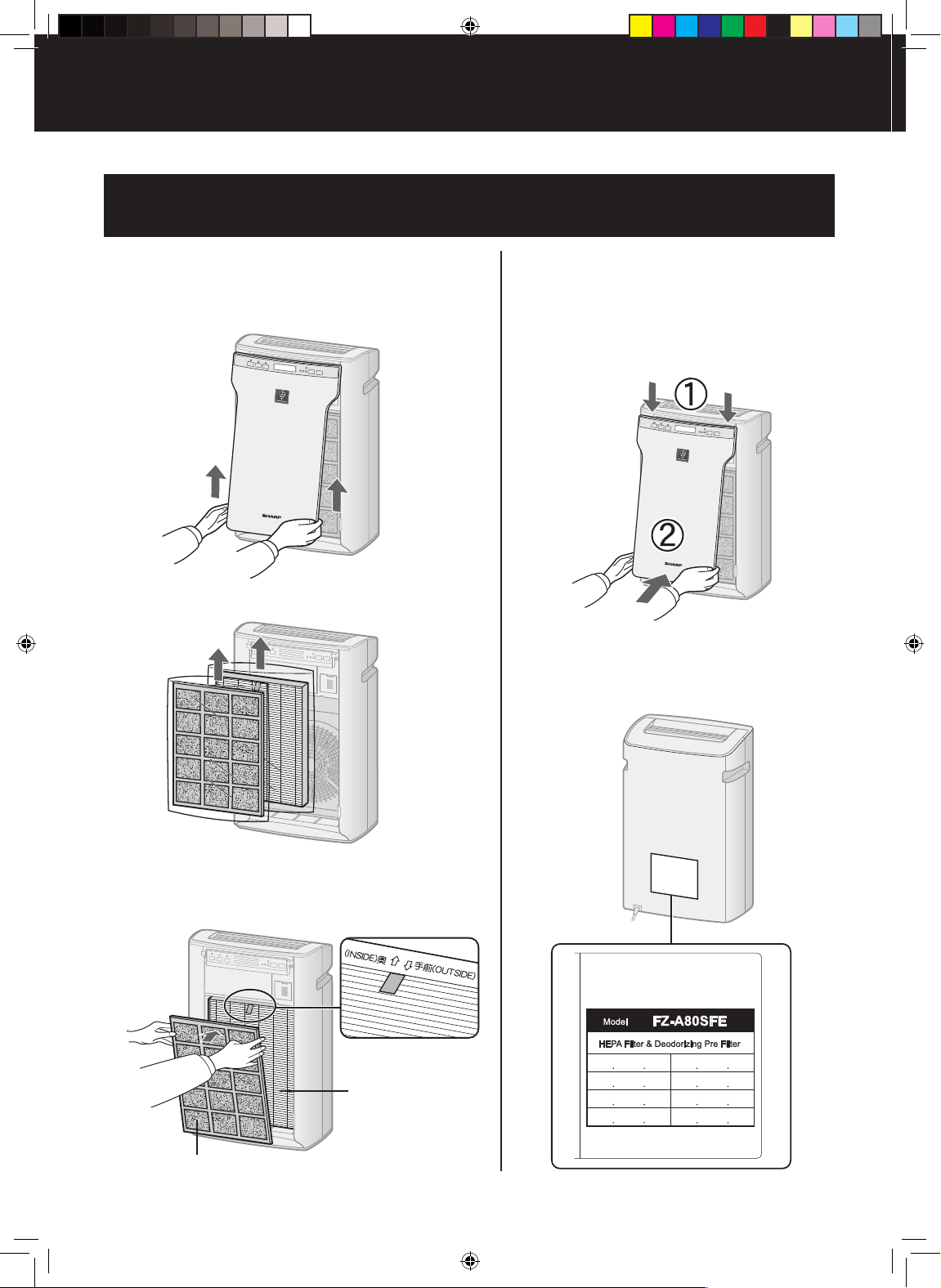

To maintain the quality of the filters, they are packed in plastic bags and installed in the

main unit. Be sure to remove the filters from the plastic bags before using the unit.

Remove the front Panel.

Gently grip the bottom of the front panel

and remove it by pulling the bottom gently

towards you.

Remove the plastic bags.

Place the filters accordingly.

Keep the order of filters.

Fix the Front Panel.

Fix the Front Panel by hooking it into

the top of the unit. Swing panel in by

pushing gently until the panel snaps

into place.

Record the date when you

start or replace the filters.

HEPA filter (white)

Deodorizing Pre filter (black)

Starting date of use

Replacement Filters

Replace the filters when they are no

longer removing odour or dust.

OP_FU-A80E-EN+CL+ML.indb 6OP_FU-A80E-EN+CL+ML.indb 6 8/4/11 5:06:39 PM8/4/11 5:06:39 PM

E-7

ENGLISH

OPERATION

Press to start / stop.

Unless the power cord has been unplugged,

the operation starts in the previous mode it

was operated in.

Press to select fan speed.

Press to turn Plasmacluster

Ion Mode ON and OFF.

Press to start SHOWER Mode..

The unit will operate at HIGH fan speed for

one hour, then will return to the prior opera-

tion.

"SHOWER" mode is effective when you

would like to clean quickly.

The Dust Sensor automatically moni-

tors dust pollution level and adjusts

fan speed accordingly.

Yellow Red

Clean Very Impure

ON OFF

321

SHOWER Operation

Light Control

Press for 3 seconds to se-

lect ON/OFF of the Plusmaclus-

ter SIGN and the CLEAN SIGN.

AUTO mode

*The air purifier operates the airflow speed

automatically according to the interior

pollution level detected by the sensor.

CHILD LOCK

Press for 3 seconds to select

CHILD LOCK.

Operation of the unit display will be

locked. It is the same method as start-

ing operation.

To cancel the CHILD LOCK mode,

press again for 3 seconds.

CLEAN SIGN

Green

OP_FU-A80E-EN+CL+ML.indb 7OP_FU-A80E-EN+CL+ML.indb 7 8/4/11 5:06:43 PM8/4/11 5:06:43 PM

E-8

CLEANING THE FILTERS

Turn off the unit, and unplug the

power cord.

Remove the Front Panel.

(Refer to E-6)

Clean the filter and Dust sensor.

Gently remove dust from the filter, using a

vacuum cleaner with attachment or similar tool.

Dust Sensor

Remove the Sensor cover, and remove the

dust on the Sensor filter.

If it is very dirty, wash it with water and dry it

thoroughly.

CLEANING THE UNIT

Dust sensor

Deodorizing Pre filter

Sensor cover

Sensor filter

MAINTENANCE

Wipe with a dry, soft cloth.

For stubborn stains or dirt, use a soft cloth

dampened with warm water.

Do not use volatile fluids and deter-

gents.

Benzene, paint thinner, polishing powder,

detergent ingredients etc., may damage

the unit.

Care Cycle :

Whenever dust accumulates on the unit or every 1 month.

OP_FU-A80E-EN+CL+ML.indb 8OP_FU-A80E-EN+CL+ML.indb 8 8/4/11 5:06:45 PM8/4/11 5:06:45 PM

Tabla de contenidos

Idiomas:

Otros manuales de Purificador de aire de Sharp

Sharp

Sharp IG-BC2E Plasmacluster Ion Manual de usuario

Sharp

Sharp FP-J80EU Manual de usuario

Sharp

Sharp FP-F40A Manual de usuario

Sharp

Sharp FP-GM50E Manual de usuario

Sharp

Sharp IG-DL1Y Manual de usuario

Sharp

Sharp FZ-60SEF Manual de usuario

Sharp

Sharp Plasmacluster KC-6400E Manual de usuario

Sharp

Sharp FZ-R60SF Manual de usuario

Sharp

Sharp FP-FM40Y Manual de usuario

Sharp

Sharp Plasmacluster IG-GC2E Manual de usuario

Sharp

Sharp KC-850EK Manual de usuario

Sharp

Sharp FU-551KB Manual de usuario

Sharp

Sharp FP-F30U Manual de usuario

Sharp

Sharp FU-28H-S Manual de usuario

Sharp

Sharp Plasmacluster KC-850U Manual de usuario

Sharp

Sharp Plasmacluster FP-JM40E Manual de usuario

Sharp

Sharp Plasmacluster FP-N60CX Manual de usuario

Sharp

Sharp FP-N40CX - Plasmacluster Ion Air Purifier Manual de usuario

Sharp

Sharp FP-JM30B Manual de usuario

Sharp

Sharp FP-J40EU Manual de usuario

Sharp

Sharp FU-60SE-K Manual de usuario

Sharp

Sharp KC-F30J Manual de usuario

Sharp

Sharp Plasmacluster IG-CH2J Manual de usuario

Sharp

Sharp IG-EX20B Manual de usuario

Manuales populares de Purificador de aire de otras marcas

IKEA

IKEA UPPÅTVIND Manual de usuario

Nash

Nash AP-1 PureSmart Manual de usuario

LG PH-U450 Series Manual de usuario

DeLonghi

DeLonghi DDSX 220WFA Manual de usuario

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manual de usuario

Philips

Philips AC2721 Manual de usuario

Hitachi

Hitachi EP-A3000 Manual de usuario

TruSens

TruSens Z-2000 Manual de usuario

Motorola

Motorola MBP87SN Manual de usuario

Beko

Beko ATP 7100I Manual de usuario

Carrier

Carrier INFINITY 1620 Manual de usuario

AtmosAir

AtmosAir P2002 Manual de usuario

Winix

Winix NK300 Manual de usuario

Friedrich

Friedrich C-90A Instrucciones de funcionamiento e instalación

Surgically Clean Air

Surgically Clean Air JADE2.0 Manual de usuario

Base aire

Base aire 555 Pro Manual de usuario

Champion

Champion CP25 Manual de usuario

vollara

vollara Air & Surface Pro+ Manual de usuario
