The air purier draws in room air through the air intake, circulates it through a Pre-
Filter and a HEPA Filter inside the main unit, and then discharges it through the air
outlet. The HEPA Filter can remove 99.97% of dust particles as small as 0.3 microns
that pass through the lter.
Some odors absorbed by the lter will break down over time, causing additional
odors. Depending on usage conditions, and especially if the main unit is used in
environments signicantly more severe than a normal household, these odors may
become noticeable sooner than expected. If these odors persist, replace the lter.
(Page 12)
Please read before operating your new Air Purier
FEATURES
Air Purifier with Mosquito Catcher protects your family’s health by catching
mosquitoes and cleaning the air by plasmacluster technology.
Catches mosquitoes with Insecticide-free material.
5 eective steps*1 based on ndings about mosquito habits, and by using air purier function.
2
1
345
1
2
3
4
5
※Mosquito catcher mode may not catch all the mosquitoes in the room.
*1: In collaboration with Institute for Medical Research, Malaysia.
UV Light attracts mosquitoes
Enticing ‘Black’ color
Ideal entrance design Powerful airow and suction Strong Glue Sheet
FP-JM30ELPV_EN_MS_VI_ZH.indb 2 2019/04/08 11:35:47
EN-1
ENGLISH
ENGLISH
Thank you for purchasing the SHARP Air Purier.
Please read this manual carefully.
Before using this product, be sure to read the
section: “Important Safety Instructions.”
After reading this manual, keep it in a convenient
location for future reference.
For your reference, we recommend to keep this
manual in the place where you can read at any
time.
IMPORTANT SAFETY
INSTRUCTIONS ...................................EN-2
PART NAMES ......................................EN-4
FILTER AND GLUE SHEET
INSTALLATION .................................... EN-6
OPERATION ........................................EN-8
CARE AND MAINTENANCE .............EN-10
REPLACEMENT GUIDELINES ......... EN-12
TROUBLESHOOTING .......................EN-14
SPECIFICATIONS ..............................EN-15
CONTENTS
High density Plasmacluster 7000
Plasmacluster treats the air similar to the way
nature cleans the environment by emitting a bal-
ance of positive and negative ions.
Convenient HAZE operation when
the HAZE is present
HAZE mode enables fast removal of HAZE with
high air volume.
Quiet operation while capture the
mosquitoes at the time of sleep
When you switch to SLEEP mode, it operates
quietly with the Plasmacluster Ion and UV Indi-
cator Lights light o and the UV Light less bright,
while mosquito catcher function is still on.
Filtration System
Traps Dust*2
Pre-Filter traps dust and other large airborne par-
ticles.
Reduces Pollen & Mold*2
HEPA Filter traps 99.97% of particles as small as
0.3 microns.
*2 When air is drawn through the lter system.
FP-JM30ELPV_EN_MS_VI_ZH.indb 1 2019/04/08 11:35:48
EN-2
IMPORTANT SAFETY INSTRUCTIONS
Always follow basic safety precautions
when using electrical appliances,
including the following:
WARNING – Always observe the
following to reduce the risk of electrical
shock, re, or injury:
• Read all instructions before using the
main unit.
• Use only a 220-240 volt outlet.
• This appliance is not intended for
use by persons (including children)
with reduced physical, sensory
or mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of the
appliance by a person responsible
for their safety.
Children should be supervised to
ensure they do not play with the
appliance.
• If the power cord is damaged, it must
be replaced by the manufacturer, its
service agent, a Sharp authorized
Service Center or similarly qualied
persons in order to avoid a hazard.
Contact the nearest Service Center
for any problems, adjustments, or
repairs.
• Be sure to remove the power plug,
before performing maintenance,
when removing and attaching and
replacing the lter and when not
using for a long time. Failure to do
so can cause a short circuit resulting
in electrical shock or re.
• Do not use the main unit if the power
cord or plug is damaged or if the
connection to the wall outlet is loose.
• Periodically remove dust from the plug.
• Do not insert ngers or foreign objects
into the air intake or air outlet.
• When removing the power plug, always
hold the plug and never pull on the
cord.
Failure to do so can cause a short
circuit resulting in electrical shock or
re.
• Be careful not to damage the power
cord, it may cause electric shock,
excess heat or res.
• Do not remove the plug when your hands
are wet.
• Do not place the main unit near or on
hot objects, such as stoves or heaters,
or where it may come into contact with
steam.
• Do not operate the main unit in rooms
where aerosol insecticides are present.
Do not operate the main unit in rooms
where there is oily residue, incense,
sparks from lit cigarettes, or chemical
fumes in the air. Do not operate the main
unit in places where it may get wet, such
as a bathroom.
• Be cautious when cleaning the main unit.
Strong corrosive cleansers can damage
the exterior.
• Do not expose the main unit to water.
Doing so can cause a short circuit or
electrical shock.
NOTE – What to do if the main unit
interferes with radio or TV reception
If the air purier interferes with radio or
television reception, try one or more of the
following measures:
• Adjust or reposition the receiving antenna.
• Increase the distance between the main
unit and the radio or TV.
• Connect the equipment into an outlet on a
circuit dierent from that of the radio or TV
receiver.
• Consult the dealer or a qualied radio or
TV technician.
FP-JM30ELPV_EN_MS_VI_ZH.indb 2 2019/04/08 11:35:48
EN-3
ENGLISH
CAUTIONS CONCERNING
OPERATION
• Do not block the air intake or air outlet.
• Always operate the main unit in an
upright position.
• Do not move the main unit when it is in
operation.
• When moving the main unit, use the
handles on both sides.
• If the main unit is on easily damaged
ooring, an uneven surface, or thick-piled
carpet, lift it up when moving.
• Do not operate the main unit without the
lters properly installed.
• Do not wash and reuse the HEPA Filter.
Doing so will not improve lter
performance and can also cause electric
shock or operating malfunctions.
• Clean the exterior with a soft cloth only.
Do not use volatile uids or detergents.
The main unit surface may be damaged
or cracked with Benzine, paint thinner or
polishing powder. In addition, the sensors
may malfunction as a result.
• Do not scrub the Pre-Filter hard during its
maintenance.
• Do not look directly into the UV Light.
UV Light meet the standards of IEC
(62471).
CAUTIONS CONCERNING
GLUE SHEET
• Handle the Glue Sheet with care. Avoid
children or pet from touching the sticky
surface.
• If the glue material adheres to hands or
clothing, wash them quickly and carefully
with soap and water after removing the
material by using cooking oil.
• Dust and dirt collecting on the sheet may
reduce the eectiveness of Glue Sheet.
• If no mosquitoes are collected on the
sheet, try changing the location of the
main unit.
• When disposal, dispose it according to
the local disposal laws and regulations.
• This is a completely safe adhesive type
product. No toxic ingredients.
INSTALLATION GUIDELINES
• Avoid locations where the sensors are
exposed to direct wind.
Doing so can cause the main unit to
malfunction.
• Avoid locations where furniture, fabrics,
or other objects can come in contact with
the main unit and interfere with the intake
and outtake of air.
• Avoid locations where the main unit
is exposed to condensation or drastic
changes in temperature. Appropriate
room temperature is between 0 – 35 ºC.
• Place the main unit on a level and stable
surface with sucient air circulation.
When placed on heavy carpet, the main
unit may vibrate slightly.
• Avoid locations that generate grease or
oily smoke.
Doing so can cause the main unit exterior
to crack and the sensors to malfunction.
• The dust collecting ability of the main
unit is eective even when the main unit
is as close to 3 cm from the wall,the
surrounding walls and oor may get dirty.
Please place the main unit at a distance
from the wall.
The wall directly behind the air outlet may
become dirty over time. When using the
main unit for an extended period of time
at the same location, periodically clean
the walls adjacent to it.
FILTER GUIDELINES
• Follow the instructions in this manual for
proper lter care and maintenance.
FP-JM30ELPV_EN_MS_VI_ZH.indb 3 2019/04/08 11:35:48
EN-4
PART NAMES
2
FRONT
1
1Air Outlet
2Main Unit
3MODE Button, Light (green)
(Press 3 sec.)
Plasmacluster Ion ON/OFF Button
4OFF TIMER Button, Light (green)
(Press 3 sec.)
Filter RESET Button
5REPLACE FILTER Light (orange)
6Plasmacluster Ion Indicator Light (blue)
7HAZE Button, Light (green)
(Press 3 sec.)
LIGHT ON/OFF Button
8POWER ON/OFF Button
9MOSQUITO CATCHER Button
(Press 3 sec.) SHEET RESET Button
10 UV Indicator Light (blue)
8
5
3
9
4
10
6
7
FP-JM30ELPV_EN_MS_VI_ZH.indb 4 2019/04/08 11:35:48
EN-5
ENGLISH
BACK
10
1UV Light 8Upper Hook
2HEPA Filter 9Bottom Hook
3Pre-Filter 10 Power Cord
4Pre-Filter Tabs 11 Plug
(Shape of plug depends on country.)
5Catch Panel
6Handle 12 Air Inlet
7Magnet 13 Glue Sheet
INCLUDED
• Glue Sheet : 2 pieces
11
13
4
5
3
2
9
8
7
(INSIDE)
Hold this Handle
when lifting the
main unit.
6
1
12
FP-JM30ELPV_EN_MS_VI_ZH.indb 5 2019/04/08 11:35:48
EN-6

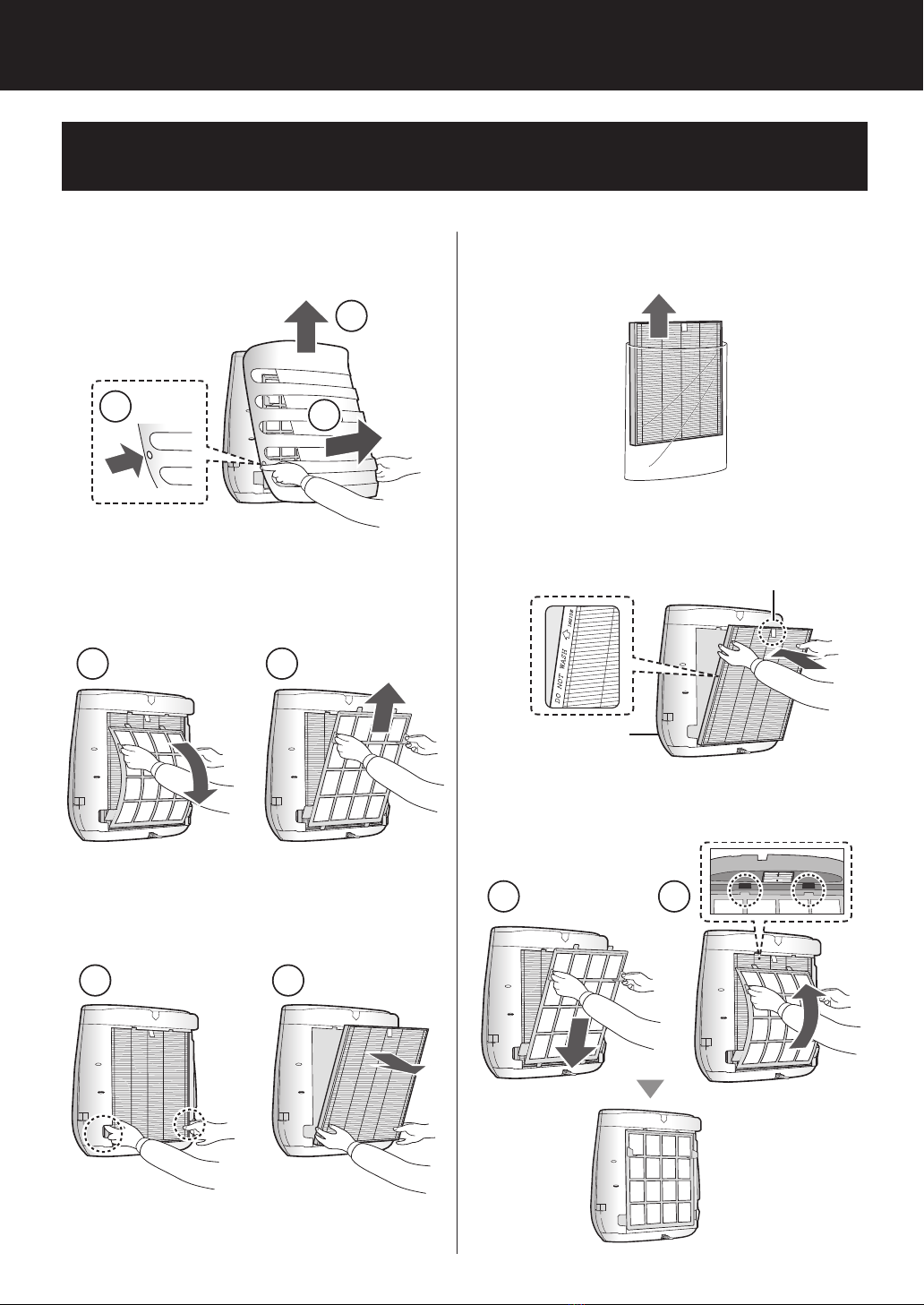

FILTER AND GLUE SHEET INSTALLATION
To maintain the quality of the lter and Glue Sheet, it is installed in the main unit and packed in plas-
tic bag. Be sure to remove the lter and Glue Sheet from the plastic bag before using the main unit.
1
Remove the Catch Panel from
underpart.
2
Hold the tabs of Pre-Filter and
remove it.
3
Remove the lter.
4
Remove the lter from
the plastic bag.
5Hold upper part of HEPA Filter
and set it.
6Hold tab of Pre-Filter, and install
it.
1 2
1 2
21
HEPA Filter
Tag
3
2
1
FP-JM30ELPV_EN_MS_VI_ZH.indb 6 2019/04/08 11:35:49
EN-7
ENGLISH
Be sure to remove the power plug from the wall outlet.
7
Remove the Glue Sheet from the
plastic bag.
・ Keep the additional Glue Sheet
away from direct sunlight and
lay it at with glue side face up.
8
①Hang the Glue Sheet on Upper
hook of the inner side of the
Catch Panel.
②Insert it into Bottom hook.
9
Remove protective film slowly
from the corner of Glue Sheet.
・Dispose protective lm as
burnable rubbish.
・Make sure that its bottom part is
properly inserted to the Bottom
hook.
10
Attach Catch Panel from upper
part.
Be careful not to stick the Glue
Sheet to hair or clothes.
2
1
2
1
Click
FP-JM30ELPV_EN_MS_VI_ZH.indb 7 2019/04/08 11:35:49
EN-8
OPERATION
MED MAX SLEEP
The main unit operates at HIGH fan speed for 60 minutes and then alternates between Low and High
level for 20 minutes each.
START / STOP
START
• Unless the power cord has been unplugged,
the operation starts in the previous mode it
was operated in.
STOP
HAZE
10 minutes: Max High fan level
50 minutes: High fan level
20 minutes: Low fan level
20 minutes: High fan level
• The Plasmacluster Ion can not be turned “OFF”.
• It is possible to switch this mode to another while operating.
However, the HAZE mode will not function after switching
mode.
NOTE
FAN SPEED
SLEEP
• The main unit will operate very quietly with low fan
speed. Plasmacluster Ion Indicator Light and UV
Indicator Light go o and the UV Light becomes dark
automatically. Even though Plasmacluster Ion Indicator
Light is o, Plasmacluster Ion is dispersed into air
unless Plasmacluster Ion is turned o by .
NOTE
OFF TIMER
4h ● 8h ● CANCEL
Select the time turning o the main unit during operation. The main unit automatically stops once
the selected time is reached.
FP-JM30ELPV_EN_MS_VI_ZH.indb 8 2019/04/08 11:35:50
Otros manuales para FP-JM30E
1
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Idiomas:
Otros manuales de Purificador de aire de Sharp
Sharp
Sharp Plasmacluster FP-P30U Manual de usuario
Sharp
Sharp Plasmacluster IG-A10J-B Manual de usuario
Sharp
Sharp FZ-40SEF Manual de usuario
Sharp
Sharp FP-A80M Manual de usuario
Sharp
Sharp Plasmacluster KC-6400E Manual de usuario
Sharp
Sharp UA-PN1U Manual de usuario
Sharp
Sharp FP-J50TA Manual de usuario
Sharp
Sharp FU-551KB Manual de usuario
Sharp
Sharp Plasmacluster KC-C150U Manual de usuario
Sharp
Sharp KC-C70E Manual de usuario
Sharp
Sharp IZCA10EKW Instrucciones de funcionamiento
Sharp
Sharp IG-GC2EU Manual de usuario
Sharp
Sharp FU-Y30J-W Manual de usuario
Sharp
Sharp FP-F30Y Manual de usuario
Sharp
Sharp FP-G50E Manual de usuario
Sharp
Sharp UA-HG40E Manual de usuario
Sharp
Sharp Plasmacluster KC-860U Manual de usuario
Sharp
Sharp Plasmacluster IG-GC2E Manual de usuario
Sharp
Sharp IZCA10EKW Manual de lista de piezas
Sharp
Sharp FU-440E Manual de usuario
Manuales populares de Purificador de aire de otras marcas
Winix
Winix NK300 Manual de usuario
Friedrich
Friedrich C-90A Instrucciones de funcionamiento e instalación
Surgically Clean Air
Surgically Clean Air JADE2.0 Manual de usuario
Base aire
Base aire 555 Pro Manual de usuario
Champion
Champion CP25 Manual de usuario
vollara
vollara Air & Surface Pro+ Manual de usuario
