Shark NV22LC Manual de usuario

Owner’s Guide

Guide d’utilisation

NV22LC

www.sharkclean.com

TOLL FREE: 1-800-798-7398

TECHNICAL SPECIFICATIONS

Voltage: 120V.

Watts: 1200W

Amps: 10A

Hertz: 60Hz

TOLL FREE: 1-800-798-7398

1www.sharkclean.com

English

Contents

Important Safety Instructions 2

Getting Started 4

Using the Vacuum 6

Cleaning with the Vacuum Accessories 7

Emptying the Dust Cup Assembly 8

Proper Care of Your Vacuum 9

Troubleshooting 10

Checking for Blockages 11

Maintenance 12

Warranty and Registration 13

Thank you for

purchasing

the Shark®

Navigator

Upright Vacuum.

2TOLL FREE: 1-800-798-7398

WARNING:

TO REDUCE THE RISK OF ELECTRIC

SHOCK OR INJURY DO NOT USE

OUTDOORS OR ON WET SURFACES.

WHEN USING YOUR SHARK® NAVIGATOR

UPRIGHT VACUUM, BASIC SAFETY

PRECAUTIONS SHOULD ALWAYS BE

FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING

YOUR SHARK® NAVIGATOR UPRIGHT

VACUUM.

POLARIZED PLUG:

This appliance has a polarized plug (one blade

is wider than the other). As a safety feature, this

plug will ﬁt into a polarized outlet only one way.

Do not force into the outlet or try to

modify the plug to ﬁt.

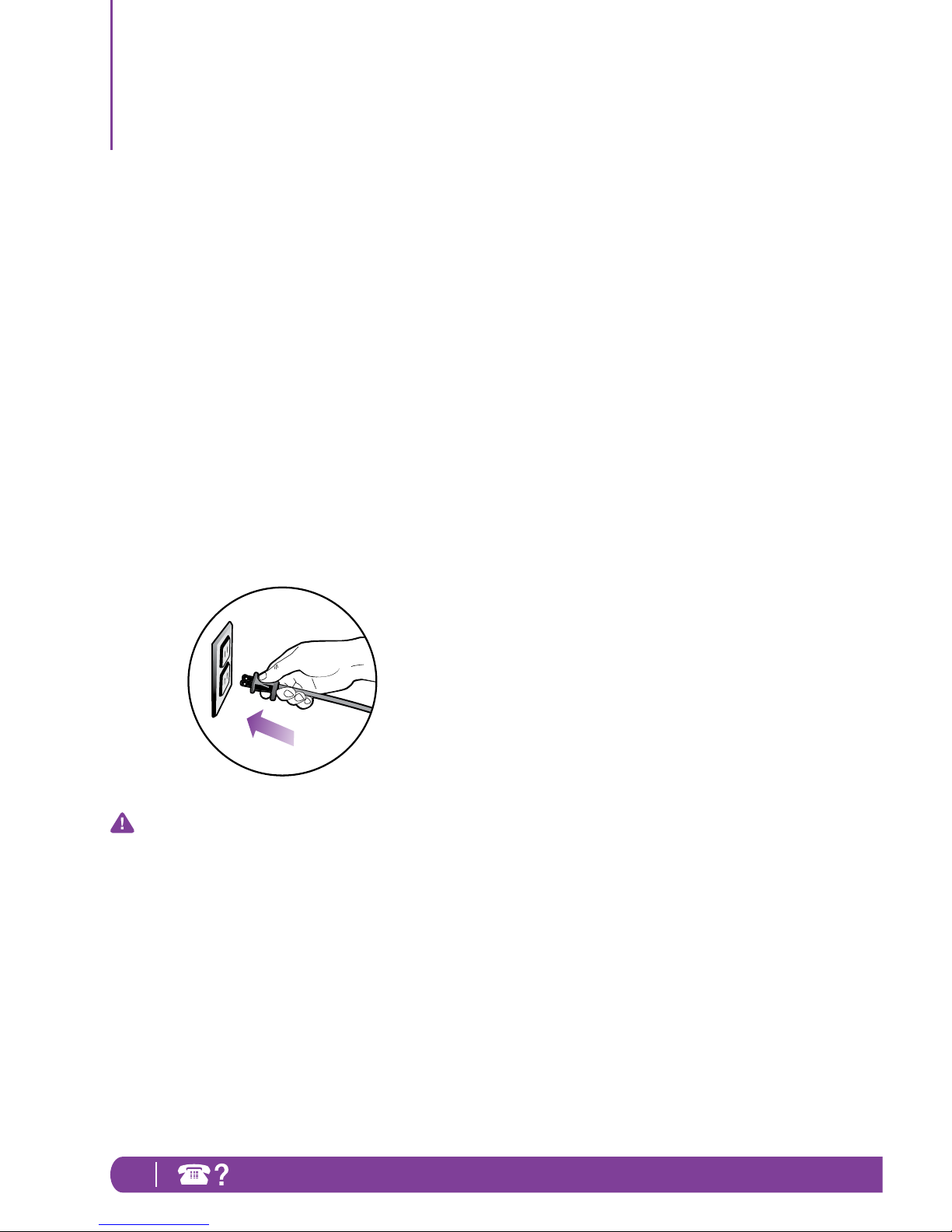

GENERAL ELECTRICAL SAFETY:

1. Unplug from electrical outlet when not in use

and before servicing.

2. DO NOT use vacuum with a damaged cord or

plug.

3. DO NOT pull or carry vacuum by the cord.

4. DO NOT unplug by pulling on cord; to unplug,

grasp the plug, not the cord.

5. DO NOT handle plug or vacuum cleaner with

wet hands.

6. DO NOT run the vacuum over the power cord.

7. DO NOT close a door on the cord.

8. DO NOT pull cord around sharp corners.

9. DO NOT leave appliance when plugged in.

10. Keep power cord away from heated surfaces.

11. Turn off all controls before plugging or

unplugging vacuum cleaner.

HOSE ATTACHMENTS:

12. DO NOT use if air ﬂow is restricted; if the air

paths, the hose or the extension tube become

blocked, turn the vacuum cleaner off. Remove

all obstructions before you turn on the unit

again.

13. Keep the end of the hose, wands and other

openings away from face and body.

14. Keep rotating brush and suction openings away

from hair, face, ﬁngers, uncovered feet or loose

clothing.

15. Only use manufacturer’s recommended

attachments.

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

For Household Use Only

TOLL FREE: 1-800-798-7398

3www.sharkclean.com

English

GENERAL USE:

16. Use only as described in this manual.

17. DO NOT put any objects into openings.

18. Keep your work area well lit.

19. Keep the vacuum moving over the carpet

surface at all times to avoid damaging the

carpet ﬁbers.

20. DO NOT place vacuum on unstable surfaces

such as chairs or tables.

21. DO NOT allow young children to operate the

vacuum or use as a toy.

22. DO NOT use vacuum cleaner if it has been

dropped, damaged, left outdoors or submerged

in water. Return to EURO-PRO Operating LLC

for examination, repair or adjustment.

CYCLONIC CHAMBER/DUST CUP/FILTERS:

23. Before turning on the vacuum:

• Make sure that dust cup, cyclonic chamber

and all ﬁlters are in place after routine

maintenance.

• Make sure that all components and ﬁlters are

thoroughly dry after routine cleaning.

• Only use ﬁlters and accessories provided by

EURO-PRO Operating LLC [Failure to do so

will void the warranty].

GENERAL CLEANING:

24. DO NOT run the vacuum over large-sized

objects.

25. DO NOT pick up hard or sharp objects such as

glass, nails, screws or coins that could damage

the vacuum cleaner.

26. DO NOT pick up smoking or burning objects

such as hot coals, cigarette butts or matches.

27. DO NOT pick up ﬂammable or combustible

materials such as lighter ﬂuid, gasoline,

kerosene or use in areas where they may be

present.

28. DO NOT pick up toxic solutions such as

chlorine bleach, ammonia or drain cleaner.

29. DO NOT use in an enclosed space where

vapors are present from paint, paint thinner,

moth-prooﬁng substances, ﬂammable dust or

other explosive or toxic materials.

30. DO NOT vacuum up any liquids.

31. DO NOT immerse vacuum cleaner in water or

other liquids.

32. DO NOT use outdoors or on wet surfaces; use

only on dry surfaces.

33. Use extra care when cleaning on stairs.

4TOLL FREE: 1-800-798-7398

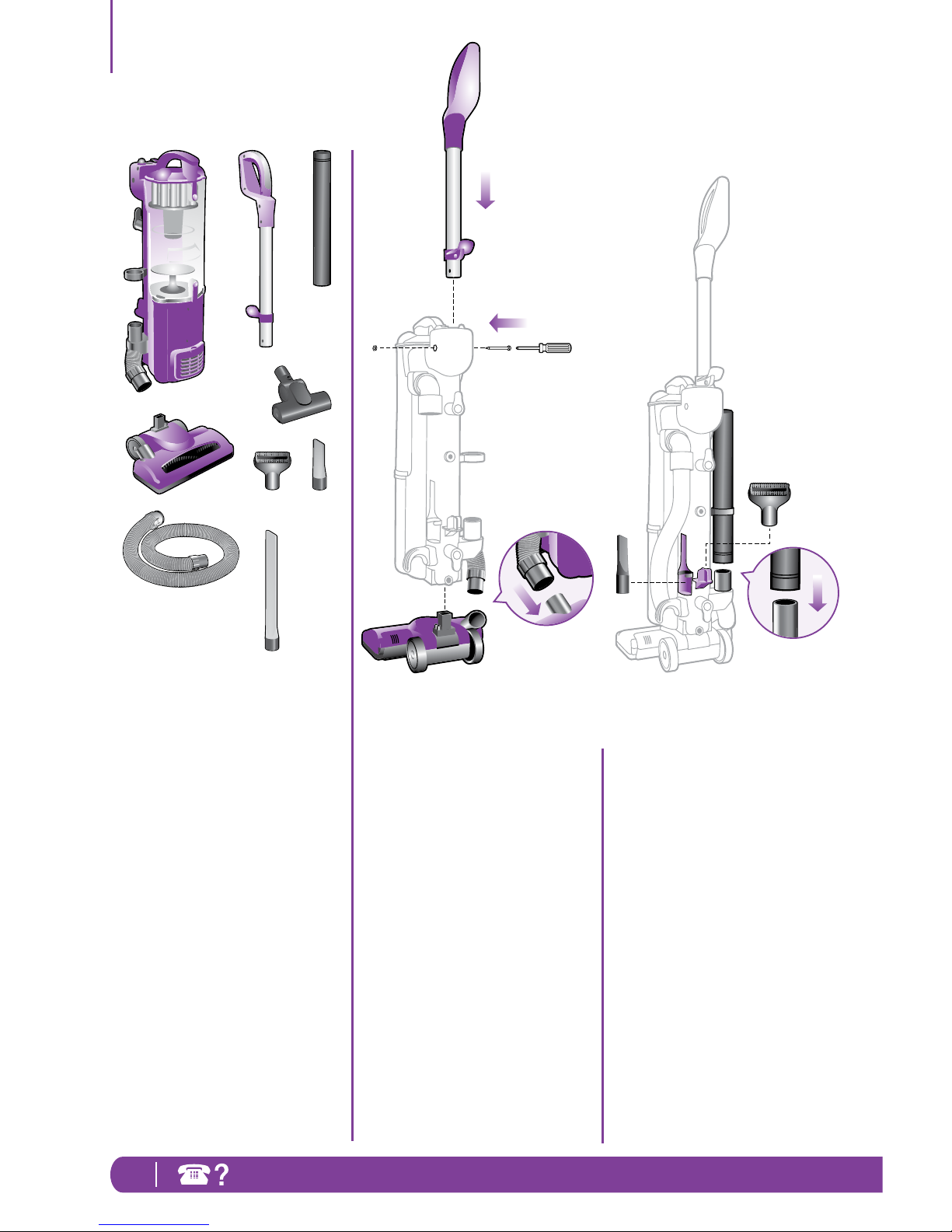

Along with your upright unit, you

will ﬁnd the following components:

a Vacuum Body

b Floor Power Nozzle

c Handle Assembly

d Super Stretch Hose

e Cleaning Wand

f Pet Hair Power Brush

g Cleaning Attachments

h 24” Crevice Tool

Note: To order additional parts and

accessories, go to www.sharkclean.com or

call 1-800-798-7398.

Getting Started

a c e

Your Shark® Navigator Upright

is easy to assemble:

1 Lay your vacuum body on a

level surface.

2 Slide the electrical connection

from the power nozzle into the

main body to click into place.

3 Connect the hose from the main

body to the power nozzle; push

with a slight turning motion to

create a snug ﬁt.

4 Slide the handle assembly

into the upright unit aligning

the hose hook on the handle

assembly with the power cord

hooks on the back of the unit.

5 Secure the handle assembly in

place with included nut/bolt

(shipped attached to handle

assembly).

6 Place the vacuum in the upright

position.

7 Store the Crevice Tool, Dusting

Brush and Cleaning Wand on

the unit.

TOLL FREE: 1-800-798-7398

5www.sharkclean.com

English

10 To carry the vacuum:

With the unit in the standing

position, lift by the Dust Cup

Assembly Handle (carry handle).

CAUTION: When lifting or

carrying, DO NOT press Dust

Cup Assembly release button.

8 9

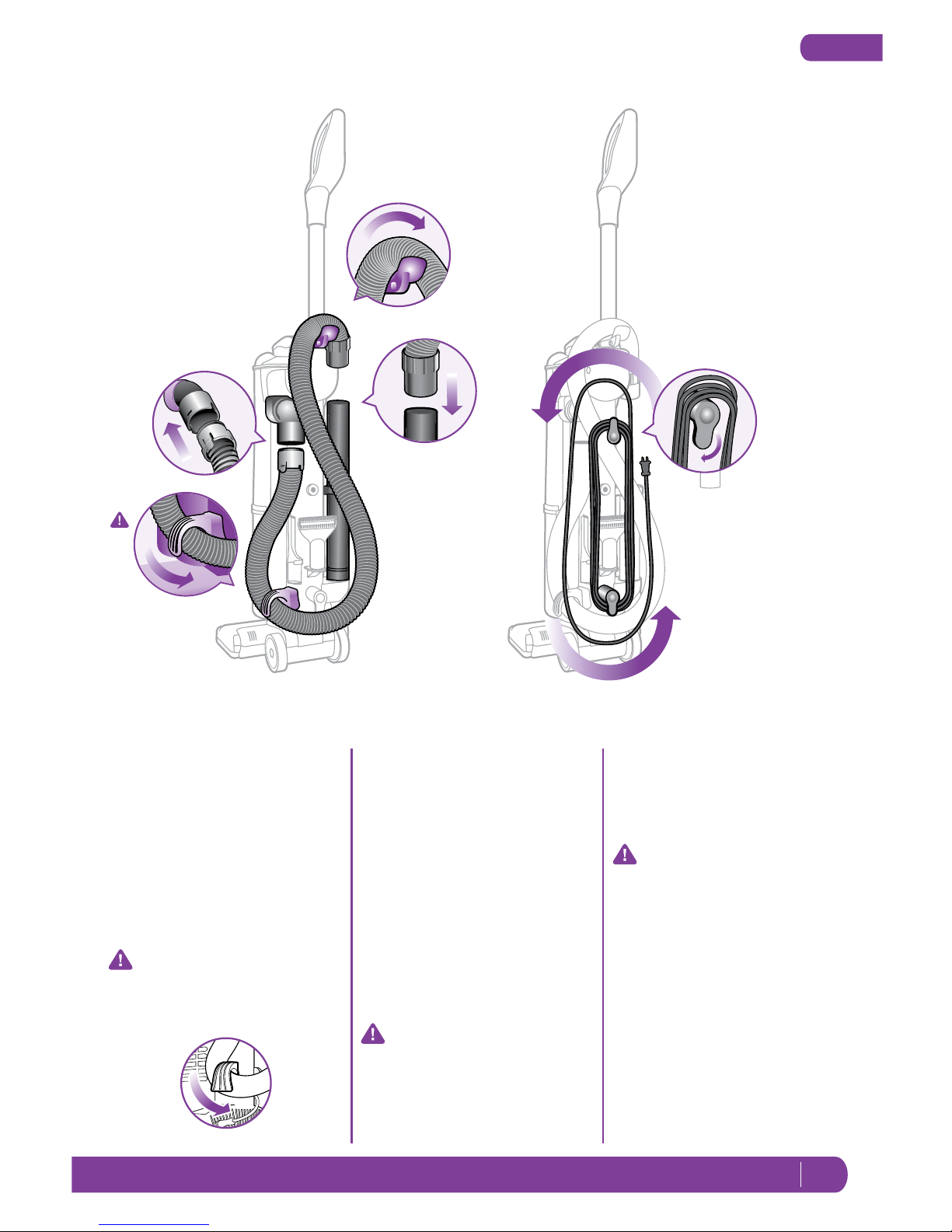

8 Attach the Super Stretch Hose:

a) Snap hose into swivel

connector

b) Route under anti-tip hook

c) Route over upper hose

holder

d) Press securely onto cleaning

wand

IMPORTANT:

To prevent vacuum from

tipping, secure hose under the

anti-tip hose hook.

9 When storing your vacuum,

wind cord around the two cord

holders and secure with cord

clip:

• Quick Cord release at the

top of the unit – place in the

upright position.

• Second holder near the

base – turn until it is pointing

down.

To release the cord, turn the Quick

Cord release to the left or right.

IMPORTANT:

For suction to reach the Floor

Power Nozzle, the Cleaning

Wand and Super Stretch Hose

must be attached securely on

the vacuum body.

6TOLL FREE: 1-800-798-7398

Using the Vacuum

Your Shark® Navigator Upright

Vacuum is a versatile tool that

can be used to clean bare ﬂoor

surfaces or carpets – with the click

of a switch.

Stand the vacuum into the upright

position.

Plug in the vacuum.

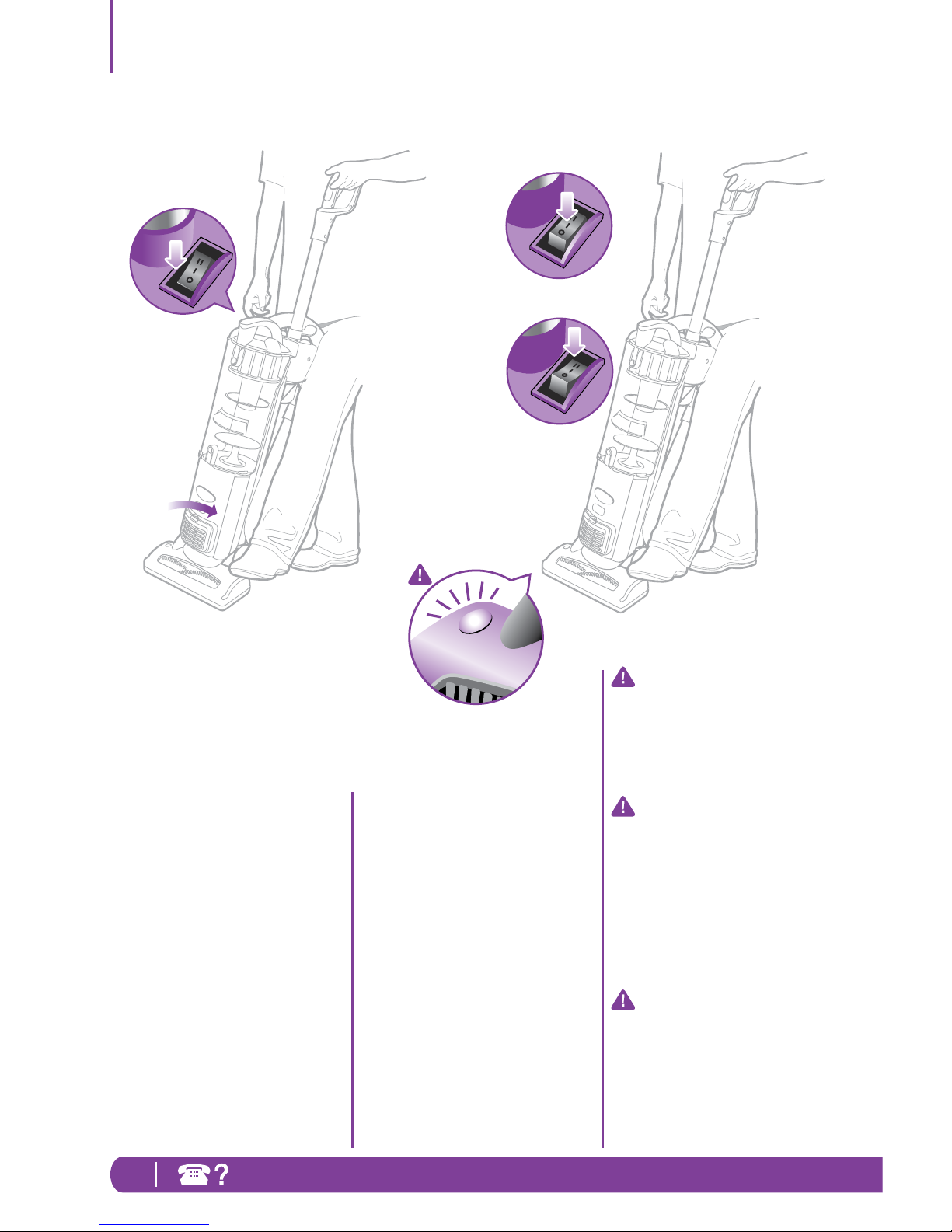

1 Start with the Power Switch in

the “O Off” position.

2 Place your foot on the Floor

Power Nozzle and pull handle

towards you.

3 Set the Power Switch to desired

cleaning setting.

4 When cleaning bare ﬂoors:

Select the “I On” position for

suction only cleaning to avoid

scattering dirt while cleaning.

When cleaning carpets:

Ensure you have pulled the

handle towards you and select

the “II Brush Roll On” position

to agitate the carpet ﬁbers for

deeper cleaning performance.

IMPORTANT:

To protect your carpets, the

Brush Roll will only turn on when

you have pulled the handle back

towards you and released the

Floor Power Nozzle.

IMPORTANT:

Your Brush Roll Indicator Light

will illuminate solid green when

brush roll is on, or solid red if

there is a blockage. This feature

is designed to protect your

Lifetime Belt that powers your

Brush Roll. See Checking for

Blockages on page 11.

NOTE: The height of your power

nozzle has been optimized for

easy pushing and superior clean-

ing on all ﬂoor types, so there

is no need to make any height

adjustments as you transition to

different ﬂoor & carpet types.

1 4

OFF

Indicator Light

Bare Floors / Tools

Carpets

TOLL FREE: 1-800-798-7398

7www.sharkclean.com

English

Cleaning with the Vacuum Accessories

Before cleaning with your

accessories:

Stand vacuum into upright position.

Secure Super

Stretch Hose in

the anti-tip hose

hook to prevent

tipping.

Select the “I On” position for

suction only cleaning.

DO NOT pull vacuum cleaner

around by the hose.

DO NOT overextend the hose.

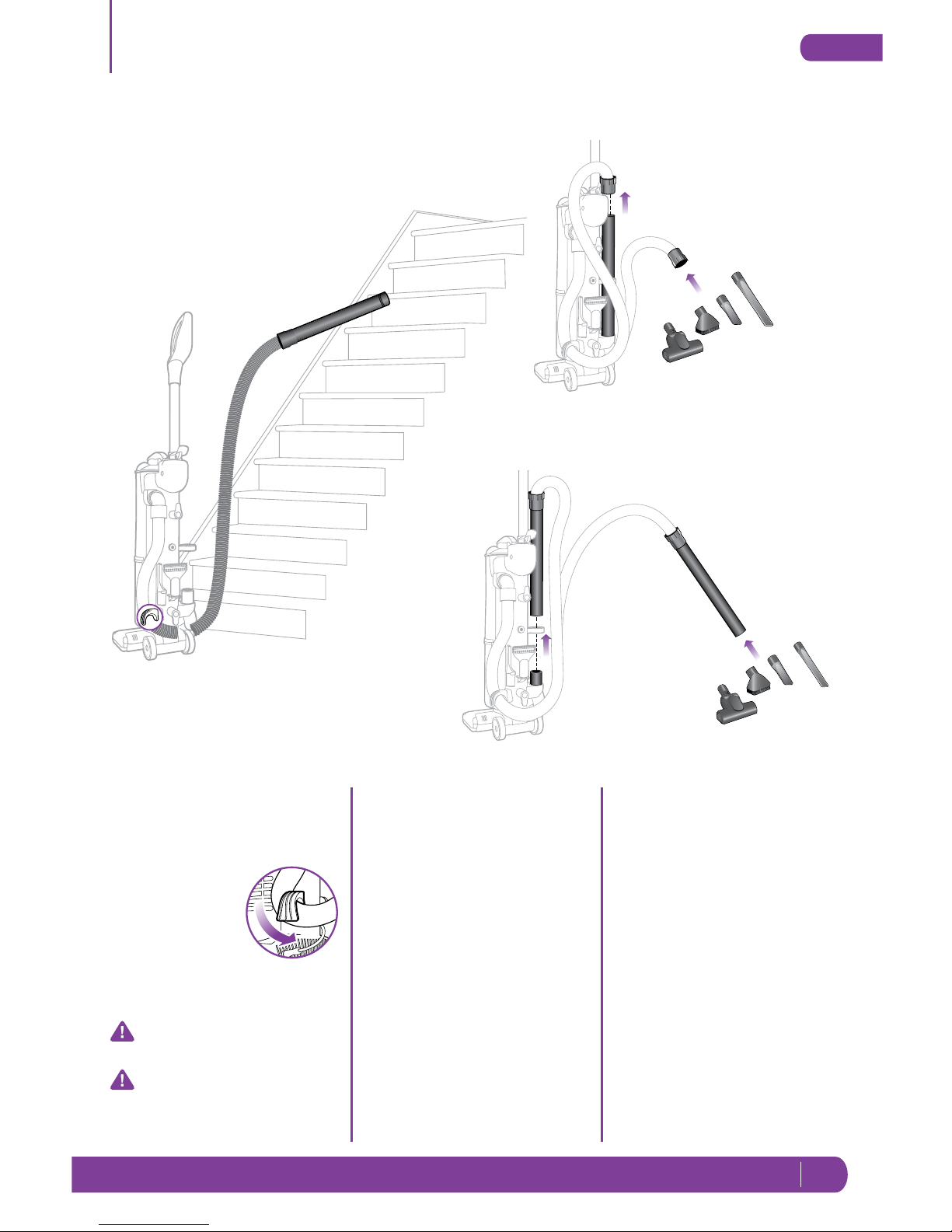

Vacuum Accessories

Your vacuum comes with a Super

Stretch Hose and Cleaning Wand.

Use one or the other to attach your

cleaning accessories.

1 Using the Super Stretch Hose:

Stand the vacuum into upright

position.

Remove the hose from the

Cleaning Wand.

Push the selected tool into the

hose connector.

456

2 Using the Cleaning Wand:

Stand the vacuum into upright

position.

Remove the Cleaning Wand

(with hose attached) from the

unit.

Push the selected tool into the

end of the Cleaning Wand.

3 Pet Hair Power Brush

4 Dusting Brush

5 Crevice Tool

6 24” Crevice Tool

To order additional parts and accessories,

go to www.sharkclean.com or call

1-800-798-7398.

8TOLL FREE: 1-800-798-7398

Emptying the Dust Cup Assembly

For best results empty the Dust Cup

Assembly after each use; empty sev-

eral times during prolonged usage.

Or empty the Dust Cup Assembly

when it reaches the MAX ﬁll line;

NEVER OVER-FILL THE DUST

CUP.

Stand vacuum into upright position.

Turn vacuum off.

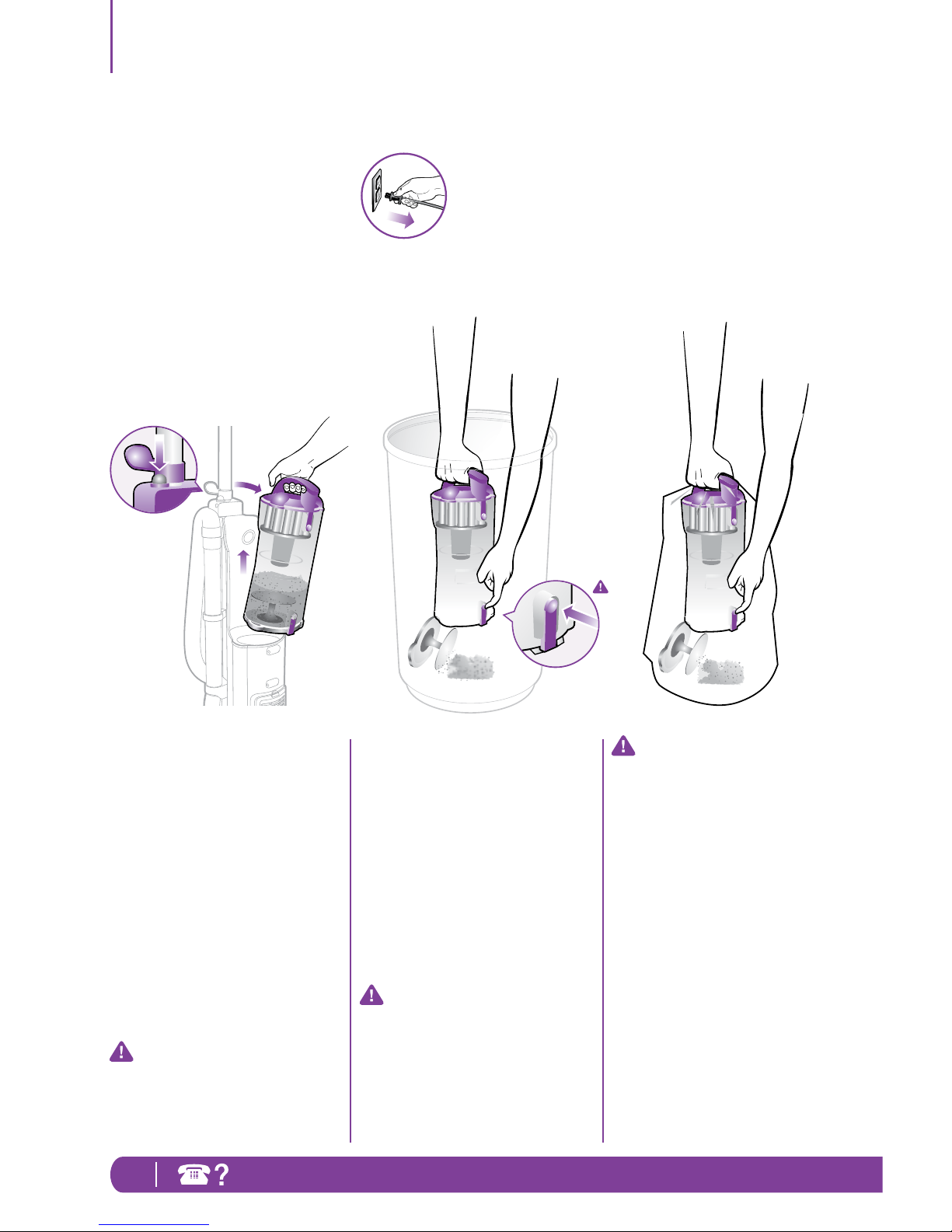

To empty the Dust Cup Assembly:

1 Grip carry handle and press

the Dust Cup release button to

remove Dust Cup Assembly

2 Option A: for Quick Empty:

Insert Dust Cup Assembly deep

inside trash receptacle to contain

dust and debris.

Press the Dust Cup Door release

button; tap container gently to

dislodge and release dust and

debris.

Snap door in place.

Important: If the Dust Cup

Door does not swing open after

pressing the release button,

push the door open using the

bottom door tabs.

CAUTION:

Unplug the vacuum;

failure to do so might

result in electric

shock.

3 Option B: For Allergy Sufferers:

Wrap a trash bag around the

Dust Cup Assembly leaving

space at the bottom for the door

to swing open.

Locate the Dust Cup Door

release button within the trash

bag and press to release as you

shake the dust cup to empty

dust and debris.

Snap the bottom door in place.

Note: Option B can also be

performed outside of the home

to further minimize releasing

dust back into the air. Carry just

the Dust Cup Assembly and trash

bag outside.

Note: Some dust and debris

may remain in the top of your

dust cup assembly on or near

the metal screen. It is not

necessary to completely remove

this material before continuing

to vacuum; Shark® advanced

cyclonic action will sweep the

metal screen clean once you

begin to reﬁll your dust cup.

1 2 3

Tabla de contenidos

Idiomas:

Otros manuales de Aspiradora de Shark

Shark

Shark Infinity NV30 Manual de usuario

Shark

Shark EURO-PRO SV7729 Manual de usuario

Shark

Shark VERTEX AZ1500WM Series Manual de usuario

Shark

Shark NV650W series Manual de usuario

Shark

Shark ZD550 Series Manual de usuario

Shark

Shark NAVIGATOR LIFT-AWAY PRO Manual de usuario

Shark

Shark Detect Pro RV2820AE Manual de usuario

Shark

Shark Rotator NV600ANZ Series Manual de usuario

Shark

Shark ION RV760 Series Manual de usuario

Shark

Shark NV480UKR Manual de usuario

Shark

Shark ROTATOR POWERED LIFT-AWAY NV755 Series Manual de usuario

Shark

Shark Rocket DELUXEPRO Manual de usuario

Shark

Shark SONIC DUO ZZ510Q Manual de usuario

Shark

Shark ION Rocket IR100 Series Manual de usuario

Shark

Shark Navigator Lift-Away ZU503AMZ Manual de usuario

Shark

Shark FLEX DuoClean HV394Q Series Manual de usuario

Shark

Shark ION RV852WVQ Series Manual de usuario

Shark

Shark Rotator NV680UK Manual de usuario

Shark

Shark ION ROBOT RV750 Manual de usuario

Shark

Shark SV745 Guía de referencia rápida

Shark

Shark Rotator Manual de usuario

Shark

Shark EZ ROBOT SELF-EMPTY 9000 Series Manual de usuario

Shark

Shark NV105 Manual de usuario

Shark

Shark NV370 Manual de usuario

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

Panasonic

Panasonic MC-YL637S147-AE Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario

Nobles

Nobles 608669 Manual del producto
