TVC-B10
10A dual speed controller RC tracked vehicles
The controller contains all components for controlling two DC motors in a
tracked vehicle.
The behavior of the integrated mixer can be set for different vehicle types.
The controller can thus be set for full tracks, half tracks and wheeled ve-
hicles with differential drive. In addition, there are variants for historical
tracked vehicles without tableturn as well as the possibility of inertia simu-
lation.
The controller is equipped with BEC and has an EMK brake, which is released
in the middle position of the throttle and steering stick. The braking effect
can be set either via an RC channel, or fixed.
TVC-B10
2© SGS electronic 2006-2023
1 Note
Installation of the module requires intermediate to advanced modeling
skills. Soldering skills are required to connect the wiring. Inexperienced
modelers and persons aged under 16 years old should seek the assistance
of an experienced modeler. Always switch off power when working on
the wiring. Especial take care when connecting more than one receiver
energy source. Prevent the device from getting wet. Check loads before
connecting them to the modul at a current limited, or fuse protected
source.
TVC-B10
3
© SGS electronic 2006-2023
Contents
1 Note 2
2 Introduction 5
2.1 Technology................................. 5
2.2 Scopeofdelivery............................. 6
2.3 options ................................... 6
3 Functional description 7
3.1 Manualcontrol .............................. 7
3.1.1 Channel 1 - proportional forward/back . . . . . . . . . . 7
3.1.2 channel 2 - proportional left/right . . . . . . . . . . . . . 7
4 Einbau 8
4.1 Batteryconnection............................ 8
4.2 Connecting the motors . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.3 Connecting the servo cables . . . . . . . . . . . . . . . . . . . . . 8
4.4 BECjumpers................................ 9
4.5 Scalebus operation (optional) . . . . . . . . . . . . . . . . . . . . . 10
5 Commissioning 12
5.1 Startup ................................... 12
5.2 Correct driving direction . . . . . . . . . . . . . . . . . . . . . . . . 12
5.3 EMFbrake ................................. 13
5.4 Errorstates ................................ 13
5.5 Changing the mixing function . . . . . . . . . . . . . . . . . . . . 14
5.5.1 How to change mixer function . . . . . . . . . . . . . . . . 14
6 Glossary of terms 16
7 Technical data 18
8 Important 19
8.1 Warning .................................. 19
8.2 Environmental protection . . . . . . . . . . . . . . . . . . . . . . . 19
8.3 Address................................... 20
8.4 Contact ................................... 20
TVC-B10
4© SGS electronic 2006-2023
8.5 Documentdate.............................. 20
8.6 Documentation.............................. 20
List of Figures
1 Assignment of the connector for power supply . . . . . . . . . 8
2 pinoutservocable............................ 9
3 servocableposition........................... 9
4 do not forward BEC voltage to receiver . . . . . . . . . . . . . . 10
5 forward BEC voltage to receiver . . . . . . . . . . . . . . . . . . . 10
List of Tables
1 servo cable assignment . . . . . . . . . . . . . . . . . . . . . . . . 9
2 Errorcodes ................................ 13
3 list of optional mixing functions available . . . . . . . . . . . . . 15
4 Abbrevation for the manipulators in the transmitter housing 17
TVC-B10
5
© SGS electronic 2006-2023
2 Introduction
The controller is designed for an input voltage range from 6.5V to 24V.
This means that the controller works with the 6 cell NC packs commonly
used in the RC car sector, but also with lead batteries up to 24V. Two stan-
dard automotive fuses protect the model and the battery from excessive
currents.
The controller has a built-in BEC circuit to power the receiver from the drive
battery.
Please note that the removable BEC current decreases as the supply voltage
increases.
To disconnect the internal BEC regulator from the receiver supply, a jumper
must be removed.
As a failsafe function, an extensive plausibility check of the transmitter
signals is integrated in the software.
In addition, the controller has a temperature monitoring of the output
stage.
It switches off at 75°C and can be switched on again at 65°C and above.
To do this, the transmitter sticks must be set to the neutral position to
prevent a sudden start after the controller has cooled down.
2.1 Technology
The controller is microprocessor controlled. The processor works with
16MHz clock frequency.
The output stage is constructed from N-channel MOSFETs, which have an
inrush resistance of only 0.008 ohms and a continuous current capability of
60A. To make effective use of the low internal resistance, the output stage
transistors are driven by sophisticated MOSFET push-pull output stages
with integrated charge pump.
Under normal ambient conditions, a continuous current of 10A is achieved.
The controller operates with a PWM frequency of 16kHz.
reicht. Der Regler arbeitet mit einer PWM-Frequenz von 16kHz.
TVC-B10
6© SGS electronic 2006-2023
2.2 Scope of delivery
The controller is supplied with the connectors for the motor connection
and the battery connection.
2.3 options
•
10 controllable light outputs for brake light, reverse light, turn signal,
warning light, RKL, low beam and high beam.
• Lipo single cell monitoring
• RC channel adjustable standstill brake
TVC-B10
7
© SGS electronic 2006-2023
3 Functional description
3.1 Manual control
A radio remote control with at least one proportional channel is required
to control the module. To use all functions, four RC channels are required.
3.1.1 Channel 1 - proportional forward/back
Direction of rotation for the motor. From the throttle channel is also derived
reverse light on/off, brake light).
3.1.2 channel 2 - proportional left/right
The control of the turn signals is derived from this channel. It is usually
connected to the steering channel with a V-cable, parallel to the steering
servo. If the channel is not connected, the turn signals only function as
warning turn signals.
TVC-B10
8© SGS electronic 2006-2023
4 Einbau
4.1 Battery connection
Fahrakku plus (+)
Fahrakku minus (-)

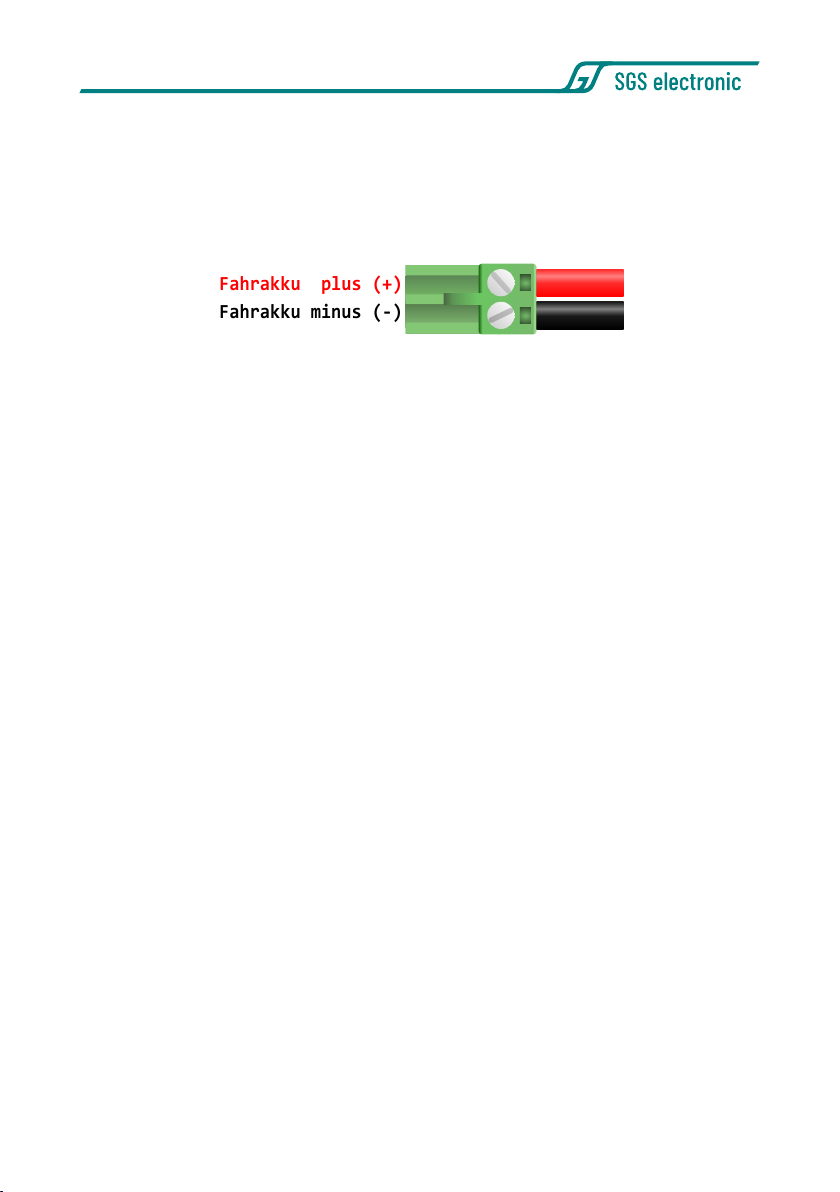

Figure 1: Assignment of the connector for power supply
Power is supplied via the green, plug-in screw terminal. Please pay atten-
tion to the correct polarity of the supply voltage! (see figure 1).
It makes sense to include a switch in the positive supply line to the battery
to switch the model on/off. Never switch the minus in RC model building,
because the minus also the reference potential of the servo signals.
There are two automotive fuses for the motor output stages on the circuit
board. They are pluggable and can be easily replaced if necessary.
If one of the power stage fuses has blown, the BEC still works and the LED
indicates the function. However, the corresponding motor output stage
no longer supplies power. In addition, the BEC circuit also has a fuse. This
is soldered onto the circuit board. If this fuse has blown, the BEC no longer
supplies voltage and the controller no longer shows any function.
4.2 Connecting the motors
Black, plug-in screw terminals are provided for the drive motors. One
motor is connected to each screw terminal. The motors must be radio
interference suppressed, as is usual in model building.
4.3 Connecting the servo cables
The controller is equipped with JR servo cables. The pinout is shown in
figure 2.
TVC-B10
9
© SGS electronic 2006-2023
Figure 2: pinout servo cable
Figure 3: servo cable position
chan-
nel
connector optional Function
1 X50 no throttle
2 X51 yes steering
Table 1: servo cable assignment
4.4 BEC jumpers
The controller contains a BEC circuit that generates a regulated voltage of
5V from the voltage of the drive battery to supply the receiver and servos.
Since in function models often several controllers with BEC are installed,
but the parallel operation is problematic under certain circumstances, the
connection of the installed BEC to the receiver can be disconnected. Two
green jumpers are used for this purpose.
If the jumpers are inserted vertically, the internal BEC voltage is passed on
to the receiver and from there to the servos.
If the jumpers are inserted horizontally (or are not inserted), the voltage is
not passed on. In this case, another module must supply the receiver with
power.
TVC-B10
10 © SGS electronic 2006-2023
Figure 4: do not forward BEC voltage
to receiver
Figure 5: forward BEC voltage to re-
ceiver
4.5 Scalebus operation (optional)
As an alternative to control via the receiver and the servo cables, the
controller can also be controlled via the scale bus. To do this, the controller
is connected to the other modules with the scale bus cable (white, four-pin
connector).
For example, the FO module TVC-MF-10 can control the controller. The
controller switches to scale bus mode if no servo signal is present at the
two servo cables when it is switched on. Accordingly, the servo cables must
not be plugged into the receiver during scale bus operation.
In scale bus mode, the controlling module specifies the mixing function.
Therefore, a controller for a half-track vehicle can also be operated with an
FO module for a battle tank.
The controller then works as a full track mixer.
Not only the information for controlling the drive motors, but also the
information for the auxiliary drives is sent via the scale bus.
If no jumper is plugged in, the information of the drives is output.
If coding bridges are plugged into servo cables 1 or 2, the motor outputs
