Miniature Pressure Transmitters
technical documentation EN Rev. of 28/06/2022
Page 2 of 20 www.sgm-lektra.com
KPT - contents
CONTENTS
1-WARRANTY
2-PRODUCT
3-FEATURES
4-DIMENSIONS
5-INSTALLATION
6-ELECTRICAL CONNECTIONS
7-DISPLAY
8-CONFIGURATION
9-FACTORY TEST AND QUALITY CERTIFICATE
page 3
page 4
page 5
page 6
page 8
page 9
page 10
page 14
page 20
Page 3 of 20
www.sgm-lektra.eu
KPT - warranty
Products supplied by SGM LEKTRA are guaranteed for a period of 12 (twelve) months from delivery date
according to the conditions specified in our sale conditions document.
SGM LEKTRA can choose to repair or replace the Product.
If the Product is repaired it will maintain the original term of guarantee, whereas if the Product is replaced it will have 12
(twelve) months of guarantee.
The warranty will be null if the Client modifies, repair or uses the Products for other purposes than the normal conditions
foreseen by instructions or Contract.
In no circumstances shall SGM LEKTRA be liable for direct, indirect or consequential or other loss or damage whether
caused by negligence on the part of the company or its employees or otherwise howsoever arising out of defective goods
1-WARRANTY
Page 4 of 20 www.sgm-lektra.com
KPT - product
2- PRODUCT
2.1 IDENTIFICATION
Each meter has an adhesive identification plate on which are indicated the meter main data.
The following picture describes the information on the identification plate.
KPLCMTFAG03
24Vdc 12÷42Vdc
PA0081604506
2
3
1Mod.
P. S .
S.N.
1. Product code 3. Serial number2. Power supply
1. connector
2. Display (opt.)
3. Process connection
4. Sensor
2
3
4
4
3
1
1
Page 5 of 20
www.sgm-lektra.eu
3-FEATURES
KPT - features
Measurement range
- Relative Pr.: Max. 0÷400bar (0÷40Mpa) Min. 0÷0,1bar (0÷10kPa)
- Absolute Pr.: Max. 0÷25bar (0÷2,5MPa) Min. 0÷1bar (0÷100kPa)
- Negative Pr.: Max. -1÷39bar (-0.1÷3.9MPa) Min. -1÷0 (-100÷0kPa)
Power Supply
12÷42Vdc (2-wire)
Output
4÷20mA
Max. Accuracy
±0.25%FS
Typical Stability
±0.5%FS for 3 years
Ambient temperature
-20° ÷ +100°C
Medium temperature
-30° ÷ +120°C
Storage temperature
-40° ÷ +125°C
Temperature compensation range
0° ÷ +80°C
Electrical connection
Connector Type A EN 175301-803 (DIN 43650)
Connector protection
IP65
Wet part protection
IP68
Diaphragm material
AISI 316
Process connection material
AISI 316
Diaphragm fill liquid
Silicone oil
Sensor housing material
AISI 304
Gasket material
NBR
Overload pressure / Burst pressure:
Range Code Range (bar) Overload P. Burst P. Range Code Range (bar) Overload P. Burst P.
C1 0÷0,25 R. 10bar 20bar C5 -1÷0 R. 10bar 20bar
C2 0÷0,4 R. 10bar 20bar D4 -1÷0,6 R. 20bar 40bar
C3 0÷0,6 R. 10bar 20bar D5 -1÷1,6 R. 20bar 40bar
D1 0÷1 R. 20bar 40bar F8 -1÷3 R. 75bar 150bar
D2 0÷1,6 R. 20bar 40bar F9 -1÷5 R. 75bar 150bar
D3 0÷2,5 R. 20bar 40bar FA -1÷9 R. 75bar 150bar
F1 0÷4 R. 75bar 150bar FB -1÷15 R. 75bar 150bar
F2 0÷6 R. 75bar 150bar FC -1÷24 R. 75bar 150bar
F3 0÷10 R. 75bar 150bar FD -1÷29 R. 75bar 150bar
F4 0÷16 R. 75bar 150bar FE -1÷39 R. 75bar 150bar
F5 0÷25 R. 75bar 150bar M1 0÷1,0 A. 20bar 40bar
F6 0÷30 R. 75bar 150bar M2 0÷1,6 A. 20bar 40bar
F7 0÷40 R. 75bar 150bar M3 0÷2,5 A. 20bar 40bar
G1 0÷60 R. 150bar 200bar O1 0÷4 A. 75bar 150bar
G2 0÷100 R. 150bar 200bar O2 0÷6 A. 75bar 150bar
H1 0÷160 R. 600bar 800bar O3 0÷10 A. 75bar 150bar
H2 0÷250 R. 600bar 800bar O4 0÷16 A. 75bar 150bar
H3 0÷400 R. 600bar 800bar O5 0÷25 A. 75bar 150bar
R. = Gauge Pressure - A. = Absolute Pressure
Page 6 of 20 www.sgm-lektra.com
4-DIMENSIONS
KPT - dimensions
4.1 MECHANICAL DIMENSIONS
Ex. with 1/2“ NPT female thread
1/2“ NPT male thread with
1/4” NPT female threaded
hole
M20x1.5 male thread
1/2”G male thread
ISO 2861 vacuum
connection max 2.5bar
1/4” NPT male thread
Page 7 of 20
www.sgm-lektra.eu
KPT - dimensions

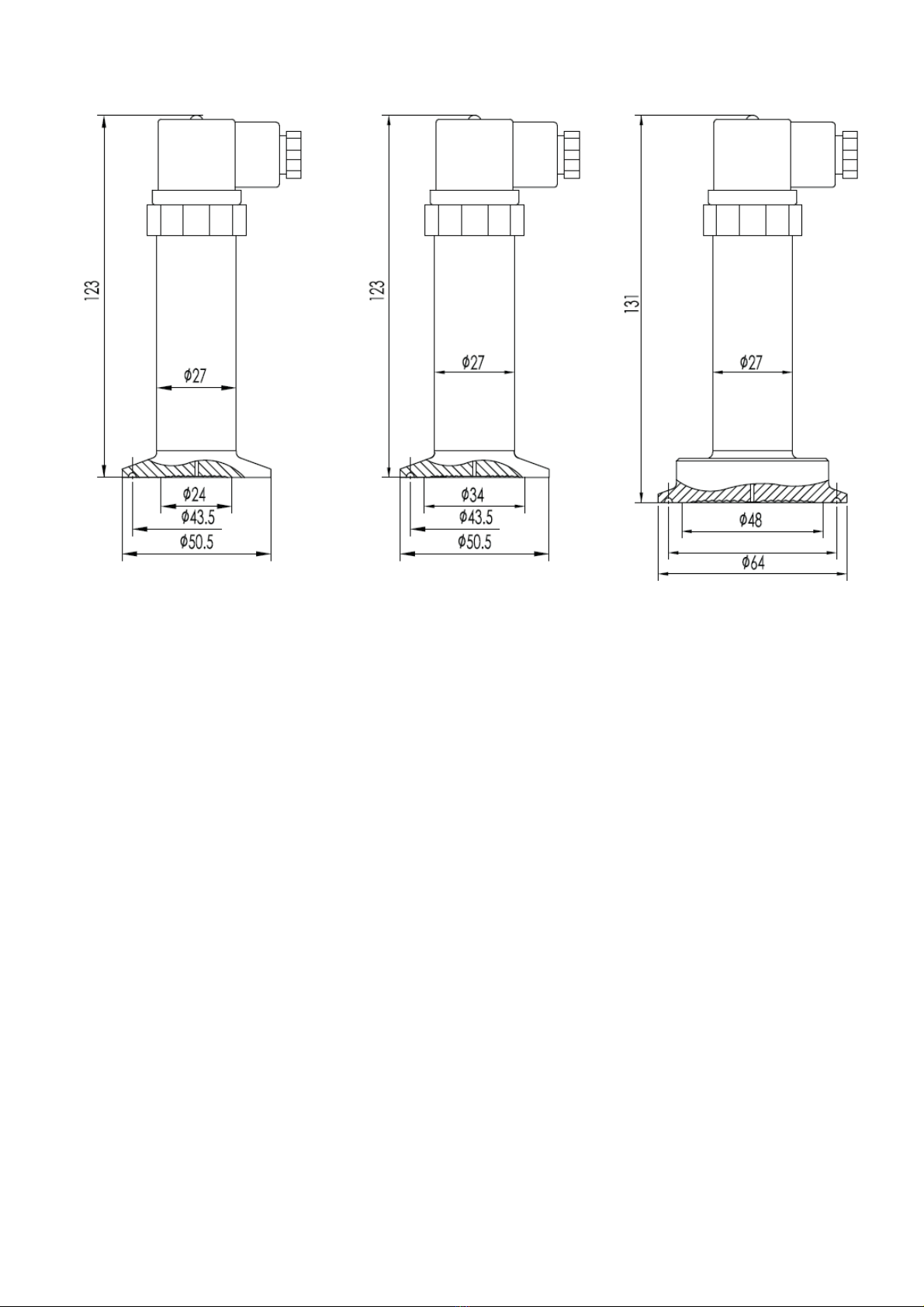

Sanitary: DIN 32676 DN25 /
ISO 2852 DN 25; max 30bar
Sanitary: DIN 32676 DN40 /
ISO 2852 DN 38; max 30bar
Sanitary: DIN 32676 DN50 /
ISO 2852 DN 51; max 30bar
Ø56.5
Page 8 of 20 www.sgm-lektra.com
KPT - installation
5-INSTALLATION
5.1 APPLICATION EXAMPLES
Level measurement in beer silo Pressure measurement in pipe
mH
2
O
KPa
22 8
23 9
24 10
25 11
26 12
27 13
28 14
1 15
2 16
3 17
18
5 19
6 20
7 21
NO
NO
ALM1
ALM2
AC220V
mAin
Vin
++
-+
+
GND
OUT
DC24V
1
2
The transmitters KPT can be installed in a connection point of the under pressure pipe.
It is recommended that the combination of a closing valve to facilitate the operations of mechanical installation or maintenance.
The driof the Zero caused by the installation position can be easily eliminated by the calibration trimmer Zero.
If you want to calibrate the Zero or Span unscrew the top of the transmitter body.
Page 9 of 20
www.sgm-lektra.eu
KPT - electrical connections
6-ELECTRICAL CONNECTIONS
6.1 CONNECTION
Two wires connection 4÷20mA
Type A connector EN 175301-803 (DIN 43650)
Terminal for 1.5mm2 max wires.
Cable gland: PG9 4.5÷7mm
10A
250V
12
3
3+PE
40
26.5
Connector pinout
PINS Function
1 Power + = +V
2 Power - = 0V
3-
Power+
Power-
Switch1
Ground
1
2
3
P+ P+
Power
S+ S-
Signal
K1+ K1-
Relay
K2+ K2-
Relay
Bland label
6.2 LCD Display, 2 way PNP output
Page 10 of 20 www.sgm-lektra.com
KPT - display
7-DISPLAY (optional)
The KPT pressure transmitter may be directly connected to the configurable LCD display.
The display is available for all KPT sensors.
The display main features are:
- dimensions 39x24
- blue backlight
- large, 9x5, and easily visible font of the measured value
- programmable pressure measure unit
- programmable display pressure range
- Access code for the programming protection
- display with a rotation of 350°

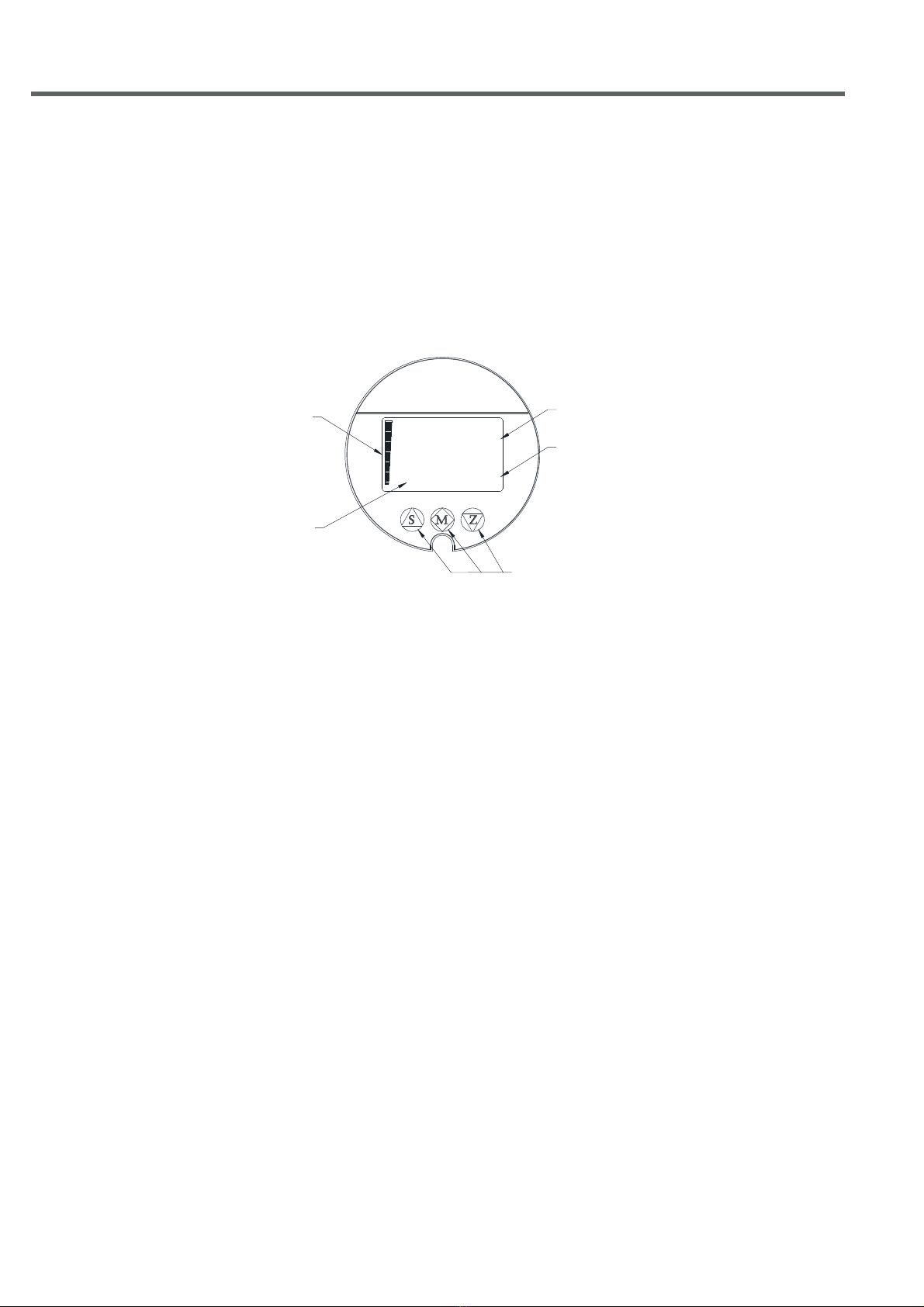

Measurement scale range Bargraph
Measuring range percentage value
Programming buttons
Measured value
Measure unit of the measured value
100% bar
16.0
