SEWOO LK-P30W Manual de usuario

All specifications are subject to change without notice

MOBILE PRINTER

MODEL : LK-P30W

Table of Contents 1. Unpacking

1. Product overview

Unpacking

3. Usage and Installation 5

3-1. Control panel usage

3-2. Battery Installation

3-3. Battery removal

3-4. Battery charging

3-5. Battery charger usage

3-6. Belt clip usage

3-7. Roll paper installation

3-8. Leather case usage

3-9. Self test

3-10. MSR usage

3-11. IC CARD usage

Peripherals connection 17

4-1. Wiﬁ(802.11b/g) Connection

4-2. Interface cable connection

Printer speciﬁcation 19

5-1. Speciﬁcation

CPCL Command Compatibility 21

Setting up the software 24

Standard

Option

Printer Battery

Serial Cable

Roll paper

Belt Buckle

USB Cable Shielded

Charger

CD Quick Manual

Battery Holder (Cradle) Leather case Shoulder strip

Button

Name

function

Power

button

This button is used to turn the printer on and off.

When the printer is off,press this button for approximately 3 seconds

and it will turn on the power.When you press this button in a state

that the printer is on, the printer will turn off.

Paper

Feed

Button

Paper output can be done manually by pressing this button.

Additionally, self-testing and Hexadecimal Dumping can be

processed..

1. Refer to“3-10” for self test information.

2. Refer to the service manual regarding Hexadecimal Dumping.

Battery

Status

Lamp

1. If the Batt, LED are Lit,the battery is fully charged.

2. If you can hear beeping sound and LED light is turned off, it means

that the battery is at the lowest level.

3. If the battery is not charged at all, the printer turns off

automatically.

Error

Lamp

If the red light is turned on, it means there is no paper roll or the

paper cover is open.

2. Product overview 3. Usage and Installation

3-1 Control panel usage

Paper feed

button

Open Button

Power

switch

Control

Panel

DC Power

Belt clip

hole

Battery

SERIAL

USB

1. Align battery hook as shown in the picture

2. Push the battery into the printer until it locks in place.

NOTE

As the battery is not charged at the time of your purchase, charge the

battery prior to using the printer

(Battery charger or Cradle can be used to charge)

Hook

Put up the Belt clip hole turning 180 degree.

After putting up the belt clip, remove the battery holding it up as shown above.

180˚

3-2 Battery Installation 3-3 Battery removal

☞CAUTION

Risk of explosion if battery is replaced by an incorrect type.

Dispose of used batteries according to the instructions

3-5-1 The status of lamp in charging

Status charging charging complete

Charging Lamp Red

Green

NOTE

1. Unless the exclusive charger is used provided by the manufacturer, the printer

can be damaged, and the manufacturer is not liable for the consequential damage.

2. Before removing the battery, make sure that power is turned off.

3. Printer does not work in the status of being connected with charger only.

4. The battery should be installed to operate printer.

5. While charging, do not turn on the power.

6. Do not operate the print while charging the battery.

7. Do not connect the charger while the printer is operated.

NOTE

In the case the battery is not ﬁxed properly in the holder, the red lamp will be

blinking, Then, extract and reinsert the battery.

1. Be sure that the printer is turned off

2. After open the DC JACK cover, insert DC JACK into the printer.

3. Plug the power code to electrical outlet.

3-4 Battery charging 3-5 Battery charger usage

lamp

DC Jack

1. Insert the battery into the battery holder as shown above

2. Connect the DC JACK to the power electrical outlet.

3. Plug the power code into the electrical outlet.

4. Once the charging is completed, remove the battery from the holder.

Optional

As shown in the picture, tighten the screw with a screw driver.

Insert the belt clip screw into the hole of Belt clip

3-6 Belt Clip usage

1 2

Press the PUSH button to open

the paper cover

Pull a short length of paper out of

the printer and close the cover.

Insert the paper in the right

direction

Tear off the additional paper using

tear bar.

3-7 Roll Paper installation

1 2

Open the leather case

Close the Velcro and stick the

cover.

Place the printer into the leather

case

Fasten to the belt by using the clip

at the rear of the leather case

3-8 Leather case usage

Optional

1 2

NOTE

Turn off the power pressing the

power button for approximately

3 seconds.

The printout is produced.

While you are pressing the FEED

button, press the power button

3-9 Self Test

1. To print ASCII pattern additionally,

press the Feed button once more

2. After printing ASCII pattern, the

self test will be ﬁnished automatically.

3. If the Feed button is not pressed

to print ASCII pattern, self test will be

ﬁnished automatically after 30 seconds.

When the printer is installed initially or when you face a problem, you can run the

self test and check the information about

-Control Circuit, Mechanism, Print Quality, ROM Version

After checking with self-test and no issues are found, you can examine other

devices and software. This function is working independent of devices and software.

●

Motor protection from being overheated

The motor should be stopped and cooled about more than 30 seconds after

continuous printing 1.5 meter

Insert and swipe the card in the direction of the arrow as shown in the

picture.

3-10 MSR usage

Optional

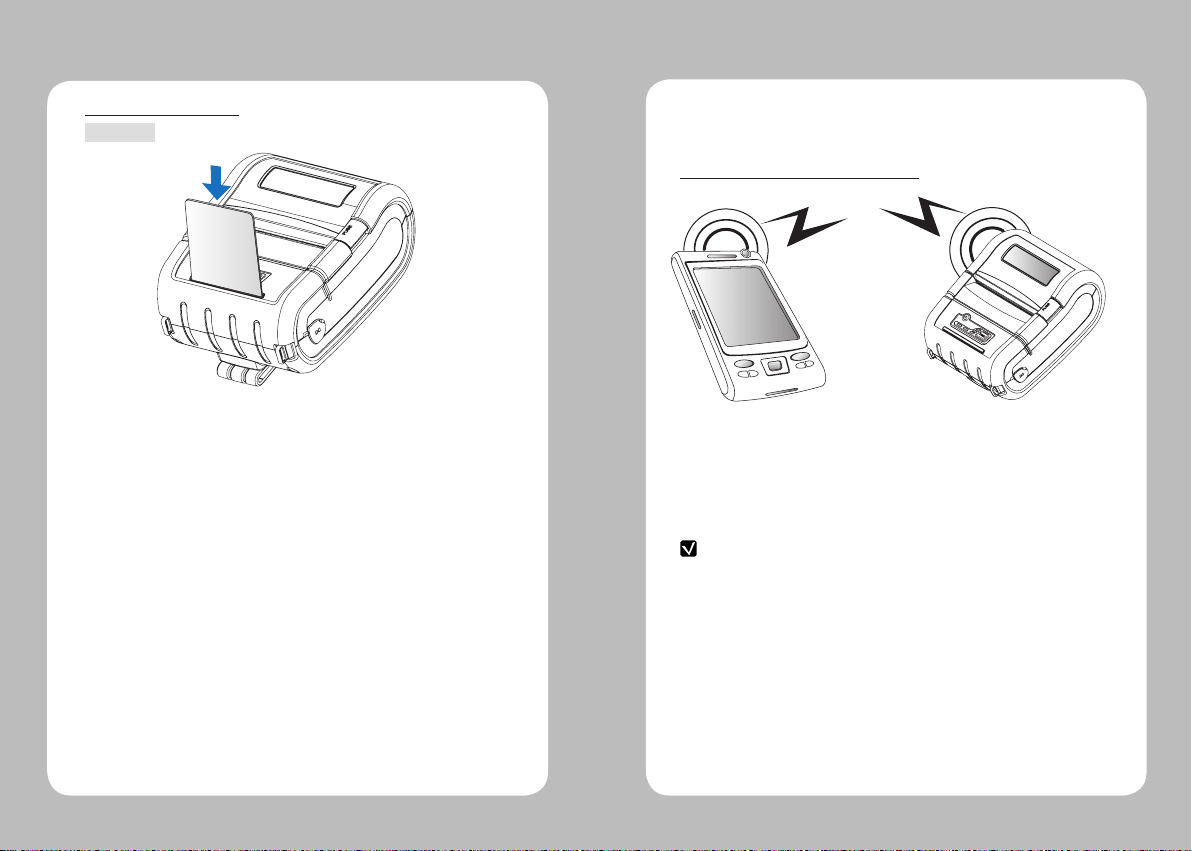

3-11 IC CARD usage

Insert the card in the direction of the arrow as shown in the picture.

Optional

This product can communicate with other devices via Wiﬁ(802.11b/g)

communication and cable.

4-1 Wiﬁ(802.11b/g) Connection

4. Peripherals connection

1. The Printer can be connected to devices equipped with wiﬁ(802.11b/g)

communication capacity (PDAs, PCs, etc.)

2. Use the wiﬁ(802.11b/g) connection function supported by the device to

connect to the printer.

NOTE

Refer to the wiﬁ(802.11b/g) Manual for more details on connection.
