SEWOO LK-P25 Manual de usuario

MOBILE PRINTER

MODEL : LK-P25

Bluetooth

All specifications are subject to change without notice

P25 Rev. B 07/19

J.STEPHEN Co., Ltd.

28-6, Gajangsaneopdong-ro, Osan-si, Gyeonggi- do, 18103, Republic of Korea

TEL : +82-31-8077-5000 / FAX : +82-31-624-5310

http://www.miniprinter.com

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions.

1) This device may not cause harmful interference, and

2) This device must accept any interference received,

including interference that may cause undesired operation.

Hong yul Jun

20280 S. Vermont Ave. STE 200, Torrance, CA 90502 | USA

+310-561-8030

For better safety and reliability, adhere to the following precautionary measures.

Read and follow the instructions carefully before operation of the product.

Safety Precautions

WARNING

Failure to follow these instructions could result in re, electric shock,

other injuries, or property damage.

Indication

Prohibition

(Potential risk of electric shock or re)

Must follow

Do not disassemble Unplug the power from the

outlet

Grounding to prevent electric

shock

Do not handle the product

with wet hands

Do not pull or touch the power plug with

wet hands.

Do not bend the wire and do not allow the

wire to be pinched or crushed by heavy

objects.

If a power plug is broken or a plug is cut or

worn, do not use it.

Do not overload an electrical outlet.

WARNING

Failure to follow these instructions could result in re, electric shock, other

injuries, or property damage.

Failure to follow these instructions could result in re, electric shock, other

injuries, or property damage.

(Turn off the power using the power button)

(Potential risk of re or unit malfunction)

(Potential risk of re or property damage) (Potential risk of electric shock or damage)

(Potential risk of malfunction, electric shock,

or re. When the product needs to be repaired,

please contact your reseller)

Dealer

Do not unplug the power cable to turn off

the product.

If the product needs to be repaired,

please contact your reseller.

Avoid excessive shock or drops. Keep product away from the water and

other material.

Do not disassemble, repair or modify the

product.

CAUTION

Table of Contents

SPECIFICATION

11. ROLL MEDIA SPECIFICATION

12. BLACK MARK

13. PRINTER SPECIFICATION

PRODUCT OVERVIEW

1. UNPACKING

2. PRODUCT OVERVIEW

3. CONTROL PANEL USAGE

SET UP

4. PAPER INSTALLATION

5. BATTERY

5-1. BATTERY INSTALLATION

5-2. BATTERY CHARGING

6. LEATHER CASE USAGE (OPTIONAL)

7. SELF TEST

PERIPHERAL CONNECTION

8. PERIPHERAL CONNECTION

8-1. BLUETOOTH CONNECTION

8-2. NFC CONNECTION

8-3. INTERFACE CONNECTION

MAINTENANCE

9. CLEANING THE PRINTER

10. JAM ERROR

1. UNPACKING

Printer

Roll Paper

Leather Case &

Shoulder strap

Quick Manual Belt Clip

Battery Cover

Charger

(USB Cable) Battery

Standard

Option

2. PRODUCT OVERVIEW

Battery

Cover

USB &

Power

Open Button

- Button Up:Opening the cover

Power

Button

Paper

feed Button

Front

Rear

Button Name function

Power

Button /

Stand-by

Button

This button is used to turn the printer on and off.

When the printer is off,press this button for approximately 3

seconds and the printer will power on.When you press this button

while the printer is powered on, the printer will turn off.

When the printer is in power save mode,you can press the button

to enter standby mode.

Paper

Feed

Button

This button can be used to manually feed the paper.

Additionally, this button is also used to initiate self-tests and

Hexadecimal Dumping.

1. Refer to the Self Test section of this manual for information

regarding self-tests.

2. Refer to the Note in Self Test section of this manual for

information regarding Hexadecimal Dumping.

Battery

Status

Lamp

1. If the Batt LED is lit, the battery is fully charged.

2. If you can hear a beeping sound and LED light is turned off, the

battery is at the lowest level.

3. If the battery is not charged at all, the printer turns off

automatically.

Error

Lamp If the red light is turned on, there is no paper or the

paper cover is open.

LINK/

Power

Light

- Link: LED Blink

- Power ON:Green LED ON

- Power OFF:LED OFF

3. CONTROL PANEL USAGE 4. PAPER INSTALLATION

1 2

Open Button

Press the Open button up to

open the paper cover.

CAUTION

Make sure to be careful of

the HOT head

Place the paper roll as shown. Make

sure the paper is placed in the right

direction.

Please make sure you hear

the closing sound of

the upper cover.

Pull a short length of paper out of

the printer and close the cover.

Tear o the additional paper using

tear bar.

**If the cover is not shut down completely,

the printer may not work properly**

5. BATTERY

NOTE

- As the battery is not charged at the time of your purchase,

charge the battery prior to using the printer

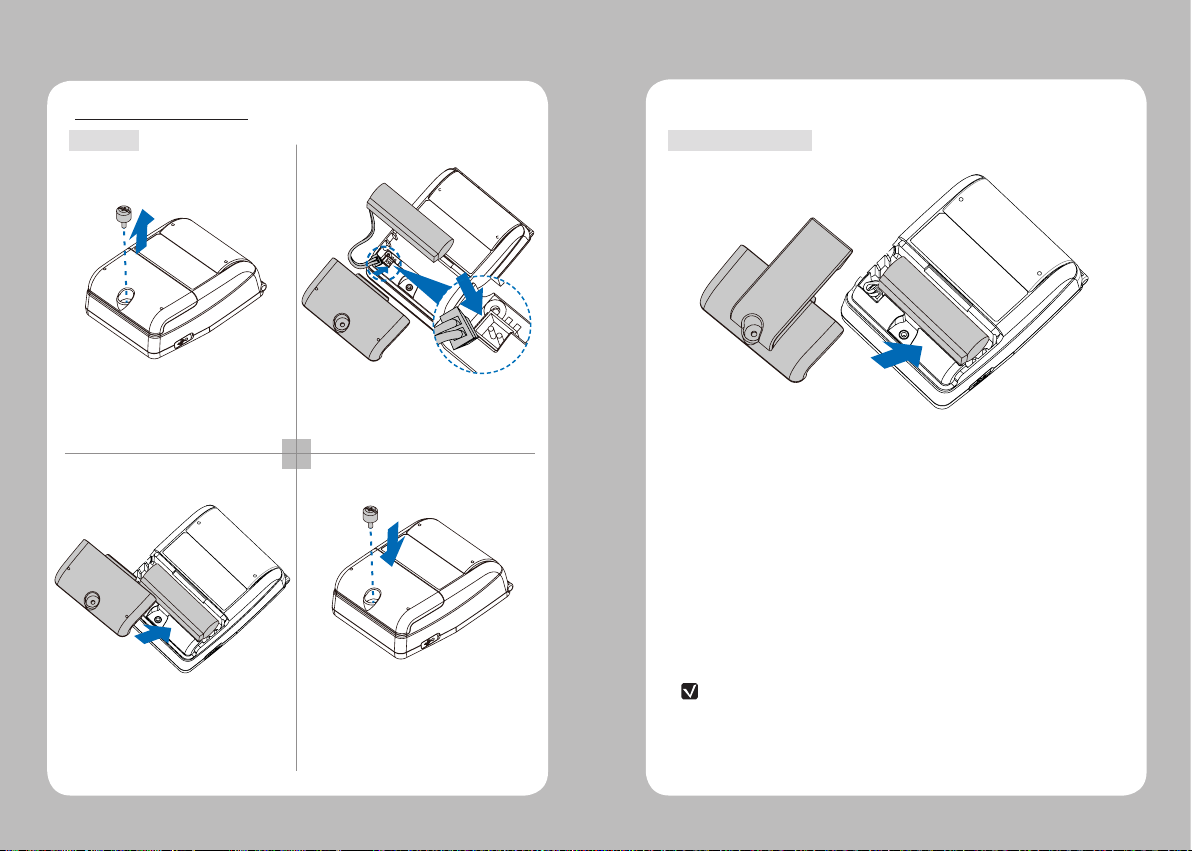

5-1. Battery Installation

Belt Clip Battery CoverStandard

1 2

Remove the screw as

shown.

Open the battery cover and connect

the battery jack to the printer.

Install in the same order as the battery cover.

Insert the battery and close the

battery cover.

Install the screw.

1. Make sure the printer is turned o.

2. After opening the DC JACK cover, connect the DC JACK to the printer.

3. Plug the power cord into the electrical outlet.

(Do not turn o the printer while charging.

When charging is completed, the power is automatically turned o)

NOTE

1. If the charger provided by the manufacturer is not used, the printer can be

damaged, and the manufacturer is not liable for the consequential damage.

2. Before removing the battery, make sure that power is turned o.

3. The printer does not work when only connected to the charger.

4. While charging, do not turn on the power.

5. If the battery jack is connected in reverse, the product will be damaged.

6. When the printer is turned o, the battery will not charge.

5-2. Battery Charging

How to charge with power cord How to charge with PC

Connect the USB cable to the PC to charge the printer.

Disconnect the USB cable from the power cord adapter.

After opening the DC cover,

pull the cover slightly.

*Be careful not to pull too hard.

10 11

1 2

6. LEATHER CASE USAGE

Open the leather case.

Close the cover and press

down on the Velcro.

Connect the shoulder strap

to leather case rings.

Place the printer into

the leather case.

1 2

7. SELF TEST

Turn o the power by pressing the

power button for approximately

3 seconds.

The self-test will print.

While you are holding the FEED

button, press the power button.

NOTE

1. To enter hex dump mode,

press the Feed button once more

2. If the Feed button is not pressed,

the self-test will automatically nish

after 3 seconds.

12 13

Self-Test Printout Sample

Upon initial installation or for

troubleshooting, you can run the

diagnostic test to get information about :

Firmware version, emulation, codepage,

sensor settings, interface settings, etc.

If no issues are found with the diagnostic

test, examine other devices and software.

The diagnostic test is working

independently of devices and software.

●

Motor protection from being overheated

To prevent the motor from overheating,

stop the printer for at least 30 seconds after

continuously printing 1.5 meters.

8. PERIPHERAL CONNECTION

NOTE

- This model supports Numeric Comparison function.

- Please refer to the conguration manual for details.

8-1. Bluetooth Connection

1. The Printer can be connected to devices equipped with Bluetooth communication

capabilities (PDAs, PCs, etc.).

2. Use the Bluetooth connection function supported by your device to connect to

the printer.

This product can communicate with other devices via Bluetooth

or a communication cable.
