Seville Classics UltraHD 20276B Manual de usuario
SC200416
ASSEMBLY INSTRUCTIONS
UltraHD® Workcenter
48 in W X 24 in D X 65.5 in H
(1.21 m x 60.9 cm x 1.66 m)
LED work light included
(Model No. 20276B, 20277B)
Graphite Granite
Reference page 8 for special care and
maintenance of stainless steel
Drawer
Top Cantilever Shelf
No. Qty. No. Qty.
#1 1PC #20-5 1PC
#2-C 1PC #20-6 1PC
#3-B 1PC #20-7 DRAWER DIVIDER 2PCS
#3-C 1PC #44 LED LAMP 1PC
#5-B 2PCS #46-1 TOP CANTILEVER SHELF BACK PANEL 1PC
#6 4PCS #46-2 TOP CANTILEVER SHELF BASE PANEL 1PC
#18 1PC #46-3 TOP CANTILEVER SHELF LEFT PANEL 1PC
#18-1 TOP CANTILEVER SHELF MAT 1PC #46-4 TOP CANTILEVER SHELF RIGHT PANEL 1PC
#19-2 DRAWER BASE PANEL 1PC #47 "L" BRACKET 8PCS
#20-1 DRAWER FRONT PANEL 1PC #48-2 SMALL DRAWER LEFT SUPPORT 1PC
#20-3 DRAWER LEFT PANEL 1PC #48-3 SMALL DRAWER RIGHT SUPPORT 1PC
#20-4 DRAWER RIGHT PANEL 1PC #49 2PCS
PEGBOARD LONG SUPPORT BAR
LEVELING FOOT
DRAWER MAT
BOTTOM PEGBOARD PANEL
Parts
Parts
LEG PIECE
BOTTOM CROSSBAR
PARTS LIST
Please check the parts carefully according to the parts list. If you are missing any parts, please call our
customer service department (please see page 9.)
STAINLESS STEEL TOP
TOP PEGBOARD PANEL
DRAWER BACK PANEL
DRAWER FRONT PANEL SUPPORT PLATE
1
No. Qty. No. Qty.
#15 36PCS #100 4PCS
#21 1PC #101 4PCS
#25 1PC #103 8PCS
#27-B 10PCS #104 2PCS
#40 10PCS #105 2PCS
#41 29PCS #106 2PCS
#45 1PC #107 1PCS
#50 48PCS
#51 4PCS
PARTS LIST
Please check the parts carefully according to the parts list. If you are missing any parts, please call our
customer service department (please see page 9.)
1.5" STRAIGHT
2" DOUBLE PRONG
WRENCH
WASHER
Parts
SCREW B (M4 x 8L)
1" CURVED
SCREW DRIVER
1/2" CURVED
Parts
STUD SCREW J
4" CURVED DOUBLE PRONG
2" PLIER HOLDER
2" MULTI-TOOL HOLDER
POWER STRIP W. USB PORTS
SCREW I (M6 x 15L)
SCREW F (M4 x 8L)
SCREW E(M8 x 18L)
#15
#50
#27-B
#40
#41
#51
#21
#25
#45
#100 #101 #103 #104
#105 #106 #107
M8X20 pcs
2
Step 1.
Step 2.
NOTE:
Step 3.
NOTE:
UltraHD® Workcenter (Model No. 20276B, 20277B)
*NOTE: We recommend TWO people to assemble the workbench.
Install (#5-B) Leg Piece.
A: Open the package, and put the parts aside. Then, attach the (#47) "L" Bracket to the (#5-B) Leg Piece, use (#50)
Screw I to tighten. Repeat Step A to install (#47) "L" Brackets to another one (#5-B) Leg Piece.
Note: Tighten all the screws after the (#47) Brackets are flush with the (#5-B) Leg Piece.
Install (#3-B) Bottom Cross Bar and (#6) Leveling Feet.
Attach the (#3-B) Bottom Cross Bar to the back of (#5-B)
Leg Piece, line up the screw holes, use (#40) Screw E with
(#27-B) Washer and (#25) Wrench to tighten.
After installing (#5-B) Leg Pieces, attach (#6) Leveling Feet
to (#5-B) Leg Pieces, use (#25) Wrench to tighten.
TIP: A magnetic screwdriver is included for your convenience. If a power screwdriver is used, keep on a low torque
setting.
Turn the workbench upright once you finish this step.
Do not fully tighten the screws. This will help you make
any adjustments for alignment.
B: Attach the (#5-B) Leg Pieces to the back of the (#1) Stainless Steel Top, line up the screw holes, use (#50) Screw I and
(#21) Screwdriver to tighten.
Note: Assemble the workcenter on top of the cardboard packaging to help avoid scratching the stainless steel top.
Install (#48-2) Small Drawer Left Support, (#48-3)
Small Drawer Right Support.
Attach the (#48-2) Small Drawer Left Support to the
bottom of (#1) Stainless Steel board, line up the screw
holes, use (#50) Screw I and (#21) Screwdriver to tighten.
Repeat this step to install (#48-3) Small Drawer Right
Support.
A
B
Back
3
Step 4.
Step 5.
Step 6. Install (#46) Top Cantilever Shelf .
Step 7.
Install Assembled (#46) Top Cantilever Shelf to
workbench.
Attach assembled (#46) Top Cantilever Shelf to (#2-C) Top
Pegboard Panel and (#49) Pegboard Long Support Bars, line up
the screw holes, use (#41) Screw F to tighten. Use (#15) Screw B
to fasten the (#2-C) Top Pegboard and (#46) Top cantilever Shelf.
NOTE: Do not fully tighten the screws. This will help you make
any adjustments for alignment later.
UltraHD® Workcenter (Model No. 20276B, 20277B)
*NOTE: We recommend TWO people to assemble the workbench.
A). Attach the (#46-3) Top Cantilever Shelf Left Panel and the
(#46-4) Top Cantilever Shelf Right Panel to (#46-2) Top Cantilever
Shelf Base Panel. Use (#41) F screws to tighten.
NOTE: Do not fully tighten the screws. This will help you make
any adjustments for alignment later.
B). Make sure to slide the (#46-1) back panel underneath the
edge of (#46-2) Top Cantilever Shelf Base Panel. Use (#41) F
screws to tighten.
Install (#49) Pegboard Long Support Bar.
Attach (#49) Pegboard Long Support Bar to the back of the
workbench, line up the screw holes, use (#40) Screw E with
(#27-B) Washer to tighten.
NOTE: Do not fully tighten the screws. This will help you make
any adjustments to alignment later.
Install (#3-C) Bottom Pegboard Panel and (#2-C) Top
Pegboard Panel.
Attach (#3-C) Bottom Pegboard Panel along the back top edge of
workbench and against (#49) Pegboard Long Support Bar, line
up the screw holes, use (#41) Screw F and (#21) Screwdriver to
tighten. Use (#15) Screw B to fasten the (#2-C) & (#3-C) Top &
Bottom Pegboard.
NOTE: Do not fully tighten the screws. This will help you make
any adjustments to alignment later.
Attach (#2-C) Top Pegboard Panel to the top of (#3-C) Bottom
Pegboard Panel and (#49) Pegboard Long Support Bar, line up
the screw holes, use (#41) Screw F and (#21) Screwdriver to
tighten.
A
B
4
Step 8.
Step 9.
Step 10.
Note:
Attach (#20-6) Drawer Front Panel Support Plate as the left
arrow shows. Line up the screw holes and use (#15) Screw B
to tighten.
NOTE: Make sure the hook slots on the (#20-6) Drawer
Front Panel Support Plate are facing inward.
NOTE: Once you adjust all the parts in position, tighten all
screws.
Install (#20-1) Drawer Front Panel
Attach the Drawer Case to the (#20-1) Drawer Front Panel.
Line up the screw holes and use (#15) Screw B to tighten.
Drawer's maximum loading capacity is 60 lbs to avoid
the unit from tipping when drawer is fully extended.
UltraHD® Workcenter (Model No. 20276B, 20277B)
*NOTE: We recommend TWO people to assemble the workbench.
Install (#20-3 & #20-4) Left & Right Drawer Side Panels
and (#20-5) Drawer Back Panel.
Attach (#20-3 & #20-4) Left & Right Drawer Side Panels and
(#20-5) Drawer Back Panel to the (#19-2) Drawer Base
Panel. Line up the screw holes and use (#15) Screw B to
tighten.
NOTE: Make sure the hook slots on the (#20-5) Drawer
Back Panel are facing inward.
NOTE: Do not fully tighten the screws until next step had
finish.
Install (#20-6) Drawer Front Panel Support Plate
#15
#20-5
Back
Front
#19-2
#20-3
#20-4
#20-6
#19-2
#20-5
#15
Front
Back
5

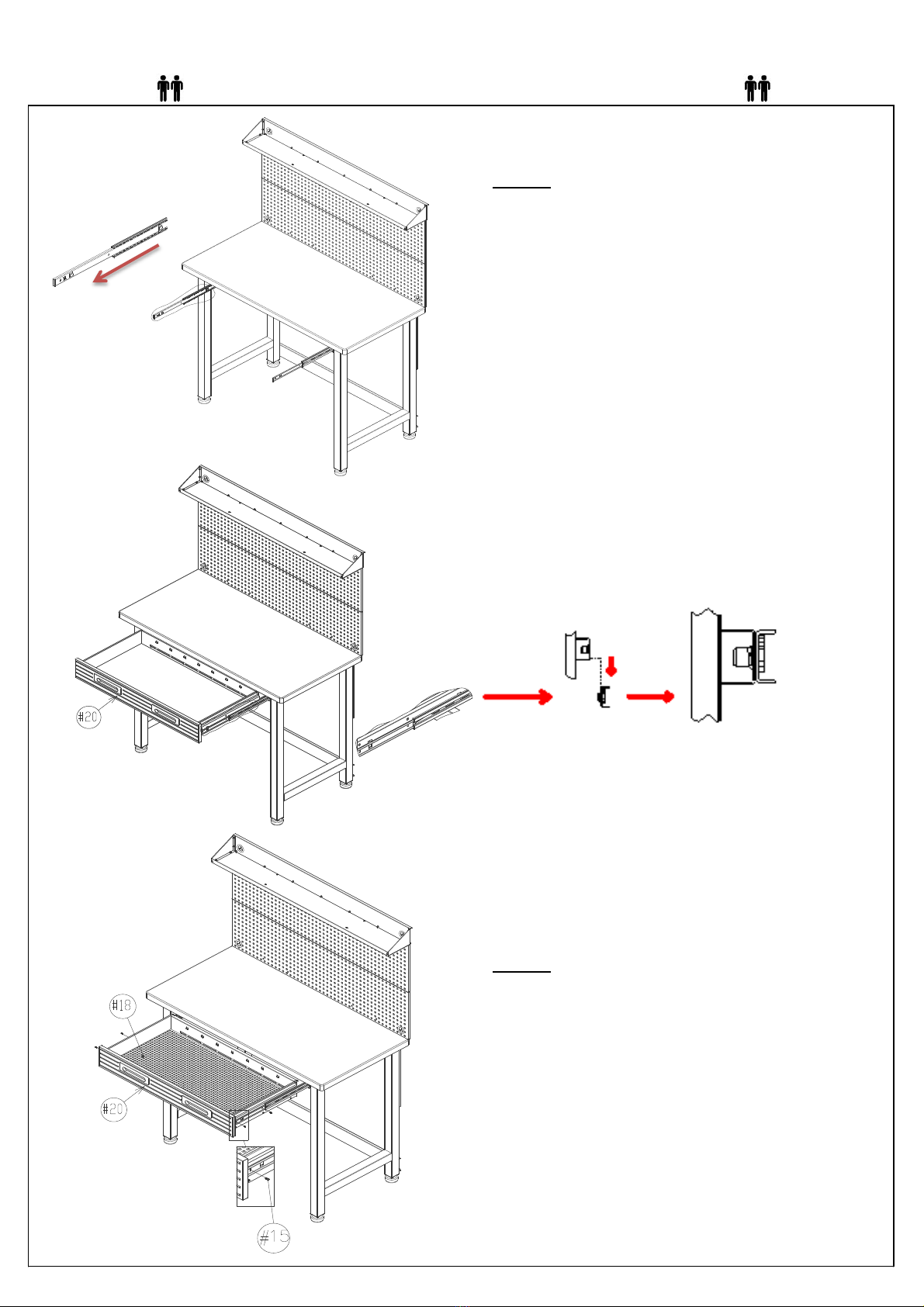

Step 11. Insert Drawer
NOTE:
NOTE:
Step 12.
Place (#18) Drawer Mat
After installing the Drawer, place (#18) Drawer
Mat inside the drawer.
Once you insert the drawers, tighten (#15) Screw
B for (#48-2) Small Drawer Left Support and
(#48-3) Small Drawer Right Support.
UltraHD® Workcenter (Model No. 20276B, 20277B)
*NOTE: We recommend TWO people to assemble the workbench.
Pull out the drawer sliders to full length, then
attach and fit the Drawer to the inner track of the
sliders and slide drawers in.
Make sure to remove the rubber guards on the
hooks of the inner track before fitting the
drawer in.
6
Step 13.
Step 14. Install (#44) LED Lamp.
Step 15.
NOTE: You can position (#45) Power Strip on
the left or right side of the (#3-C) Bottom
Pegboard Panel.
Insert and screw (#51) Stud Screw J to (#3-C)
Bottom Pegboard Panel, then attach (#45) Power
Strip. Make sure the power cord goes through
Rubber Grommet of (#3-C) Bottom Pegboard
Panel.
Place (#45) Power Strip.
Install (#20-7) Drawer Divider
Repeat the above steps to install another
Drawer Divider.
How to remove the Drawer Divider
Lift the Drawer Divider up and to the side to remove from
the slot.
UltraHD® Workcenter (Model No. 20276B, 20277B)
*NOTE: We recommend TWO people to assemble the workbench.
Insert Drawer Divider into the drawer. The solid
wall of the divider should be facing the desired
slot position. Slide the divider towards the slot,
then push down into the slots.
Make sure the power cord goes through Rubber
Grommet of (#2-C) Top Pegboard Panel. Attach
(#44) LED Lamp under the assembled (#46) Top
Cantilever Shelf. Line up the screw holes, use
(#15) Screw B to tighten. Then place the (#18-1)
Top Cantilever Mat in place.
7
Step 16.
UltraHD® Stainless Steel Care Instructions
• Lightly wipe with warm water and clean microfiber cloth
• Always wipe in the direction of the surface grain (NEVER ACROSS)
• Wipe away excess water with dry clean cloth
UltraHD® Workcenter (Model No. 20276B, 20277B)
*NOTE: We recommend TWO people to assemble the workbench.
Place (#100), (#101), (#103), (#104), (#105),
(#106), (#107) Hooks to Pegboard as you
desire.
The stainless steel is protected with UltraGuard® fingerprint resistant finish.
DO NOT use traditional stainless-steel cleaners. To safely manage unwanted fingerprints
and prevent new stains, perform the following steps once monthly:
[!] CAUTION: Potential Shock or Fire Hazard. This unit is
not intended for use in wet or potentially wet locations,
such as showers, saunas, under or near fishtanks, sinks,
etc.
8
Seville Classics, Inc.
19401 Harborgate Way Torrance, CA 90501 USA
Telephone: (800) 323-5565 within USA
Fax: (310) 533-3899
Hours: 9:00am - 4:30pm (Pacific Standard Time)
E-mail: support@sevilleclassics.com
Website & Online Store: www.sevilleclassics.com
UltraHD® Tall Storage Cabinet UltraHD® Mega Storage Cabinet
Model No. 16236 (Granite) Model No. 16238 (Granite)
Model No. 20143 (Graphite) Model No. 20148 (Graphite)
Model No. 20153 (Red) Model No. 20158 (Red)
Model No. 20133 (White)
CONTACT INFORMATION
If you are missing any parts, have any questions, or need additional assistance in assembly, please contact our
bilingual (English and Spanish) customer service department at:
***Please visit our website or call and inquire about our additional UltraHD Line***
UltraHD® Line
9
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Almacenamiento de herramientas de Seville Classics
Seville Classics
Seville Classics UltraHD Ultraguard 20277 Manual de usuario
Seville Classics
Seville Classics UltraHD 20200 Manual de usuario
Seville Classics
Seville Classics UltraHD 20296 Manual de usuario
Seville Classics
Seville Classics HOME UltraGuard Workcenter Island UHD20109 Manual de usuario
Seville Classics
Seville Classics UltraDurable SHE15380B Manual de usuario
Seville Classics
Seville Classics UltraHD 20292 Manual de usuario
Seville Classics
Seville Classics UltraHD 20213 Manual de usuario
Seville Classics
Seville Classics UltraHD 20110 Manual de usuario
Seville Classics
Seville Classics UltraGuard UltraHD 20242 Manual de usuario
Seville Classics
Seville Classics UltraHD 20283B Manual de usuario
Seville Classics
Seville Classics 20185 Manual de usuario
Seville Classics
Seville Classics UltraHD 20287 Manual de usuario
Seville Classics
Seville Classics UltraHD 20108 Manual de usuario
Seville Classics
Seville Classics UltraHD 20292 Manual de usuario
Seville Classics
Seville Classics SHE15385B Manual de usuario
Seville Classics
Seville Classics UltraHD 20141 Manual de usuario
Seville Classics
Seville Classics WEB493 Manual de usuario
Seville Classics
Seville Classics UltraHD 20288 Manual de usuario
Seville Classics
Seville Classics UltraHD 20206 Manual de usuario
Seville Classics
Seville Classics UltraHD 20191 Manual de usuario
