Seville Classics 20288 Manual de usuario

TR170420

UltraHD Height Adjustable Workbench (Model No. 20288)

48 in W X 24 in D X 28.5-42 in H

ASSEMBLY INSTRUCTIONS

(1.21m x 60.9 cm x 72.4-106.7 cm)

(pg 1 of 5)

(#40) Screw E M8 x 18L 14 PCS

(#1) Wood Top x 1 PC

PARTS LIST (pg 2 of 5)

(#3-B) Bottom Crossbar x 1 PC

(#4) Top Crossbar x 2 PCS

Please check the parts carefully according to the parts list. If you are missing any parts, please call our

customer service department (please refer to page 5 of 5) to send you the missing parts.

(#26) Hand Knob x 4 PCS

(#27-B) Washer x 18 PCS

(#25) Wrench x 1 PC

(#5-B) Leg x 2 PCS

(#6) Leveling Feet x 4 PCS

M8X20 pcs

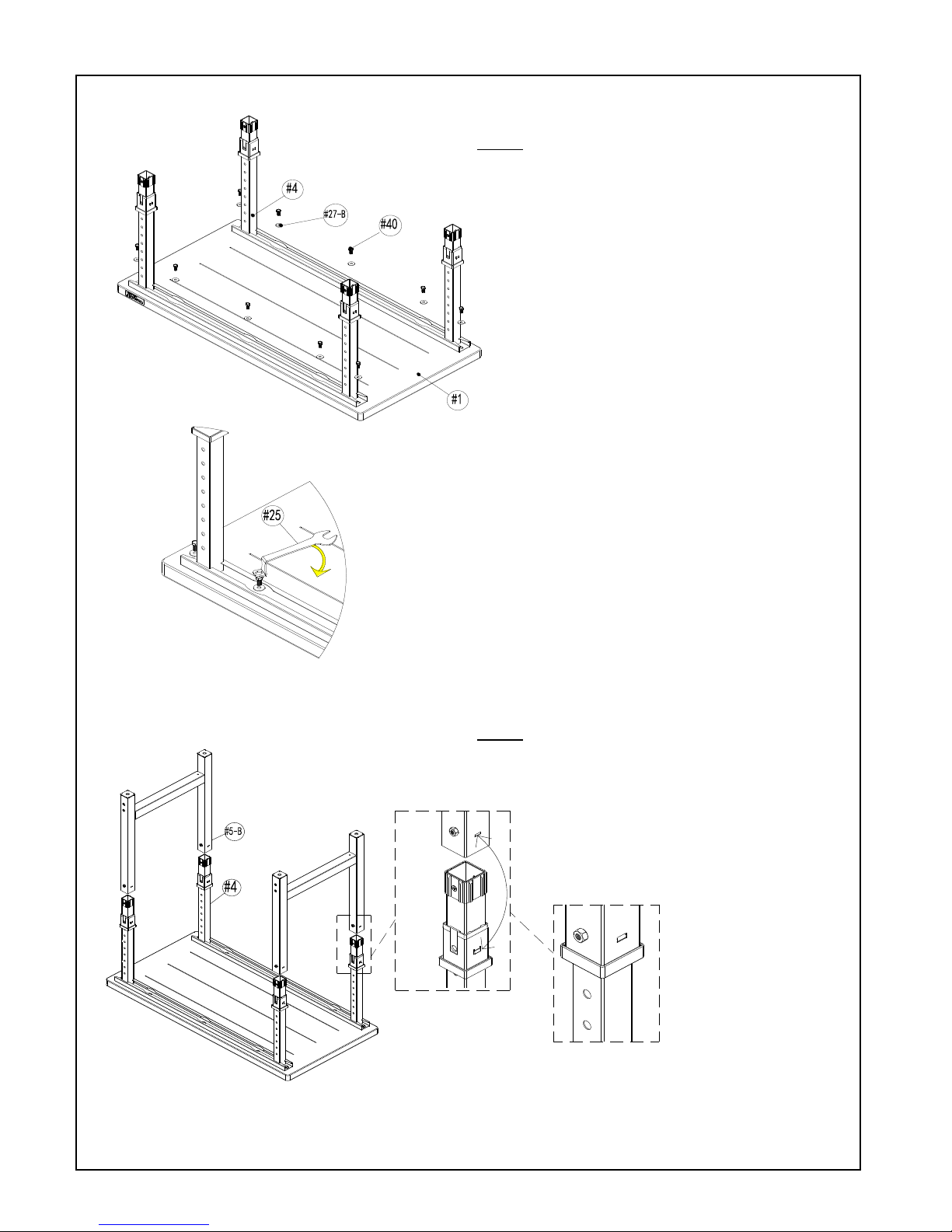

Step 1: Assemble Top Crossbar (#4)

Note:

Do not fullly tighten the screws after finish

assembling Step 2.

Step 2: Assemble Leg (#5-B)

UltraHD Height Adjustable Workbench (Model No. 20288) (Pg 3 of 5)

*NOTE: We recommend using TWO people to assemble the workbench.

Open the package, remove and place all parts to the

side. Then open the package of the Solid Hardwood

Top (#1).

Attach both Top crossbars (#4) to the Solid Hardwood

Top (#1). Use 10 pcs Screw E (#40) with Washer (#27-B)

and Wrench (#25) to tighten.

Insert the Leg (#5-B) into the tube of the Top

Crossbar (#4). Make sure the plastic sleeve

hole as the left picture shows attached

together properly.

Step 3:

42 In.

Note:

28.5 In.

Step 4:

28.5 In.

Assemble Bottom Crossbar (#3-B) and Leveling

Feet (#6)

Attach the Bottom Crossbar (#3-B) to the back of

(#5-B) Leg Piece, line up the screw holes, use 4 pcs

Screw E (#40) with Washer (#27-B) and Wrench

(#25) to tighten.

After installing Bottom Crossbar (#3-B), attach

Leveling Feet (#6) to Leg Pieces (#5-B), use Wrench

(#25) to tighten.

Adjust the height of the workbench before

assembling the Hand Knob (#26). Height range is

from 28.5 in. to 42 in.

42 In.

Turn the workbench up right once you finish this step.

UltraHD Height Adjustable Workbench (Model No. 20288) (Pg 4 of 5)

*NOTE: We recommend using TWO people to assemble the workbench.

Insert 4 pcs of Hand Knob (#26) into the leg tube

using Washer (#27-B).

Assemble Hand Knob (#26)

#25

***Please visit our website or call and inquire about our additional UltraHD Line***

UltraHD Line

Model No. 16238

UltraHD Storage Cabinet

Model No. 16236

UltraHD Storage Cabinet

Model No. 20238

UltraHD Rolling Cabinet

Model No. 20204

UltraHD 6-Drawer Rolling Cabinet

USA

Telephone: (800) 323-5565 within USA

Hours: 9:00am - 4:30pm (Pacific Standard Time)

Fax: (310) 533-3899

E-mail: [email protected]

Website & Online Store: www.sevilleclassics.com

CONTACT INFORMATION (pg 5 of 5)

*If you are missing any parts, have any questions, or need additional assistance in assembly, please contact

our bilingual (English and Spanish) customer service department at:

Seville Classics, Inc.

19401 South Harborgate Way

Torrance, CA 90501

Model No. 20217

UltraHD Trash Bin

Model No. 20255

UltraHD Tool Box

UltraHD Line

Model No. 20206

UltraHD Workbench

Model No. 20230

UltraHD Wall Cabinet

Model No. 20283

UltraHD Mobile Table

Model No. 20262

UltraHD Rolling Workbench
