Setra Systems SS-SPM Manual de usuario
Denotes warning or caution. See manual for a description of
the meanings.
DENOTES HIGH VOLTAGE. RISK OF ELECTRICAL SHOCK. LIFE
THREATENING VOLTAGES MAY BE PRESENT. QUALIFIED
PERSONNEL ONLY.
Equipment protected throughout by double insulation (IEC
536 Class II).
Contains additional information pertinent to current subject.
DO NOT EXCEED 347V Line to Neutral or 600V Line to Line. This meter is equipped to monitor loads up
to 347V L-N. Exceeding this voltage will cause damage to the meter to the meter and danger to the user.
Always use a Potential Transformer (PT) for voltages in excess of 347V L-N or 600V L-L. The Setra Power
Meters are 600V Over Voltage Category III device.
To avoid electrical shock or re:
• Review the entire manual before use of the Meter and its accessories.
• Comply with local and national safety codes. Use personal protective equipment to prevent shock and
arc flash injury where hazardous live conductors are exposed.
• Only qualied electrical workers should install this equipment. Such work should be performed only after
reading the full installation and operation manual.
• The equipment must be accessible to authorize personnel only. Equipment must be installed in areas
where access can be restricted.
• If the meter appears damaged or defective or internal fuse brownout, rst disconnect all power to the
meter. Then contact Setra technical support for assistance.
This quick-start guide provides an overview of the safety and installation requirements for the Setra Power Meter product family. Please refer to the full installation and operation manual for details on all features of the meter.
Safety Information

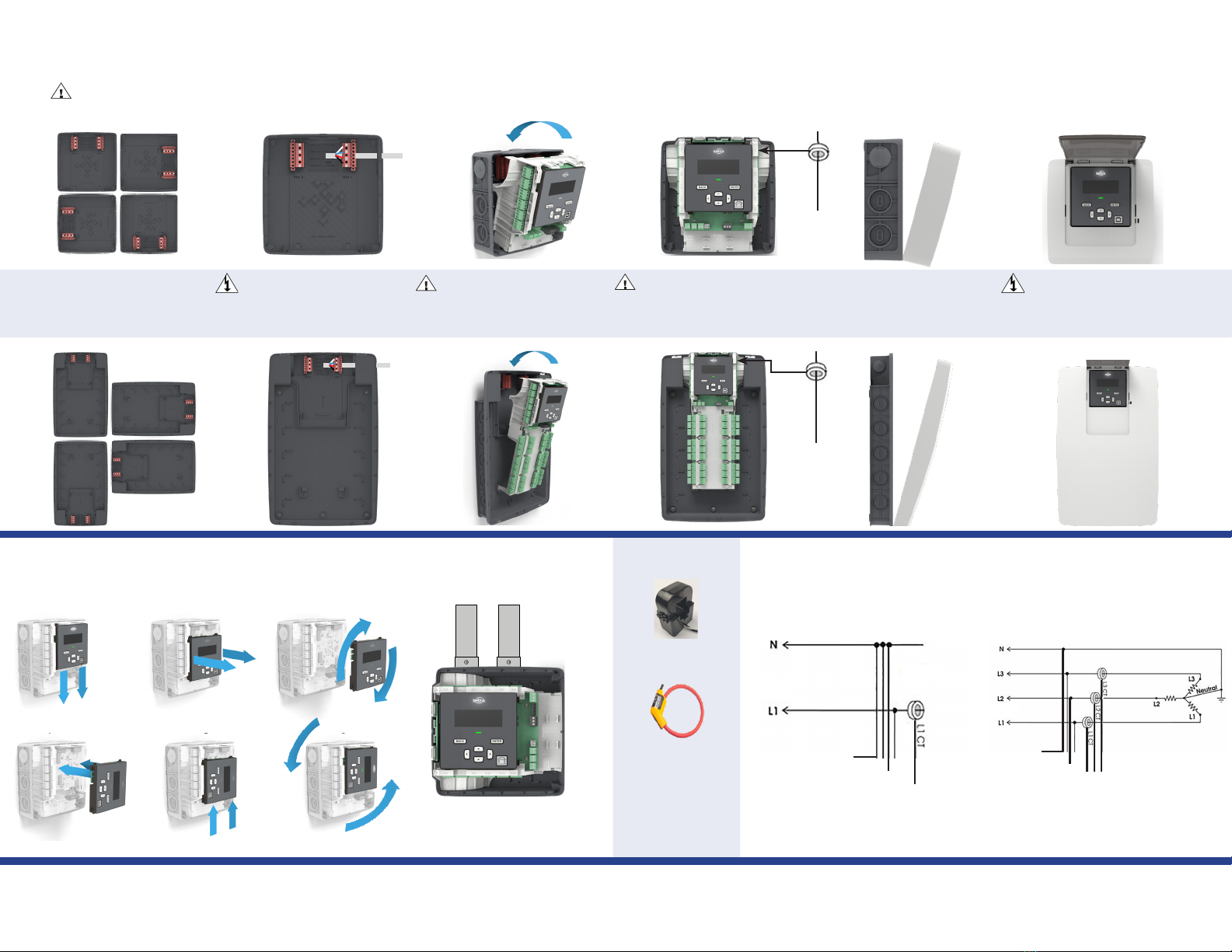

Power Meter Quick Start Guide
Preparing for Install
Steps
What’s in the box
3/12 Load
Remove meter from box Flip open dust cover Pull front cover forward Insert screwdriver
into slot
Pivot screwdriver up to
remove main assemble
Pull down on tabs
48 Load
CT connector kit Mounting screws Wall anchors Cable ties Cal. Cert.
WARNING
!
+ +
Installation Overview
Prior to installation, the full installation and operation manual are accessible by powering up the meter through USB cable and accessing the help section on the web portal or by visiting www.setra.com
3 & 12 Load meter
Choosing conduit position
(rotate the display)
Meter wiring example
2-wire, Single Phase
48 Load meter
1. Mount unit in preferred
conduit orientation with
provided mounting screws.
(12 load housing shown)
(3 load meter only has 1 Vin)
2. After safely de-energizing
the circuit, properly wire in
the lines voltage per local
electrical codes.
3. Install the “Main assembly”
into the back housing until it
locks in place.
4. Following local electrical
codes. Wire in the current
transformers and communication
lines to the meter.
5. Install front cover by
engaging the two tabs at
the bottom and rotate the
cover until clicked in-place.
6. After meter is fully wired,
safely re-energize the circuit
and begin gathering data.
Conduit location now in the
preferred orientation
CT wiring guide
Split core CT’s
White: + Black: -
Rogowski CT’s
Red: + Black: -
Bare wire: shield
Polarity
Arrow points
towards the load
4-wire wye, 3 Phase
1 2 3
4 5 6
For additional wiring diagrams please refer to full manual.
Load
L1 L1
LoadSource Source
L2 L2
Vin CT Input
L3 L3
N
Vin CT Input
N
Vin 1
Vin 1
L1
L1
CT Input
CT Input
Conguring the meter
Connecting the meter to the PC How the “Halo-dot” works
1. Connect meter to USB cable
2. Open up web browser on your PC
3. Type http://10.10.5.2 into browser address bar
4. Complete meter setup to desired conguration and upload
to meter
Note: Meter can be powered safely via 5VDC from PC or by
line voltage. Meter setup can be completed pre or post site
installation. Full manuals can be downloaded from web portal
for more details.
This menu allows configuration of the voltage input
Click “Halo-dot” or
Near connector to begin Voltage input setup
Voltage setup menu
Expected Voltage on L1 (VAC)
480
Actual Voltage on L1 (VAC)
No voltage present
Service Type
4-wire wye
Voltage input 2
12
General Settings
• Global meter settings
• Meter identication
• Pin-code protection
Pulse I/O
• Enable pulse I/O
• Dene pulse type
• Dene scaler & width
Voltage inputs
• Dene input voltage
• Wiring conguration
• Step down PT settings
Alarm setup
• Select alarm type
• Dene alarm thresholds
• Dene alarm indication
Load setup
• ID measured loads
• Dene CT grouping
• Dene voltage input
Installation report
• Conguration record
• Initial meter readings
• Site/installer information
CT inputs
• Select CT type
• CT polarity correction
• Copy/paste CT type
Collect data
• Send data to EMS/BAS
• Locate energy losses
• Save energy
Communication
• BACnet/IP
• BACnet MS/TP
• Modbus TCP
• Modbus RTU
Visit
www.setra.com\power-meter
for full user guide and
installation manual or
call +1 978.263.1400 for
technical support or email
400
Navigating the meter
SS-SPM QuickStart Rev. B 2 /2020
