Serpent X20 mini Manual de usuario

1/10 SCALE ELECTRIC TOURING CAR

The Serpent Medius X20 Mini is a state of the art 1/10 scale 4WD touringcar whichwill give you the true

DIFF ASSEMBLY…………………………………………….………4

CVD ASSEMBLY……….............…………………………………6

•

FRONTASSEMBLY…………………………..………………………18

•

FRONT & REAR ASSEMBLY…………………………….…….…...8

MOTORMOUNT ASSEMBLY……………….……………………...11

REAR ASSEMBLY………….…………………………………….…15

•

ANTIROLLBAR ASSEMBLY…………………………………….....22

STEERING ASSEMBLY……………………..........……………...23

CENTRAL ASSEMBLY……………………………………........…27

•

SHOCK ASSEMBLY……………………………………........…...29

BUMPERASSEMBLY…….........………………………………...31

FINAL ASSEMBLY…………………………………………..........33

•

EXPLODE VIEWS…………………………………………...........54

•

your Serpent Medius X20 Mini Fine-tuning the initial setup is an essential part of building a high-performance

The exploded views and parts lists for the Medius X20 Mini are presented in the Reference Guide

HOW TO USE THE MANUAL

Each step contains a variety of numbers, lines, and symbols. The numbers represent the order in

which the parts should be assembled. The lines are described below.

Each step contains a variety of symbols described below.

Assembly path of one item into another

Group of items (within lines) should be

assembled first

Direction the item should be moved

Glue one item to another

Press/Insert one item into another

Connect one item to another

Gap between two items

ICONS DESCRIPTIONLINES DESCRIPTION

Carefull, read and check very well.

Apply a small amount of cyano glue. Use wear protection for eyes and hands.

Detail view to explain assembly or order of parts better.

Default set-up: This symbol indicates the default setup.

Grease: apply a small amount of grease to the parts shown.

Left and right parts should be assembled in the same way.

Silicone oil: use the indicated silicone oil for the shocks and differentials.

Parts or items not included in the kit.

Optional part, not standard in the kit.

Thread lock: apply a small amount on the parts shown. Before to apply the threadlock,

make sure to degrease the parts very well, as otherwise the threadlock will not work.

Step number; the order in which you should

assemble the indicated parts

1 32

Length after assembly

Fill the differential with silicone oil 1 mm above the crosspin, do NOT

overfill. Use the silicone oil supplied in the kit. For the correctcst value

please check the default setupsheet.

Use a digital scale to measure the

exact amount of oil in the diff.

Differential weight with volume

compensators = 11.5 grams

AMOUNT OF OIL IN

THE DIFFS

1.1 1.2

4x10x0.3

5x15x0.2

2x10

STEP 1 DIFF BAG

DIFF ASSEMBLY

1.3

M2.5x8

1.4

1.5

10x15x4

M3x16

STEP 1 STEP 1 SOLID AXLE BAG

2.1

2.2

2.3

2.4

M3x2.5

REAR

FRONT

2x10

BAJ 1

CVD BAG

STEP 2

CVD ASSEMBLY

3.1 3.2

Wheelbase 210

Wheelbase 225

M4x6

FRONT REAR

STEP 3 BAG 1

FRONT &REAR ASSEMBLY

FRONT 4.24.1 REAR

M3x6

M3x6 M3x6

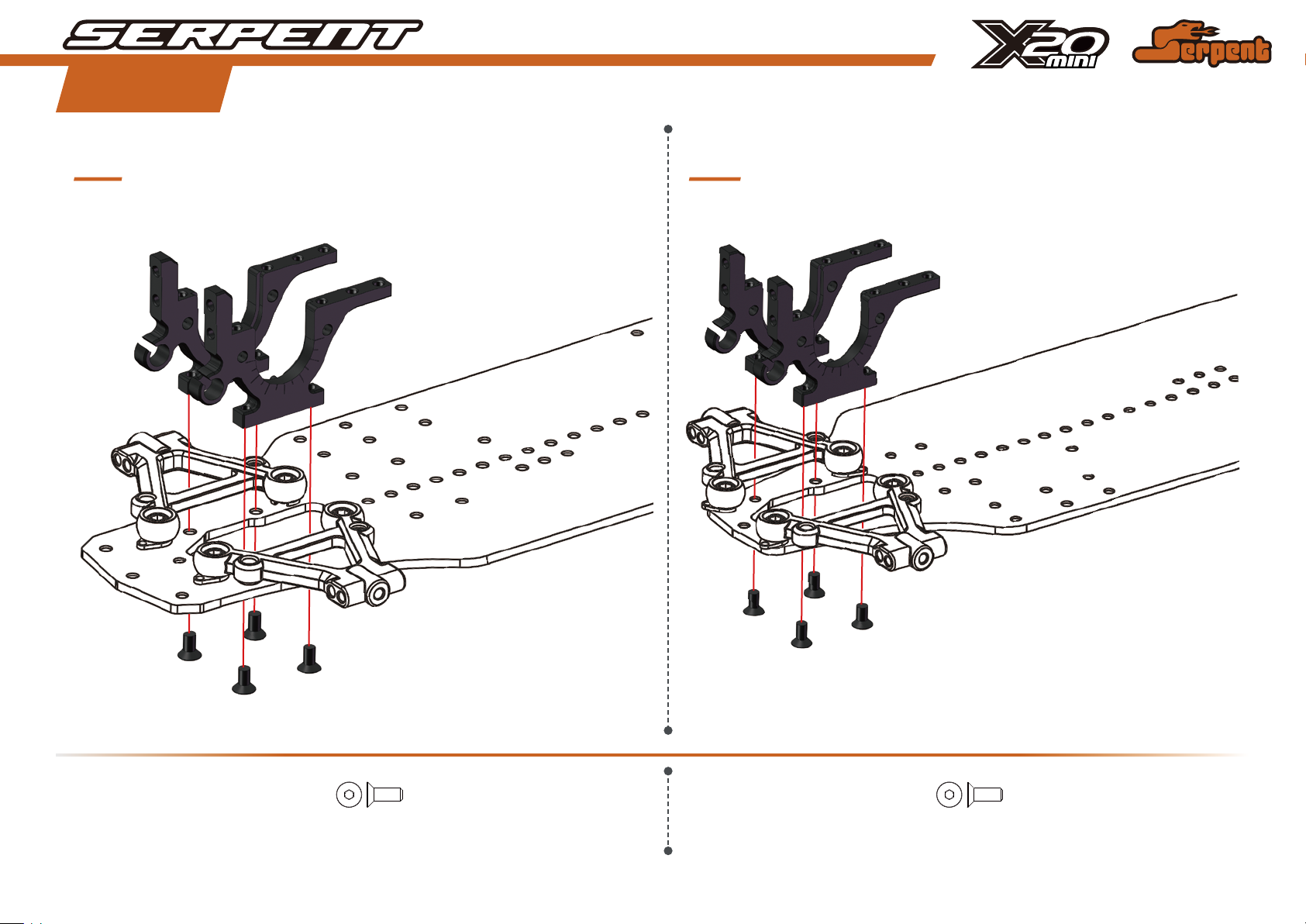

STEP 4

5.25.1 FRONT REAR

M3x6

M3x6 M3x6

STEP 5
