Sercomm NA910B Manual de usuario
Home Monitoring
Gateway
NA910
User Guide
i
Table of Contents
CHAPTER 1 INTRODUCTION .............................................................................................1
Package Contents ..............................................................................................................1
Specfication........................................................................................................................1
LEDs...................................................................................................................................2
CHAPTER 2 INITIAL INSTALLATION..............................................................................5
Requirements.....................................................................................................................5
Procedure...........................................................................................................................5
CHAPTER 3 BOARD DESCRIPTION..................................................................................6
Components and connectors ............................................................................................6
Copyright ©2010. All Rights Reserved.
Document Version: 1.0
All trademarks and trade names are the properties of their respective owners.
1
Chapter 1
Introduction
This Chapter provides an overview of the Home Monitoring Gateway's fea-
tures and capabilities.
Congratulations on the purchase of your new Home Monitoring Gateway. The Home Monitor-
ing Gateway is a consumer electronic device, which is used for home monitoring and security.
Package Contents
The following items should be included:
• The Home Monitoring Gateway Unit
• Power Adapter
• A Stand
If any of the above items are damaged or missing, please contact your dealer immediately.
Specfication
• DDR2 SDRAM 64MB
• NAND 32MB Flash
• Four Ethernet ports with RJ45 connectors.
• Front Panel LEDs
• Zigbee module
• Two USB 2.0 ports
• Sync button
• WPS button
• Reset button
• Power In connector
• Two Internal antennae
• 802.11bgn Wireless Functions
1
2
LEDs
Front-mounted LEDs
The Home Monitoring Gateway has 8 LEDs.
Reset This button has two (2) functions:
• Reboot. When pressed and released, the 11N Home Monitoring
Gateway will reboot (restart).
• Clear All Data. This button can also be used to clear ALL data and
restore ALL settings to the factory default values.
To Clear All Data and restore the factory default values:
1. Power On.
2. Keep holding the Reset Button down for 8 seconds.
Release the Reset Button. The 11N Home Monitoring Gateway is now
using the factory default values.
WPS button Push the WPS button on the device and on your other wireless device to
perform WPS function that easily creates an encryption-secured wireless
connection automatically.
Sync Button Push thisbutton tosynchronize for portalserver or Zigbee clients.
POWER
(Green) • On - Power On
• Off - Power Off
• Flashing - Reboot or Firmware upgrade.
WAN (Green) • On - Connection to the Gateway attached to the WAN (Internet)
port is established.
• Off - No connection to the Gateway.
• Flashing - Data is being transmitted or received via the connection.
WiFi & WPS WiFi
• On (Green) - Wireless connection available
• Off (Green) - No Wireless connection available.
• Flashing (Green) - Data is being transmitted or received via the
Wireless connection.
3
WPS
• On (Amber) - Problem occurred while trying to enable the
WPS function.
• On (Green) - WPS function is enabled.
• Flashing - Data is being transmitted or received via the connection.
Service • On (Green)- Control Point has made a successful activation to the
Portal Server.
• Off - No active connection to the Portal Server.
• Flashing - Attempting to establish a connection to the Portal Server.
LAN (Green) • On (Green)- LAN connection established.
• Off - No active connection on the corresponding LAN port.
• Flashing - Data is being transmitted or received via the correspond-
ing LAN (hub) port.
Zigbee • On - Zigbee function enabled.
• Off - Zigbee function disabled.
• Flashing - Data is being transmitted or received via the connection.
USB (1~2) • On (Green)- USB connection established.
• Off - No active connection on the corresponding USB port.
• Flashing - Data is being transmitted or received via the correspond-
ing USB port.
4
Rear Panel
WAN port
(10/100BaseT) Connect the DSL or Cable Modem here. If your modem came with a
cable, use the supplied cable. Otherwise, use a standard LAN cable.
LAN (1~4) Port Use standard LAN cables (RJ45 connectors) to connect your PCs to
these ports.
USB (1~2) Port The two connectors are USB hosts with support for mass storage
devices.
RS232/RS422
terminal The terminal block includes transmit (tx)/receive (rx) connections and a
GND port.
Power Port Connect the supplied power adapter here.
5
Chapter 2
Initial Installation
This Chapter covers the software installation of the Home Monitoring Gate-
way.
Requirements
• Network cables. Use standard 10/100BaseT network (UTP) cables with RJ45 connectors.
Procedure

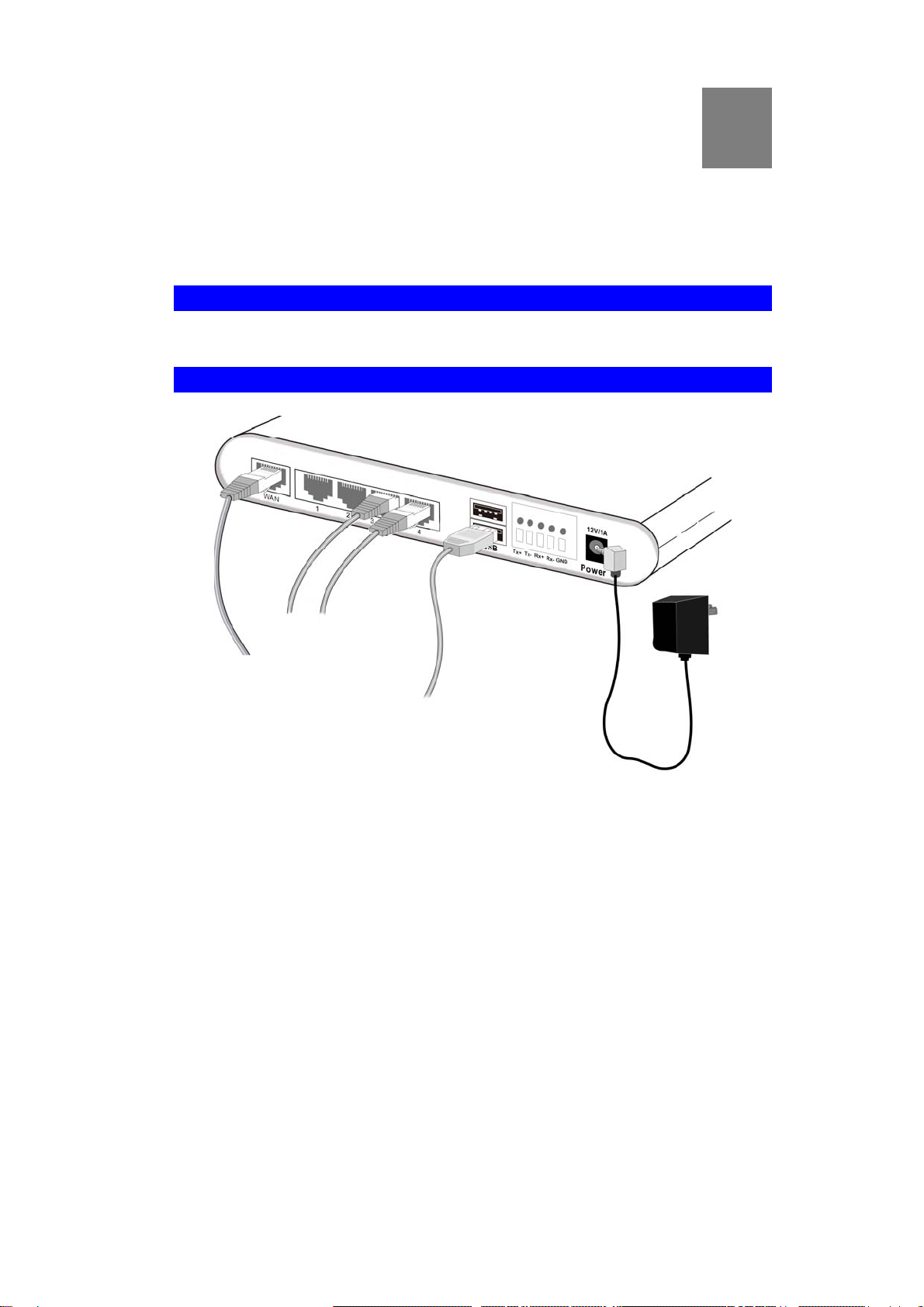

1. Choose an Installation Site
Select a suitable place to install the Home Monitoring Gateway.
2. Connect LAN Cables
Use standard LAN cables to connect devices to the Ethernet ports on the Home Monitor-
ing Gateway.
4. Power Up
Connect the supplied power adapter to the Home Monitoring Gateway. Use only the
power adapter provided. Using a different one may cause hardware damage.
5. Check the LEDs
• The POWER LED should be ON.
• The LAN LED should be ON (provided the PC is also ON.)
2
6
Chapter 3
Board Description
This Chapter provides board description for the Home Monitoring Gateway.
Components and connectors
1 2 3 4
98765
10
11
• 1. RS422/RS232 connector
• 2. USB type A connector
• 3. LAN port
• 4. WAN port
• 5. Expansion slot connectors
• 6. Push buttons.
• 7. Console port
• 8. LEDs
• 9. RT3662 processor
• 10. RS422/RS232 function select jumper
• 11. DC power jack
3
7
Console port connection guide
For platform debugging, please locate the console cable accompanied with the development kit.
Then follow the steps illustrated below:
Pin definition
1. Connect cable to console port
8
2. Execute minicom on Linux host machine
3. Press Ctrl+A then Z to enter minicom configuration
4. Set Comm port to baud rate 57600, 8 data bits, no parity bits, and one stop bit.
