Sentry360 IS-IP14K Manual de usuario

©Sentry360 2014

IS-IP14K

User Manual

Ver 1.0

Table of Contents

1. Overview............................................................................................................................ 3

1.1 Features ...................................................................................................................... 3

1.2 Package Contents........................................................................................................ 3

1.3 Dimensions.................................................................................................................. 4

1.4 Connectors .................................................................................................................. 5

2. System Requirements ...................................................................................................... 6

3. Access Camera ................................................................................................................. 7

3.1 Web Browser Configuration......................................................................................... 9

1. Overview

The IS-IP14K camera is an MJPEG or H.264 encoding, 14.0 Megapixel resolution, IP-

addressable, fixed camera. It is designed to deliver full-motion, high-definition, progressive scan

digital video across local area networks. The IS-IP14K features a design with no moving parts,

creating a high resolution fixed image. The IS-IP14K comes equipped with a CS mount that

accommodates a wide variety of fixed lenses for different applications; C mount lenses can also

be used with a C/CS adapter. This dual codec camera enable users to simultaneously output

multiple video streams at resolutions up to 14 megapixels which provide clear digital zoom

capability for proactive forensic detail.

1.1 Features

•14.0 Megapixel CMOS sensor

•Maximum Resolution: 4352 x 3264

•Maximum Framerate: 6 fps

•Full Onvif Compatibility

•Motion Detection

•PoE 802.3af

•0.1 lux (color) at F/1.2

•100/10 LAN Connection

•Protocols: UDP, TCP, HTTP, TFTP, RTSP

•Automatic Exposure

•Automatic White Balance

•Brightness, Contrast, Saturation Controls

1.2 Package Contents

Please check the package contains the following items listed below.

•Camera

•Quick Start Guide

1.3 Dimensions

The IS-IP14K camera and lens dimensions are shown below.

1.4 Connectors

The diagram below shows the IS-IP14K connections.

Designation

Description

DC Power

12V DC Power Connector

LAN Port

PoE and Ethernet Port

2. System Requirements

To connect to the IS-IP14K via web browser, please ensure your PC has a good network

connection, and meets system requirements as described below.

Items

System Requirement

Web Browser

Microsoft Internet Explorer

Mozilla Firefox

Google Chrome

Apple Safari

3. Access Camera

Step 1. Power your camera using the correct power source (PoE switch, PoE injector, or

12V adapter).

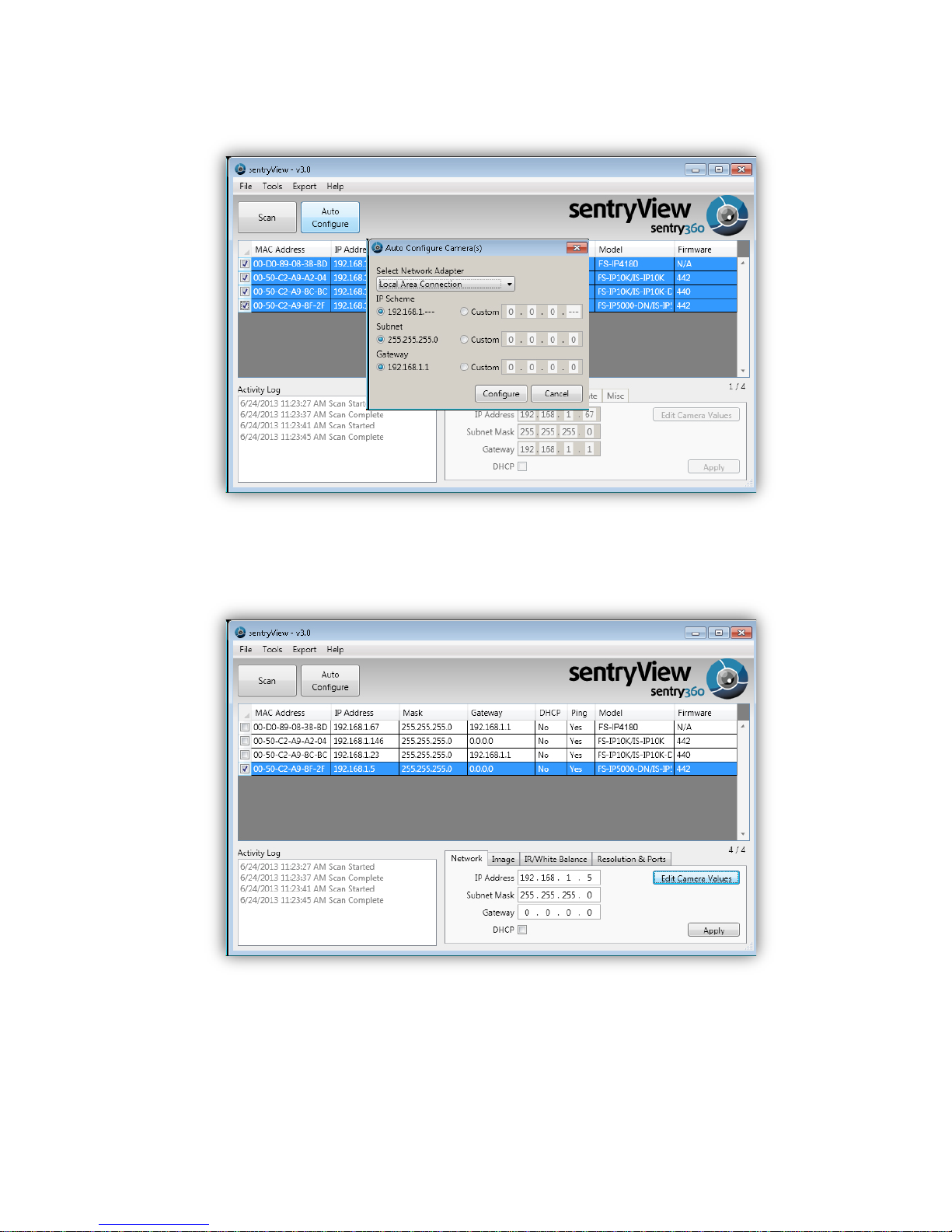

Step 2. Download, install, and run sentryView™, Sentry360’s camera configuration tool,

here: http://sentry360.com/product/sentryview/

Step 3. Click the Scan button in sentryView™ to scan your network for connected cameras.

Step 4. To automatically configure your camera network settings, check the boxes of the

cameras you want to configure. Then click Auto Configure.

Step 5. Confirm your network settings and click Configure.

Step 6. To manually configure your cameras, click Edit Camera Values at the bottom right,

enter your IP Address, Subnet Mask, Gateway, and DHCP settings. Click Apply to

save these values.

Step 7. Your cameras are now configured. If you are using sentryCore™ as your Video

Management System, please download the latest version here:

http://sentry360.com/product/sentrycore/

Step 8. Right click on a camera and select Browse. The prompt for entering the default

username and password will appear for logging in to the FS-IP5000-M.

3.1 Web Browser Configuration

Camera configuration is accessed through the web browser interface by clicking the Show

Settings button.

When configuration is complete, click the System Tab -> Save to commit settings to permanent

memory.
