Sentry ST-5 Series Manual de usuario

ST-5XX

U LIGHT METER

Instruction Manual

RoHS

COMPLINT

U LIGHT METER

Instruction Manual

Storage for sensor

UV sensor is with extremely precise

structure. Once don’t use it , be sure

it in the dry environment. Manual

for future reference.

Improper use endangers the health of third parties ! It

may also result in damage to the equipment or other

material damage.

Danger when using the equipment

ATTENTION

Table Content

1. General Information

2. Features

3. Safety Symbols

4. Specification

6. Operations of Instrument

5-1 Control Panel

5-2 LCD Display

1. General Information

Thank you for purchasing the ultraviolet meter.

Read through this instruction manual before

operating the unit. Please also store and retain

this instruction manual for future reference.

Socket of tripod mounting.

High and Low measurements range in a unit

2 2

mW/cm or μW/cm .

20 points memory.

Automatic measuring.

Low battery indicator.

Operation with 9V battery.

2. Features

The UV-Meter is a mobile, hand-held device for

measuring UV irradiation.

Backlit LCD and 4 Digits dual display.

Magnetic mount.

3. Safety Symbols

Indicates CE conformity

The device may not be disposed with the

trash. It promotes the re-use recycling

and other forms of recovery of used

materials and components, and improves

the environmental performance of all

operators ( manufacturers, traders a nd

treatment facilities) involved in the l if e

cycle of products. Dispose of the pr oduct

appropriately in accordance wit h t he

regulations in force in your Co untry.

4. Specification

Over Range Indication ' -HI- '

Zero Adjust

Auto Record

Sample Time

Display

Memory

Operation

Temperature 0~50℃(32 ~122℉),10~90％RH

Battery Type

Dimensions

Accessory

Weight

）

140 x 49 x 29 mm（51x 1 .93 x 1.14i nch

Approx. 90g without battery and detector.

9V Battery , UV sensor probe ,

Instruction manual.

Yes

Approx. 0.3 sec

Backlit LCD and Dual Display

20 points and 1 for interval time

9V (006P,IEC6F22,NEDA1604)

5-1 Control Panel

1.LCD Display

5.Select Button

4.Power On/Off

and Hold Button

2.Memory button

3.Mode button

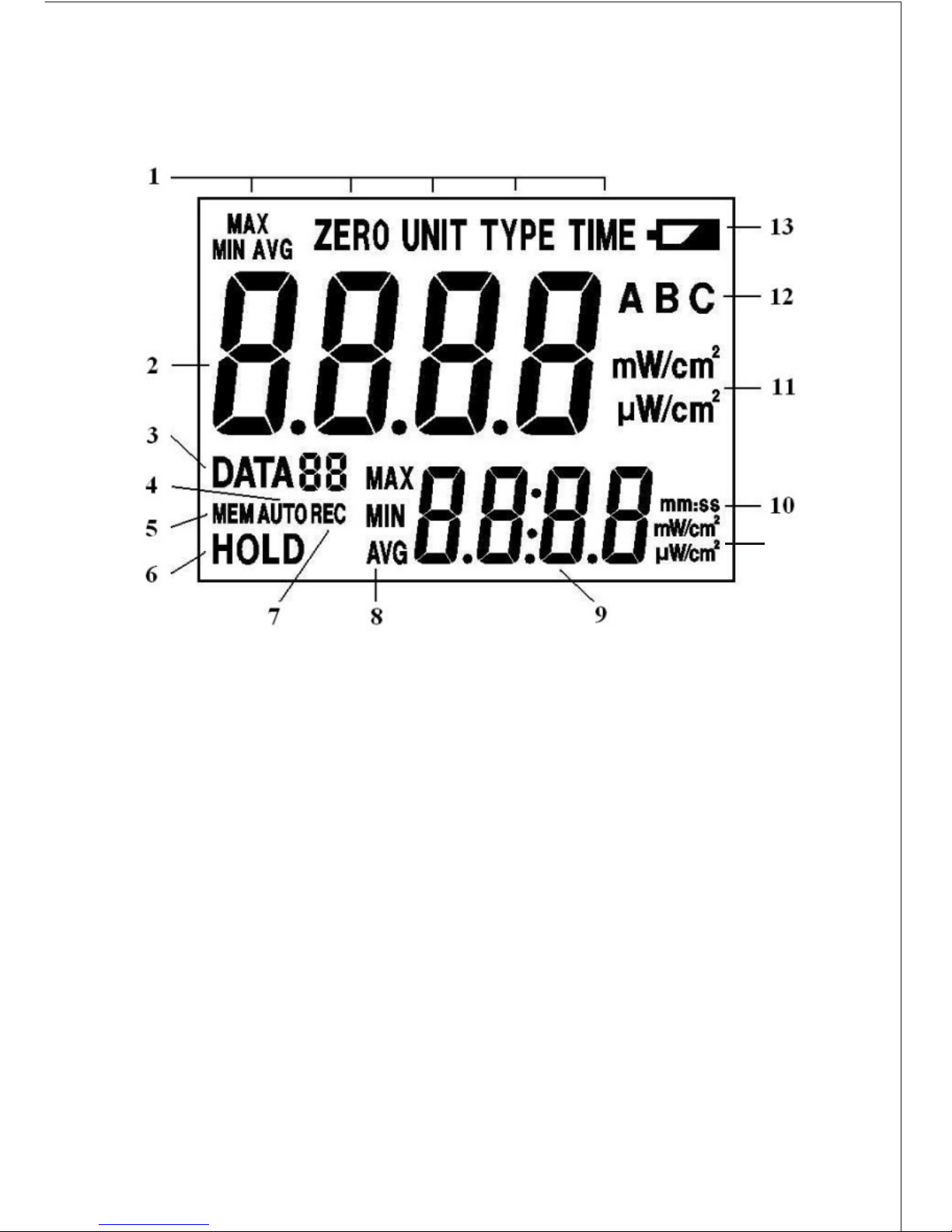

5-2 LCD Display

1. Main Functions

2. Primary Reading

3. Data Log

4. Auto Mode

5. Memory Review

6. Data Hold

7. Record

8. MAX/MIN/AVG

9. Secondary Reading

10.Time Unit

11.Unit

12.UV Type

13.Low Battery
