Welcome

Thank you for purchasing the our 960H CCTV kit.

This user’s manual is designed to be a reference tool for

the operation of your system.

Do not worry, you do not have to read this entire

manual to be up and running. There should be a

quickstart guide found with your DVR device, which will

show you how to setup the connections to the DVR

correctly and how to setup a remote monitoring

connection.

Here you can find information about the corresponding

DVR’s features and functions, as well as a detailed menu

tree.

Before installation and operation please read the

following safeguards and warnings carefully!

iii

BEFORE YOU BEGIN

Important Safeguards and Warnings

1．Electrical safety

All installation and operation should conform to your local electrical

safety codes.

We assume no liability or responsibility for any fires or electrical

shock caused by improper handling or installation.

2．Transportation security

Heavy stress, violent vibration or water splash should be avoided

during transportation, storage and installation.

3．Installation

Keep upright. Handle with care.

Do not apply power to the DVR before completing installation.

Do not place objects on top of the DVR

4．Qualified engineers needed

All examination and repair work should be done by qualified service

engineers.

We are not liable for any problems caused by unauthorised

modifications or attempted repair.

5．Environment

The DVR should be installed in a cool, dry place away from direct

sunlight and inflammable or explosive substances, etc.

This product should be transported, stored and operated in an

environment ranging from 0℃to 55 ℃.

6. Accessories

Be sure to use all the accessories available in the Sentient range.

Before installation, please open the package and check all the

components are included.

Contact your local Maplin outlet if something is broken or missing in

your package.

7. Lithium battery

Improper battery use may result in fire, explosion, or personal injury.

When replacing the battery, please make sure you use the same

model. (CR2032 Motherboard battery).

TABLE OF CONTENTS

1 FEATURES AND QUICK SETUP........................................................................1

1.1 Product Overview ........................................................................................................................................1

1.2 Features..........................................................................................................................................................1

1.3 Installation ....................................................................................................................................................2

1.3.1 Unpacking Inspection..............................................................................................................................2

1.3.2 Wiring Installation ....................................................................................................................................2

1.4 Quick Setup Diagram............................................................................................................................... 4

1.5 Smart Phone Setup for Live View & Remote Playback................................................................ 4

1.6 The Mouse ....................................................................................................................................................5

1.7 On-screen keyboard................................................................................................................................. 6

1.8 Power On/Off............................................................................................................................................. 6

1.8.1 Power On ......................................................................................................................................................6

1.8.2 Power Off.....................................................................................................................................................8

1.8.3 Power recovery.........................................................................................................................................8

1.9 Icon ................................................................................................................................................................ 8

1.9.1 Icons................................................................................................................................................................8

1.9.2 Operation Icons ........................................................................................................................................9

1.10 The Real-time Browser .......................................................................................................................... 9

2 OPERATIONS GUIDE................................................................................................ 10

2.1 The Right-click Menu ..............................................................................................................................10

2.1.1 The Screen Switching............................................................................................................................10

2.1.2 Color setting .............................................................................................................................................10

2.1.3 The Video Inquiry.................................................................................................................................... 11

2.1.4 Alarm output............................................................................................................................................. 11

2.1.5 The Main Menu......................................................................................................................................... 12

2.2 The Introduction of the Main Menu................................................................................................... 13

2.3 The Video Inquiry .................................................................................................................................... 13

2.4 Configuration............................................................................................................................................ 17

2.4.1 System ........................................................................................................................................................ 17

2.4.2 Record ....................................................................................................................................................... 18

2.4.3 Network..................................................................................................................................................... 21

2.4.4 Alarm......................................................................................................................................................... 23

2.4.5 Account.................................................................................................................................................... 24

2.4.6 Abnormity ............................................................................................................................................... 25

2.5 Storage ...................................................................................................................................................... 26

2.5.1 HDD Management................................................................................................................................. 26

2.5.2 Backup ...................................................................................................................................................... 27

2.6 Output........................................................................................................................................................ 28

2.6.1 Display ....................................................................................................................................................... 29

2.7 Maintain ...................................................................................................................................................... 31

2.7.1 Log................................................................................................................................................................ 31

2.7.2 Version ...................................................................................................................................................... 32

2.7.3 Default....................................................................................................................................................... 32

2.7.4 BPS ............................................................................................................................................................. 33

2.7.5 Auto Maintain......................................................................................................................................... 33

2.7.6 Online User.............................................................................................................................................. 33

2.8 Shutdown.................................................................................................................................................. 33

3 WEB AND CLIENT ................................................................................................... 34

3.1 Web Operation ........................................................................................................................................34

3.1.1 Network Connection............................................................................................................................. 34

3.1.2 The Interface Of Web Operations.................................................................................................. 35

3.1.3 The Real-time Monitoring .................................................................................................................. 36

3.1.4 Configuration .......................................................................................................................................... 37

3.1.5 Search Record ........................................................................................................................................ 38

3.1.6 Alarm Configuration ............................................................................................................................ 39

4 TROUBLESHOOTING..............................................................................................40

1 FEATURES AND QUICK SETUP

1.1 Product Overview

This product is designed specifically for the use in the field of video surveillance and

adopts H.264 video compression, hard disk recording, TCP/IP transmission and a Linux

based OS in addition to some of the most advanced technology in the information

technology industry. These elements help to produce a more stable, reliable and higher

quality video image. The products support synchronised video, audio recording,

playback, monitoring and the synchronisation of audio and video. The products support

advanced control technology and strong network data transmission capacity.

1.2 Features

Real-time monitoring

Composite video signal interface and support TV, VGA or HDMI output simultaneously.

Compression function

Uses H.264 video compression standard and G.711 audio compression standard and

has high definition, low code rate of the video coding to decrease the amount of data to

save to HDD storage.

Recording function

Supports timing, alarm alerts, motion detection, SATA hard and local hard disks, DVR

data backup and network backup.

Video playback function

You can search videos, within the local network, by using the playback interface. As well

as this it supports multiple videos playback, fast playing, slow playing and frame-by-

frame playback. Video playback can be displayed the exact time of the incident using a

graphical timeline to allow you to search for event footage much more efficiently.

Camera control and alarm

Remotely installed cameras can be controlled and various alarm devices can be

connected to ensure that you know when an event has been detected. The DVR

integrates Dynamic detection, video loss, video block, multiple alarm output and scene

lighting control into its controller options.

Communication Interface

Equiped with USB 2.0 high-speed interface and an ESATA interface to allow for external

video backup devices. There is also an option to store data on a remote server (cloud

storage location) by connected the DVR to a local or wide area network by using the

standard Ethernet interface port (plug and play).

Network functions

Supports:

TCP / IP

UDP

RTP / RTSP

DHCP

PPPOE

DDNS

NTP

Also supports real-time network monitoring, video playback, control and management

functions. The built-in WEB Server will allow you to directly access the DVR through a

web browser.

Mode of operation

You can operate by the DVR’s front panel or using a mouse. A simple, intuitive graphical

interface is provided for intuitive operation.

1.3 Installation

1.3.1 Unpacking Inspection

When you receive the product pleae check that all items are present according to the

packing list on the reverse of the box.

1.3.2 Wiring Installation

Prepare for installation

Prepare your cameras, TV/display monitor, video cables, network cables, the mouse,

and power cables on a large clean flat surface.

Installation Steps:

(See quick startup guide page 4)

NOTE: Before installing anything we strongly recommend that you connect

your cameras to your dvr and test your system first.

NOTE: WE CHECK EVERYTHING TO MAKE SURE IT IS WORKING WHEN IT

LEAVES US BUT OCCASIONALLY THINGS FAIL AND IT IS BETTER TO KNOW

NOW THAN AFTER YOU HAVE FITTED EVERYTHING!

1. Place the DVR on a flat horizontal position and connect your cameras to the

video input on the rear of the DVR.

2. Connect your TV/ display monitor to the video output on the rear of the DVR.

3. Connect the network cable to the RJ45 socket on the rear of the DVR then

connect the other end of the cable to a spare socket on the router.

4. Connect the Mouse to the USB interface found in either the front or rear panels.

5. Connect your DVR a power outlet and switch on the power.

Caution

For an external alarm device or a PTZ, please refer to the relevant instructions.

Connect the power line after all lines connected correctly.

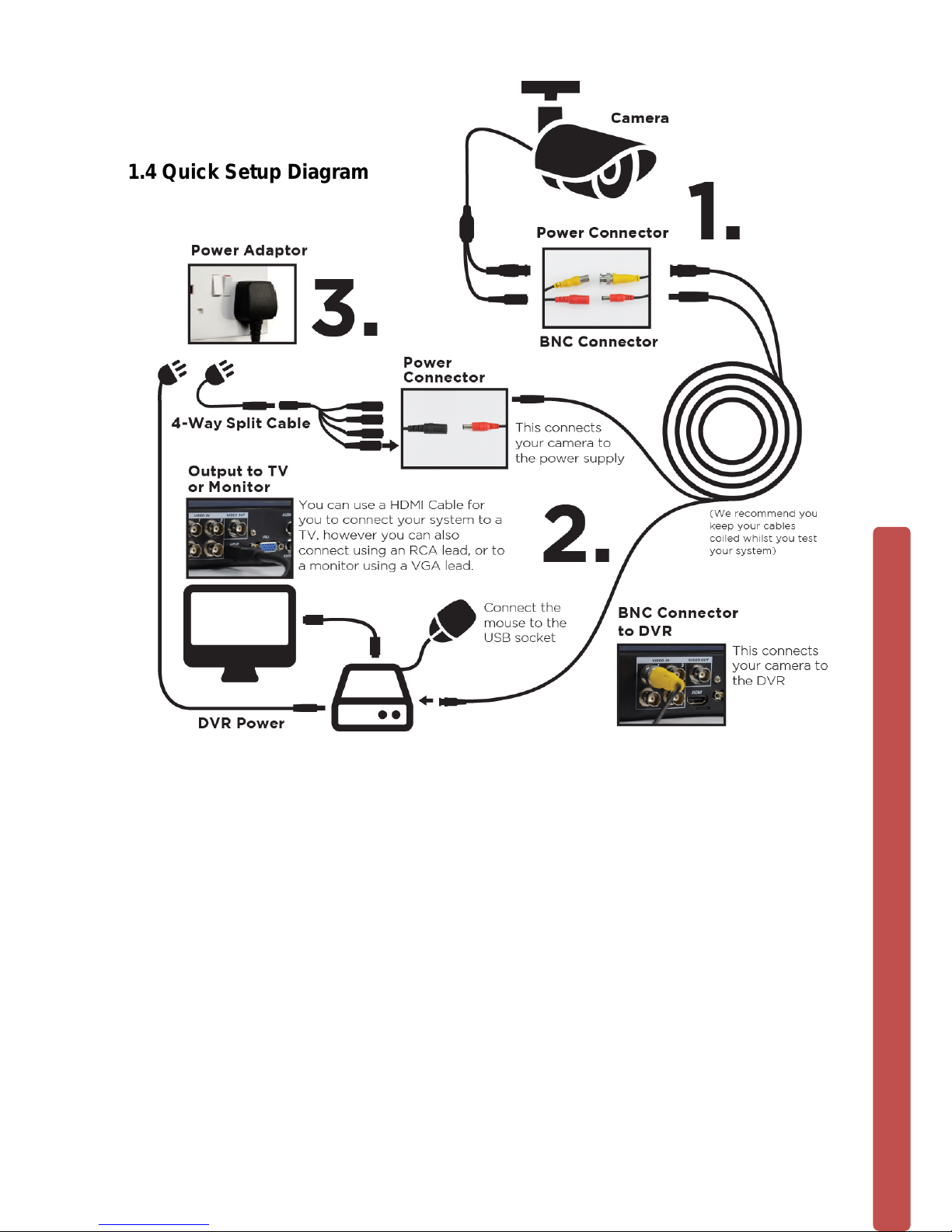

1.4 Quick Setup Diagram

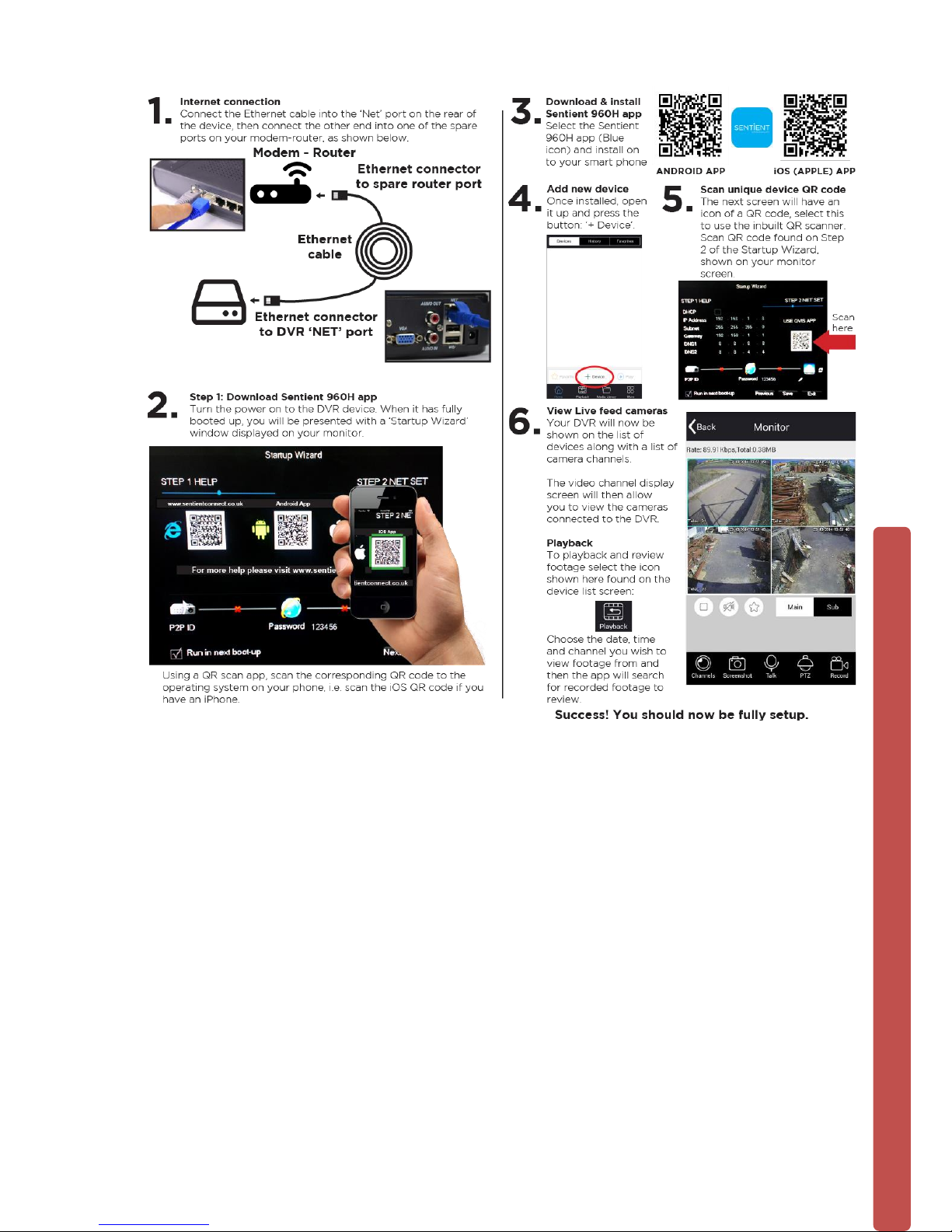

1.5 Smart Phone Setup for Live View & Remote Playback

For the convenience of monitoring your Sentient security system on the move via your

smart phone we have provided a quick and simple remote connection setup service.

Please follow the steps below closely to successfully setup the connection for live view

and remote playback. See next page for step-by-step setup instructions.

1.6 The Mouse

The mouse is used to operate all aspects DVR.

Right mouse click is used to:

Open up a new menu in the real-time monitoring screen.

Exit the current screen without saving.

Left click is used to:

Enter the desired menu or the main screen.

Select menu options.

Select/unselect the checkboxes.

When controlling a PTZ camera.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Manuales populares de Sistema de seguridad de otras marcas

Inner Range

Inner Range Concept 2000 Manual de usuario

Climax

Climax Mobile Lite R32 Instrucciones de montaje

CADDX

CADDX NX-6 Manual de usuario

FBII

FBII XL-31 Series Manual de usuario

Johnson Controls

Johnson Controls PENN Connected PC10 Manual de usuario

Aeotec

Aeotec Siren Gen5 Manual de usuario

Blaupunkt

Blaupunkt SA 2700 Manual de usuario

IDEAL

IDEAL Accenta Manual del propietario

AJAX

AJAX DoubleButton Manual de usuario

Swann

Swann SW-P-MC2 Manual de usuario

Ecolink

Ecolink Siren+Chime Manual de usuario

Digital Monitoring Products

Digital Monitoring Products XR150 Manual de usuario

EDM

EDM Solution 6+6 Wireless-AE Manual de usuario

Highway Safety Group

Highway Safety Group EA401 Manual de usuario

Siren

Siren LED GSM Manual de usuario

Detection Systems

Detection Systems 7090i Instrucciones de montaje

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manual de usuario

Siemens

Siemens FDM273 Manual de usuario
