Sensis SL600 Manual de usuario

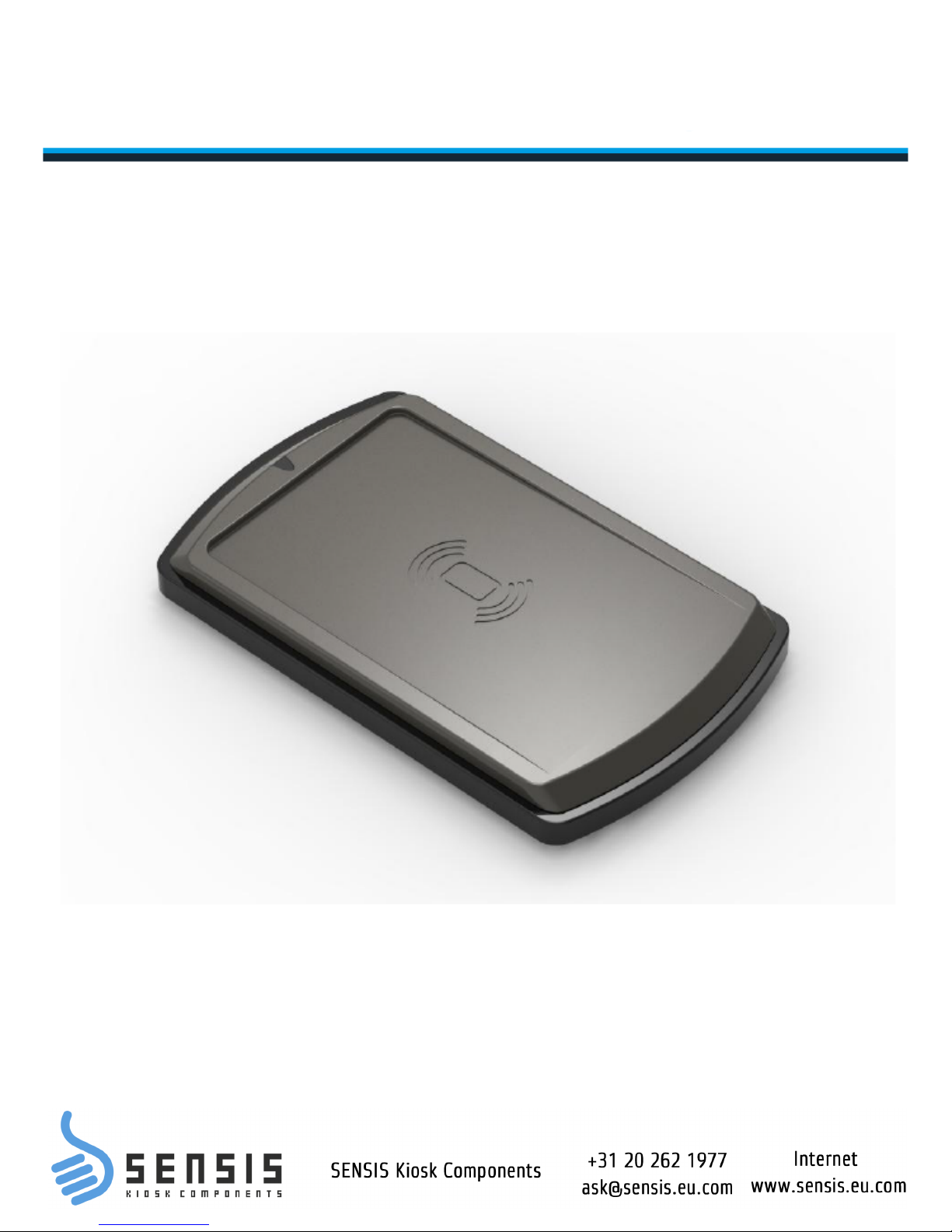

NNNFFFCCC RRReeeaaadddeeerrr SSSLLL666000000

RFID READER

NFC Reader / Writer

SL600

User Manual

Version 1.1

Feb 2015

StrongLink

StrongLink SL600

http://www.stronglink-rfid.com

CONTENT

1. MAIN FEATURES................................................................................... 3

2. CONNECTING TO PC. .......................................................................... 4

2.1 SL600- USB.............................................................................................. 4

3. COMMUNICATION PROTOCOL........................................................ 5

3.1 COMMUNICATION SETTING . .................................................................... 5

3.2 COMMUNICATION FORMAT . .................................................................... 5

4. DLL FUNCTION...................................................................................... 6

4.1SYSTEM FUNCTION . .......................................................................... 6

4.1.1 INT WINAPI LIB_VER. .................................................................... 6

4.1.2 INT WINAPI RF_GET_MODEL. .................................................... 6

4.1.3 INT WINAPI RF_INIT_TYPE. ......................................................... 6

4.1.4 INT WINAPI RF_ANTENNA_STA . ................................................ 6

4.1.5 INT WINAPI RF_LIGHT. ................................................................. 6

4.1.6 HANDLE WINAPI RF_INIT_USB .................................................. 6

4.1.7 INT WINAPI RF_GET_DEVICE_NAME. ...................................... 7

4.2 ENCRYPTION FUNCTION ................................................................. 7

4.2.1 INT WINAPI DES_ENCRYPT. ......................................................... 7

4.2.2 INT WINAPI DES_DECRYPT. ......................................................... 7

4.3 ISO14443A FUNCTION . ....................................................................... 7

4.3.1 Mifare Class. ......................................................................................... 7

4.3.2 Ultralight Class. ...................................................................................10

4.3.3 DESFire Class......................................................................................11

4.4NFC FUNCTION ...................................................................................12

4.4.1 INT WINAPI RF_NFC_SWITCH. ..................................................12

4.4.2 INT WINAPI RF_NFC_NDEF .........................................................12

StrongLink SL600

http://www.stronglink-rfid.com

1. MAIN FEATURES

Tags Supported: Mifare 1k, Mifare 4k, Mifare UltraLight, Mifare

UltraLight C, DESFire and NTAG203

NFCIP-1 Message Function

USB HID Protocol Interface

13.56MHz RF Operating Frequency

ISO14443, ISO18092 NFCIP-1 mode(text & url content)

Windows 32bit/64bit Operation Systems Compatibility

Offering DLL for Windows 32bit/64bit Operating Systems

Work current less than 60mA

Storage temperature: -40ºC ~ +75ºC

Operating temperature: -20ºC ~ +55ºC

Dimension: 110 ×81 ×26 mm

Weight: 100g

StrongLink SL600

http://www.stronglink-rfid.com

2.CONNECTING TO PC

2.1 SL600- USB

Connect SL600 to the USB port of PC, then you can find the device in the “Device

Manager” as f o l l o w s :

StrongLink SL600

http://www.stronglink-rfid.com

3. COMMUNICATION PROTOCOL

3.1 Communication Setting

SL600 is kind of HID-compliant device, so there is no need to install the driver.

For HID-compliant device, user can send and receive data using “set report”and “ get

report”functions of USB HID protocol.

Of course, we also offer DLL for users to develop their own applications. Details see to

chapter 4.

3.2 Communication Format

Host to Reader(Set Report in HID protocol):

Preamble

Len

DeviceID

Command

Data

Checksum

Preamble: 2 bytes equal to 0xAABB

Len: 2 bytes, indicating the number of bytes from DeviceID to Checksum

theleftbyteisused,andtherightbyteisalso0x00

DeviceID: 2 bytes (default: 0x00)

Command: 2 bytes, Command code

Data: Variable length depending on the command code

Checksum: 1 byte, XOR of all the bytes from DeviceID to Data

Reader to Host(Get Report in HID protocol):

Preamble

Len

DeviceID

Command

Status

Data

Checksum

Preamble: 2 bytes equal to 0xAABB

Len: 2 bytes, indicating the number of bytes from DeviceID to Checksum

theleftbyteisused,andtherightbyteisalso0x00

DeviceID: 2 bytes (default: 0x00)

Command: 2 bytes Command code

Status: 1 byte, 0 = success, not 0 = fail

Data: Response data, not necessary

Checksum: 1 byte, XOR of all the bytes from DeviceID to Data

StrongLink SL600

http://www.stronglink-rfid.com

4. DLLFUNCTION

Declarations of all the functions can also be found in the head file in the SDK with DLL.

4.1 SYSTEM FUNCTION

4.1.1 INT WINAPI LIB_VER

Function: Get DLLVersion

Prototype: int WINAPI lib_ver (unsigned int *pVer)

Parameter: pVer: [OUT] DLL version

Return: return 0 if successful

4.1.2 INT WINAPI RF_GET_MODEL

Function: Get Device Type

Prototype: int WINAPI rf_get_model (unsigned short icdev,

unsigned char *pVersion,

unsigned char *pLen)

Parameter: icdev: [IN] Device ID

pVersion: [OUT] response information

pLen: [OUT] lengthofresponseinformation

Return 0 when success

4.1.3 INT WINAPI RF_INIT_TYPE

Function: Set Reader contactless working mode

Prototype: int WINAPI rf_init_type(unsigned short icdev, unsigned char type)

Parameter: icdev: [IN] Device ID

type: [IN] reader working mode

Return 0 when success

Explanation: this function is not effective to the readers only support single protocol.

type = 'A': set SL060 into ISO14443A mode

type = 'B': set ISO14443B mode

type = 'r': set AT88RF020 card mode

type = '1': set ISO15693 mode

4.1.4 INT WINAPI RF_ANTENNA_STA

Function: Manage RF status

Prototype: int WINAPI rf_antenna_sta (unsigned short icdev, unsigned char model)

Parameter: icdev: [IN] Device ID

model: [IN] transmittalstate

Return 0 when success

Explanation: model = 0: turn off RF

model=1:turnonRF

4.1.5 INT WINAPI RF_LIGHT

Function: Manage LED

Prototype: int WINAPI rf_light (unsigned short icdev, unsigned char color)

Parameter: icdev: [IN] Device ID

color: [IN] 0 = off

1=on

Return 0 when success

4.1.6 HANDLE WINAPI RF_INIT_USB

Function: Init usb

Prototype: HANDLE WINAPI rf_init_usb(int HIDNum)

StrongLink SL600

http://www.stronglink-rfid.com

Parameter: HIDNum: [IN] theHIDnumberofdevice

Return the handle of device when success

4.1.7 INT WINAPI RF_GET_DEVICE_NAME

Function: Get device’ s name

Prototype: int WINAPI rf_get_device_name(int HIDNum, char *buf, int sz)

Parameter: HIDNum: [IN] the HID number of device

sz: [IN] the length of name, maximum 255

buf: [OUT] thebufofdevicename

Return 0 when success

4.2 ENCRYPTION FUNCTION

4.2.1 INT WINAPI DES_ENCRYPT

Function: DES_Encrypt

Prototype: int WINAPI des_encrypt ( unsigned char *pSzOut,

unsignedchar *pSzIn,

unsignedint inlen,

unsignedchar *pKey,

unsignedint keylen)

Parameter: pSzOut: [OUT] ciphertext, bytes length equal to plaintext

pSzIn: [IN] plaintext

inlen: [IN] lengthofplaintext,integertimesof8bytes

pKey: [IN] encryptkey

keylen: [IN] length of key, 8 bytes for single DES, 16 bytes for triple DES

Return 0 when success

4.2.2 INT WINAPI DES_DECRYPT

Function: DES_Decrypt

Prototype: int WINAPI des_decrypt ( unsigned char *pSzOut,

unsignedchar *pSzIn,

unsignedint inlen,

unsignedchar *pKey,

unsignedint keylen)

Parameter: pSzOut: [OUT] plaintext, bytes length equal to ciphertext

pSzIn: [IN] ciphertext

inlen: [IN] length of ciphertext, integer times of 8 bytes

pKey: [IN] encryptkey

keylen: [IN] length of key, 8 bytes for single DES, 16 bytes for triple DES

Return 0 when success

4.3 ISO14443A FUNCTION

4.3.1 Mifare Class

4.3.1.1 INT WINAPI RF_REQUEST

Function: ReqA

Prototype: int WINAPI rf_request ( unsigned short icdev,

unsigned char model,

unsigned short *pTagType)

Parameter: icdev: [IN] Device ID

model: [IN] REQ MODE

pTagType: [OUT] response data, chip type code

StrongLink SL600

http://www.stronglink-rfid.com

Return 0 when success

Annotation: mode = 0x26: REQ_STD

mode = 0x52: REQ_ALL

4.3.1.2 INT WINAPI RF_ANTICOLL

Function: Mifare cardAnti-collision

Prototype: int WINAPI rf_anticoll ( unsigned short icdev,

unsigned char bcnt,

unsigned char *pSnr,

unsigned char *pLen)

Parameter: icdev: [IN] Device ID

bcnt: [IN] must be 4

pSnr: [OUT] response data from card, unique serial number

pLen: [OUT] lengthofresponsedata

Return 0 when success

4.3.1.3 INT WINAPI RF_SELECT

Function: Select Mifare card

Prototype: int WINAPI rf_select (unsigned short icdev,

unsigned char *pSnr,

unsigned char snrLen,

unsigned char *pSize)

Parameter: icdev: [IN] Device ID

pSnr: [IN] card unique serial number

snrLen: [IN] length of pSnr

pSize: [OUT] responsedatafromcard, capacitycode

Return 0 when success

StrongLink SL600

http://www.stronglink-rfid.com

4.3.1.4 INT WINAPI RF_M1_AUTHENTICATION2

Function: Mifare_Std Authentication

Prototype: int WINAPI rf_M1_authentication2 ( unsigned short icdev,

unsignedchar model,

unsignedchar block,

unsignedchar *pKey)

Parameter: icdev: [IN] Device ID

model: [IN] key validate mode

block: [IN] block absolute address

pKey: [IN] 6 bytes password

Return 0 when success

Annotation: model = 0x60: use KeyA

model=0x61:useKeyB

4.3.1.5 INT WINAPI RF_M1_READ

Function: MifareOne Read

Prototype: int WINAPI rf_M1_read ( unsigned short icdev,

unsignedchar block,

unsignedchar *pData,

unsignedchar *pLen)

Parameter: icdev: [IN] Device ID

block: [IN] block absolute address

pData: [OUT] response data from card

pLen: [OUT] length of response data

Return 0 when success

4.3.1.6 INT WINAPI RF_M1_WRITE

Function: Mifare_Std Write

Prototype: int WINAPI rf_M1_write (unsigned short icdev,

unsignedchar block,

unsignedchar*pData)

Parameter: icdev: [IN] Device ID

block: [IN] block absolute address

pData: [IN] written data, 16 bytes

Return 0 when success

4.3.1.7 INT WINAPI RF_M1_INITVAL

Function: Mifare_Std card Initialize Value

Prototype: int WINAPI rf_M1_initval ( unsigned short icdev,

unsigned char block,

long value)

Parameter: icdev: [IN] Device ID

block: [IN] blockabsoluteaddress

pValue: [IN] initialize purse value at HEX format, low byte in former

Return 0 when success

4.3.1.8 INT WINAPI RF_M1_READVAL

Function: Mifare_Std Read Value

Prototype: int WINAPI rf_M1_readval ( unsigned short icdev,

unsignedchar block,

long*pValue)

Parameter: icdev: [IN] Device ID
