Sennheiser Evolution E 604 Manual de usuario

e 904

Instruction manual

e 904 | 2/7

Delivery includes

• e 904

• MZH 604 microphone clamp

• pouch

• quick guide

• safety guide

Product overview

1. Sound inlet basket

2. XLR-3 connector

3. Microphone clamp

e 904 | 3/7

Installation

Attaching the microphone

Fasten the holder to the microphone using the screw.

Connecting the microphone

Connect the XLR-3 socket of the microphone cable (optional accessories) to the XLR-3 socket of

the microphone.

e 904 | 4/7

Operation

Positioning the microphone on a drum

Use the microphone clamp to attach the e 904 to the rim of the drum.

Position the microphone on the drum so that it is 3 to 5cm above the drumhead.

3 – 5 cm

(1.2 – 2")

30 – 60°

It is vital to observe the following notes:

Position Resulting sound Commentary

A More fundamental

Little overtones Position on the drum:

3 to 5 cm above the drumskin

The fundamental to overtones ratio can be adjus-

ted by changing the angle of the microphone. The

most balanced results are obtained at an angle of

30 to 60°.

B Less fundamental

Many overtones

C Use of a second e 904 for picking up the bottom of

the drumskin and the snares.

NB: The lower microphone must be phase-rever-

sed to avoid phase-cancellation effects due to the

second microphone being on the other side of the

drumskin.

A CB

e 904 | 5/7

Cleaning and maintaining the e 904

Positioning the monitor loudspeakers

To prevent feedback and crosstalk, postion your monitor loudspeakers in the angle area of the

highest cancellation of the microphone (approx. 180°).

180°

Cleaning and maintaining the e 904

CAUTION

LIQUIDS CAN DAMAGE THE ELECTRONICS OF THE PRODUCT!

Liquids entering the housing of the product can cause a short-circuit and damage the electronics.

Keep all liquids away from the product.

Do not use any solvents or cleansing agents.

Disconnect the products from the power supply system and remove rechargeable batteries and

batteries before you begin cleaning.

Clean all products only with a soft, dry cloth.

e 904 | 6/7

Speciﬁcations

Transducer principle dynamic

Frequency response 40 - 18,000 Hz

Pick-up pattern cardioid

Sensitivity (free ﬁeld, no load) 2.0 mV/Pa

Nominal impedance (at 1 kHz) 350 Ω

Min. terminating impedance 1 kΩ

Connector XLR-3

Dimensions Ø 41 mm, length 63 mm

Weight 125 g

Polar pattern

125 Hz

250 Hz

500 Hz

1,000 Hz

2,000 Hz

4,000 Hz

8,000 Hz

16,000 Hz

30°

0°

180°

150°

120°

60°

90°

30°

0°

180°

150°

120°

60°

90°

Frequency response

-40

-50

-60

-70

-80

-90

100

200

500

1,000

2,000

5,000

10,000

20,000

dBV

0°, 1 m

e 904 | 7/7

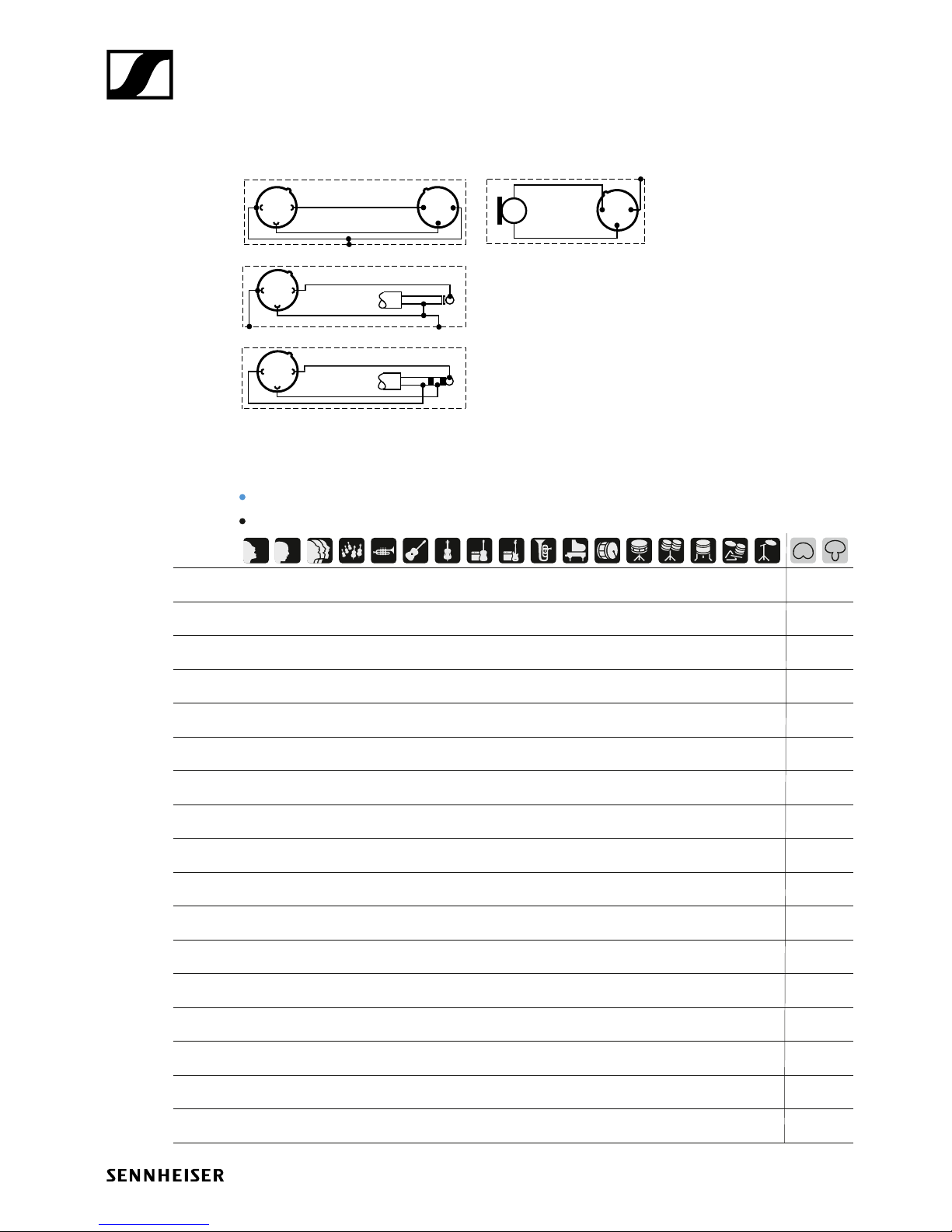

Overview of applications

Connector assignment

+ +

XLR 6.3 mm

XLR

6.3 mm

XLR

UNBALANCED

BALANCED

Overview of applications

Primary application

Secondary application

•••••

••

••••

••

•••

••

••••• •

•• ••• •••

•• •

•••

•• •

••

••••

••

••••• •

••

••• •

••••• •••

••

••• ••

e 602 II

e 604

e 608

e 609 silver

e 614

e 835

e 845

e 865

e 901

e 902

e 904

e 906

e 908

e 914

e 935

e 945

e 965
