Sennheiser SKM 300 Manual de usuario

evolution wireless G4

300 series / 500 series

Instruction Manual

Sennheiser electronic GmbH & Co. KG

Am Labor 1, 30900 Wedemark, Germany, www.sennheiser.com

ew 300-500 G4 - v1.1

skm 300

SKM 300 G4 handheld transmitter

►

You can find more detailed information about the SKM 300 G4 in the fol-

lowing sections:

• Installation and Startup: “Installing the SKM 300 G4”

• Operation: “Using the SKM 300 G4”

• Technical Data: “SKM 300 G4”

Accessories

A variety of accessories are available for the ew 300-500 G4 series.

Microphones and cables

Microphone modules

We recommend using the following microphone modules with the

SKM 300 G4 and SKM 500 G4 handheld transmitters.

►

You can find more information about the individual microphone mod-

ules on their respective product pages at www.sennheiser.com.

Module Features Article

no.

MMD 835-1 BK Dynamic, cardioid, black 502575

MMD 845-1 BK Dynamic, super-cardioid, black 502576

MME 865-1 BK Capacitor, super-cardioid, black 502581

MMD 935-1 BK Dynamic, cardioid, black 502577

MMD 945-1 BK Dynamic, super-cardioid, black 502579

MMK 965-1 BK Capacitor, switchable

Cardioid/super-cardioid, black

502582

MMK 965-1 NI Capacitor, switchable

Cardioid/super-cardioid, nickel

502584

MD 9235 BK Dynamic, cardioid, black 502585

MD 9235 NI Dynamic, cardioid, black 502586

MD 9235 NI/BK Dynamic, cardioid, nickel/black 502591

Neumann

KK 204

Capacitor, cardioid, nickel 008651

Neumann

KK 204 BK

Capacitor, cardioid, black 008652

Neumann

KK 205

Capacitor, super-cardioid, nickel 008653

Neumann

KK 205 BK

Capacitor, super-cardioid, black 008654

Accessories

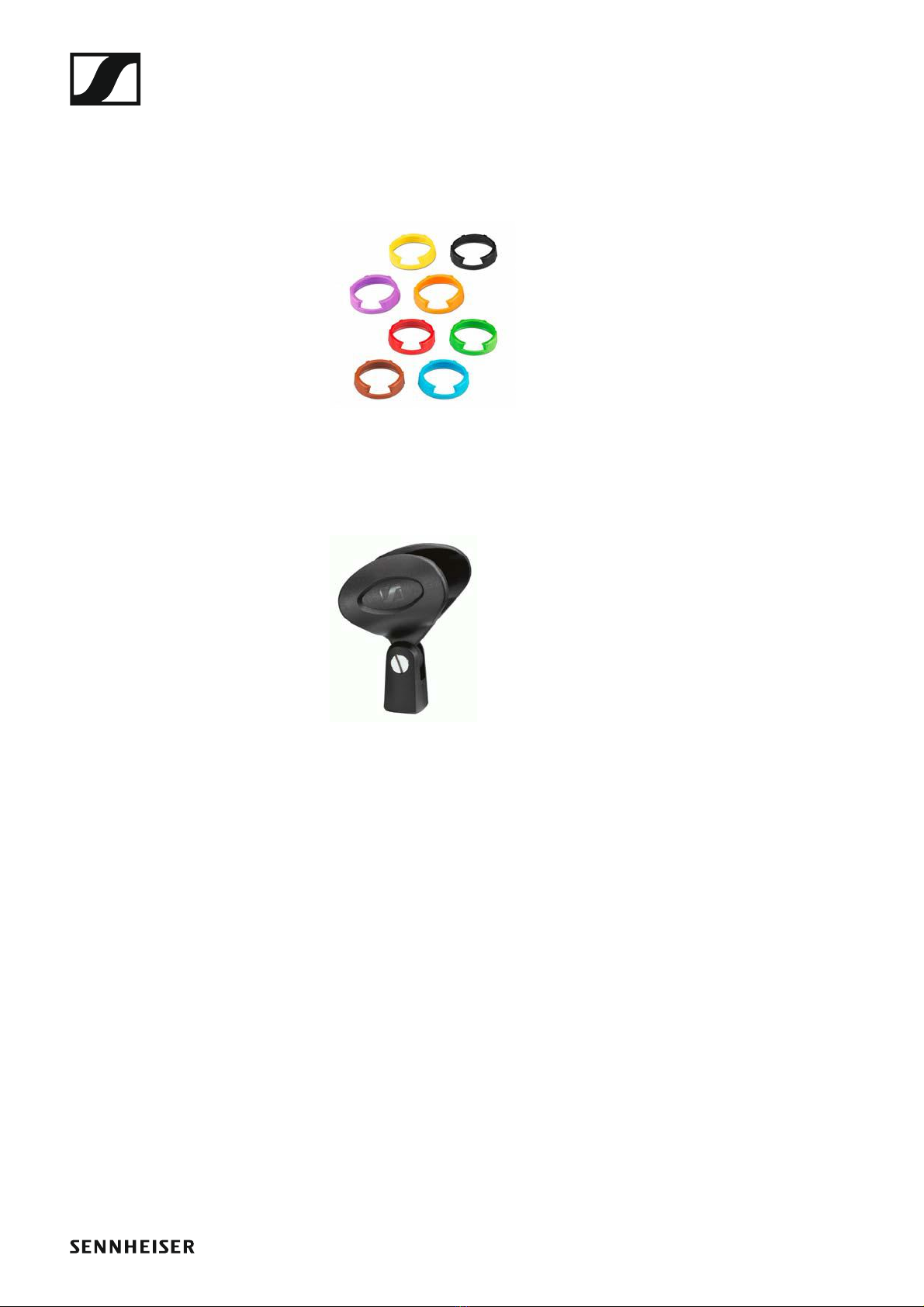

Additional accessories

Color labeling set

•KEN 2, color labeling set for SKM handheld transmitters, article no.

530195

►

Microphone clamp

•MZQ 1, microphone clamp for SKM handheld transmitters, article no.

076670

►

MUTE switch

•RMS 1, remote mute switch for SK 300 G4, article no. 503164

►

The frequency bank system

There are different frequency ranges in the UHF band available for trans-

mission.

The following frequency ranges are available for the ew 300-

500 G4 series:

•Aw+ range: 470 – 558 MHz

•AS range: 520 – 558 MHz

•Gw1 range: 558 – 608 MHz

•Gw range: 558 – 626 MHz

•GBw range: 606 – 678 MHz

•Bw range: 526 – 698 MHz

•Cw range: 718 – 790 MHz

•Dw range: 790 – 865 MHz

•JB range: 806 – 810 MHz

•K+ range: 925 – 937.5 MHz

Every frequency range has 26 frequency banks with up to 32 channels:

►

You can find information about the frequency presets in the frequen-

cy tables of the respective frequency ranges under “Frequency ta-

bles”.

Installing the SKM 300 G4

These sections contain detailed information about installing and starting

up the SKM 300 G4.

You can find information about operating the SKM 300 G4 under “Using

the SKM 300 G4”.

Inserting and removing the batteries/rechargeable

batteries

You can operate the wireless microphone either with batteries (AA, 1.5 V)

or with the rechargeable Sennheiser BA 2015 battery.

▷Screw the rear part of the wireless microphone in the direction of the

arrow (counter-clockwise) off of the handle of the wireless microphone.

When you remove the wireless microphone during operation, mute is

automatically activated. MUTE appears in the display panel. When

you screw the microphone back together, mute is deactivated.

▷Pull the rear part of the wireless microphone all the way out.

▷Open the cover of the battery compartment.

▷Place the batteries or the BA 2015 rechargeable battery in the battery

compartment as shown on the cover. Please observe correct polarity

when inserting the batteries/accupack.

▷Close the cover.

▷Push the battery compartment into the handle of the wireless micro-

phone.

▷Screw the rear part of the wireless microphone back onto the handle.

Installing the SKM 300 G4

Battery status

Charge status of the batteries:

►

Charge status is critical (LOW BATT):

►

Installing the SKM 300 G4

Replacing the microphone module

You can find a list of the recommended microphone modules for the hand-

held transmitter under “Microphones and cables”.

To change the microphone module:

▷Unscrew the microphone module.

▷Screw the desired microphone module on.

►

Do not touch the wireless microphone contacts or the microphone

module contacts. If you touch the contacts, they may become dirty or

bent.

When you unscrew the microphone module during operation, mute is au-

tomatically activated. MUTE appears in the display panel. When you screw

the microphone module back on, mute is deactivated.

Installing the SKM 300 G4

Changing the colored ring

To change the colored ring:

▷Pull the colored ring off as shown in the diagram.

►

▷Attached a colored ring in the color you want as shown in the diagram.

►

Using the SKM 300 G4

These sections contain detailed information about using the SKM 300 G4.

You can find information on installation and startup of the SKM 300 G4 un-

der “Installing the SKM 300 G4”.

Operating elements of the SKM 300 G4 handheld

transmitter

►

1Display panel

• See “Displays on the SKM 300 G4 handheld transmitter display pan-

el”

2Infra-red interface

• See “Synchronizing devices”

3DOWN, UP and SET multi-function switch

• See “Buttons for navigating the SKM 300 G4 menu”

4ON/OFF button with ESC function in the operating menu

• Switch the transmitter on or off

See “Switching the SKM 300 G4 handheld transmitter on and off”

• Escape function in the menu

See “Buttons for navigating the SKM 300 G4 menu”

• Deactivating the RF signal

See “Deactivating the RF signal (RF mute)”
