The 845 is a high-performance lead vocal microphone,

specially designed for rough stage use. Due to its

extended high-frequency response and super-cardioid

pick-up pattern, the 845 ensures vocal projection

through high on-stage sound levels.

The microphone has a smooth, warm tonal response and

full dynamic range. The presence boost ensures vocal

clarity and projection.

The balanced frequency response maintains signal

quality when moving on and off axis during performance.

The minimal proximity effect provides for consistently

clear bass-end performance when singing closer to, or

further from the microphone, providing greater on-stage

freedom.

The super-cardioid pick-up pattern provides e

xcellent

feedback rejection

. The rugged metal construction and

internal damping isolates handling noise.

The 845 S variant features a silent

ON/OFF switch

Features

yRugged all metal body

yFull dynamic range and smooth frequency response

for excellent signal quality

yExcellent feedback rejection

yVery good suppression of handling noise

yHumbucking coil

Delivery includes

y845 microphone

yMZQ 800 microphone clamp

yPouch

yInstructions for use

yWarranty Certificate

ON/OFF switch ( 845 S only)

Use the screw to lock the switch in the ON position. With

the switch set in the ON position, gently turn the screw

head 90° to lock the switch in position.

Pin assignment of XLR-3 connector

Removing the sound inlet basket

XLR 6,3 mm

XLR

6,3 mm

symmetrisch

XLR

balanced

Positioning the microphone

If sibilance or “popping” occurs, position the microphone

not directly in front of the mouth but slightly to the side.

In order to prevent feedback, position monitor loud-

speakers so that they are located in the angle area of the

highest cancellation of the microphone.

In order to prevent interference due to crosstalk between

adjacent sound sources, try to position the microphone so

that the interfering sound source is located in the angle

area of the highest cancellation of the microphone

(approx. 120°; see polar diagram).

Position Resulting sound Commentary

High proximity effect

(much bass/

fundamental)

Powerful, direct sound

Very little crosstalk

from other sound

sources

Less proximity effect

(less bass/fundamental)

Some room ambience,

natural, balanced sound

More crosstalk from

other sound sources

Very little proximity

effect (little bass/

fundamental)

More room ambience,

indirect sound

Much crosstalk from

other sound sources

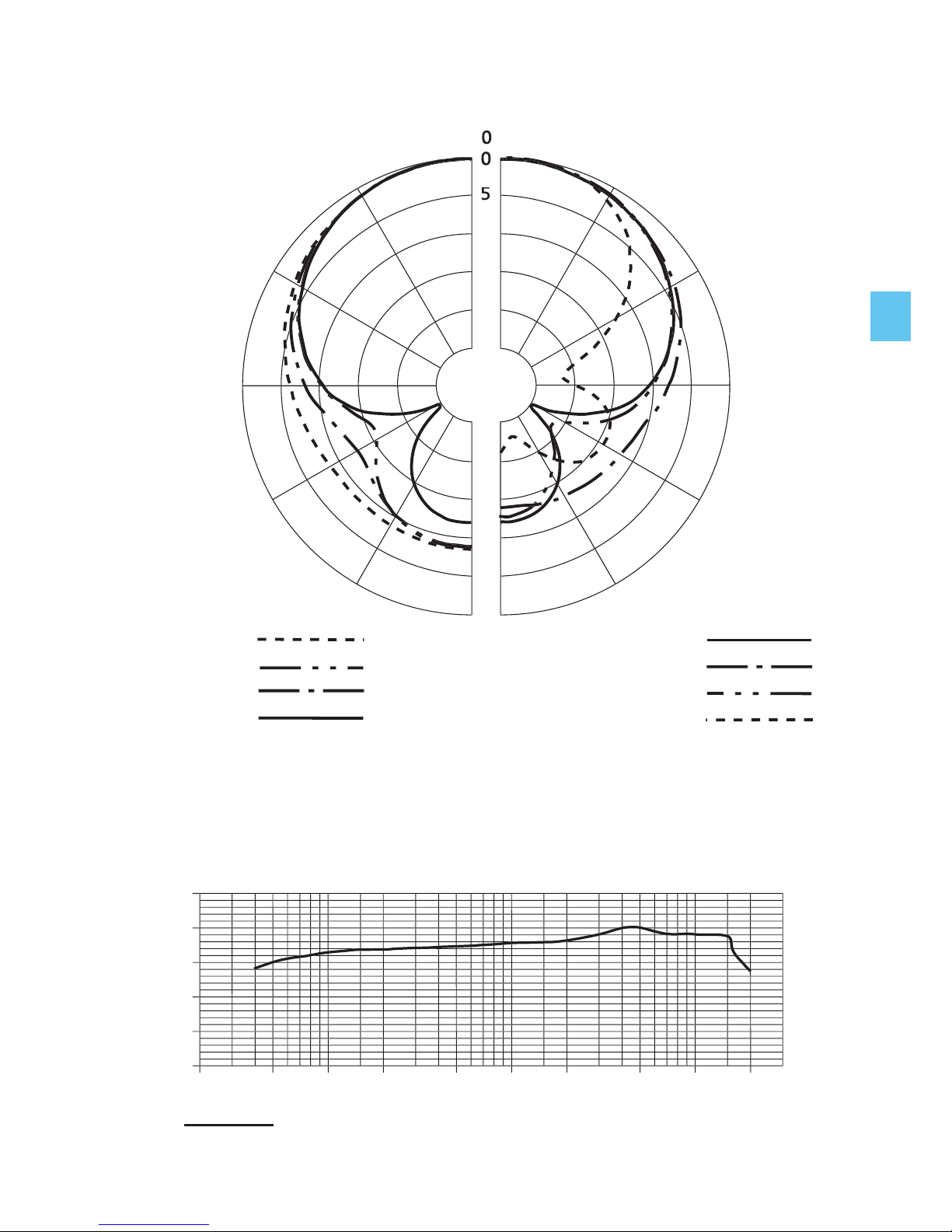

Polar diagram

Frequency response curve

000

8000

6000

500

000

- 7

500

000

5000

0000

- 4

Specifications

Transducer principle dynamic

Frequency response 40.....16,000 Hz

Pick-up pattern super-cardioid

Sensitivity

(free field, no load at 1 kHz) 1.8 mV/Pa

Nominal impedance 350 :

Min. terminating impedance 1 k:

Connector XLR-3

Weight 330 g

Dimensions Ø 46 x L 185 mm

Overview of microphone applications

Variant

Application

e602-II

e604

e606

e608

e614

e815

e825

e835

e840

e845

e865

Vocals xxxxxx

Choirs x

Studio, 

acoustic instruments

Orchestra x

Brass / Saxophone xx x

Acoustic guitar x

Acoustic bass x

Guitar amplifiers x

Bass amplifiers x

Leslie xxx

Piano, grand piano x

Kick drums x

Snare drums xxx

Rack toms xxx

Floor toms xxx

Congas xxx

Cymbals x

Percussion xxxx

Overheads x

Manufacturer declarations

Waaranty

2 years

Approval

Sennheiser electronic GmbH & Co. KG declare that this device

is in compliance with the applicable CE standards and regula-

tions.

WEEE Declaration

Please dispose of this product at the end of its operational li-

fetime by bringing it to your local collection point or recycling

centre for such equipment.

Sennheiser electronic GmbH & Co. KG

30900 Wedemark, Germany

Phone +49 (5130) 600 0

Fax +49 (5130) 600 300

www.sennheiser.com

Printed in Germany Publ. 03/07 511656/A04
