Sennheiser SET100 Dimensiones

Features—Benefits

• Compatible with television sets and other audio sources

• Radiating power for rooms up to 435 sq. ft.

• Receiver has volume control, and left/right balance and tone controls

• Excellent sound quality

• Lightweight receiver

• 1-year warranty

• Greater coverage area

• Convenient interconnectivity

• Controlled from a single location

• Ease of installation

• Excellent reliability

Technical Data

Transmitter

Modulation FM

Carrier Frequency 95 kHz

Frequency Response 30–18,000 Hz

THD typ. 1%

Signal to Noise Ratio typ. 65 dB(A)

Power Requirements 3 VA

Broadcast Distance 435 sq. ft.

Weight (approx.) 2.8 oz.

Receiver

Modulation FM

Carrier Frequency 95 kHz

Frequency Response 30–18,000 Hz

THD typ. 1%

Signal to Noise Ratio typ. 65 dB(A)

Operating Time (approx.) 4-6 hours

Charging Time (approx.) 14 hours

Sound Pressure Level 124 dB

Weight (approx.) 1.4 oz.

SET 100

Product Variants

SET 100-J Includes RI 100-J receiver with 2.5mm mono output jack to accommodate

hearing aid accessories such as neckloops, silhouettes and direct audio input

Infrared Wireless Personal Infrared Listening System

The DirectEar TM SET 100 mono system consists of an infrared transmitter and receiver that

permits cordless television listening without disturbance to others. The transmitter connects

directly into the audio output of a TV, VCR or compatible audio source. A high quality audio

signal is transmitted on the 95 kHz infrared carrier frequency to the stethophone receiver.

Product Compatibility

Architect’s Specifications

Optional Accessories

MKE 100-TV Microphone (if TV does not have an audio output socket)

BA 90 Rechargeable battery

EP 405L Latex ear cushions

EP 405F Foam ear cushions

Supplied Accessories

SET 100

Sennheiser Electronic Corporation, 1 Enterprise Drive, Old Lyme, CT 06371

Telephone: 860-434-9190 • Fax: 860-434-1759 • Web: http://www.sennheiserusa.com

Sennheiser Mexico:

Av. Xola 613, PH6, Col. Del Valle 03100, Mexico, DF. Telephone: (525) 639-0956. Fax: (525) 639-9482

Sennheiser Canada: 221 Labrosse Ave, Pte-Claire, PQ H9R 1A3. Telephone: 514-426-3013. Fax: 514-426-3953

Manufacturing Plant: Am Labor 1, 30900 Wedemark, Germany

EZT 100

BA 90

Otros manuales para SET100

Tabla de contenidos

Otros manuales de Audífono de Sennheiser

Sennheiser

Sennheiser Audiology SET 810 Infra-red Manual del operador

Sennheiser

Sennheiser ADCS1 Manual de usuario

Sennheiser

Sennheiser SI 1015-4000 SINGLE Dimensiones

Sennheiser

Sennheiser AUDIOLINK PLS-100 Manual de usuario

Sennheiser

Sennheiser SET 840 S - 06-09 Manual de usuario

Sennheiser

Sennheiser DSP 360 - SHORT Manual de usuario

Sennheiser

Sennheiser SI 30-1500 SINGLE Dimensiones

Sennheiser

Sennheiser RI 100 Manual de usuario

Sennheiser

Sennheiser 502011 Manual de usuario

Sennheiser

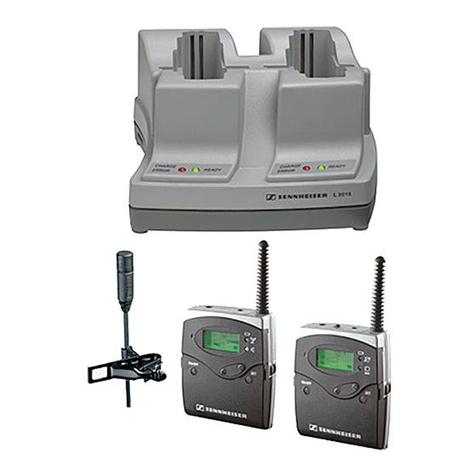

Sennheiser L 2015 Manual de usuario
