Sennheiser HD-E2020-D Manual de usuario
Tourguide
Instruction manual
System 2020
1
Contents
Contents
Important safety instructions ........................................................................................... 2
System components ............................................................................................................ 7
Overview of the system ...................................................................................................... 8
The operating controls ..................................................................................................... 10
Indications and displays on the bodypack transmitter ......................................... 15
Indications and displays on the radio microphone ................................................. 17
Indications and displays on the receiver ................................................................... 19
Indications and displays on the charging case ........................................................ 21
The functions of the operating controls of the bodypack
transmitter/radio microphone .................................................................................... 23
The functions of the operating controls of the receivers ...................................... 24
The functions of the operating controls of the charging case ............................. 24
Putting the components into operation ....................................................................... 25
Using the components ..................................................................................................... 29
Switching the devices on/off ...................................................................................... 29
Adjusting the volume ................................................................................................... 31
Charging the rechargeable batteries ......................................................................... 32
Setting a channel ........................................................................................................... 35
Muting the devices ........................................................................................................ 39
Special bodypack transmitter/radio microphone settings ................................... 40
The operating menu of the bodypack transmitter/radio microphone ............... 48
Overview of the bodypack transmitter’s operating menu .................................... 49
Overview of the radio microphone’s operating menu ............................................ 51
Care and maintenance ...................................................................................................... 53
If a problem occurs... ......................................................................................................... 54
Specifications ..................................................................................................................... 55
Accessories ......................................................................................................................... 58
Manufacturer declarations .............................................................................................. 59
Index .................................................................................................................................... 62
Thank you for choosing Sennheiser!
We have designed this product to give you reliable operation over many years. Over 60 years of
accumulated expertise in the design and manufacture of high-quality electro-acoustic equipment
have made Sennheiser a world-leading company in this field.
Please take a few moments to read these instructions carefully, as we want you to enjoy your new
Sennheiser products quickly and to the fullest.
2
Important safety instructions
Important safety instructions
• Read these instructions.
• Keep these instructions.
• Heed all warnings.
• Follow all instructions.
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Install in accordance with the manu-
facturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including amplifiers) that produce heat.
• Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
• Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.

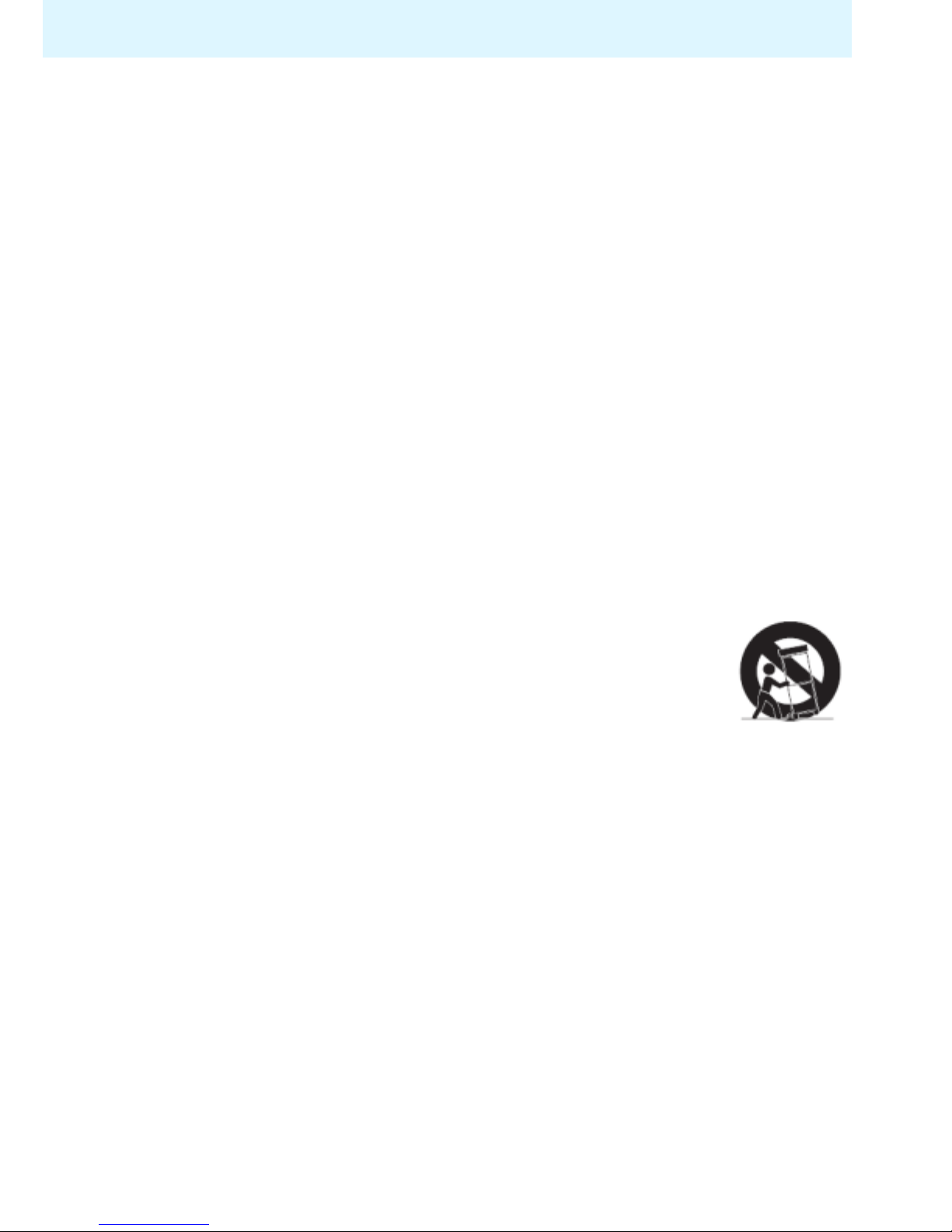

• Use only with the cart, stand, tripod, bracket, or table specified
by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
• Unplug this apparatus during lightning storms or when unused
for long periods of time.
• Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way, such
as power supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, when the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
• Use all-pole mains switch to disconnect the apparatus from the mains.
• WARNING: To reduce the risk of fire or electric shock, do not expose this appa-
ratus to rain or moisture.
• Do not expose this equipment to dripping or splashing and ensure that no
objects filled with liquids, such as vases, are placed on the equipment.
• The mains plug of the power supply cord shall remain readily operable.
• WARNING: Do not expose batteries or battery pack to excessive heat such as
sunshine, fire or the like.
• Caution: Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type.
3
Important safety instructions

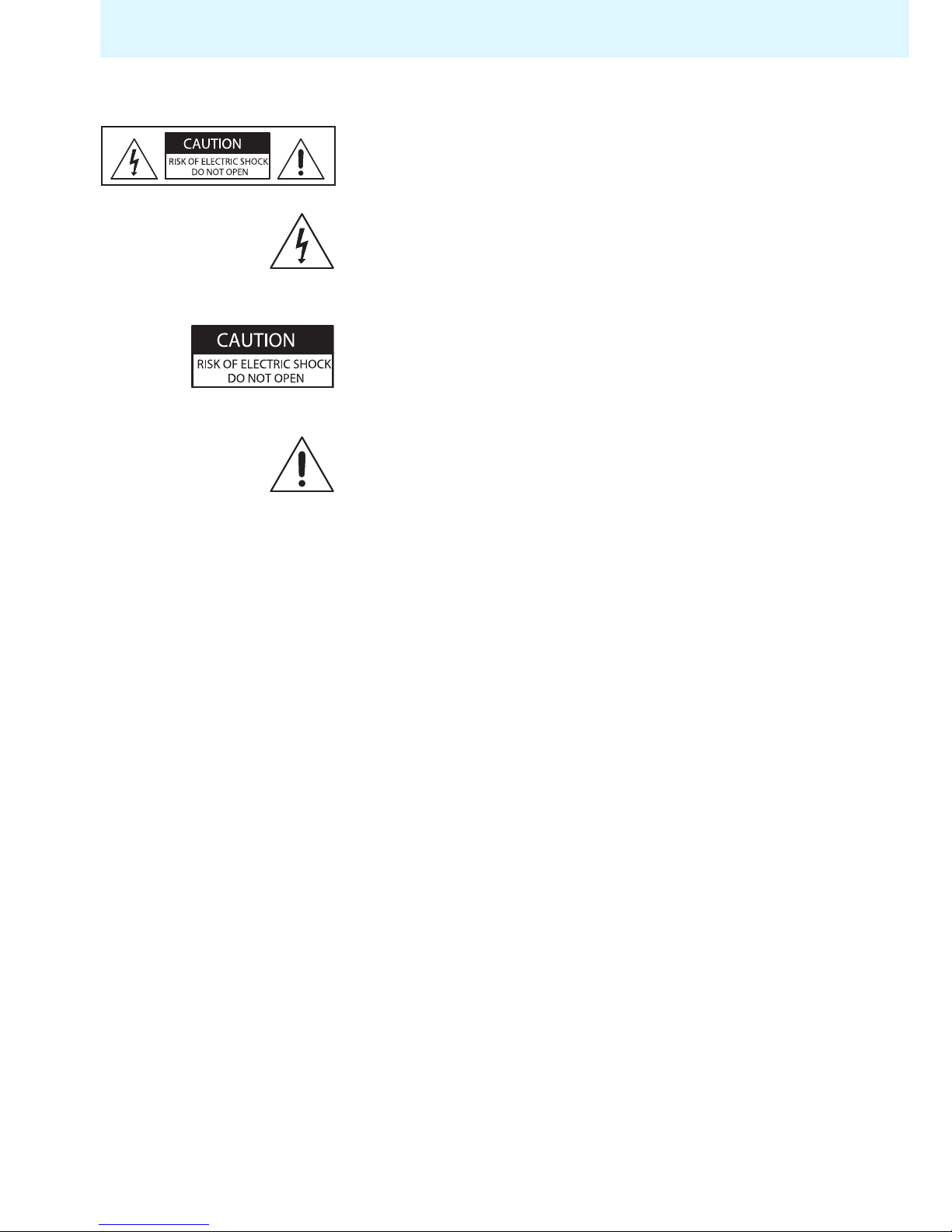

Hazard warnings on the EZL 2020-20 L charging case
The label shown on the left is attached to the rear of
the charging case. The symbols on this label have the
following meaning:
This symbol is intended to alert the user to the
presence of uninsulated dangerous voltage within
the device’s enclosure that may be of sufficient
magnitude to constitute risk of fire or electric shock.
This symbol is intended to alert the user to the risk of
electric shock if the device is opened. There are no user
serviceable parts inside. Refer servicing to qualified
personnel only.
This symbol indicates the presence of important oper-
ating and maintenance instructions in the literature
accompanying this device.
Overloading
Do not overload wall outlets and extension cables as
this may result in fire and electric shock.
Replacement parts
When replacement parts are required, be sure the
service technician uses replacement parts specified by
Sennheiser or those having the same characteristics
as the original part. Unauthorized substitutions may
result in fire, electric shock, or other hazards.
Safety check
Upon completion of any service or repairs to this
device, ask the service technician to perform safety
checks to determine that the devices are in a safe
operating condition.
4
Important safety instructions
Danger of hearing damage due to high volumes
This is a professional transmission system. Commercial
use is subject to the rules and regulations of the trade
association responsible. Sennheiser, as the manu-
facturer, is therefore obliged to expressly point out
possible health risks arising from use.
The HDE 2020 D and EK 2020 D receivers are capable
of producing sound pressure exceeding 85 dB(A).
85 dB(A) is the sound pressure corresponding to the
maximum permissible volume which is by law (in
some countries) allowed to affect your hearing for
the duration of a working day. It is used as a basis
according to the specifications of industrial medicine.
Higher volumes or longer durations can damage your
hearing. At higher volumes, the duration must be
shortened in order to prevent hearing damage. The
following are sure signs that you have been subjected
to excessive noise for too long a time:
• You can hear ringing or whistling sounds in your
ears.
• You have the impression (even for a short time
only) that you can no longer hear high notes.
Intended use of the devices
Intended use includes:
• using the devices for professional purposes,
• having read this instruction manual, especially the
chapter “Important safety instructions” on page 2,
• using the devices within the operating conditions
and limitations described in this instruction
manual.
“Improper use” means using the devices other than as
described in this instruction manual, or under oper-
ating conditions which differ from those described
herein.
Safety instructions for Li-Polymer and Ni-
MH rechargeable batteries and batteries
5
Important safety instructions
If abused or misused, rechargeable batteries may leak. In extreme cases, they may
even present:
Sennheiser does not accept any liability for damage arising from abuse or misuse.
• a heat hazard,
• a fire hazard,
• an explosion hazard,
• a smoke or gas hazard.
Keep away from children. Observe correct polarity.
Do not heat above 70°C/
158°F, e.g. do not expose to
sunlight or throw into a fire.
Switch rechargeable battery-
powered devices off after use.
Do not expose to moisture.
Only charge rechargeable batteries
with the appropriate Sennheiser
chargers.
Do not short-circuit.
When not using rechargeable
batteries for extended periods
of time, charge them regularly
(about every three months).
Do not mutilate or
dismantle.
Only charge rechargeable batteries
at ambient temperatures between
10°C/50°F and 40°C/104°F.
Do not pack charged
batteries loose – danger of
shorting out / fire hazard.
Immediately remove rechargeable
batteries from obviously defective
devices.
Do not continue to use
defective rechargeable
batteries.
Dispose of rechargeable batteries
and devices with built-in recharge-
able batteries at special collection
points or return them to your
specialist dealer.
Only use original Sennheiser
rechargeable batteries.
CAUTION!
6
Important safety instructions
Additional safety instructions for the BA 2015 accupack and for batteries
Rechargeable batteries must only be replaced by authorized Sennheiser partners.
If abused or misused, rechargeable batteries may be damaged!
Do not solder.
Immediately remove flat batteries/
rechargeable batteries from the
device.
7
System components
System components
The Tourguide System 2020 D consists of the
following components which are available from your
Sennheiser partner:
• EZL 2020-20 L charging case including
instruction manual of the overall system
• SK 2020 D bodypack transmitter
• SKM 2020 D radio microphone
• HDE 2020 D stethoset receiver
• EK 2020 D receiver
• BA 2015 accupack
•Mainscable
• Microphone (see next section)
8
Overview of the system
Overview of the system
The Tourguide System 2020 D offers optimum digital
speech transmission for conferences and guided tours
e.g. in factories or museums. The use of RF transmis-
sion allows freedom of movement for all members of
the group. Six preset intermodulation-free receiving
frequencies offer high flexibility and adaptability.
The Tourguide System 2020 D operates in the
863 MHz – 865 MHz frequency band, which is license-
free in Europe. For an overview, refer to page 56.
SK 2020 D bodypack transmitter
You can connect one of the following Sennheiser
microphones (to be ordered separately) to the body-
pack transmitter:
• Clip-on microphones:
ME 2-N, ME 4-N, MKE 2-EW GOLD
•Headmics:
ME 3-N, HSP 2-EW, HSP 4-EW, HS 2-EW
• Hand-held microphones with
special connecting cable:
e 815, e 825 S, e 835, e 840, e 845
In addition, you can connect any audio source (e.g. a
flash / MP3 player) to the bodypack transmitter.
SKM 2020 D radio microphone
This extremely rugged radio microphone can be used
in various tour situations. The radio microphone is
easy to configure and use.
For storage and safe transportation, the radio micro-
phone can be placed in the charging case and secured
with Velcro tape.
9
Overview of the system
HDE 2020 D and EK 2020 D receivers
The receivers are easy to use and comfortable to wear.
The built-in LC display shows all the important in-
formation at a glance (receiving channel, reception
quality, charge status of the built-in Lithium-polymer
rechargeable battery as well as the currently set
volume). The rocker button allows fast and easy
setting of the desired channel.
The EK 2020 D allows you to connect any headphones
or an induction loop for wearers of hearing aids.
The system can be expanded at any time by adding
additional receivers.
EZL 2020-20 L charging case
The charging case simultaneously recharges up to
20 stethoset receivers with their built-in rechargeable
batteries, as well as the BA 2015 accupack of the
bodypack transmitter/radio microphone. You can also
charge the bodypack transmitter with the BA 2015
accupack inserted plus an additional spare accupack.
The channel copy function lets you set all receivers to
the same channel at the press of a button.
Additional features of the charging case:
• Quick charge of accupacks.
• Automatic detection of full charge and subsequent
switching to trickle charging so the accupacks can
remain in the charger even when they have been
fully charged.
• Highest possible operational reliability, since
temperature and voltage of the accupacks are
monitored during charging.
• Long accupack service life due to overcharge
protection and recovery of deep-discharged accu-
packs.
• Safe storage and transportation of the system
components.
Otros manuales para HD-E2020-D
2
Este manual sirve para los siguientes modelos
10
Tabla de contenidos
Otros manuales de Auriculares de Sennheiser
Sennheiser
Sennheiser MX 680 SPORTS - 10-09 Manual de usuario
Sennheiser
Sennheiser HDI 450 Manual de usuario
Sennheiser
Sennheiser PXC 550 Manual de usuario
Sennheiser
Sennheiser PC 333D Manual de usuario
Sennheiser
Sennheiser HME 1410 Manual de usuario
Sennheiser
Sennheiser RS 135 Manual de usuario
Sennheiser
Sennheiser MOMENTUM True Wireless 3 Manual de usuario
Sennheiser
Sennheiser M2 OEG Manual de usuario
Sennheiser
Sennheiser Momentum Wireless M2 OEBT Manual de usuario
Sennheiser
Sennheiser ConC 400 Series Manual de usuario
Sennheiser
Sennheiser CX 685 SPORTS Dimensiones
Sennheiser
Sennheiser PC 100 Manual de usuario
Sennheiser
Sennheiser HD 520 Manual de usuario
Sennheiser
Sennheiser NoiseGard HMEC 25-CA Manual de usuario
Sennheiser
Sennheiser HD 280 PRO Dimensiones
Sennheiser
Sennheiser HD 448 Manual de usuario
Sennheiser
Sennheiser HD 600 AVANTGARDE Manual de usuario
Sennheiser
Sennheiser OMX 90 VC Manual de usuario
Sennheiser
Sennheiser HD 51 Manual de usuario
Sennheiser
Sennheiser RS30 RS 30 Manual de usuario
