SEM 2226CC/3 Guía de inicio rápido
Security Engineered Machinery Co., Inc
OPERATIONAL & MAINTENANCE MANUAL
SEM Model 2226CC/3-No Oiler
Serial Number 6321943 and Up
POP-0013 Rev. 1
Revised 05/15/2013
Security Engineered Machinery Co., Inc
NATIONWIDE SERVICE
Phone Toll Free 1(800)225-9293
Email: [email protected]
Fax: (508)366-6814
Website: WWW.SEMSHRED.com
For NATIONWIDE SERVICE Call 1(800)225-9293
2
Table of Contents
READ CAREFULLY BEFORE USING
Proper care of your new paper shredder will ensure many years of trouble free operation, with minimum of
maintenance or repair.
IMPORTANT: Please note that all packaging should be retained by the customer for (30) days from the
time of receipt. In the event that this unit needs to be sent back for replacement or repair this packaging will
be required to do so. Should the packaging have been discarded before the (30) day requested period,
packaging costs will be incurred by the customer.
Contents PageNo.
Safety Procedures……………………………………………………………………………………….…3-5
Installation and Set-up………….…………………………………………………………………................6
Operation and Feeding …………………………………………………………………………….……....7-9
Troubleshooting…………………………………………………………………………………….……10-13
Accessories…………………………………………………………………………………………………14
Technical Information……………………………………………………………………………………..,15
Parts List ………………………………………………………………………………………………..16-22
Customer Service
Security Engineered Machinery Co., Inc.
PO Box 1045
5 Walkup Drive
Westboro, MA 01581
Tel: 800-225-9293 Fax: 508-366-6814
Order On-line:
GSA Customers: www.fedshred.com
Commercial Customers: www.semshred.com
IMPORTANT
Two to three preventive maintenance calls per year are recommended
Only authorized SEM service personnel should be allowed to service the shredder.
For NATIONWIDE SERVICE Call 1(800)225-9293
3
***IMPORTANT SAFETY PROCEDURES***
Your new paper shredder incorporates powerful, heavy duty cutting mechanisms, serious and permanent
injury may result if proper precautions are not followed.
1. This equipment should never be operated by children or individuals that are untrained
or incapable of understanding these safety precautions!
2. Do not reach into the feed opening for any reason! Never insert fingers, hands, other
extremities, or objects not meant to be shredded into the feed opening!
3. Do not operate or come in close proximity to this equipment wearing long hair,
necktie, loose clothing, or jewelry which may activate a photoelectric on/off switch
and/or be pulled into the shredder.
4. Maintenance or repair of this equipment should be performed only be trained,
authorized service personnel.
5. Always disconnect electrical power (unplug) before removing or opening the cover or
other panels providing access to internal mechanisms.
SPECIFICATIONS
Shred Size 0.8 x 5 mm
Sheet Capacity * Up to 8 Sheets
Feed Opening 10.25”
Bin Capacity 30 Gallon
Dimensions 36.5”H x 19.5”W x 18.5”D
Weight 102 lbs.
*Results may vary depending on power source, operator/proper maintenance and paper type.
For NATIONWIDE SERVICE Call 1(800)225-9293
4
***IMPORTANT SAFETY PROCEDURES***
The door must be closed when operating the document shredder.
Ensure free access to mains.
Automatic standby that switches off after 1 hour.
Green LED control light is off.
For NATIONWIDE SERVICE Call 1(800)225-9293
5
***IMPORTANT SAFETY PROCEDURES***
Unplug from the main before cleaning the machine!
Do not operate the machine without the safety flap (A).
ON/OFF→Quick Stop→Open the door!
For NATIONWIDE SERVICE Call 1(800)225-9293
6
INSTALLATION
Open the door; place the machine into the top
of the cabinet. We recommend that two people
set up this unit! Beware of fingers! Risk of injury! All
machines have a container with plastic bag.
Close the door; Plug into wall socket.
For NATIONWIDE SERVICE Call 1(800)225-9293
7
OPERATION
Press the rocker switch (1): green light is on, the
machine is now ready for operation. Starts automatically
when paper is inserted. Automatic standby that switches
off after (1) one hour Green LED control light is off.
Model 2226CC/3 has an ECC – display (electronic capacity
control) which indicates the used sheet capacity during
Shredding process (A).
LED shows red (A).
Stops automatically if too much paper is inserted.
Automatic reverse if too much paper is inserted.
LED shows yellow (B).
Maximum sheet capacity during shredding process.
LED Shows green (C).
Normal sheet capacity during shredding process.
Important: Between paper insertion allow the
machine to return to the LED green light. (C) If you
insert paper while the LED yellow light (B) is lit you may
cause a paper jam, (See page 9 for paper jams).
Stops automatically when no further paper is inserted.
For NATIONWIDE SERVICE Call 1(800)225-9293
8
OPERATION Cont….
Stops automatically when door is opened symbols
and flash alternatively.
Stops automatically when plastic bag is full. Empty
the bag when “bag full” indicator lights.
(see page 5 fig. 4)
Stops automatically if too much paper is inserted.
Automatic reverse if paper jams
(Symbol “ON/OFF” flashes).
For NATIONWIDE SERVICE Call 1(800)225-9293
9
OPERATION Cont….
If required: (Paper Jam)
Press the rocker switch “R” and remove paper. (Machine
runs for a short time in reverse, if required repeat several
times).
Reset by pressing the rocker switch . Re-feed the
paper in smaller quantities.
Automatically stops if safety flap (A) is opened
(symbolsand flash alternatively). Close the safety
flap and press the rocker switch , paper is shredded. To
remove any paper debris from a paper jam the machine
runs for a short time reverse with open safety flap.
For NATIONWIDE SERVICE Call 1(800)225-9293
10

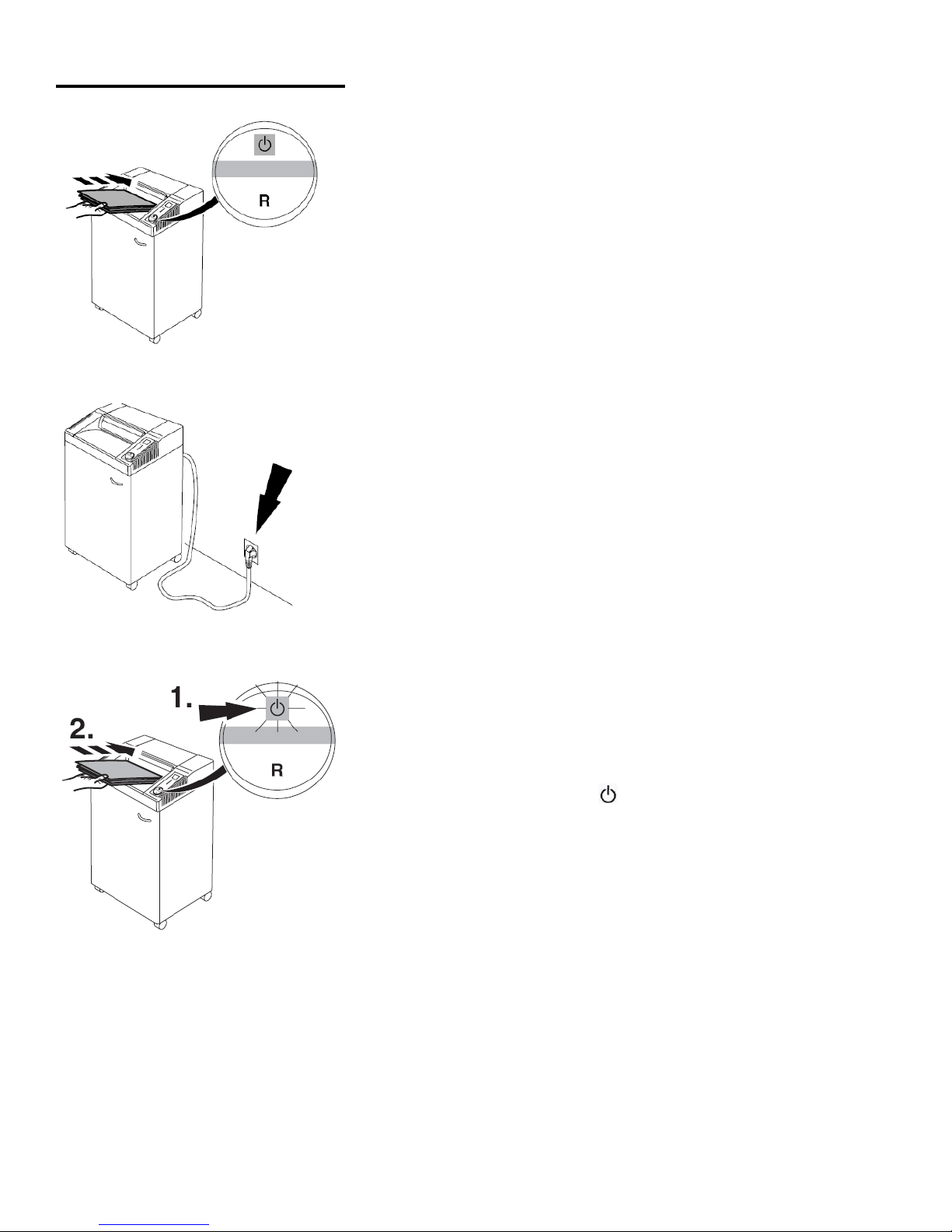

TROUBLESHOOTING
Machine will not start.
Is the machine plugged in?
Is the rocker switch pressed?
Is the green light rocker switch is ON? (1)
Insert paper (2).
