Self-Sat WAVE Manual de usuario

QUICK START GUIDE

Power input cable

Connection diagram

Package contents

CONTROLLER

MAIN UNIT

Controller cable

LAN cable

IMPORTANT : Read manual thoroughly for full safety and product information.

www.selfsat.com

1 x Main unit

1 x Controller

1 x Router

1 x PoE adaptor

2 x LAN cable

1 x Controller cable

1 x Power input cable

1 x Cable holder

1 x Cable gland

1 x Screw set

1 x User manual

LAN WAN Power

WLAN router

ENGLISH - 2

Parts of Main unit

Parts of Controller

• Front

• Back

OnLED Indicator

Power S/W

USB port

Satellite LEDs

TRACKING LED

LOCK LED Arrow buttons

SET button

1. Product speciﬁcations

BlinkingO

IDU cable to Main unit Power port

Antenna

Mounting plate

to Controller ("ANT" port)

to router

ENGLISH - 3

A. In-Motion mode (only)

For example :

2. Functional description

When the all cable connections are completed, turn on the power switch

ASTRA2 and HOTBIRD LEDs light on while booting the system (15~30 seconds)

Default (ASTRA2) or the last status satellite is automatically selected

Tracking LED light on since the unit searches the satellite

When Lock LED becomes solid this means the satellite is found

If the other satellite is desired, move to the correct satellite and press SET to

conrm the new satellite

B. Factory reset

Press and hold SET button for more than 5 seconds till TRACKING & LOCK

LEDs blink

Factory reset takes less than 3 seconds and reboot the system

When factory reset is completed, default satellite is selected then the unit

automatically starts searching

ENGLISH - 4

A. Software upgrade - Controller

B. Software upgrade – Main board

3. Extra functions

Transfer “FWUPDATE.BIN” le to a USB stick. Do not place inside a folder

Ensure that the unit is turned on and plug the USB into USB port of main

board (inside antenna)

Press and hold UPDATE button and then press RESET button

(There may be noise when pressing RESET button. It is not faulty.)

Red and green LEDs are on while checking upgrade le

Software upgrade takes about 10 seconds

Once upgrade is completed, red LED is o and only green LED remains on

If main board does not recognise USB, red and green LED blink 5 times and

restart

If upgrade is failed, red LED blinks 5 times and restart

Transfer “FWUPDATE.BIN” le to a USB stick. Do not place inside a folder

Ensure that the unit is turned o and plug the USB into USB port on the

back of controller

Press and hold SET button and turn on the Power switch

MODE LED is on while checking upgrade le

Software upgrade takes about 10 seconds

(Each LED lights in sequence, all LEDs light on and then o)

Once upgrade is completed, unit reboot(reset) the system

If controller does not recognise USB, MODE /Tracking /Lock LEDs blink 6

times and restart

If upgrade is failed, all satellite LEDs blink till the unit is turned o

USB port

Reset button

Red & Green LED

Update button

ENGLISH - 5

4. Live Satellite Broadcasting with SELFSAT WAVE

Note) Channel scanning time can be dierent depending on your target satellite and

the number of channels.

Once you nished channel scanning for the rst time, you do not need to do it again.

When running an APP, there is two available SAT>IP server, please select.

SELFSAT WAVE client is either a software App or a STB-type device specialized for the IP

stream from SAT>IP.

SELFSAT WAVE is equipped of two SAT>IP routers, users are able to select one to be

connected.

Each router is capable to stream up to 16 users. Users should be grouped in two and guided

a router name to be connected.

For tablets or smart phones, download any of the SAT>IP Apps on the Apple APP Store or

Google Play.

Download a SAT>IP App from Apple App Store or Google Play.1.

Install the App on your iOS or Android device.

Wi-Fi Setting

Open the setting on your mobile device & Go to Wi-Fi setting to select the network.

⇒ For SELFSAT WAVE, use SSID “Idoit_wi_XX_5G_1” and password “idoit1234”.

Start the App.4.

How to download/use the App for iOS/Android Smartphones and Tablets

ELGATO SAT>IP (0.99 EUR)

**Recommended for more stable use with SAT>IP

tivizen SAT>IP (Free)

Elgato

Sat>IP

Satellite Setting

Watch TV

Setting → Scan Channels → Select Country → Select Satellite

→ Channel Auto Scan

Live TV → Select Satellite → Select the channel → Watch TV

tivizen

SAT>IP

Satellite Setting

Watch TV

Scan channels → New channel scan → Select satellite → OK

→ Save → Watch TV

Select the channel and watch TV

ENGLISH - 6

How to use ELGATO Sat>IP App

How to use tivizen SAT>IP App

Setting Scan Channels Auto Scan

Live TV Select the channel Watch TV

New channel scan Select Satellite Channel Scanning Watch TV

Select Country

Select Satellite

Scan

Select Satellite

ENGLISH - 7

5. Installation

Driving direction

Put aside the antenna to apply silicone inside

the guided tape line

Attach friction tape outside of the mounting

plate, to be 4mm away from the plate edge

FRONT

Clean the surface with cleaner

Locate the antenna in the center of car roof

ENGLISH - 8

Put back the mounting plate on the silicone

applied and make 2holes (2mm) with power drill

Apply silicone on the holes

Remove the friction tape and get dry

Apply silicone around the mounting plate

Tidy the area silicone applied

The image you will see. Place main unit on the

top of xed plate

Assemble mounting plate using 2 M4x20 screws

Re-apply silicone to cover tightened screws

ENGLISH - 9

Put the cable inside the cable holder as above


Equipment to initiate cable holder installation

Fix cable holder on the car roof with 3 of M4x20

screws

Place cable holder in the tape marked and make

3 of 2mm drill holes

Apply silicone around the cable holder

Insert LAN and controller cable through the

hole

Arrange cable holder in front of (30cm apart

from) antenna center by facing open side of

cable holder toward projected part of the

mounting plate. Then attach friction tape

outside of cable holder

Make 15mm drill hole in the center of the tape

marking

1413

ENGLISH - 10

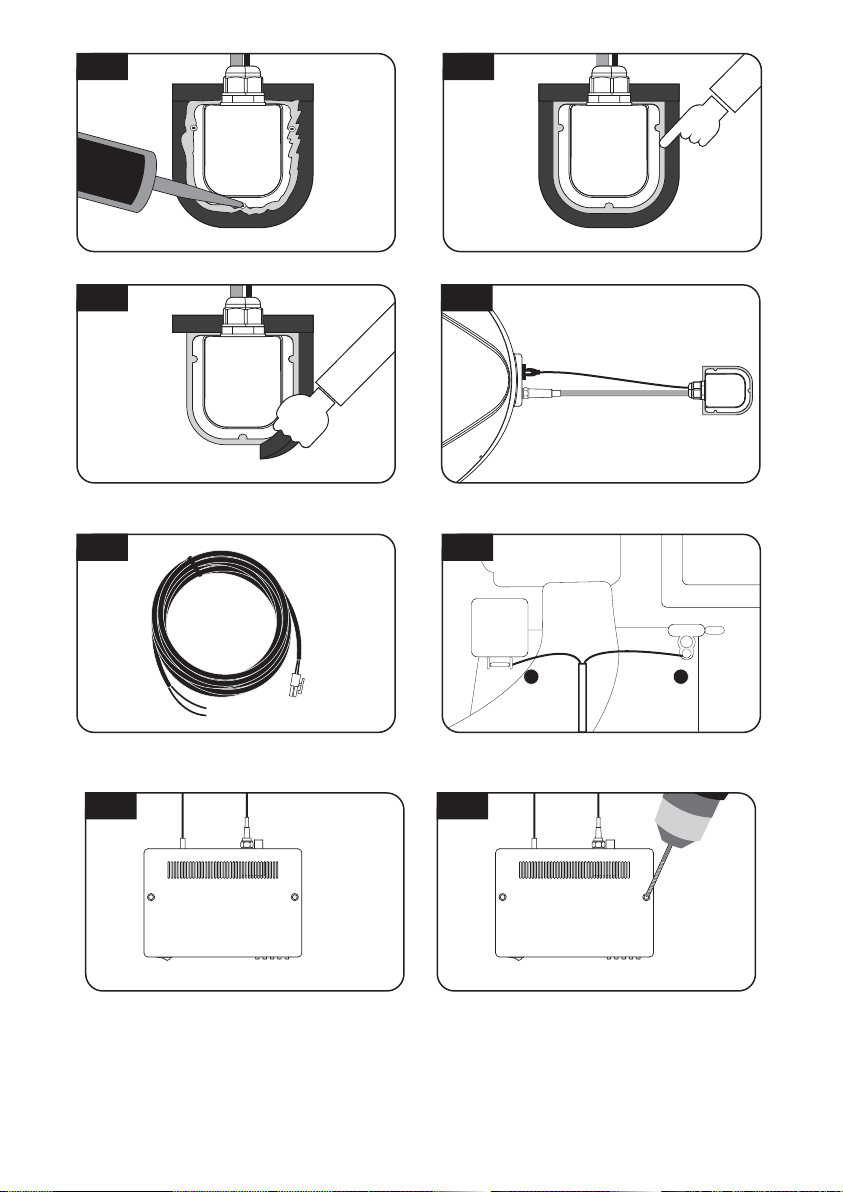

Apply silicone around and on the top of screws

Tidy silicon

Connect the cable to the controller and router

Remove friction tape

23 24

Get power input cable for battery connection

Match the power cables polarities to the battery

polarities, red to red / black to black

2827

Plug the other end of power input cable to the

controller Place the controller at where user wants
