Seiwa SWx 1200 cw Manual de usuario
www.seiwadirect.com
• Compability of select radar antennas with the Seiwa family of mul-funcon chartploers, including the Explorer 23, as
well as the SWx 9” and 12” systems*
• Instantconnecvity with compable radar antennas via fast and easy WiFi link from your chartploer
• Dedicatedradarpagefor conguraon, tuning and display of radar image onscreen
• Splitscreenmode with radar and chart screens side-by-side for clear viewing and quick comparison
• Radaroverlaymodefor viewing radar image draped over chart display
• Mulpleorientaonmodes for exible display (North Up, Heads Up, Course Up)
• Fullradarantennacontrolandconguraon, including Automac and Manual tuning modes
• An-cluer modes help to compensate for sea and rain interference
• Echostretch to magnify targets for easier viewing
• Overlayandfullinfo for AIS and DSC targets, as well as user marks, events and routes
RadarIntegraon
* Radar implementaon is available on chartploers running soware version 5.2.0 or greater.
TransformyourSeiwachartploerintoanintegratedradardisplay!
Easily connect WiFi radar antennas to Seiwa navigaon systems for visual situaonal awareness, fully integrated with
electronic charts, AIS and other onboard features.
Images are for illustrave purpose only. Products may change without noce
2 6
1 5
4 8
3 7
• Parallel Cursor
• Variable Range Marker (VRM)
• Range Rings
• Range Databox
• TX / Stand-by Icon
• Guard Zones
• Heading Line
• Electronic Bearing Line (EBL)
2
1
4
3
5
6
7
8
Onscreenradartools:
www.seiwadirect.com
RadarIntegraon
Seiwaby:
AvMap s.r.l.
V.le Zaccagna, 6
54033 Carrara (MS) Italy
order[email protected]
Dimensions are in mm

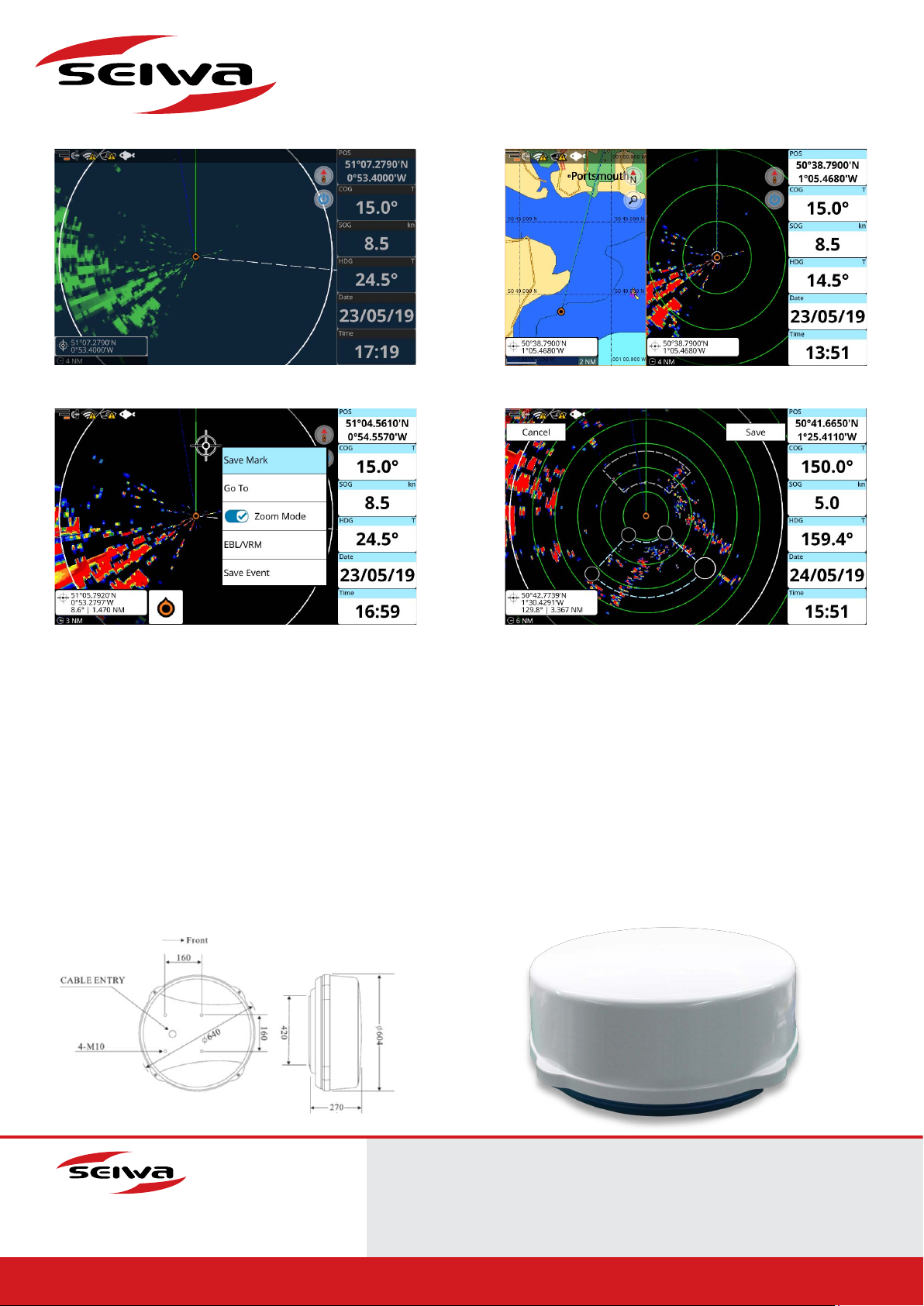

RadarPage
Contextualmenu Guardzoneeditmode
Map/RadarSplitPage
OnwaKRA1007W*radarantennacompablewithSeiwachartploers
• Radiator length: 60cm closed radome with integrated 55cm hybrid array
• Rotaon & Range: 4KW X-band 24rpm (±2) with 36nm maximum range
• Processing: Digital on-board processing
• Connecvity: Long-range WiFi
• Wind resistance: Relave wind speed 100 knots (51.5 m/s)
• Power supply: 10.5VDC to 40VDC
• Environment: Temperature -25°C to +70°C | Relave humidity 93% or less at +40°C
• Compass safe distance from antenna unit: Standard compass 130 cm – Steering compass 95 cm
• Compliance: CE and FCC
* The Onwa KRA1007W is available for purchase from Seiwa and Seiwa resellers.
Find full radar antenna specicaons and addional compable models on www.seiwadirect.com
Quality marine electronics for professional
and leisure navigaon since 1984
