Securakey ENTRACOMP 28SA Plus Guía

ENTRACOMPENTRACOMP

ENTRACOMP®

28SA

PlusPlus

Plus

User/Installation Manual

SOUNDCRAFT INC.

PRINTED IN U.S.A.

TABLE OF CONTENTS

INTRODUCTION & SPECIFICATIONS (SECTION I):

FEATURES OF 28SA-PLUS ....................................... 1

CARD ID NUMBERS AND FACILITY CODES .......... 2

ORDERING ADDITIONAL CARDS ............................ 4

PRODUCT SPECIFICATIONS ................................... 5

INSTALLATION & FACTORY SETTINGS (SECTION II):

INSTALLATION WARNINGS ...................................... 6

GENERAL WIRING INSTRUCTIONS ........................ 6

COMMUNICATIONS WIRING FOR

SINGLE-READER SYSTEMS ..................................... 9

REMOTE READER CONNECTION ......................... 12

CABLE PIN-OUTS AND CONNECTION ................. 13

PHYSICAL INSTALLATION:

SURFACE MOUNT READER ....................... 16

PHYSICAL INSTALLATION:

FLUSH MOUNT READER ............................ 21

PHYSICAL INSTALLATION:

SURFACE METAL HOUSING READER ............. 26

PROGRAMMING (SECTION III):

FACTORY SETTINGS ............................................... 31

PROGRAMMING WITH A PROGRAM DECK ......... 33

PROGRAMMING ACCESS CARDS ............ 35

DOOR CONTROL ........................................ 37

LATCH TIMER ............................................... 38

PRINTER MODE ........................................... 38

ANTIPASSBACK ............................................ 40

DATE & TIME ................................................. 42

LATCH TIMER ............................................... 42

BAUD RATE ................................................... 42

PROGRAMMING WITH SK-NET™ SOFTWARE ........ 43

PROGRAMMING IN TERMINAL MODE .................. 43

USING A PRINTER ................................................... 44

APPENDIX A – WIRING & SYSTEM CONFIGURATION

CONNECTING MULTIPLE 28SA-PLUS UNITS ..... A-1

APPENDIX B – MODEMS

CONNECTING VIA MODEM ................................... B-1

APPENDIX C – LAN CONNECTION

CONNECTING TO A LOCAL AREA NETWORK ....... C-1

APPENDIX D – PREVENTING LIGHTNING DAMAGE

INSTALLING SURGE PROTECTION .................... D-1

V122101 3321090 (5488)

SECTION I:

INTRODUCTION

The ENTRACOMP®28SA-Plus is a stand alone card access control system

that will control access to a passageway for 65,000 individuals in 15 weekly

time schedules (Time Zones). Certain Access Cards may be designated as

“Limited Use”cards, and their use may be restricted to allow access for a

given number of days or weeks or for a given number of times.

Programming of cards and most other programming functions are easily

accomplished from outside the unit, using a PD-26 Programming Deck. (A set

of 15 programming cards). The ENTRACOMP®28SA-Plus may also be

programmed with a terminal or PC.Transaction information is stored by the unit

and may be downloaded to a terminal, PC, or serial printer. 5000 transactions

may be stored at one time.

The ENTRACOMP®28SA-Plus has three inputs. Each input may be programmed

by the user to function as a Door Monitor, Tamper Monitor, Remote Open,

Remote Inactive, Bell, Arming Circuit, or User Defined Input. Factory Defaults

for these inputs are 1 - Door Monitor, 2 - Disabled, and 3 - Disabled.

A second “remote”reader (SK-029W) may be added to the ENTRACOMP®

28SA-Plus to control access through a single passageway in both directions.

The ENTRACOMP®28SA-Plus utilizes state of the art electronics in providing

a product that is highly sophisticated, yet inexpensive. Patented slotless

TOUCH CARD®reader technology protects the unit from weather and vandalism.

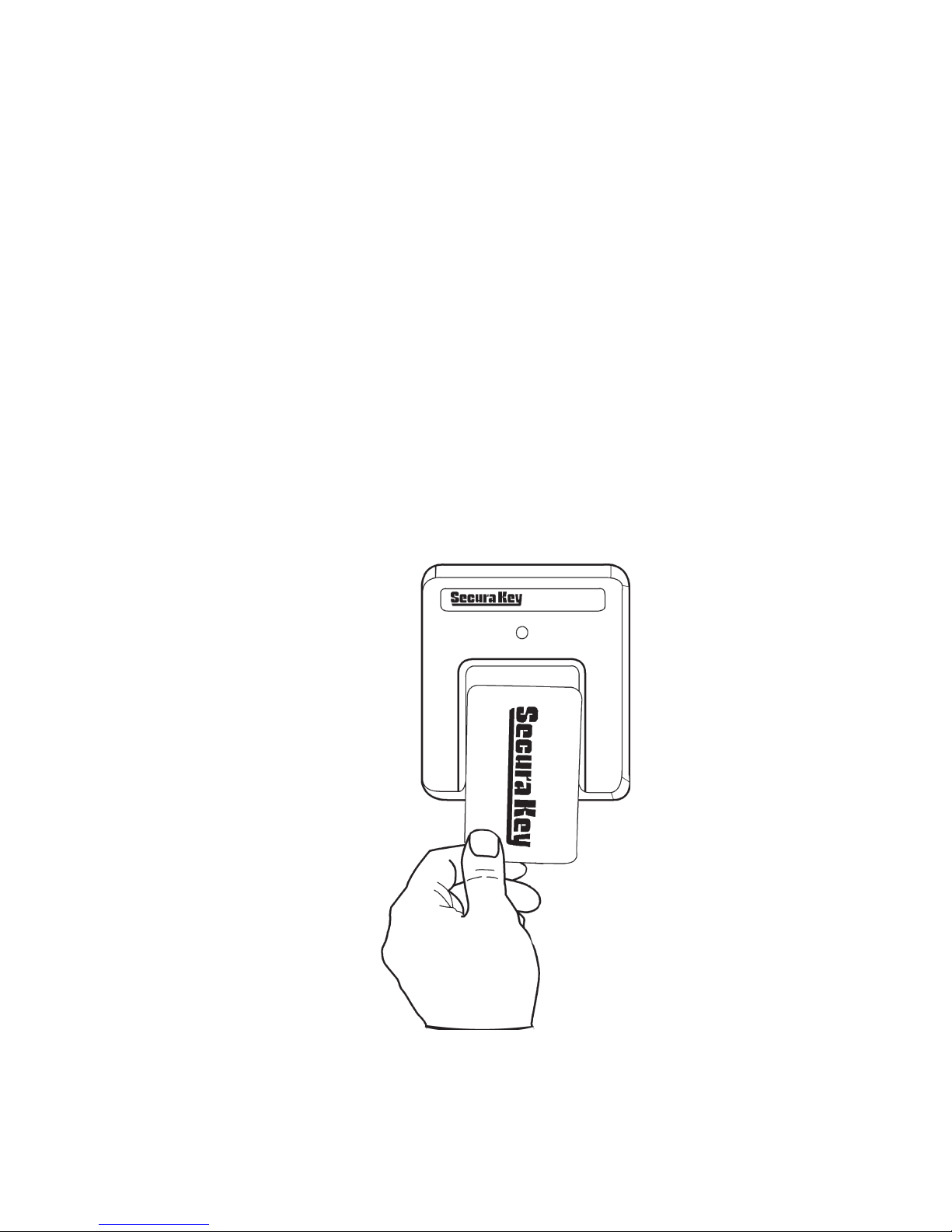

Simply place the card on the stainless steel TOUCH CARD®reader plate, and

the card is read instantly and accurately -- in any weather. A green light

indicates that access has been granted. Since the ENTRACOMP®28SA-Plus

has non-volatile memory, reprogramming after a power loss is unnecessary.

CARD ID NUMBERS AND FACILITY CODES

Access cards used with the 28SA-Plus have two encoded numbers: the ID

number which is different on each card, and the Facility Code, (also called a

system or site code) which is the same for all cards at a given site. ( The

programming cards should also have the same Facility Code.) When a card is

read, the system first verifies the Facility Code, then it checks the ID Number

against its internal “card list”in memory to see if the card is void or valid. It

also checks the Time Zone, the card’s Antipassback status, and the Limited

Use count.

SETTING THE FACILITY (SYSTEM) CODE

IMPORTANT

Before programming or using a new unit,

the correct Facility Code must be set.

When power is first applied, or when the reset button is pushed (see Figure

1) the LED will flash red and green alternately. While the LED is flashing, place

either a Programming Card or an Access Card with the proper facility code

onto the TOUCH CARD®reader plate and remove it (note LED turns solid

green). The ENTRACOMP®28SA-Plus will “remember”the facility code and

retain it until reprogrammed. After setting the facility code, wait for the LED to

stop flashing before attempting to use the program deck to program cards into

the unit.

When placing standard cards on the reader, make sure that the arrow points

up and the logo faces you. The exception is Photo ID cards, where the arrow

points up, and the photo faces you.

To change a facility code (or to set the facility code if the LED is not flashing

red/green) remove the unit from the wall to gain access to the reset button

(see Figure 1). With power still connected, momentarily depress the reset

button.The LED indicator will flash red and green alternately. If the reset button

is pushed, but no card is placed on the TOUCH CARD®reader plate before the

LED indicator times out, the system code will be unchanged. In some cases it

may be necessary for the unit to recognize more than one facility code. Typical

instances are when a service technician needs to program a unit and the

original program deck cannot be located, or when other devices such as bar-

code scanners, transmitter-type gate openers or proximity readers are connected

to the remote reader input (particularly if they are 26-bit devices).

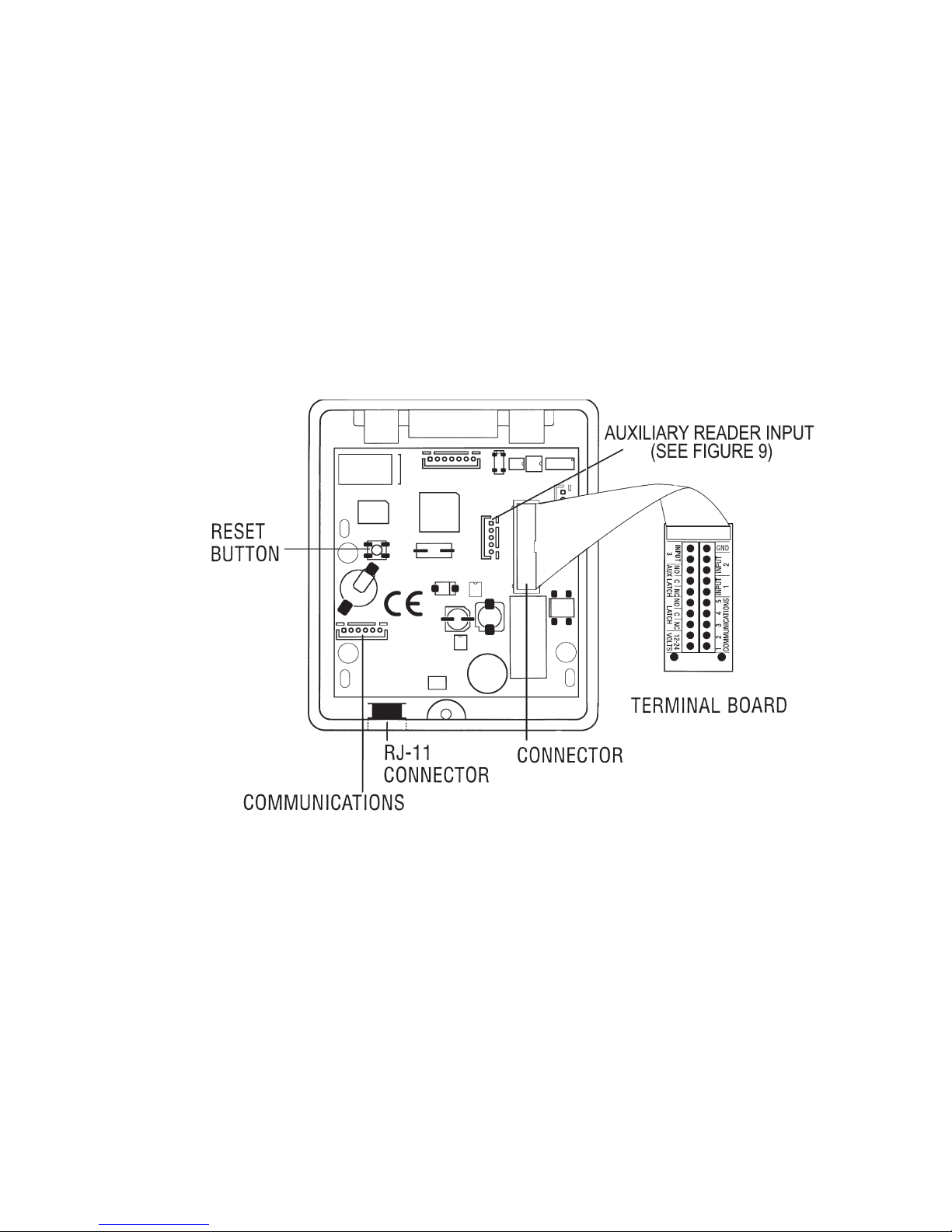

FIGURE 1

The ENTRACOMP®28SA-Plus can be set to recognize up to three different

facility codes. To program multiple facility codes, follow the procedure above

for programming a single facility code, but place a card with the second facility

code (and third facility code if necessary) on the TOUCH CARD®reader plate

(or at the remote input device) before the red/green LED indicator times out.

Note that it is not generally recommended to combine sets of Secura Key

cards with different facility codes, because the unit cannot distinguish

between access cards having different facility codes and the same ID

number.

ORDERING ADDITIONAL CARDS FOR YOUR SYSTEM

When you wish to add to an existing set of cards, always order additional

cards with the same facility code as your existing cards, and with sequential

(Card ID) numbering starting one number higher than the highest-numbered

card currently in use. It is worth waiting a short time for these cards to be

correctly encoded by the factory, as this will guarantee proper operation and

the highest security for your system.

SPECIFICATIONS

PHYSICAL

Surface Housing Flush Housing Metal Housing

Depth 2.25 in (5.72 cm) 1.50 in (3.8 cm) 1.75 in (4.45 cm)

Width 4.00 in (10.16 cm) 5.50 in (13.97 cm) 4.00 in (10.20 cm)

Height 4.60 in (11.70 cm) 7.63 in (19.38 cm) 5.62 in (14.30 cm)

Weight 20 oz (0.57 kg) 18 oz (0.51 kg) 45 oz (1.28 kg)

Material Lexan®(Polycarbonate) All Steel

*Meets UL standard 94 flame retardant rating

POWER REQUIREMENTS

Without Remote Reader 12 to 24 VAC or VDC; 125 mA at 12 VAC

With Remote Reader (SK-029W) 12 to 16 VAC or VDC; 250 mA at 12 VAC

OUTPUTS

Latch & Alarm Shunt DPDT contacts, 115 VAC or 28 VDC, 3A maximum

Tamper (optional) SPDT contact, 115 VAC, 2A maximum

INPUTS

Auxiliary 1, 2, & 3 All require SPST contact closure

COMMUNICATION

RS-232 Serial RS-232. Up to 38.4 kBaud, full duplex,

1 start bit, 8 data bits, 1 stop bit, no parity

RS-485 Requires SK-NM485 module, at 19.2KBaud

Remote Reader 31 bit or 26 bit Wiegand type input.

12 VDC @ 150 mA supplied to remote reader

Modem Requires Hayes compatible - 1200 to 33.6 kBaud

ENVIRONMENT

Ambient Temperature -40oF to 158oF (-40oC to 70oC)

Humidity 0% to 95% relative humidity (non-condensing)

OPERATIONAL

Memory Non-volatile

Card Capacity 65,000

Limited Use Cards 4000

Transaction Storage 5000

Time Zones 15 for card access, 1 door unlock time zone, full week plus

holiday in one-half hour segments; 32 holidays

programmable; selectable automatic daylight savings time

Facility Code Up to 3 different codes simultaneously

Latch/Alarm Shunt Timer Programmable from 1 to 30 seconds (0 = 1/4 second)

Timed Antipassback Programmable from 1 to 30 minutes (hard or soft)

Auxiliary Inputs (3) Programmable for door monitor, tamper monitor, remote

open, remote inactive, bell, arming circuit, or user defined.

SECTION II:

INSTALLATION

CAUTION SHOULD BE TAKEN NOT TO TOUCH CIRCUIT BOARD OR

ELECTRONIC COMPONENTS PRIORTO INSTALLATIONTO AVOID ELECTRO-

STATIC DISCHARGE (ESD) DAMAGE.

WARNING

AN EARTH GROUND IS REQUIRED. Connect the green screw on the mounting

plate to a good earth ground (AC Power Ground or a 10 foot copper ground stake)

using a 16AWG solid copper wire. Failure to do so may result in improper

operation or damage to the unit. (See Figures 11 - 21). Flush Mount and Metal

Housing models also have a green ground wire, which must be attached to

the green screw on the mounting plate.

WARNING

DO NOT APPLY POWERTO UNIT UNTIL

ALL CONNECTIONS ARE MADE AND CHECKED

GENERAL WIRING INSTRUCTIONS

For ease of installation and servicing, the ENTRACOMP®28SA-Plus is provided

with a terminal board which is connected to the main unit via a ribbon cable

and connector. The screw terminals on the circuit board will accept wire

gauges #16 through #24, solid or stranded. Strip approximately 5/16" (8mm)

of insulation, insert into the appropriate hole, and tighten with a small

screwdriver. Tinning is strongly recommended for stranded wires (see Figure

2 for proper terminations). Arrange a cable drip loop on all exterior installations.
