SEARS KENMORE UPRIGHT

VACUUM CLEANER

MODEL 721.36078600

CONTENTS

1. SAFETY PRECAUTIONS ................................................................................3

2. CAUTIONS.......................................................................................................3

3. DESCRIPTION/ATTACHMENTS/SPECIFICATIONS ......................................4

...................................18-21

4. DISASSEMBLY.............................................................................................5-9

5. REPLACEMENT INSTRUCTIONS ...........................................................10-12

6. REMOVING CLOG.........................................................................................13

7. TROUBLE SHOOTING .............................................................................14-16

8. WIRING DIAGRAM ........................................................................................17

9. EXPLODED VIEW/REPLACEMENT PARTS LIST

BEFORE SERVICING THE UNIT, READ THE "SAFETY PRECAUTIONS" IN

THIS MANUAL.

MODEL 721.36078600

MECHANICAL SERVICE INFORMATION

TABLE OF CONTENTS

SAFETY PRECAUTIONS

CAUTIONS

BEFORE OPERATING THIS VACUUM CLEANER, READ THIS SERVICE MANUAL THOROUGHLY, AND

OBSERVE EACH POINT CAREFULLY.

BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE VACUUM CLEANER, DISCONNECT

THE ELECTRICAL POWER SUPPLY CORD FROM THE WALL OUTLET.

1. Motor exchange

1) Separate the Body Cover and Body Base by

unfastening the screws.

2) After disconnecting the lead wires, replace the

old motor with a new one.

2. In case of exchanging other parts, refer to the

exploded view.

1. Filter

1) The filter is composed of a motor safety filter, a

exhaust filter and a paper bag.

2) Never use the vacuum cleaner without filters. It

may harm the motor.

NOTE : Re-use of the motor safety filter.

Never wash the filter in a washing machine or in

a dishwasher.

Never use hot water for washing the filter.

Re-use the filter after drying it completely in the

shade.

Do not dry near fire or direct sun ray.

2. Avoid sucking such materials as :

1) Liquid or wet dust :

Clogs the ventilation holes, reduces the suction

power significantly and harms the motor.

2) Inflammable liquids such as benzene, alcohol or

solvents.

3) Burning objects such as cigarette butts.

4) Bulky objects such as vinyl, paper etc.

5) Sharp objects such as needles, pins, metal or

glass particles etc.

3. Attachments

1) Dusting Brush and Crevice Tool :

For cleaning any crevice, inside corners of

window frames.

For delicate vacuuming of fabrics on the

furniture, curtains, etc.

2) Upholstery Tool : for vacuuming the dust on the

upholstery.

4. Close supervision is necessary when this

vacuum cleaner is used by or near children.

Children's carelessness may cause damage to

the cleaner or injure persons.

5. Air exhausted from the vacuum cleaner is

normally warm. But if extraordinarily hot air is

exhausted, check if the hose or dust bag is

clogged or not.

6. Electric shock could occur if used outdoors or

on wet surfaces.

MODEL 721.36078600

DESCRIPTION

SPECIFICATIONS

ATTACHMENTS

Dusting Brush Upholstery Tool Extension Wand Crevice Tool

• POWER SOURCE : ON NAMEPLATE

• POWER CONTROL : ON/OFF SWITCH ON BODY

• CAPACITY : 5

• CORD LENGTH: 7.7m

• NET WEIGHT: 7.7kg

• PACKING WEIGHT : 7.7kg

• NET DIMENSION :

364 x 1164 x 361 (W x D x H)mm

•

PACKING DIMENSION :

370 x 870 x 245 (W x D x H)mm

• ATTACHMENTS

DUSTING BRUSH............................................. 1EA

UPHOLSTERY TOOL ....................................... 1EA

EXTENSION WAND.......................................... 1EA

CREVICE TOOL................................................ 1EA

Handle

Hose Holder

On/Off Switch

Dust Cover

Exhaust Panel

Height Adjustment

Knob

Bumper

Light

Power Cord

Motor Protector

Extension

Wand

Quick Release

Cord Hanger

Lower

Cord Hanger

Hose Agitator

Floor Nozzle

Crevice Tool

E-Z Belt Check

Pedal

Dusting Brush/

Upholstery Tool

MODEL 721.36078600

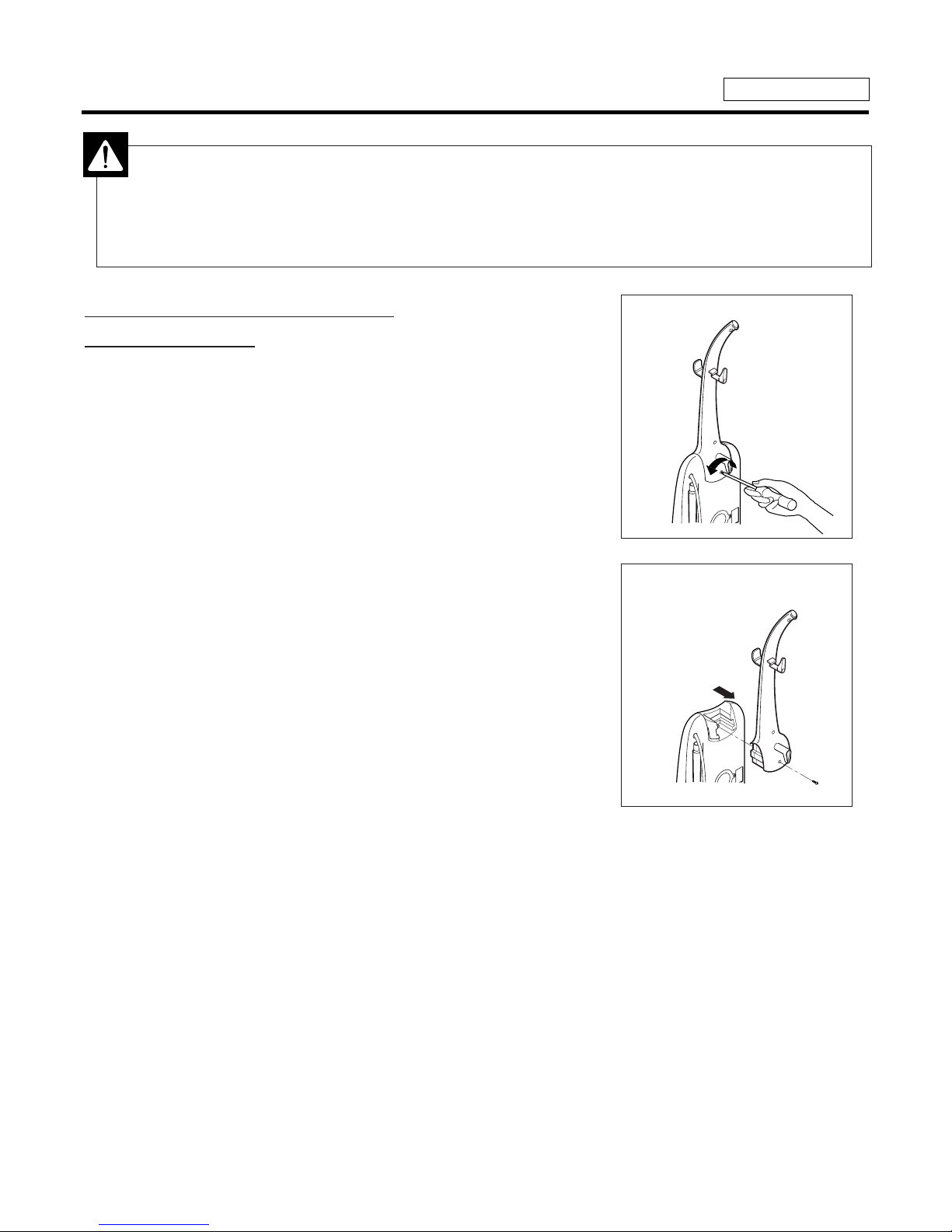

Step 1: Disassembling handle

and cord hanger.

Remove screw and pull out the handle.

Full out the cord hanger forward strongly to remove.

DISASSEMBLY

WARNING

Electrical Shock or Personal Injury Hazard

Disconnect electrical supply before servicing or cleaning the unit. Failure to do so could result in electrical

shock or personal injury from the vacuum cleaner suddenly starting.

MODEL 721.36078600

Step 2: Disassembling hose

Remove the lower end of hose from the cleaner.

Press the release hook on the pipe connector and

pull the hose forward. (Fig.B)

WARNING

Electrical Shock or Personal Injury Hazard

Disconnect electrical supply before servicing or cleaning the unit. Failure to do so could result in electrical

shock or personal injury from the vacuum cleaner suddenly starting.

Hose

Connector

MODEL 721.36078600

Step 3: Disassembling floor

nozzle of the cleaner (agitator,

belt assembly, etc.)

Lower handle to lay vacuum body flat.

Using a coin to turn the latches and remove nozzle cover.

Lift the right end of the agitator and then the left end.

Remove the belt from motor shaft.

WARNING

Electrical Shock or Personal Injury Hazard

Disconnect electrical supply before servicing or cleaning the unit. Failure to do so could result in electrical

shock or personal injury from the vacuum cleaner suddenly starting.

Agitator

Belt

Nozzle

Cover

Latches

Step 4: Disassembling body of

the cleaner (motor, switch, etc.)

Unscrew and remove the body cover from the body base.

Disconnect wires and remove motor.

Disconnect wires and disassemble switch.

WARNING

Electrical Shock or Personal Injury Hazard

Disconnect electrical supply before servicing or cleaning the unit. Failure to do so could result in electrical

shock or personal injury from the vacuum cleaner suddenly starting.

Switch

Motor

MODEL 721.36078600

Unscrew and remove the body cover from the body base.

Push the end of damper body strongly to detach the damper

body from the body base.

When reassemble the damper to the body base, assemble

cap, spring and damper body first.

Then press-fit.

WARNING

Electrical Shock or Personal Injury Hazard

Disconnect electrical supply before servicing or cleaning the unit. Failure to do so could result in electrical

shock or personal injury from the vacuum cleaner suddenly starting.

Damper Body

Packing

Spring

Cap

MODEL 721.36078600

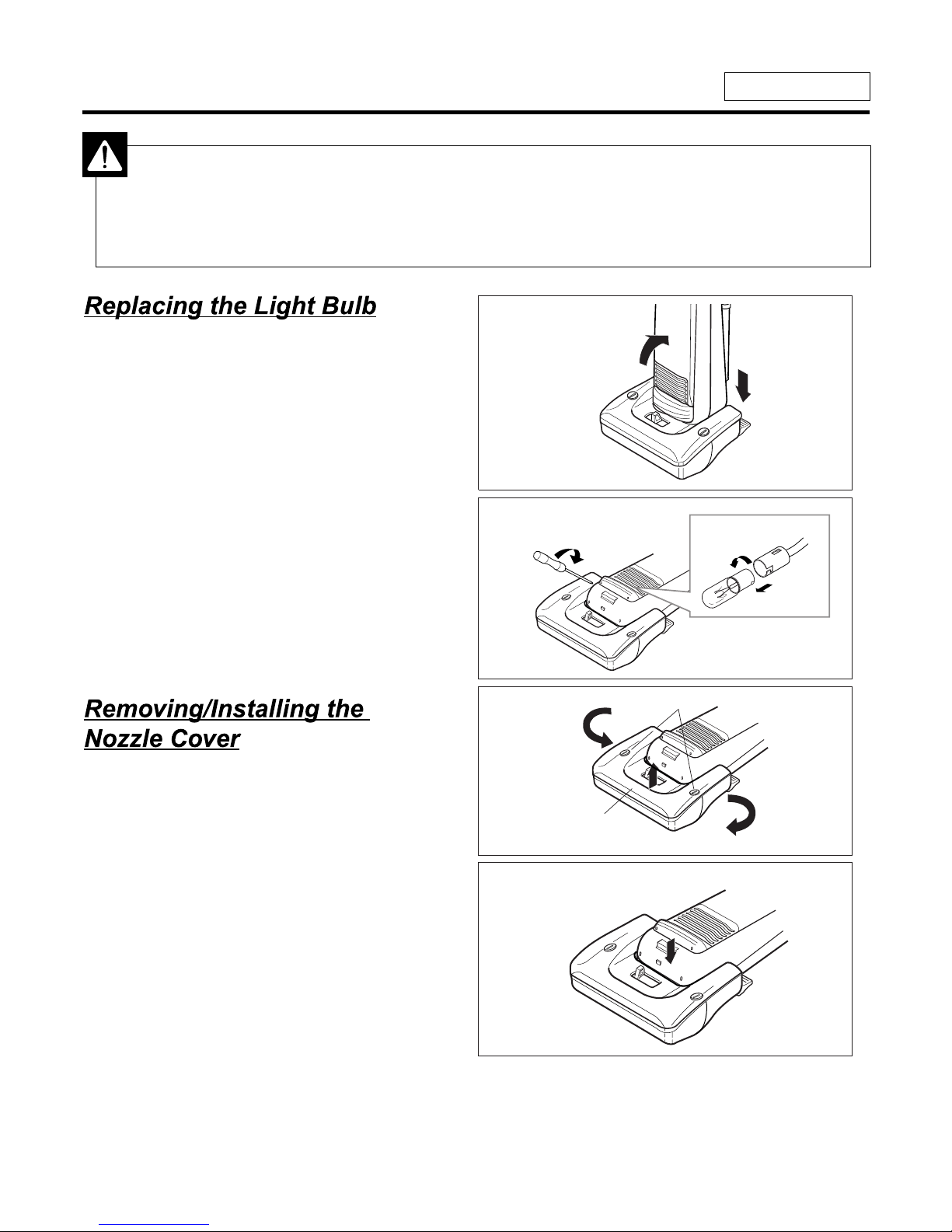

REPLACEMENT INSTRUCTIONS MODEL 721.30678600

Unplug the cleaner.

Place the handle to parallel position. (Fig. A)

Unscrew and remove the light cover. (Fig. B)

To remove old bulb, push it in toward bulb socket

while turning counter-clockwise, then remove. (Fig. C)

Use a bayonet base bulb having the rating of 25W.

To install a new bulb, push it in toward the bulb socket

and turn it clockwise.

Replace the light cover and secure it with screws.

Using a coin to turn the latches, and raise cover.

To replace nozzle cover, insert tabs on the nozzle

cover into slots in the nozzle base.

Then lower nozzle cover onto nozzle base and secure

the latches.

WARNING

Electrical Shock or Personal Injury Hazard

Disconnect electrical supply before servicing or cleaning the unit. Failure to do so could result in electrical

shock or personal injury from the vacuum cleaner suddenly starting.

Nozzle

Cover

Latches

To Remove
