Asset Health Evaluation Meter

USER MANUAL

Version 7 –2021


SDT340 User Manual
2/34
Table of Contents
Safety................................................................................................................................... 3
Caution................................................................................................................................. 3
CE compliance....................................................................................................................... 4
Introduction ......................................................................................................................... 5
Unpack ................................................................................................................................. 5
Battery ................................................................................................................................. 5
Controls and connections...................................................................................................... 8
1. Power on................................................................................................................... 8
2. Sleep Mode ............................................................................................................... 9
3. Power Off.................................................................................................................. 9
4. Driver ........................................................................................................................ 9
5. Plug & Unplug a Sensor.............................................................................................. 9
Home screen......................................................................................................................... 9
Data Collection Modes........................................................................................................ 10
Proceed with ultrasound signal acquisition in Free Mode..................................................... 11
ST tab for ultrasound readings............................................................................................. 13
Proceed with vibration signal acquisition in Free Mode........................................................ 13
ST tab for vibration readings ............................................................................................... 15
Display Ultrasound and Vibration Time Signal...................................................................... 16
Display ultrasound and vibration spectrum.......................................................................... 16
Proceed with temperature measurement in Free Mode ....................................................... 17
Tree navigation and data storage in Free Mode ................................................................... 18
Rotational speed................................................................................................................. 21
General Settings.................................................................................................................. 21
1. System info.............................................................................................................. 23
1.1. Device info .................................................................................................................................. 23
1.2. License info ................................................................................................................................. 24
1.3. Last calibration date ................................................................................................................... 24
1.4. Battery info ................................................................................................................................. 25
1.5. Hardware info ............................................................................................................................. 26
1.6. Software info .............................................................................................................................. 26
1.7. Database ..................................................................................................................................... 27
1.8. Certifications............................................................................................................................... 27
1.9. Manufacturer info....................................................................................................................... 28
2. Language ................................................................................................................. 28
3. Bluetooth ................................................................................................................ 29
4. Date and time format............................................................................................... 29
5. Brightness................................................................................................................ 30
6. Network .................................................................................................................. 30
7. Theme..................................................................................................................... 31
Recommended calibration intervals .................................................................................... 31
Warranty............................................................................................................................ 32
Responsibility limits............................................................................................................ 32
Destruction and recycling of waste equipment .................................................................... 32
Copyright and Use of IP....................................................................................................... 33
Support and contact details................................................................................................. 33



SDT340 User Manual

3/34

1.Safety

Carefully read the manual before using the instrument. To prevent death or injury risks and severe

damage to the unit and its accessories, use only as specified in this manual. Otherwise, the protection

provided by the instrument might be impaired. Make sure that all instructions are fully understood

and observed. SDT340 is designed to meet the safety regulations. However, safety can be at risk if the

equipment is used by unqualified staff, used improperly, or not inspected and maintained.

To avoid personal injury:

•Do not use if damaged.

•Use caution around rotating equipment and keep cords and straps contained.

•Select a safe location for the sensor and proceed with utmost care during its mounting when

taking readings on exposed rotating parts.

•Do not operate around explosive gas, vapor, and dust or in damp or wet environments.

•Use proper protective equipment, as required by local or national authorities

•Do not used the SDT340 in hazardous environments (ATEX environment). Please refer to the

SDT270A (Ex proof version) and its marking before considering these restricted areas in the

field.

•See emissivity information for actual temperatures. Reflective objects have lower emissivity

and might pose a burn hazard.

•Never look directly to the laser beam. Never point the laser beam at a person's eye. Do not

aim the laser at specular reflection surfaces. Never look the laser using an optical instrument.

The power supply is designed to operate at ambient temperature between 0 °C to 60 °C (32 °F to +140

°F) up to 90% relative humidity, no condensation. Its storage temperature is between -20 °C to +85 °C

(-4 °F to +185 °F). The power supply should never be operated or even stored at places listed below,

because this could lead to operating failures:

•Places heavily exposed to moisture or where water condensing may occur.

•Places subject to constant vibrations or to high temperature fluctuations.

•Outdoors.

2.Caution

Do not disassemble the instrument, the sensors, the battery, the battery docking station, and the

battery power supply. Do not attempt internal alterations. Do not attempt any repairs. Potential

damages will not be covered by the Lifetime Warranty. Contact SDT Ultrasound Solutions or an SDT

Authorized Service Provider.

The permissible ambient temperature range for the operation of the SDT340 is -15 °C to +60 °C (5 °F

to 140 °F). Relative humidity must be less than 90%, non-condensing.

Due to the typical self-discharge rate of NiMH batteries, it is recommended to charge the battery at

least every 3 months, using only the provided charger pack. It is recommended not to store an

uncharged/unused battery for more than a few weeks.

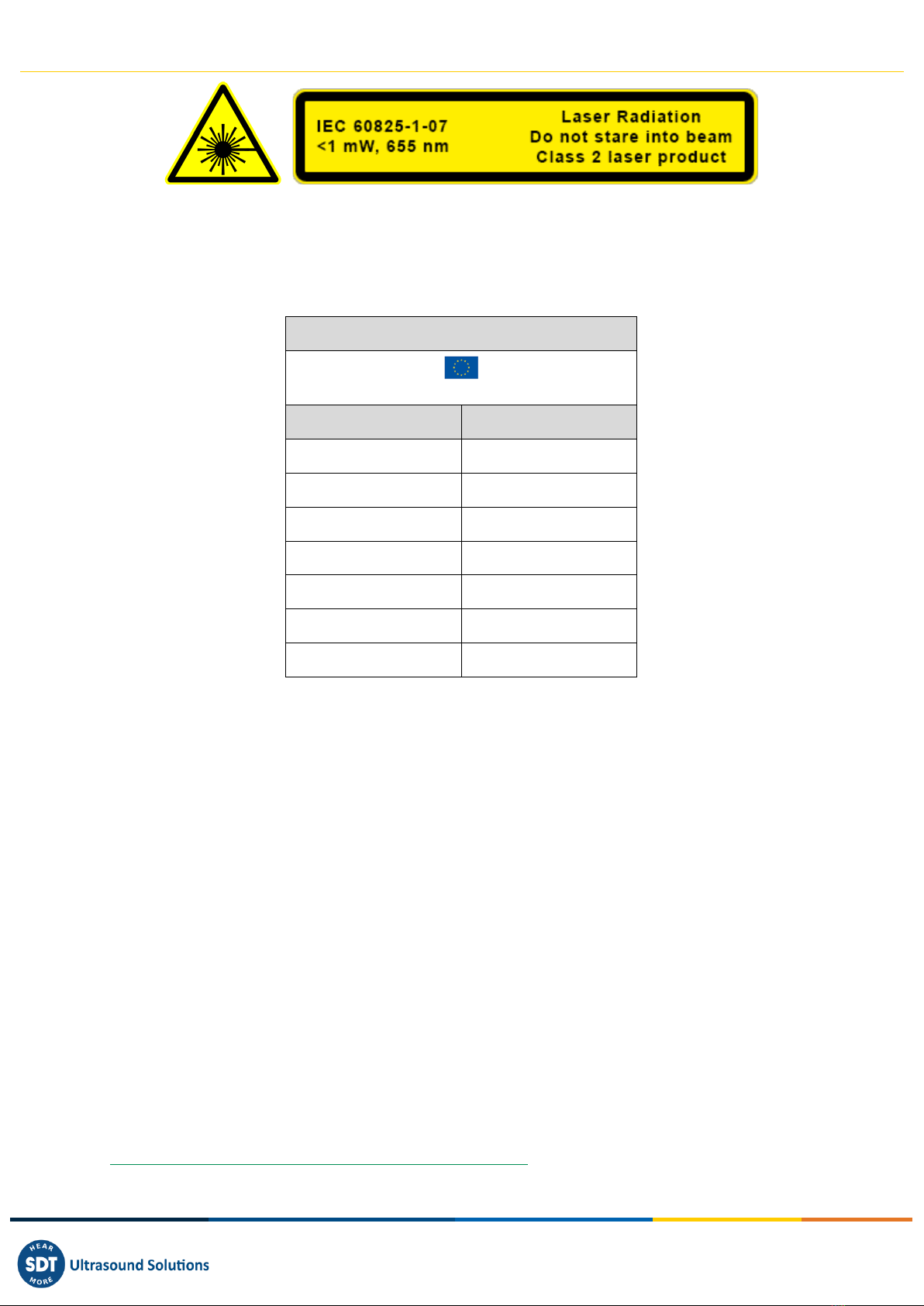

The SDT 340 is equipped with a class 2 laser: risk of eye injury

•Never look directly to the laser beam

•Never point the laser beam at a person’ eye

•Do not aim the laser at specular reflective surfaces

•Never view the laser using an optical instrument

SDT340 User Manual

4/34

Ultrasound inspectors using SDT instruments with audio outputs are exposed to sounds levels having

noise exposure characteristics daily, which, if not managed by the manufacturer, can increase your risk

of hearing loss. Legislation in Europe has fixed a threshold at 80 dB(A) for a maximum exposure of 8

hours per day.

Government Legislated Noise Exposure Levels

Sound Level dB(A)

Max Exposure Per Day

8 hours

4 hours

2 hours

1 hour

½ hour

15 minutes

7.5 minutes

The audio output paired with the Peltor headsets supplied by SDT, having the references FUHDPH-1

and FUHDPH-2 delivers a maximum sound pressure level of 79 dB. SDT makes an additional safety

guarantee to our users. When connecting a sensor, or selecting/changing sensors, SDT instruments

self-adjust the volume to a default, maximum sound pressure level of 58 dB typical. This applies to all

compatible, SDT manufactured sensors and is done so, willingly for the protectionand safety of anyone

who uses our products.

3.CE compliance

SDT340 and its accessories have been designed and tested to meet the following directives and

standards. The SDT340 kit meets the essential requirements of the applicable European Directives:

•2014/30/EU; Electromagnetic Compatibility Directive (EMC)

•2011/65/EU; Restriction of Hazardous Substances (RoHS)

•2014/35/EU; Low Voltage Directive (LVD)

•2006/66/EU; Batteries and accumulators and waste batteries and accumulators

The declaration of CE conformity is available on SDT website at:

https://sdtultrasound.com/support/downloads/certificates/

SDT340 User Manual

5/34

4.Introduction

The SDT340 is a screening and diagnostic tool for Asset Health Evaluation. The SDT340 includes the

following features:

•Ultrasound and vibration measurements

through 2 input channels

•4 Scalar indicators

•0 Hz to 100 kHz Bandwidth

•10 minutes record length

•Tree database structure

•3.5” full-color display 320x480

•On-screen time waveform and spectrum

•Spanning and expanding functions for

navigation through time waveform

and spectrum

•Signal play back

•On-board temperature and rotational

speed measurements

•256 kHz sample rate

•6.5 GB data memory

•Quick and intuitive navigation through

database nodes

•Recall of historical data in-the-field

•TWF and FFT 10 highest values table

•Off-route and on-route data collection

modes

•Bluetooth for wireless audio

streaming

5.Unpack

The items that follow are included in your purchase of the SDT340 kit. Unpack and inspect them.

•SDT340

•Wired headset

•Spiral Cable, 2 male 7-pole LEMO

connectors

•USB type C communication cable

•USB key containing user manuals and

UAS Lite

•Battery pack

•Battery charger, power cord, EU, US

and UK plugs

•Battery docking station

•Shoulder strap

•Multi-function screwdriver

6.Battery

Caution:

Only use the docking station and the power supply provided by SDT.

Do not store an uncharged battery for more than a few weeks.

Perform preferably a complete charge cycle.

Charge the battery at least every 3 months, even not used.

The SDT340 operates on a rechargeable Nickel Metal Hydride (NiMH) battery. After unpacking the unit,

please fully charge the battery pack before its first use. To charge the battery pack:

•Plug the power supply (*) to the main and connect it ❶to the docking station. Then the LED

is blinking blue.

•Loosen the quick fastener using the screwdriver and remove the battery pack from the unit.

•Place the battery pack in the docking station ❸. The LED should stay on blue a few seconds

and then flash green. Otherwise, perform a force charging by inserting a needle in the reset

location ❷.

SDT340 User Manual

6/34

•When the LED is continuously lit green, the battery is fully charged.

Figure 6-1 Recharge the battery

AC/DC power supply:

Based on XP Power, Model ACM24 series (you may find other

references/brand depending on your order date. Please refer to the

label)

Power supply:

Input: 100-240 VAC-0.5 A, 50/60 Hz

Output: 12 VDC-2000 mA, total regulation 5%, efficiency 88.8 %

Operating temperature:

0 to +60 °C (+32 to 140 °F), < 90 % humidity, non-condensing

Storage temperature:

-20 to + 85 °C (-4 to 185 °F)

Output Power:

Max 24 W

Category:

Class II construction

EMC Emissions:

EN 55032, EN 61000-3

EMC Immunity:

IEC 60601-1-2, EN 61204-3, EN 61000-4, EN 60601-1-2

Electrical safety (LVD):

UL 60950-1, UL 62368-1, ANSI/AAMI ES 60601-1

EN 60950-1, EN/IEC 62368-1, EN 60601-1

CSA C22.2 No. 60601

CCC China Compulsory certification, GB4943

AU/NZ 60950.1

CE: meets all applicable directives

UKCA: meets all applicable directives

Weight:

160 grams (0.35 lb)

Dimensions (body only):

88.0 x 30.0 x 57.0 mm (3.46 x 1.18 x2.24’’)

AC input plugs:

UK, US, EU

❶Power supply connector

❷Force battery charge location

❸Battery pack placed on the docking station

❹Docking Station LED

❸

❷

❹

❶

❷

SDT340 User Manual

7/34

Reference:

https://www.xppower.com/portals/0/pdfs/SF_ACM24.pdf

(*) The primary plug of the power

supply is interchangeable. The

procedure of changing is as per

the pictures.

Figure 6-2 Change the primary plug of the power supply

The color of the docking station status LED ❹shows:

•The LED flashes blue –the docking station is powered.

•The LED remains blue illuminated a few seconds when the battery is placed in the docking

station –the battery is detected.

If not, perform a force charge by inserting a needle in the force battery charge location ❷.

•The LED flashes green –the battery pack is charging.

•The LED is green lit continuously –the battery is fully charged.

•The LED flashes red –the docking station detect an abnormal current consumption or an

abnormal temperature. Disconnect and then reconnect the power supply from the main to

reset the docking station.

The SDT340 autonomy is typically 8 hours for a fully charged battery pack and the recharge time is

about 7 hours.

SDT340 User Manual

8/34

7.Controls and connections

❶Display

❷F1 to F4. Their respective function is indicated

in the bottom of the display

❸Escape for stopping a signal acquisition and

going back to the previous menu through setting

screens

❹Home for displaying the main menu

❺Enter to start the acquisition and validate

changes through setting screens

❻Up, Down, Left and Right navigation keys for

the signal, audio amplification adjustment and

navigation through the settings screens

❼Hold-on laser

❽On/Off

❾Status LED.

Figure 7-1 Front panel

❿Tachometer, laser and IR thermometer

⓫Inputs channels. Black collar for ultrasound, red

for vibration. To plug a connector, line up the red

dot on the plug with the red mark on the connector.

Insert the plug into the connector without any

rotating movement. To unplug the connector, move

up, towards the cable, the ring located on the

bottom of the plug. Only pull the connector without

any rotation.

⓬Wired headset connector.

⓭USB type-C Port.

⓮Reset location. Insert a needle, the unit will

restart.

⓯Shoulder strap rings.

Figure 7-2 Lateral plates

7.1. Power on

Press the Power button ❽. At power up, device information and battery charge are displayed, then

the Home menu is displayed on the screen.

❿

⓫

⓭

⓬

⓮

⓯

❶

❷

❸

❹

❼

❻

❽

❾

❺

SDT340 User Manual

9/34

7.2. Sleep Mode

After a few minutes of inactivity, the screen is powered off for battery saving and the status LED is

blinking green. Press any key to reactivate the display.

7.3. Power Off

Press the Power button ❽. At the prompt, select Yes with the Left navigation key ❻, or No to

continue with the operation. Confirm using Enter ❺.

7.4. Driver

The USB driver is automatically installed from the 340, once connected to your PC.

In case of synchronization issue, the driver file SDT2xxDriverinstaller.exe can download from our

website, by clicking this link.

7.5. Plug & Unplug a Sensor

SDT 340 has 2 input ports with 7-pole LEMO connectors for external sensors. The channel with the red

collar is dedicated to vibration measurement as the black is reserved for ultrasound.

LEMO connectors have a sprung-loaded knurled barrel and mechanical polarization to go only in one

way round.

To plug a LEMO connector, line up the red dot on the plug with the red mark on the connector. Insert

the plug into the connector without any rotating movement.

To unplug, move up the ring located on the bottom of the plug. Be sure to only pull the connector

without any rotation and to never pull on the cable itself.

8.Home screen

❶Tree Data Collection Mode

❷Survey Data Collection Mode

❸General Settings

❹Temperature

❺Rotational speed

❻Ultrasound contact sensor

❼Accelerometer

❽Bottom orange line indicates which icon is

currently selected

❾Time and date scrolling information

❿Laser, USB, wireless, wired headset and

remaining battery charge icons

Figure 8-1 Home screen

The Home screen is displayed after the device power up.

❶

❷

❸

❹

❺

❻

❼

❽

❾

❿

SDT340 User Manual

10/34

On top left, date and time are scrolling ❾. On the top right, laser (when activated), USB (when the

SDT340 is connected to a computer), wireless headset (when paired), wired headset (when connected)

and battery remaining charge icons are displayed ❿.

Use the navigation keys to select an icon and press Enter to validate your choice. The selected icon is

indicated by a bottom orange line ❽.

Press Home to directly come back to the Home screen from any menu.

When no sensor is connected, the sound icon is blocked without the ability to adjust the volume.

However, the user hears a background noise emanating from the internal electronics.

9.Data Collection Modes

Before recording data, you must first install the driver, create a tree structure from UAS 3 or UAS Lite

and upload it from your PC to the instrument.

The SDT340 features 3 modes of data collection:

The Free mode –the user selects a sensor; the measurement settings and choose the recording

location freely inside the tree structure. If the measurement type doesn’t exist, the SDT340

dynamically creates it.

The Tree Mode (for UAS3, UAS Lite users only) –the user first selects at his own discretion a

measurement location and then select an existing measurement type. The user is not allowed to

change the measurement settings or create a new measurement type inside the tree structure.

The Survey Mode (for UAS3, UAS Lite users only) –the device proposes a filtered list of measurements

to collect in a predetermined order. The user is not allowed to change the measurement settings or

create a new measurement type inside the tree structure.

Refer to the paragraph “Tree navigation and data storage in Free Mode” to see the definition of a

measurement type.

Caution:

Measurements can only be stored at the Node level/Measurement point

Otros manuales para SDT340

Tabla de contenidos

Otros manuales de Instrumento de medición de SDT International

SDT International

SDT International SDT340 Manual de usuario

SDT International

SDT International Online 4US Manual de usuario

SDT International

SDT International SDT170 Manual de usuario

SDT International

SDT International LUBExpert Manual de usuario

SDT International

SDT International LUBExpert Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
