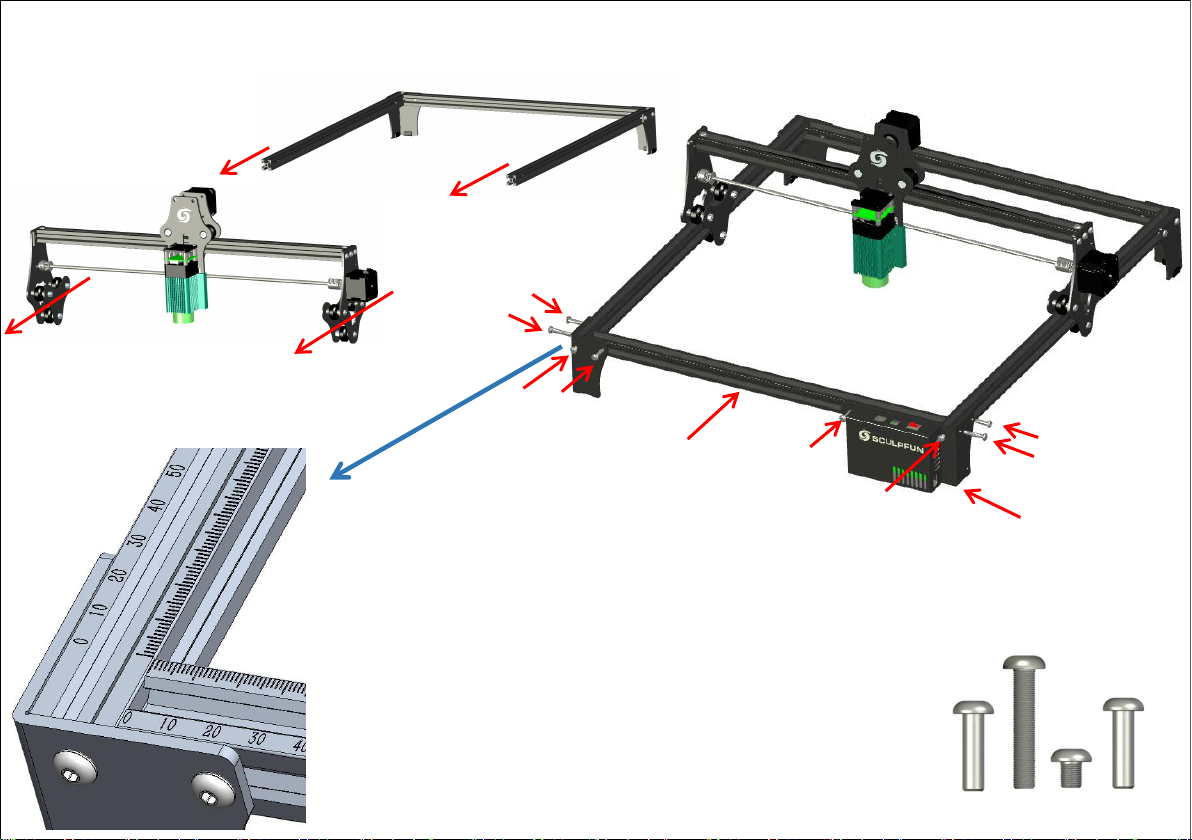

Step 4 Install T nut
1
1
2
2
1
2
Do not tighten the T nut, pull
the belt with your hand to
make the belt tight
With the belt tightened, tighten
the screws to keep the long side
of the T-nut perpendicular to the
groove.
Put the T nut into the groove, the long
side is parallel to the groove, Strongly
press the T nut while rotating the wrench
clockwise to make the long side of the T
nut perpendicular to the groove
Put the T nut into the groove, the long side is
parallel to the groove, Strongly press the T nut
while rotating the wrench clockwise to make the
long side of the T nut perpendicular to the groove
Tighten the screws and keep
the long side of the T-nut
perpendicular to the groove.
Installation steps:
1. First install the T-nut on one side as shown
in the figure.
2. Install the other end of the T-nut on the
other side, and note that the long side of the
T-nut is perpendicular to the groove after
installation. After the installation is complete,
the belt is in a tight state. For extra belts, if
you are not familiar with the use of belts, we
suggest that you do not cut off the extra belts
