Meridian Ice Maker-Dispensers

Technical Service

HID312, HID525 and HID540

What you will learn

•Introduction

•Installation

•Operation

•Maintenance

•Take It Apart

•Diagnostics

HID Ice Maker-Dispensers

•HID models replace MDT models

•2 widths, 16 and 21 inches

–21 inch models have 2 heights, 35 and 41 inches

•Bin storage 12, 25 and 40

•Touch Free dispensing

•Cord connected –15 amp

•New ice form

HID312

•16 wide, 35 high

•12 lb storage

•Air cooled only

–Washable air filter standard

–Air flow left to right

•Legs optional

•Wall mount version

–No drip tray

–Long splash panel

HID525

•21 wide x 35 high

•25 lb storage

•Air or Water Cooled

–Air flow left to right

–Washable air filter standard

•Legs optional

•Wall mount version

–No drip tray

–Long splash panel

HID540

•21 wide by 41 high

•40 lb storage

•Air or Water Cooled

–Washable air filter standard

–Air flow left to right

•Legs optional

•Wall mount version

–No drip tray

–Long splash panel

Common Parts to Models –Excluding Voltage

•Same:

–Gear reducer

–Auger

–Evaporator

–Breaker

–Bearings

–Water seal

–Controller

–Sensors

•Same

–Compressor

•HID525 and

HID540

–Dispense drive

motor

–Construction

•Chutes

•Many panels

–Operation

Component Location

Ice Making Apparatus

Control Box

Compressor

Drain Basin

Drip Tray

Dispense

Sensor

Agitator

Ice Storage Bin

Photo Eye Bin Control

Controller

Water Reservoir

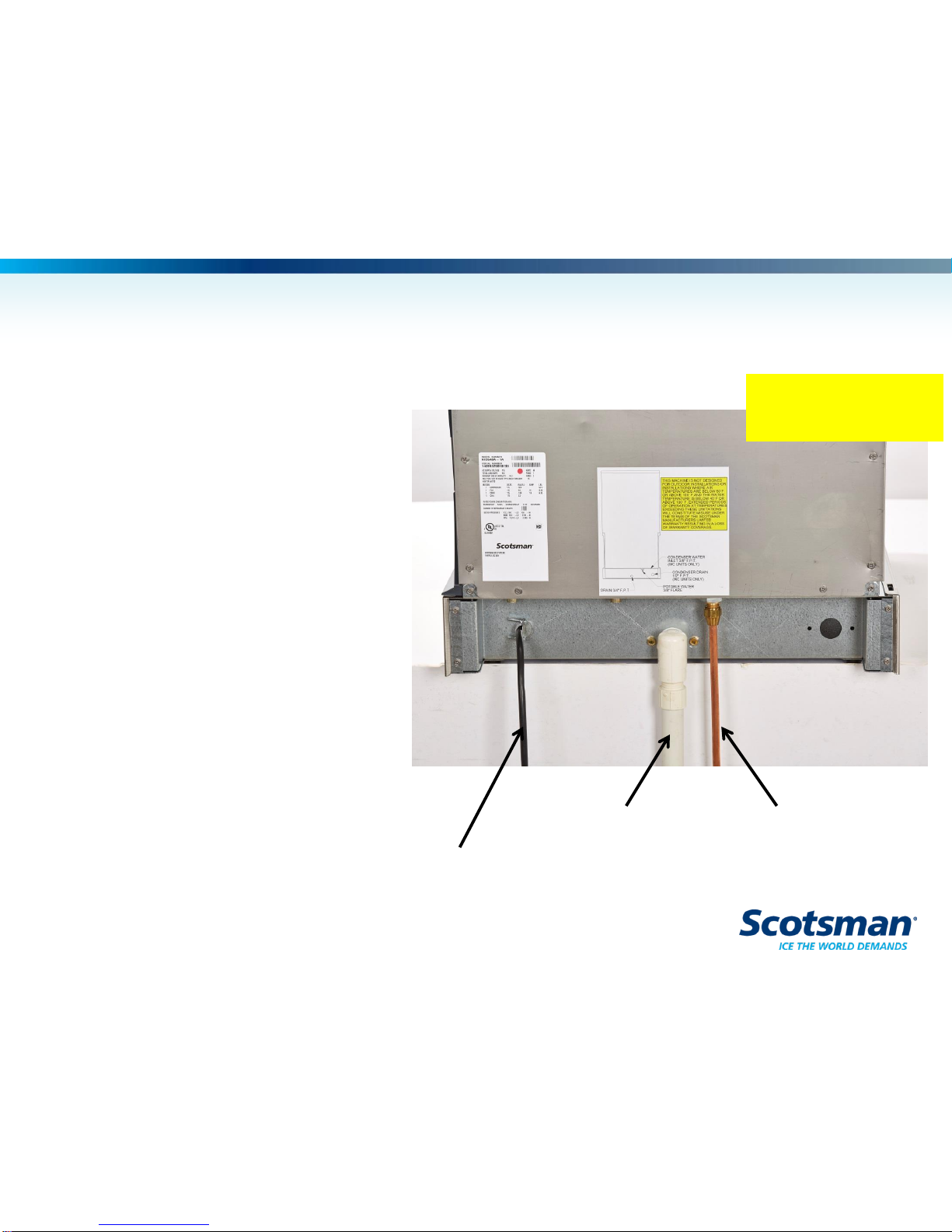

Installation - Utilities

•Recessed area

–Power cord

•5-15P plug

–Water fitting

•3/8 male flare

–Elbow included

•Remember to

flush the line!

–Drain fitting

•¾ FPT

•Vent horizontal

runs

Drain Water

Power

90oFlare elbow

ships with unit

Water Filtration and Treatment

•Water conductivity limit: 10 microSiemens/cm

•Taste and Odor Filters

–Use if water has objectionable taste

–This type contains activated carbon

–T & O Filters remove chlorine

•Chlorine frequently added by water treatment plant to kill

bacteria

•Risk of increased bacteria growth by using a

Taste and Odor filter

–Other types available
