Scosche FD5000SW Manual de usuario

FD5000SW

FACTORY STEREO REPLACEMENT INTERFACE

WITH STEERING WHEEL CONTROL RETENTION FOR

2005-14 SELECT FORD, LINCOLN & MERCURY VEHICLES

(CAN Bus Data System)

If you have any further questions, or need dash disassembly instructions, call our TOLL-FREE number:

TECHNICAL HELP line 1-800-621-3695 x1

PRELIMINARY

Congratulations on your purchase of the FD5000SW Car Stereo Replacement Interface.

This interface with harness will allow you to replace your factory stereo and retain important

power, communication and diagnostic functions in your vehicle.

The interface will also retain

steering wheel controls (if equipped) when using a compatible aftermarket stereo.

BEFORE BEGINNING: READ THIS INSTRUCTION MANUAL

**CAUTION**: Disconnect negative battery terminal to avoid short circuits. Read ALL

manufacturers warnings regarding air bags and electrical systems in your vehicle. We

recommend the use of a volt-ohm meter or computer-safe LED probe when checking

wiring. A test light or grounded light probe if used improperly can cause damage to the

vehicle’s computer and/or diagnostic system.

NOTE:

We recommend the FD3090A Car Stereo Installation Kit for mounting your

aftermarket car stereo and a TK12A car stereo tool kit.

WHY YOU NEED THIS PART:

Your factory stereo is an integral part of your vehicle’s data and communication systems. If the stereo is

removed without the proper installation accessory, some functions of your vehicle will be LOST including:

 • +12Vaccessorypoweratstereo’slocation

 • R.A.P.(RetainedAccessoryPower)feature

 • Communicatespropercommandsignalswithhostcomputerduringvehicle

service or diagnostic operations (SEE NOTE)

 • Steeringwheelaudiocontrols(ifequipped)

NOTE: Your vehicle’s ECM (Electronics Control Module) may store an error code if operated without

the factory stereo installed and you may experience difficulty when having the vehicle serviced at the

dealership. The FD5000SWInterfacemodule/harnesswillallowyoutoREPLACEthefactorystereoand

RETAINtheoriginalpowerandcommunicationsignals.

VEHICLE APPLICATIONS:

MAKE/MODEL YEAR

FORD

EDGE 2007-10

 ESCAPE  2008-12

 EXPEDITION  2007-14

 EXPLORER  2006-10

 EXPLORERSPORTTRAC  2007-10

 FSERIESPICKUP  2009-12

 F-SERIESSUPERDUTYPICKUP  2008-12

 FIVEHUNDRED  2005-07

 FOCUS(Non-Sonysystem)  2008-11

 FLEX  2008-11

FREESTYLE 2005-07

 FUSION  2006-12

 MUSTANG  2005-14

 TAURUS  2008-12

 TAURUSX  2008-09

APPLICATION NOTE:

Not for use on THX sound

MAKE/MODEL YEAR

LINCOLN

 MKX  2007-10

 MKZ  2007-10

 NAVIGATOR  2007-14

 ZEPHYR  2006

MERCURY

 MARINER  2008-10

 MILAN  2006-10

MONTEGO 2005-07

 MOUNTAINEER  2006-10

 SABLE  2008-09

FD5000SW

INTERFACE

MODULE

FD5000SW

INTERFACE

HARNESS

WIRES FOR AFTERMARKET STEREO

See wire color codes and wiring diagram.

24-PIN CONNECTOR

FD5000SW OVERVIEW

16-PIN CONNECTOR

8-PIN

CONNECTOR

FD5000SW

STEERING WHEEL

CONTROL HARNESS

WIRING INSTRUCTIONS

1. Disconnect the negative battery cable from the battery to avoid any short circuits.

2. Remove and unplug factory stereo. (If needed, call Scosche Tech Support 1 (800) 621-3695 x3 for

stereo removal steps.)

3. Match and connect the appropriate wires from the FD5000SW harness to the appropriate wires of the

plugprovidedwithyourstereo.Forexample,connecttheyellow+12VConstantleadfromyourstereo

to the yellow wire of the FD5000SW harness. (See wiring diagram section for additional information.)

NOTE: If your vehicle is equipped with steering wheel controls and you are installing a compatible aftermarket

 stereo,seepages8-9forconnectioninformation.

4. NotethattheRED+12Vaccessorywireandtheorangeilluminationwireforyouraftermarketstereoare

coming from the FD5000SW module itself, not the vehicle harness.

5. If your aftermarket stereo does not have all matching color-coded wires for the FD5000SW interface

harness, then cap or tape unused wires separately to avoid short circuits.

6. Reconnectthenegativebatterycable,closealldoorsandremovethekeyfromvehicleignition.

7. Allowthevehicletocometoa“resting”or“sleep”stateforafewminuteswithoutanykeyinserted,

door/hood/trunk open and all vehicle accessories turned to the OFF position.

8. Connectthesmallblack8-pinharnesstotheFD5000SW interface module (black plastic box).

9. Connect the FD5000SW connector to the Factory Harness.

10.Asyouinstallyournewstereo,placetheFD5000SW interface module in the dash cavity.

(Optional: Cable ties or double sided tape can be used to secure the module, but are not included)

WIRE COLOR CODES:

White = Leftfrontpositive(LF+)

White/Black = Leftfrontnegative(LF-)

Green = Leftrearpositive(LR+)

Green/Black = Leftrearnegative(LR-)

Gray = Rightfrontpositive(RF+)

Gray/Black = Rightfrontnegative(RF-)

Violet = Rightrearpositive(RR+)

Violet/Black = Rightrearnegative(RR-)

Violet/White = Reversetrigger(-)

Yellow = +12voltbatteryconstant

Red = +12voltaccessoryswitched

  (DATA-controlled/R.A.P.)

Black = Chassisground(-12V)

Orange = +12Villumination

WIRING NOTES

1. TheRed+12VswitchedaccessorywirecomingfromtheFD5000SW interface is rated at 10 amps for

usewithasingleAftermarketstereo.Connectingadditionalaccessoriestothis+12Vpowersourcecan

cause damage to the FD5000SW module.

2. There are wires connected ONLY between the FD5000SW interface plug and the vehicle connectors

(under the insulating tape). Do not make any connections or cuts to these wires.

3. Ifyourstereodoesnotcontainan“Orange”illuminationwire,thentheorangewirewillnotbeused.

Tape or cap all unused wires to prevent short circuits

ThecolorcodesusedonthisinterfaceharnessconformtothestandardssetbytheE.I.A.(Electronics

IndustryAssociation).Theymaydifferfromthewiringcodesfoundonyourcarstereo.Alwaysreferto

your stereo owners manual for wiring details about your particular car stereo.

FD5000SW

INTERFACE

MODULE

FD5000SW

INTERFACE HARNESS

24-PIN CONNECTOR

TOWARD

VEHICLE

TOWARD AFTERMARKET

CAR STEREO

AFTERMARKET

CAR STEREO

WIRING DIAGRAM

16-PIN CONNECTOR

8-PIN CONNECTOR

FD5000SW

STEERING WHEEL

CONTROL HARNESS

(seepages8-9)

STEERING WHEEL CONTROLS

1. Determine if your vehicle has built-in stereo (audio)

control buttons located on the steering wheel:

a. If yes, proceed to step 2.

b. If no, then disregard this steering

wheel controls section.

2. Determine if your new stereo is compatible with

steering wheel controls. Consult the installation

manual provided with the stereo, or check the

wiring connections behind the stereo:

a. Some stereos have a 3.5 mm round (headphone type)

input receptacle at the rear of stereo

  labeled“SWC”or“SWCIn”

 b.SomestereoshaveBluewirewithYellowstripe

  (orothercolor)labeled:“SWC”or“SWCIn”.

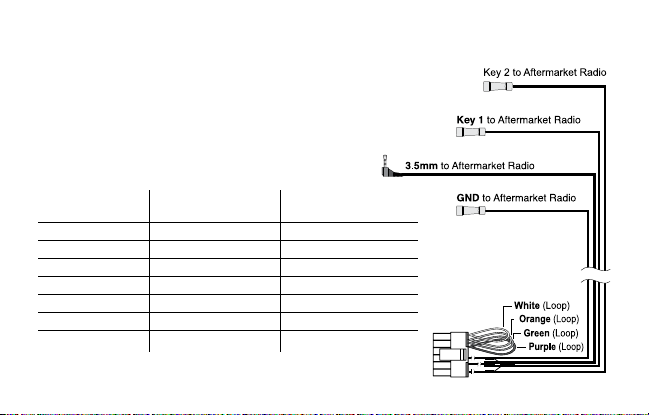

3. Refer to chart on page 9 to prepare the Steering Wheel Control harness. Use the chart to determine

which colored loop to cut and the corresponding connection for your particular stereo. If your brand

 isnotlistedinthechart,pleasecalltechsupportforassistance:(800)612-3695Ext.3

4.Connectthe3.5mmMalejackthebackofthestereo’sSWCinputorconnecttheBrown(KEY1),Gray

 (KEY2)orBlack(GND)tothestereo’sSWCinputwire.

5.ConnecttheMale14-Pinconnectortheinterfacemoduleasshowninthediagram.

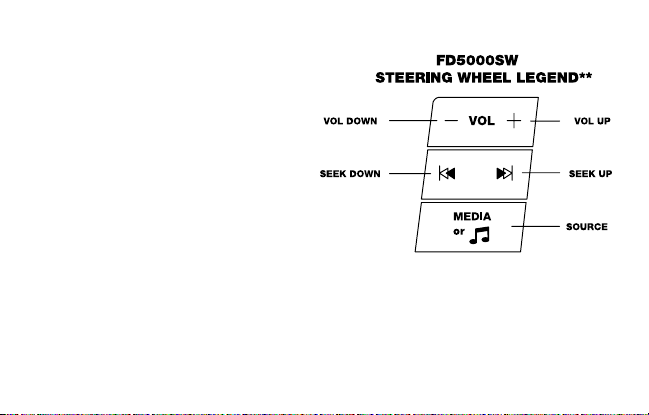

**NOTE: Steering wheel control buttons and functions are provided as a guide. Your specific vehicle may differ.

STEERING WHEEL WIRING CODES

STEREO BRAND

ALPINE

CLARION

JVC

KENWOOD

PANASONIC

SONY

PIONEER

OTHER BRANDS

CONFIGURATION*

Cut Green loop

CutVioletloop

CutGreen&Violetloop

Cut Orange & Green

Cut Orange

Cut White

No cut required

Call Tech Support

STEREO CONNECTION

3.5mm

3.5mmorBrown(Key1)

Brown(Key1)

3.5mm

Brown,Gray,Black

1.PrepareFD5000SW steering wheel connector by using the chart below.

2. Connect the harness to the interface module.

3. ForAlpine,Clarion,JVC,Panasonicandcarstereos,connectthe3.5mm

 malesteeringplugintothesteeringwheelinputjackattheback

of the stereo.

4.ForKenwoodandnewerJVCstereos,connecttheBROWN

wire from the steering wheel harness to the REMOTE IN

wire at the back of the stereo.

*NOTE: Cut wire ONLY. DO NOT remove!

OPERATION

When connected and installed per these instructions, the aftermarket stereo should operate normally.

Ifusingsteeringwheelcontrolsandcompatiblestereo,refertothediagramonpage8forbuttonfunctions.

If you any questions or need technically assistance regarding this product, please call Tech Support:

(800) 621-3695 Ext. 1.

For complete warranty details, please visit us at www.scosche.com

or call (800) 363-4490
