SCIWIL S810-LED Manual de usuario

Changzhou Sciwil E-

Mobility Technology Co., Ltd.

9th Huashan Road, Changzhou, Jiangsu, China- 213022

Fax: +86 519-85602675 Tel: +86 519-

85600675

USERS GUIDE

S810-LED

Changzhou Sciwil E-

Mobility Technology Co., Ltd.

9th Huashan Road, Changzhou, Jiangsu, China- 213022

Fax: +86 519-85602675 Tel: +86 519-

85600675

Contents

Introduction .................................................................................................................................................. 1

1. Safety Notes ............................................................................................................................................ 2

2. Assembly .................................................................................................................................................. 2

3. Product Size .......................................................................................................................................... 3

4. Working Voltage and Connection ................................................................................................ 3

4.1 Working Voltage ........................................................................................................................ 4

4.2 Connection ................................................................................................................................... 4

5. Functions and Key Pad ...................................................................................................................... 4

5.1 Functions....................................................................................................................................... 4

5.2 Control and Setting Items.......................................................................................................... 5

5.3 Display Area .................................................................................................................................. 5

5.4 Communications Protocol ........................................................................................................ 5

5.5 Key Pad ............................................................................................................................................. 6

5.6 Serial Code ..................................................................................................................................... 7

6. Quality and Warranty .......................................................................................................................... 7

7. Version....................................................................................................................................................... 8

Changzhou Sciwil E-Mob

ility Technology Co., Ltd.

9th Huashan Road, Changzhou, Jiangsu, China- 213022

Fax: +86 519-85602675 Tel: +86 519-

85600675

Introduction

Congratulations on purchasing your e-bike smart display. Before use, please read

through this manual. It is important to acknowledge all the

WARNINGS, SAFETY

NOTES AND INSTRUCTIONS

. This manual will walk you through assembly, settings

and operations of Sciwil display products in easy steps, to facilitate operations on

your e-bike.

Changzhou Sciwil E-Mob

ility Technology Co., Ltd.

9th Huashan Road, Changzhou, Jiangsu, China- 213022

Fax: +86 519-85602675 Tel: +86 519-

85600675

1. Safety Notes

PLEASE TAKE CAUTION WHEN USE，DO NOT PLUG OR UNPLUG THE DISPLAY WHILE

YOUR E-BIKE IS POWERED ON.

AVOID CLASHES OR BUMPS TO THE DISPLAY.

DO NOT TEAR THE WATER-PROOF FILM ON THE SURFACE OF THE SCREEN,

OTHERWISE THE WATER-TIGHT PERFORMANCE OF THE PRODUCT MAY BE

DEGRADED.

DISPLAY WATER-PROOF RATE: IP6

UNAUTHORIZED ADJUSTMENT TO DEFAULT SETTINGS IS NOT SUGGESTED,

OTHERWISE NORMAL USE OF YOUR E-BIKE CAN NOT BE GUARANTEED.

WHEN THE DISPLAY PRODUCT DOES NOT WORK PROPERLY, PLEASE SEND THE

IT FOR AUTHORIZED REPAIR IN TIME.

2. Assembly

Fix the display on the handlebar, adjust it to a proper facing angle. Make sure your

e-bike is powered off, then plug the connector on the display to the connector on

the controller (bus) to finish standard assembly.

Changzhou Sciwil E-Mob

ility Technology Co., Ltd.

9th Huashan Road, Changzhou, Jiangsu, China- 213022

Fax: +86 519-85602675 Tel: +86 519-

85600675

3. Product Size

Material

Shell Material: ABS

Screen Cover Material: High Hardness Acrylic (same hardness as tempered glass).

Working Temperature: -20°C~60°C.

Product Size

4. Working Voltage and Connection

Changzhou Sciwil E-Mob

ility Technology Co., Ltd.

9th Huashan Road, Changzhou, Jiangsu, China- 213022

Fax: +86 519-85602675 Tel: +86 519-

85600675

4.1 Working Voltage

DC 24V-60V compatible (can be set on display)，other voltage level can be

customized.

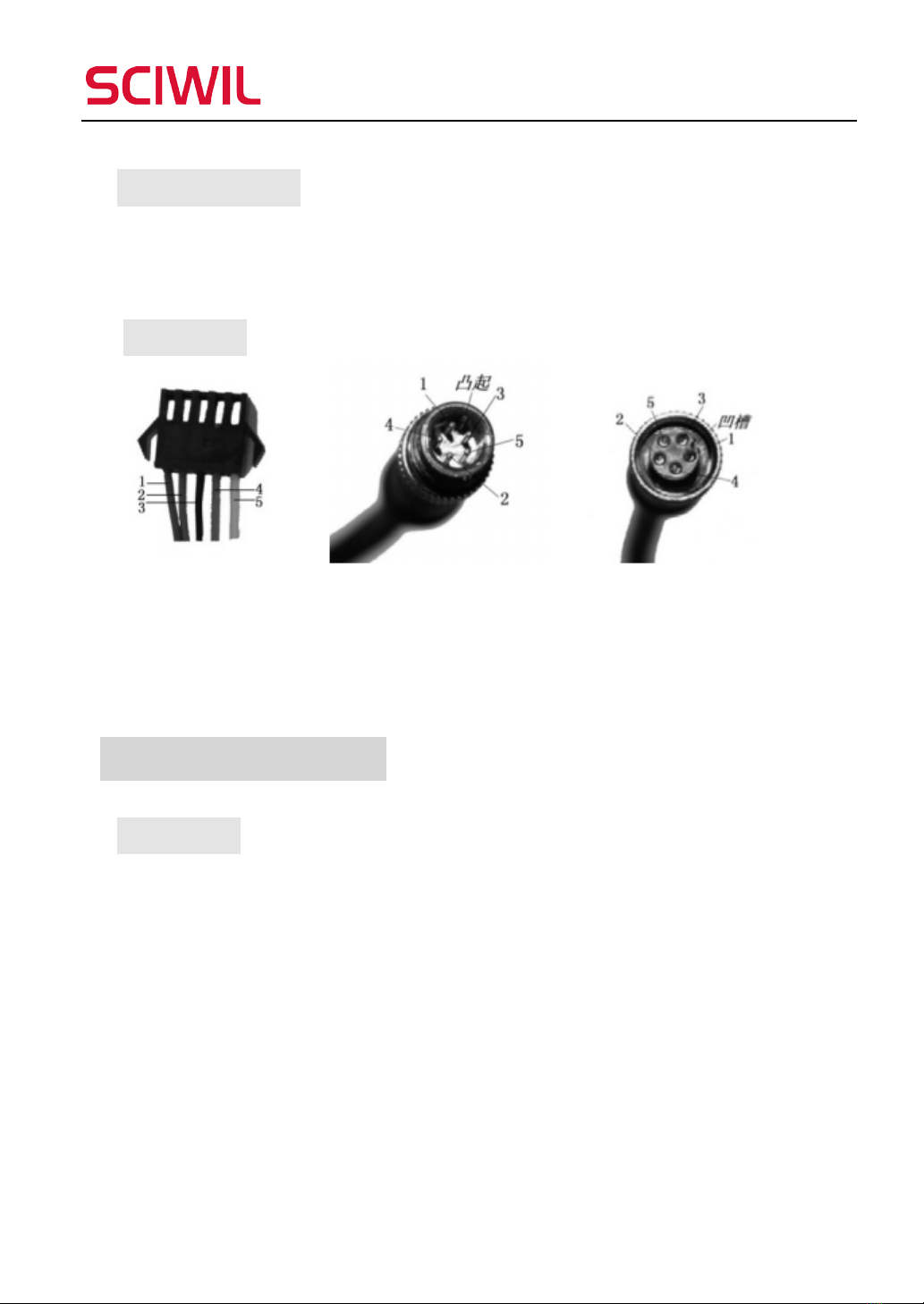

4.2 Connection

Connector to Controller Display Cable Outlet Connector Display Cable Coupling Connector

Note: Some products may use waterproof connectors, in which case the internal

wire arrangements cannot be identified from outside.

5Functions and Key Pad

5.1 Functions

These are items displayed on S810:



Battery Level



PAS Level

- 5 -

Changzhou Sciwil E-

Mobility Technology Co., Ltd.

9th Huashan Road, Changzhou, Jiangsu, China- 213022

Fax: +86 519-85602675 Tel: +86 519-

85600675

5.2 Control and Setting Items

PAS Level PWM Setting, Headlight On/Off

5.3 Display Area

1. PAS Status Indication Area

2. Battery Level

5.4 Communications Protocol：UART

5.5 Key Pad

Key pad position:

- 6 -

Changzhou Sciwil E-

Mobility Technology Co., Ltd.

9th Huashan Road, Changzhou, Jiangsu, China- 213022

Fax: +86 519-85602675 Tel: +86 519-

85600675

There are 3 keys on S810 display. In following introductions:

is called “On/Off”,

is called “Light”,

is called “Mode”.

Operations:

·Switch On/Off Display and Headlight

-Press and hold On/Off to switch on or off the display.

-When the display is on, press Light to turn on/off the headlight.

-When the display is on but the static current is under 1μA, the display will

automatically turn off after 10 minutes (or any set time by P04).

·PAS/Throttle Level

-During riding, press Mode to change PAS/Throttle level.

·Walk Mode

-During riding, press and hold Mode to enter 6km/h walk mode.

- 7 -

Changzhou Sciwil E-

Mobility Technology Co., Ltd.

9th Huashan Road, Changzhou, Jiangsu, China- 213022

Fax: +86 519-85602675 Tel: +86 519-

85600675

5.6 Serial Code

Each Sciwil display product bears a unique Serial Code on the back shell

(as shown in the photo below)：192 2 1 210603011

Explanation to the above Serial Code:

192：Customer Code

2：Protocol Code

1：Program can be overridden（0 means can not be overridden）

210603011：P.O. (purchase order number)

6Quality and Warranty

In compliance with local laws and normal usage, the limited warranty period covers

24 months after the date of manufacturing (as indicated by the serial number).

The limited warranty shall not be transferred to a third party other than as specified

in the agreement with Sciwil.

Other situations may be covered, depending on the agreement between Sciwil and

- 8 -

Changzhou Sciwil E-

Mobility Technology Co., Ltd.

9th Huashan Road, Changzhou, Jiangsu, China- 213022

Fax: +86 519-85602675 Tel: +86 519-

85600675

the buyer.

Warranty Exclusions:

1. Sciwil products that have been modified or repaired without authorization

2. Sciwil products that have been used for rental, commercial applications, or

competition

3. Damage resulting from causes other than defects in material or manufacturing

process, including but not limited to an accident, neglect, improper assembly,

improper repair, maintenance alteration, modification, abnormal excessive wear or

improper use.

4. Damage due to buyer’s improper transportation or storage, and damage during

shipping (the responsible party should be determined using INCOTERMS

regulations).

5. Damage to the surface after leaving factory, including shell, screen, buttons, or

other appearance parts.

6. Damage to wiring and cables after leaving factory, including breaks and exterior

scratch.

7. Failure due to an improper user configuration or unauthorized changes in the

relevant accessories parameters, or debugging by the users or the third party.

8. Damage or loss due to force majeure.

9. Beyond the warranty period.

7Version

This display user manual is in compliance with the general software version (V1.0) of

Changzhou Sciwil E-Mobility Technology Co., Ltd. There are chances that display

products on some e-bikes may have a different software version, which should be

subject to the actual version in use.
