Schlage Encode Manual de usuario

Quick Start Guide

Backup

Key

Touchscreen

Assembly

Battery

Cover

Inside

Assembly

Backplate

Reinforcement

Plate

Bolt

Strike

Reinforcement

Screws

Inside Assembly

Screws

Backplate

Screws

Bolt/Strike

Screws

Parts

Visit schlage.com/encode-workswith

to setup and control your

with your smartphone.

Start here!

schlage.com/encode-workswith

Communication Icon

•Flashes when lock is connecting

to WiFi to check for updates.

Low Battery Icon

•Flashes after code is entered

when battery is low.

•Solid when battery is critical.

The lock will not work without

new batteries.

Programming and Input

LED

•Flashes white on every digit

that is entered.

•Amber when using manual

programming mode.

Home Button and

Checkmark Icon

•Turns on keypad backlight.

•Starts WiFi connection

process.

•Checkmark ashes when

code entry is correct.

•Checkmark ashes when

manual programming are

successful.

Lock Button and “X” Icon

•Locks the lock.

•Turns on keypad backlight if

the lock is locked.

•“X” ashes for a wrong user

code.

Touchscreen

step

Remove existing lock.

Remove the entire deadbolt, including the bolt.

You may also want to remove the strike. A standard

Schlage deadbolt is shown. Check with your specic

deadbolt manufacturer if you need help.

Tools

Don’t use a power drill!

Phillips screwdriver

1 2 3

4 5

Need Help?

Visit schlage.com/faqs-encode.

step

Actual Size

Make sure the

word “TOP” is

facing up.

Install the bolt.

You may have to adjust your bolt length. Make sure the slot in

the bolt is centered in the hole.

Slot is

centered

in the hole.

No change

needed.

Twist the

faceplate to

extend. Keep

twisting

until 2 ¾”.

Install the strike into the door frame.

step

Actual Size

Install

this strike

reinforcer for

enhanced

security.

Need Help?

Trouble installing the strike reinforcer?

Visit schlage.com/faqs-encode

and follow interactive instructions.

If you have a window next to your door, you may not be able

to use the longer wood screws to install the reinforcer.

step

Install the touchscreen.

Route the cable through the door BELOW the bolt. Align the

tailpiece as shown and push the touchscreen onto the door.

Is it hard to install the touchscreen?

Is the tailpiece not installing correctly?

If your through hole seems too small, you

may need to remove the spacer. Visit

schlage.com/faqs-encode.

The bump on

the tailpiece

aligns with the

slot in the bolt.

step

Install the backplate.

Route the cable under the bolt and through the hole on

the bottom of the backplate. Secure the backplate with

screws. Make sure the outside touchscreen is straight before

tightening screws all the way.

Don’t use a power drill!

You may damage your

lock!

Phillips screwdriver

1 2 3

4 5

step

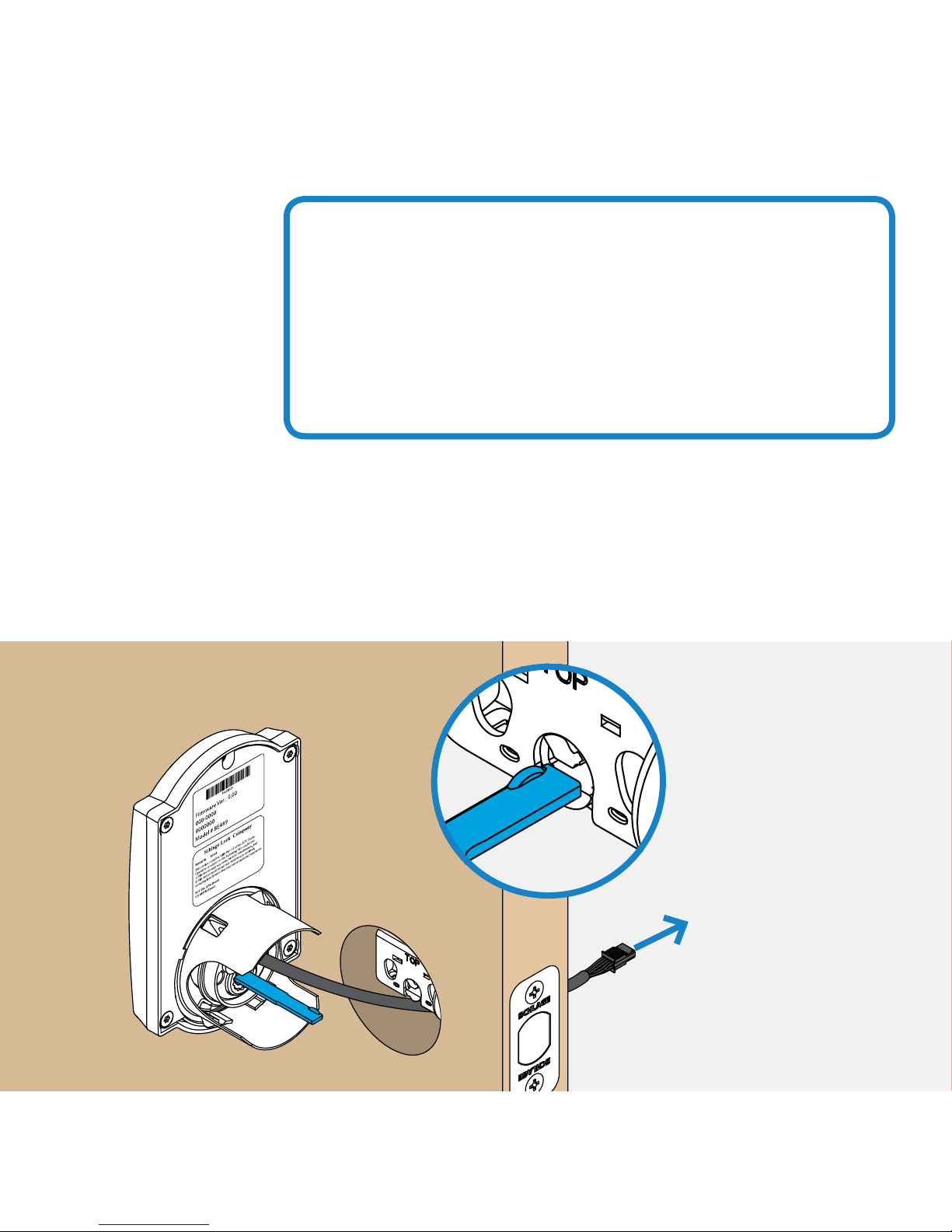

Connect the cable.

Tuck the cable and connector in the space above the spindle.
