Schlage Connect Smart Deadbolt Manual de usuario

Quick Start Guide

Backup Key

Touchscreen

Assembly

Backplate

Reinforcement

Plate

Bolt

Strike

Reinforcement

Screws

Inside Assembly

Screw

Backplate

Screws

Bolt/Strike

Screws

Parts

Set Screw

Battery

Cover

Inside

Assembly

Thumbturn

Interactive experience

For an improved installation experience, follow the

link below or scan the QR code for online interactive

instructions, warranty, and reference information.

https://instructions.allegion.

com/instr/86/2110

Tools

Don’t use a power drill!

Phillips screwdriver

1 2 3

4 5

U.S.A.: 888-805-9837

Canada: 800-900-4734

Mexico: 018005067866

Support

Need Help?

See “Help with Step 1” in the online

instructions. The link is on the back

cover or the third page of this guide.

step

Actual Size

Make sure the

word “TOP” is

facing up.

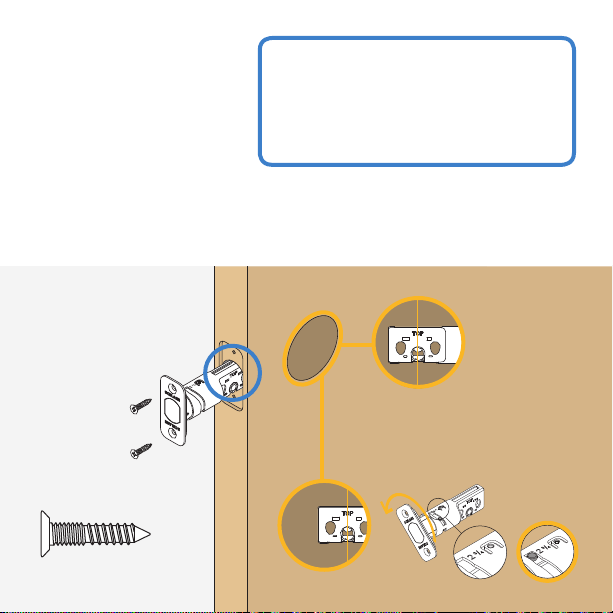

Install the bolt.

You may have to adjust your bolt length. Make sure the slot in

the bolt is centered in the hole.

Slot is

centered

in the hole.

No change

needed.

Twist the

faceplate to

extend. Keep

twisting

until 2 ¾”.

Install the strike into the door frame.

step

Actual Size

Install

this strike

reinforcer for

enhanced

security.

Need Help?

Trouble installing the strike reinforcer? See

“Help with Step 2” in online instructions.

If you have a window next to your door, you may not be able

to use the longer wood screws to install the reinforcer.

step

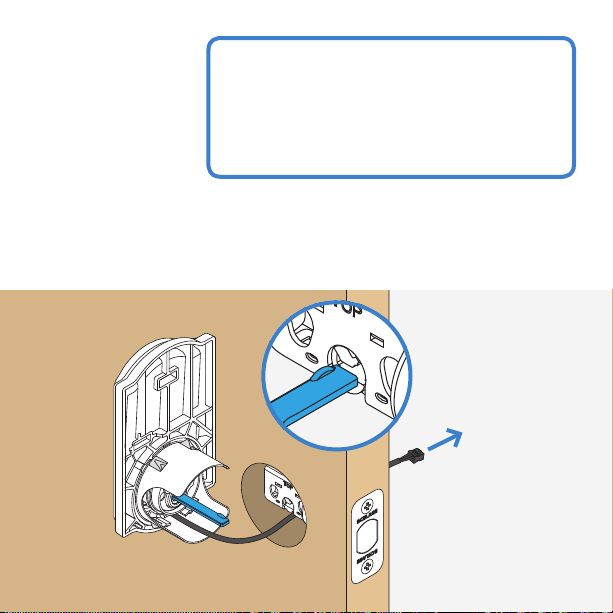

Install the touchscreen.

Route the cable through the door BELOW the bolt. Align the

tailpiece as shown and push the touchscreen onto the door.

Is it hard to install the touchscreen?

Is the tailpiece not installing correctly?

If the hole through your door seems

too small, you may need to remove the

spacer. See the online instructions.

The bump on the

tailpiece aligns

with the slot in the

bolt.

step

Install the inside backplate.

Route the cable below the bolt and through the hole on the

bottom of the backplate. Secure the backplate with screws.

Hold the touchscreen

on the outside of

the door while you

tighten the screws.

TOP

Make sure

that “TOP”

is facing

out.

Actual Size (2)

Don’t use a power drill!

You may damage your lock!

Phillips screwdriver

1 2 3

4 5

step

Take off the battery cover.

Phillips screwdriver

Connect the cable.

step

The connector ts

only one way.
