MODEL SCR

THIS MANUAL CONTAINS THE OPERATING

INSTRUCTIONS AND SAFETY INFORMA-

TION FOR YOUR SCAG MOWER. READING

THIS MANUAL CAN PROVIDE YOU WITH

ASSISTANCE IN MAINTENANCE AND AD-

JUSTMENT PROCEDURES TO KEEP YOUR

MOWER PERFORMING TO MAXIMUM EFFI-

CIENCY. THE SPECIFIC MODELS THAT THIS

BOOK COVERS ARE CONTAINED ON THE

INSIDE COVER. BEFORE OPERATING YOUR

MACHINE, PLEASE READ ALL THE INFOR-

MATION ENCLOSED.

PART NUMBER 03103

OPERATOR’S MANUAL

FAILURE TO FOLLOW SAFE OPERATING PRACTICES

MAY RESULT IN SERIOUS INJURY.

* Keep all shields in place, especially the grass discharge chute.

* Before performing any maintenance or service, stop the machine and

remove the spark plug wire and ignition key.

* If a mechanism becomes clogged, stop the engine before cleaning.

* Keep hands, feet and clothing away from power-driven parts.

* Read this manual completely as well as other manuals that came

with your mower.

* Keep others off the tractor only one person at a time)

REMEMBER - YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!

Hazard control and accident prevention are dependent upon the awareness,

concern, prudence, and proper training of the personnel involved in the

operation, transport, maintenance, and storage of the equipment.

WARNING:

This manual covers the operating instructions

and illustrated parts list for:

SCR42-25CH with a s rial numb r of 7530001 to 7539999

SCR48-27KA with a s rial numb r of 7550001 to 7559999

SCR48-25CH with a s rial numb r of 7540001 to 7549999

SCR52-25CH with a s rial numb r of 7560001 to 7569999

SCR52-27KA with a s rial numb r of 7570001 to 7579999

Always use the entire serial number listed on the serial number tag when referring to

this product.

SCR 2K SPL

Serial Plate

GENERAL INFORMATION

1.1 INTRODUCTION

Your mower was built to the highest standards in the

industry. However, the prolonged life and maximum

efficiency of your mower depends on you following the

operating, maintenance and adjustment instructions in

this manual.

If additional information or service is needed, contact

your Scag Power Equipment Dealer.

We encourage you to contact your dealer for repairs. All

Scag dealers are informed of the latest methods to

service this equipment and provide prompt and efficient

service in the field or at their service shop. They carry a

full line of Scag service parts.

USE OF OTHER THAN ORIGINAL SCAG

REPLACEMENT PARTS WILL VOID THE

WARRANTY.

When ordering parts, always give the model and serial

number of your tractor. The serial number plate is

located where shown in Figure 1-1.

For pictorial clarity, some illustrations and figures in this

manual may show shields, guards or plates open or

removed. Under no circumstances should your mower

be operated without these devices in place.

All information is based upon product information

available at the time of approval for printing. Scag

Power Equipment reserves the right to make changes

at any time without notice and without incurring any

obligation.

1.2 DIRECTION REFERENCE

The “Right” and “Left”, “Front” and “Rear” of the

machine are referenced from the operator’s right and left

when seated in the normal operating position and facing

the forward travel direction.

1.3 SERVICING THE ENGINE AND DRIVE

TRAIN COMPONENTS

The detail servicing and repair of the engine, hydraulic

pumps and gearboxes are not covered in this manual;

only routine maintenance and general service

instructions are provided. For service of these

components during the limited warranty period, it is

important to contact your Scag dealer or find a local

authorized servicing agent of the component

manufacturer. Any unauthorized work done on these

components during the warranty period may void your

warranty.

Section 1

Figure 1-1Tractor Serial Number Plate Location

CE Mark

TransmissionChoke

On/Start Spring Tension on Idler

Oil

Off/Stop

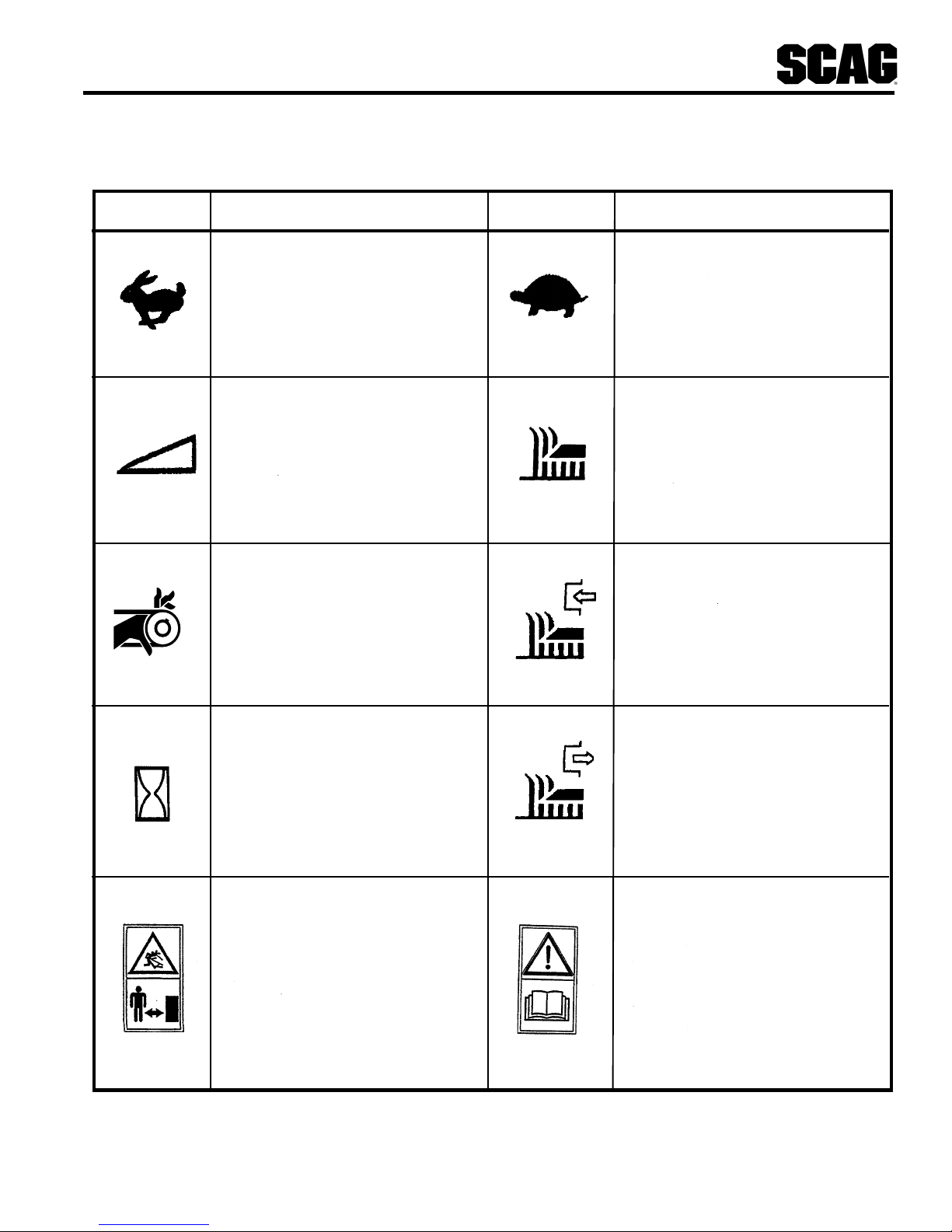

SYMBOL DESCRIPTION

ISO Symbols

SpinningBlade

48071S

Parking Brake

WARNING

FALLING HAZARD

USE ONLY SCAG APPROVED

RIDING ATTACHMENTS

SEE OPERATOR'S MANUAL

481109

FallingHazard

SlowFast

Cutting element - Engage

Cutting element - Basic symbol

Cutting element - Disengage

Continuously variable - Linear

Read operator's manual

Keep bystanders away

Pinch Point

481039S

SYMBOL DESCRIPTION SYMBOL DESCRIPTION

Hourmeter/elapsed operating hours

SAFETY INFORMATION

CAUTION:

WARNING:

Section 2

2.1 INTRODUCTION

Your mower is only as safe as the operator. Carelessness

or operator error may result in serious bodily injury or

death. Hazard control and accident prevention are

dependent upon the awareness, concern, prudence, and

proper training of the personnel involved in the operation,

transport,maintenance andstorage ofthe equipment. Make

sure every operator is properly trained and thoroughly

familiarwith allof the controlsbefore operatingthe mower.

READ THIS OPERATOR’S MANUAL BEFORE

ATTEMPTING TO START YOUR MOWER.

A replacement manual is available from your authorized

Scag Service Dealer or by Contacting Scag Power

Equipment,Service Department atP.O. Box 152,Mayville,

WI 53050. Please indicate the complete model and serial

number of your Scag product.

2.2 SIGNAL WORDS

This symbol means “Attention! Become Alert! Your

Safetyis Involved!"The symbolis usedwith thefollowing

signal words to attract your attention to safety messages

found on the decals and throughout this manual. The

message that follows the symbol contains important

information about safety. To avoid injury and possible

death, carefully read the message! Be sure to fully

understand the causes of possible injury or death.

Signal Word:

It is a distinctive word on safety decals and throughout

this manual that alerts the viewer to the existence and

relative degree of the hazard.

The signal word “DANGER” denotes that an extremely

hazardoussituation exists onor nearthe machine that could

result in high probability of death or irrepairable injury if

proper precautions are not taken.

The signal word “WARNING” denotes a hazard exists on

or near the machine that can result in injury or death if

proper precautions are not taken.

The signal word “CAUTION” is a reminder of safety

practices on or near the machine that could result in

personal injury if proper precautions are not taken.

Your safety and the safety of others depends significantly

upon your knowledge and understanding of all correct

operating practices and procedures of this machine.

2.3 BEFORE OPERATION

CONSIDERATIONS

1. NEVER allow children to operate this riding mower.

Do not allow adults to operate this machine without

proper instructions.

2. DO NOT mow when children and/or others are

present.

3. Clear the area to be mowed of objects that could be

picked up and thrown by the cutter blades.

4. DO NOT carry passengers.

Section 2

WARNING:

-NOTE-

WARNING:

12. Equipment must comply with the latest requirements

per ANSI J137 and/or ANSI S279 when driven on

public roads.

If the mower is driven on public roads, it must

comply with state and local ordinances as well as

SAE J137 and/or ANSI / ASAE S279 requirements.

Contact your local authorities for regulations and

equipment requirements.

13. DO NOT operate without a chute deflector installed;

keep the deflector in lowest possible position.

14. Check the blade mounting bolts at frequent intervals

for proper tightness.

15. Make sure all hydraulic fluid connections are tight and

all hydraulic hoses and lines are in good condition

before starting the machine.

2.4 OPERATION CONSIDERATIONS

1. Know the function of all controls and how to stop

quickly.

2. Reduce speed and exercise extreme caution on slopes

and in sharp turns to prevent tipping or loss of control.

Be especially cautious when changing directions on

slopes.

DO NOT operate on steep slopes.To check a slope,

attempt to drive up it (with cutter deck down). If

machine can drive up the slope without the wheels

slipping, reduce speed and use extreme caution.

ALWAYSFOLLOW OSHAAPPROVED OPERATION.

3. Do not stop or start suddenly. WHEN MOWING A

HILLSIDE, MOW UP AND DOWN THE FACE

OF SLOPES, NEVER ACROSS THE FACE.

4. When using any attachment, never direct the discharge

of material toward bystanders or allow anyone near

the machine while in operation.

5. DO NOT wear loose fitting clothing that could get

tangled in moving parts. Do not operate the machine

wearing shorts; always wear adequate protective

clothing including long pants. Wearing safety glasses,

safety shoes and a helmet is advisable and is required

by some local ordinances and insurance regulations.

6. Operator hearing protection is recommended,

particularly for continuous operation of the mower.

Wear suitable hearing protection. Prolonged exposure

to loud noise can cause hearing impairment or loss.

7. Keep the machine and attachments in good operating

condition. Keepall shields andsafety devices inplace.

If a shield, safety device or decal is defective or

damaged, repair or replace it before operating the

machine.

This machine is equipped with an interlock system

intended to protect the operator and others from

injury. This is accomplished by preventing the

engine from starting unless the operator is seated

in the seat, the deck drive is disengaged, and the

speed control is placed in the neutral position with

the parking brake applied.The system also shuts

off the engine if the operator leaves the seat with

the mower running and the speed control is not in

the neutral postion with the parking brake applied.

It will also shut off the engine if the hopper is raised

with the cutter deck drive engaged. Never operate

equipment with the interlock system disconnected

or malfunctioning.

8. Be sure interlock switches are functioning correctly.

9. Fuel is flammable; handle with care. Fill fuel tank

outdoors. Never fill indoors. Use a funnel or spout to

inhibit spillage. Clean up any spillage before starting

the engine.

10. DO NOT add fuel to a running or hot engine. An

explosioncould occur. Allowengine tocool forseveral

minutes before adding fuel.

11. Keep flammable objects (cigarettes, matches, etc.),

open flames and sparks away from the fuel tank and

fuel container.

Section 2

5. Before attempting to start the engine, with the

operator in the seat, disengage power to the cutter

deck, place the hopper in the stowed position,

steering control levers in the neutral position and

engage the parking brake.

6. If the mower discharge ever plugs, shut off the

engine, remove the ignition key, and wait for all

movement to stop before removing the obstruction.

Do not use your hand to dislodge the clogged

discharge chute. Use a stick or other device to

remove clogged material.

7. Be alert for holes, rocks, and roots in the terrain and

other hidden hazards. Keep away from any dropoff.

Beware of overhead obstructions such as low limbs,

etc. and underground obstacles such as sprinklers,

pipes, tree roots, etc. Cautiously enter a new area.

Be alert for hidden hazards.

8. Disengage power to cutter deck before backing up.

Do not mow in reverse unless absolutely necessary

and then only after observation of the entire area

behind the mower.

9. DO NOT turn sharply. Use care when backing up.

10. Disengage power to cutter deck before crossing

roads, walks or gravel drives. Watch for traffic when

crossing roads or operating near roadways.

11. Mowonly in daylightor goodartificial light.

12. Take all possible precautions when leaving the

machine unattended, such as disengaging the mower,

lowering the attachments, setting the parking brake,

stopping the engine, and removing the key.

13. Disengage power to the attachments when

transporting or when not in use.

14. The machine and attachments should be stopped and

inspected for damage after striking a foreign object,

and damage should be repaired before restarting and

operating the machine.

15. DO NOT touch the engine or the muffler while the

engine is running or immediately after stopping.

These areas may be hot enough to cause a burn.

16. DO NOT run engine inside a building or confined

area without proper ventilation. Exhaust fumes are

hazardous and could cause death.

2.5 MAINTENANCE CONSIDERATIONS

1. Never make adjustments to the machine with the

engine running unless specifically instructed to do so.

If the engine is running, keep hands, feet, and

clothing away from moving parts.

2. Remove the key from the ignition switch to prevent

accidental starting of the engine when servicing or

adjusting the machine.

3. Keep all nuts, bolts and screws tight to ensure the

machine is in safe working condition. Check blade

mounting bolts frequently to be sure they are tight.

4. Do not change the engine governor settings or

overspeed the engine. See the engine operator's

manual for information on engine settings.

5. To reduce fire hazard, keep the engine free of grass,

leaves, excessive grease and dirt.

6. Hydraulic fluid is under high pressure. Keep

body and hands away from pinholes or nozzles that

eject hydraulic fluid under high pressure. Use only

cardboard or paper to search for leaks. If you need

service on your hydraulic system, please see your

authorized Scag dealer.

7. Hydraulic fluid under high pressure may have

sufficient force to penetrate skin and cause serious

injury. If hydraulic fluid is injected into the skin, it

must be surgically removed within a few hours by a

doctor or gangrene may result.

Section 2

2.6 SAFETY AND INSTRUCTIONAL DECALS

WARNING

INSTALL BELT COVER BEFORE

OPERATING MACHINE

READ OPERATOR'S MANUAL 481039

Section 3

3.1 ENGINE

GeneralType .............................................................................. HeavyDutyIndustrial/Commercial Gasoline

Brands........................................................................................ Kohler & Kawasaki

Model......................................................................................... 25HPKohlerCommand CH25S &27HPKawasaki FD750D

Horsepower................................................................................ 25HPat3600RPM(SCR42-25CH,SCR48-25CH&SCR52-25CH)

................................................................................................... 27HPat3600RPM(SCR48-27KA&SCR52-27KA)

Type ........................................................................................... 4 CycleGasoline,TwinCylinder, Horizontal Shaft

Displacement ............................................................................. Kohler-725cc. &Kawasaki- 745cc

Cylinders.................................................................................... 2 with Cast Iron Sleeves

Governor.................................................................................... Mechanical Type with Variable Speed Control Set At 3600 RPM

Idle Speed .................................................................................. 1400 RPM

Fuel Pump Group ...................................................................... Mechanical Fuel Pump with In-Line Fuel Filter, Fixed Jet

Carburetor with Smart-Choke™ and Fuel Shutdown Solenoid

Fuel ............................................................................................ Non-Leaded Gasoline with a Minimum Octane Rating of 87

Oil Pump Group: ....................................................................... Positive Displacement Gerotor™ Oil Pump with Remote Oil Filter

Starter ........................................................................................ Electric Starting with Cell Starter

Belts:

Engine Belt ............................................................................. ScagPartNumber- 481976

Blower Drive Belt.................................................................... Scag Part Number -481977

Pump Drive Belt ...................................................................... ScagPart Number - 481978

3.2 ELECTRICAL

Battery ....................................................................................... 12 Volt

Charging System........................................................................ Alternator

Charging Output ........................................................................ 12Volt,15Amp

System Polarity.......................................................................... Negative Ground

Starter......................................................................................... 12Volt Electric Solenoid Shift Type

Interlock Switches...................................................................... Seat, Neutral Control, Mower Engagement (BBC), Hopper and

Parking Brake

Instrument Panel ........................................................................ Ammeter, Hourmeter, Key Switch,ThrottleLever, Manual Choke,

BBC Lever, Fuses, and WaterTemp Gauge (KAOnly)

Fuses ......................................................................................... Two(2)20Amp

3.3TRACTOR

Drive System .............................................................................. Hydraulic Drive with Two Variable Displacement Pumps and Two

Cast-iron High Torque Motors

Hydrostatic Pumps .................................................................... Two Hydro-Gear  BDP10LPumps with DumpValves for

movement without running the engine

Drive Wheel Motors .................................................................. Two Ross Model MB 15cu. inch Cast-iron High Torque Motors

Steering/Travel Control.............................................................. Twin Lever Fingertip Steering Control with Individual Control to

Each Wheel

Parking Brake ............................................................................ Lever Actuated Linkage to Brakes on Both Drive Wheel Axles

Wheels:

(2) Front Caster...................................................................... 11x4.0-5 Smooth Tires

(2) Drive ................................................................................. 23 x 9.5-12 Four-Ply PneumaticTubeless, Radius Edge

(1) Rear .................................................................................

Fuel Tank ................................................................................... Two, 3.75 gallon Polyethylene Tanks with Large Fuel Tank filler

neck and Fuel Gauge Fill Caps

Tire Pressure:

Front Caster .......................................................................... 25 PSI

Drive ..................................................................................... 12 PSI

Rear....................................................................................... 25 PSI

Seat ............................................................................................ Padded

SPECIFICATIONS

Otros manuales para SCR

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cortacésped de Scag Power Equipment

Scag Power Equipment

Scag Power Equipment STT Manual de usuario

Scag Power Equipment

Scag Power Equipment GC-4D Manual de usuario

Scag Power Equipment

Scag Power Equipment 70001, 79999 Manual de usuario

Scag Power Equipment

Scag Power Equipment STC Manual de usuario

Scag Power Equipment

Scag Power Equipment STWC Manual de usuario

Scag Power Equipment

Scag Power Equipment SSZ-42 Manual de usuario

Scag Power Equipment

Scag Power Equipment SWZV Manual de usuario

Scag Power Equipment

Scag Power Equipment SW Manual de usuario

Scag Power Equipment

Scag Power Equipment SWZ Manual de usuario

Scag Power Equipment

Scag Power Equipment Freedom Z SFZ-48H-24SR Manual de usuario

Scag Power Equipment

Scag Power Equipment SWZ36A-14FS Manual de usuario

Scag Power Equipment

Scag Power Equipment SW Manual de usuario

Scag Power Equipment

Scag Power Equipment Wildcat STWC48V-25CV Manual de usuario

Scag Power Equipment

Scag Power Equipment FREEDOM Z SFZ-48H-24KT Manual de usuario

Scag Power Equipment

Scag Power Equipment TIGER CAT II Manual de usuario

Scag Power Equipment

Scag Power Equipment STC Manual de usuario

Scag Power Equipment

Scag Power Equipment Patriot SPZ52H-22FX Manual de usuario

Scag Power Equipment

Scag Power Equipment Tiger Cub STC48V-26BS Manual de usuario

Scag Power Equipment

Scag Power Equipment TIGER CAT STC48V-19KAI Manual de usuario

Scag Power Equipment

Scag Power Equipment CHEERAH 48 Manual de usuario

Scag Power Equipment

Scag Power Equipment SW Manual de usuario

Scag Power Equipment

Scag Power Equipment WALK-BEHIND SWZ-19KAI Manual de usuario

Scag Power Equipment

Scag Power Equipment FREEDOM Z SFZ48-19KA Guía de configuración

Scag Power Equipment

Scag Power Equipment SZL36H-18FR Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
