MODEL SW

OPERATOR’S MANUALOPERATOR’S MANUAL

OPERATOR’S MANUAL

THIS MANUAL CONTAINS THE OPERATING

INSTRUCTIONS AND SAFETY INFORMA-

TION FOR YOUR SCAG MOWER. READING

THIS MANUAL CAN PROVIDE YOU WITH

ASSISTANCE IN MAINTENANCE AND AD-

JUSTMENT PROCEDURES TO KEEP YOUR

MOWER PERFORMING TO MAXIMUM EFFI-

CIENCY. THESPECIFICMODELSTHAT THIS

BOOK COVERS ARE CONTAINED ON THE

INSIDECOVER. BEFOREOPERATINGYOUR

MACHINE, PLEASE READ ALL THE INFOR-

MATION ENCLOSED.

PART NUMBER 03055

FAILURE TO FOLLOW SAFE OPERATING PRACTICES

MAY RESULT IN SERIOUS INJURY.

* Keep all shields in place, especially the grass discharge chute.

* Before performing any maintenance or service, stop the machine and

remove the spark plug wire and ignition key.

* If a mechanism becomes clogged, stop the engine before cleaning.

* Keep hands, feet and clothing away from power-driven parts.

* Read this manual completely as well as other manuals that came

with your mower.

* Keep others off the tractor (only one person at a time)

REMEMBER -YOUR MOWER IS ONLY AS SAFE AS THE OPERATOR!

Hazard control and accident prevention are dependent upon the awareness,

concern, prudence, and proper training of the personnel involved in the

operation, transport, maintenance, and storage of the equipment.

WARNING:

This manual covers the operating instructions

and illustrated parts list for:

SW32-13KA with a serial number of 3970001 to 3979999

SW36-13KA with a serial number of 3980001 to 3989999

SW36-13KH with a serial number of 3990001 to 3999999

SW48-14KA with a serial number of 4000001 to 4009999

SW48-15KH with a serial number of 4010001 to 4019999

SW48-17KA with a serial number of 4020001 to 4029999

SW-17KA with a serial number of 4690001 to 4699999

SWM-52/E with a serial number of 4110001 to 4119999

SWM-61/E with a serial number of 4120001 to 4129999

SWM-72/E with a serial number of 4130001 to 4139999

Always use the entire serial number listed on the serial number

tag when referring to this product.

TABLE OF CONTENTS

SUBJECT PAGE

Introduction.................................................................................................. 1

General Safety Instructions.......................................................................... 1

Signal Words ............................................................................................... 1

Before Operating ......................................................................................... 2

While Operating........................................................................................... 2

Maintenance and Storage ........................................................................... 3

Initial Run-In Procedures ............................................................................. 4

Mower Operation ......................................................................................... 4

Cutter Deck Belt Adjustments...................................................................... 5

Transmission Drive Belt............................................................................... 5

Drive Control Adjustments........................................................................... 6

Cutter Deck Adjustments ............................................................................. 6

Blade Height Adjustments ........................................................................... 7

Cutter Blades............................................................................................... 7

Lubrication and Maintenance Chart ............................................................ 8

Troubleshooting Cutting Conditions ............................................................ 9 - 11

Technical Specifications.............................................................................. 12 -13

WE SUPPORT OPE

TECHNICIAN

CERTIFICATION

Equipment & Engine

Training Council

MEMBER

TABLE OF CONTENTS

(CONTINUED)

SUBJECT PAGE

Illustrated Parts List

SWM-32",36"CutterDecks....................................................................... 14-15

SWM-48",52",61",72"Cutter Decks...................................................... 16-17

EngineDeck................................................................................................ 18-19

HandleAssembly........................................................................................ 20-21

InstrumentPanel......................................................................................... 22

PeerlessTransmission............................................................................... 23

EngineDeckWire Harness-14Kawasaki............................................ 24

WireHarnessW/Relay............................................................................... 24

HandleWireHarness-ManualStart......................................................... 25

Engine DeckWire Harness-Kohler (Single Cyl.) & 17 KA................... 26

ReplacementDecals.................................................................................. 27-29

WarrantyStatement...............................................................InsideBackCover

SIGNAL WORDS

Thissymbolmeans“Attention!BecomeAlert!Your

SafetyisInvolved!". Thesymbolisusedwiththe

followingsignalwordstoattractyourattentiontosafety

messagesfoundonthedecalsandthroughoutthis

manual. Themessagethatfollowsthesymbolcontains

importantinformationaboutsafety. Toavoidinjuryand

possibledeath,carefullyreadthemessage! Besureto

fullyunderstandthecausesofpossibleinjuryordeath.

SignalWord:

Itisadistinctivewordonsafetydecalsandthroughout

thismanualthatalertstheviewertotheexistenceand

relativedegreeofthehazard.

Thesignalword“DANGER”denotesthatanextremely

hazardoussituationexistsonornearthemachinethat

couldresultinhighprobabilityofdeathorirrepairable

injuryifproperprecautionsarenottaken.

Thesignalword“WARNING”denotesthatahazard

existsonornearthemachinethatcanresultininjuryor

deathifproperprecautionsarenottaken.

Thesignalword“CAUTION”isareminderofsafety

practicesonornearthemachinethatcouldresultin

personalinjuryifproperprecautionsarenottaken.

INTRODUCTION

Yourmowerwasbuilttothehigheststandardsinthe

industry. However,theprolongedlifeandmaximum

efficiencyofyourmowerdependsonyoufollowingthe

operating,maintenanceandadjustmentinstructionsin

thismanual.

Weencourageyoutocontactyourdealerforrepairs.

AllScagdealersareinformedofthelatestmethodsto

servicethisequipmentandprovidepromptandefficient

serviceinthefieldorattheirserviceshop. Theycarrya

fulllineofScagserviceparts.

AreplacementOperator'sManualisavailablefromyour

ScagServicingDealerorbycontactingScagPower

Equipment,ServiceDepartmentatP.O.Box152,

Mayville,WI 53050. Pleaseindicatethecomplete

modelandserialnumberofyourScagproduct.

USEOFOTHERTHANORIGINALSCAG

REPLACEMENTPARTSWILLVOIDTHE

WARRANTY.

The “Right” and “Left”, “Front” and “Rear” of the

machinearereferencedfromtheoperator’sperspec-

tive when in the normal operating position and facing

theforwardtraveldirection.

GENERAL SAFETY INSTRUCTIONS

READTHISOPERATOR'SMANUALand

instructionsfurnishedwithattachments.

Performonlythosemaintenanceprocedures

described in this manual. If major repairs are ever

needed or assistance is desired, contact an Authorized

Scag Dealer. To ensure optimum performance and

safety, always purchase genuine SCAG replacement

partsandaccessories.

Your safety and the safety of others depends

significantlyupon your knowledge and understanding

ofall correct operating practices and proceduresof

thismachine.

WARNING:

CAUTION:

BEFORE OPERATING

1. Knowthecontrolsandhowtostopquickly.

2. Donotallowchildrentooperatethemachine. Do

notallowadultstooperatethemachinewithout

properinstruction.

3. Removealldebrisorotherobjectsthatmightbe

pickedupandthrownbythecutterblades. Keepall

bystandersawayfromthemowingarea.

4. Keepallshields,safetydevices,anddecalsinplace.

Ifashield,safetydeviceordecalisdefectiveor

damaged,repairorreplaceitbeforeoperating.

Also,checkallnuts,boltsandscrewsforproper

tightness,toassurethemachineisinsafeoperating

condition.

5. Donotoperatethemachinewhilewearingsandals,

tennisshoes,sneakersorshorts. Also,donotwear

loosefittingclothingwhichcouldgetcaughtin

movingparts. Alwayswearlongpantsandsubstan-

tialshoes. Wearingsafetyglassesandsafetyshoes

isadvisableandrequiredbysomelocalordinances

andinsuranceregulations.

6. Fillthefueltankwithclean,freshgasoline,witha

minimumoctaneratingof87. Avoidspillinggaso-

line. Gasolineishighlyflammable,handleitcarefully.

A. Useanapprovedgasolinecontainer.

B. Donotfillthetankwhiletheengineishotor

running.

C. Donotsmokewhilehandlinggasoline.

D. Fillthefueltankoutdoorsanduptoapproxi-

mately1"(25mm)belowthebottomofthefiller

neck.

E. Wipeupanyspilledgasoline.

7. Beforeattemptingtostarttheengine,shiftthe

transmissionintoneutral,movethebladeengage-

mentswitchtotheOFFposition,andmovethe

neutrallatchestoneutral.

WHILE OPERATING

1. Starttheenginewhentheneutrallatchesareinthe

neutrallockposition,thecutterbladesaredisen-

gaged,andthetransmissionisinneutral.

2. Donotruntheengineinaconfinedareawithout

adequateventilation. Exhaustfumesarehazardous

andcouldpossiblybedeadly.

3. Usingthemachinedemandsattention. To

preventlossofcontrol:

A. Mowonlyindaylightorwhenthereisgood

artificiallight.

B. Watchforholesorotherhiddenhazards.

C. Donotdriveclosetoadrop-off,ditch,creek

bank,orotherhazard.

D. Reducespeedwhenmakingsharpturnsand

whenturningonhillsides.

E. Alwaysbesureofyourfooting. Keepafirm

holdonthehandlesandwalk---neverrun.

F. Donotoperatewhereconditionsareslippery.

4. Thedischargechutemustalwaysbeinstalledandin

thedownpositiononthesidedischargecutterdeck

exceptwhentheScagoptionalgrasscatcheror

mulchingplateareproperlyinstalled. Ifthedis-

chargeareashouldplug,shuttheengineoffandwait

forallmovementtostopbeforeremovingthe

obstruction.

5. Disengagethebladesandwaitforthemtostop

beforecrossinggraveldrives,walksorroads.

6. Shuttheengineoffandwaituntilthebladescometo

acompletestopbeforeremovingthegrasscatcher

container.

7. Neverraisethecutterdeckwhilethebladesare

rotating.

8. Alwaysparkthemowerand/orstarttheengineona

levelsurface.

13. Do not pass or stand on the grass discharge side

of any mower with the engine running. Stop

operation when another person approaches.

14. Use only Scag approved riding attachments.

Scag Approved Riding Attachments:

RS-2

RS-ZT

Usingunapprovedattachments,(especially"stand-

up" riding attachments) may be hazardous.

MAINTENANCE AND STORAGE

1. Disconnect the spark plug wire from the spark

plug to prevent accidental starting of the engine

when servicing, adjusting or storing the machine.

2. If the mower must be tipped to perform mainte-

nance or adjustment, remove the battery, drain

the gasoline from the fuel tank and the oil from

the crankcase.

3. To reduce potential fire hazard, keep the engine

free of excessive grease, grass, leaves and accu-

mulations of dirt.

4. Be sure the machine is in safe operating condition

by keeping nuts, bolts, and screws tight. Check

the blade mounting bolts and nuts frequently to

be sure they are tightened.

5. If the engine must be running to perform a

maintenance adjustment, keep hands, feet, cloth-

ing and other parts of the body away from the

cutter deck blades and other moving parts.

6. Do not overspeed the engine by changing gover-

nor settings. To be sure of safety and accuracy,

have an authorized dealer check maximum engine

speed with a tachometer.

7. The engine must be shut off before checking the

oil or adding oil to the crankcase.

8. Allow the engine to cool before storing the

mower in any enclosure such as a garage or

storage shed. Make sure the fuel tank is empty if

the machine is to be stored in excess of 30 days.

Do not store the mower near any open flame or

where gasoline fumes may be ignited by a spark.

WARNING

FALLING HAZARD

USE ONLY SCAG APPROVED

RIDING ATTACHMENTS

SEE OPERATOR'S MANUAL

481109

9. Ifthecuttingbladesshouldstrikeasolidobjector

theequipmentshouldstarttovibrateabnormally,

stoptheengine,disconnectthesparkplugwire,and

checkimmediatelyforthecause. Vibrationis

generallyawarningoftrouble.Checkthemachine

fordamagedordefectiveparts. Repairanydamage

beforestartingtheengineoroperatingthecutter

deck. Besurethebladesareingoodconditionand

thebladeboltsaretight.

10. Reducespeedandexerciseextremecautionon

slopesandinsharpturnstopreventtippingorloss

ofcontrol. Beespeciallycautiouswhenchanging

directionsonslopes.

DO NOT operate on steep slopes. To check a

slope, attempt to back up it (with the cutter deck

down). If the machine can back up the slope

without the wheels slipping, reduce speed and use

extremecaution. ALWAYSFOLLOWOSHA

APPROVEDOPERATION.

11. Donottouchtheengineormufflerwhiletheengine

isrunningorsoonafteritisstopped.Theseareas

couldbehotenoughtocauseaburn.

12. Beforeleavingtheoperator’spositionorleavingthe

mowerunattended,shiftthetransmissioninto

neutral,placetheneutrallatchesintheneutrallock

position,andmovethebladeengagementswitchto

OFF. ShuttheengineOFFandremovethekey.

WARNING:

9. Always store gasoline in a safety-approved, red

container.

10. Be careful when servicing the battery as it con-

tains acid, which is corrosive and could cause

burns to skin and clothing.

11. Batteries release explosive gases when being

charged or discharged. Keep batteries away

from any source of sparks and/or flame.

INITIAL RUN-IN PROCEDURES

(FIRST DAY OF USE OR APPROXI-

MATELY 10 HOURS)

1. Check the belts for proper tension at 2, 4 and 8

hours. Adjust as needed.

2. Check the steering control rods for neutral

adjustment. (See Adjustments, page 6)

3. Checkthetiresforproperpressure.

CasterWheels 25psi.

DriveWheels 15psi.

4. Checkforloosehardware. Tightenasneeded.

5. Checkthesafetyswitchesforproperadjustment:

* Theenginewillcrank,butnotstartifthe

machineisnotinneutral.

* Onelectricstartmachines,theenginewillnot

crankifthePTOswitchison.

* Theengineshouldcrankandstartifthe

machineisinneutralandthePTOengagement

switchisOFF.

6. Applylubricantto allthegrease fittings.

Lubricant was applied at the factory. This is

just a precautionary check to make sure that

allthefittingshavebeenlubricated.

1. Read and understand the safety instructions

before attempting to operate this machine.

2. Before starting the engine:

* Check the oil level in the engine.

* Fill the fuel tank with clean, fresh, lead-free

gasoline.

* Open the fuel valve on the bottom of the

fuel tank.

MOWER OPERATION

-NOTE-

Use gasoline with an octane rating no less than

87.

* The transmission must be in NEUTRAL.

* The blade clutch switch must be in the OFF

position.

* The operator's presence levers must be

released.

* The neutral latches must be in the neutral

lock position.

* The key switch must be on.

3. Start the engine:

* Choke as required. If the engine is cold, pull

the choke knob out. When the engine starts,

slowly push the choke in. If the engine stalls,

repeat the above operation. When the engine

is warm, choking may not be necessary.

4. Engagethecutterbladesbypullingthebladeclutch

switchintotheONposition. Pushtheswitchtothe

OFFpositiontodisengagethecutterblades.

390S0138

PULL UP TO ENGAGE

PUSH DOWN TO DISENGAGE

-NOTE-

When PTO is engaged or (possibly) disengaged,

a squealing sound from the underside of the

machine is normal. It is caused by the electric

clutch plates meshing as the cutter blades come

up to speed. For best equipment life, engage the

clutch with the engine at 1/2 throttle, not under

full load.

To avoid serious bodily injury and damage to the

transmission, the machine must be at a full stop

before shifting between gears or shifting between

forward and reverse.

5. Shift the transmission into gear for the desired

mowing speed.

-NOTE-

Top speed is suggested only for transport!

6. While squeezing the steering brake levers with

both hands, release both neutral latches.

7. When the steering brake levers are released, the

machinewill travelstraight. Tomakearightturn,

squeezetheRHlever. Toturnleft,squeezetheLH

lever.

8. TO STOP, squeeze both levers, lock the neutral

latches, and shift the transmission into neutral.

ire pressure can be adjusted forire pressure can be adjusted for

ire pressure can be adjusted for

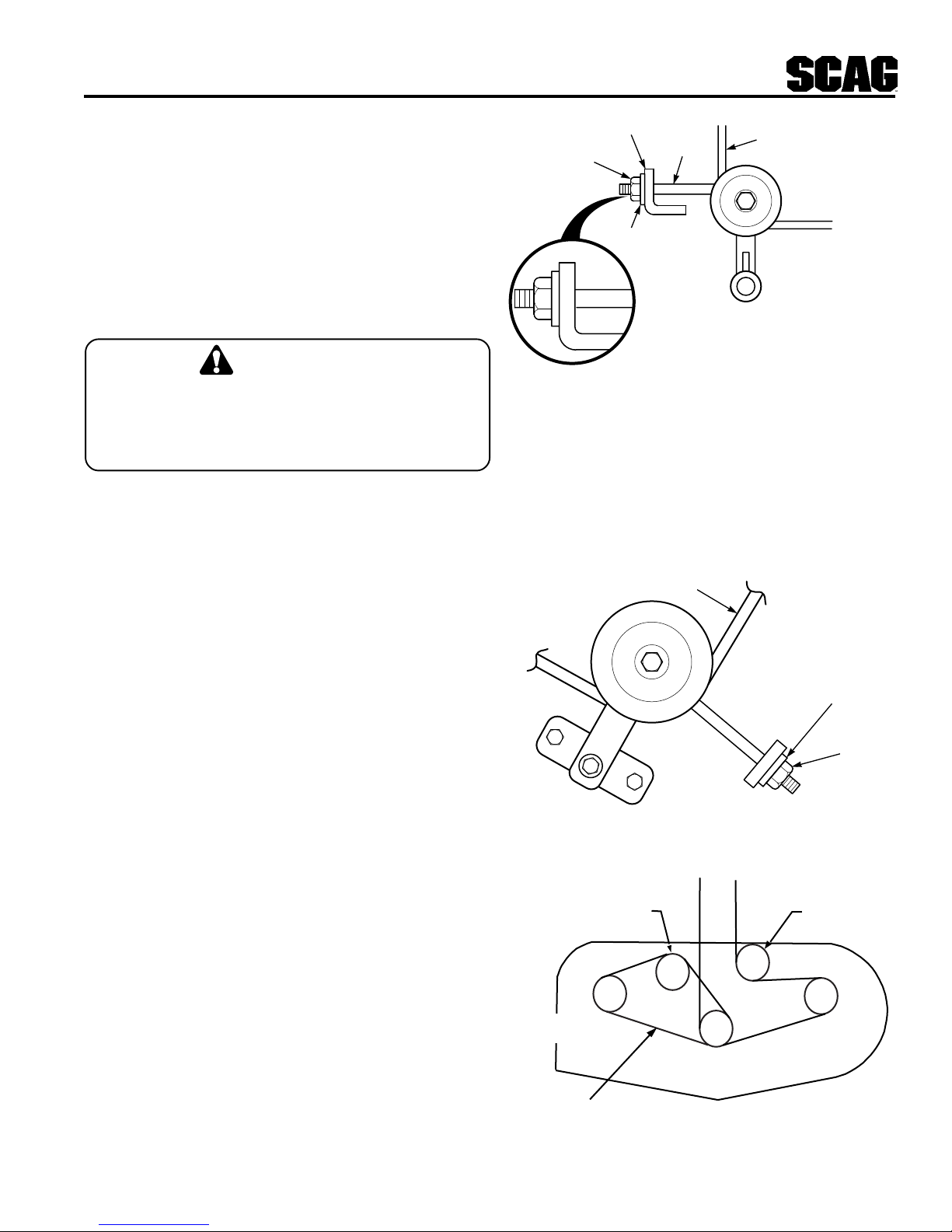

CUTTER DECK BELT ADJUSTMENTS

1. Removethebeltcover.

2. Adjustthecutterdeckdrivebeltusingabelttension

gauge. Adjustthebeltsothatthebeltmoves1/2"

with10poundsofpressure. Adjustthetensionby

tighteningorlooseningtheJ-boltnut. (Seefigure1)

-NOTE-

Due to initial belt stretch and to prevent the belt

from slipping, check this adjustment after the

first 2 hours, 4 hours and 8 hours of operation.

SC400G

BELT

WASHER

"J" BOLT

NUT

CUTTER DECK DRIVE BELT TENSION

ALIGNMENT IDLER - L.H.

END OF L-SHAPED

BRACKET

Figure 1

SC401G

WASHER

NUT

BELT

Figure 3. Cutter Deck Belts

BELT TENSION

ADJUSTMENT IDLER CUTTER DECK

ADJUSTMENT

IDLER

CHECK BLADE DRIVE

BELT TENSION HERE

SC402G

DISCHARGE

AREA

WARNING:

3. AdjusttheRHbladedrivebeltusingabelttension

gauge. Adjustthebeltsothatthebeltmoves1/2"

with10poundsofpressure. Adjustthetensionby

tighteningorlooseningtheJ-boltnut.(Seefigure2

& 3)

Figure 2. RH Blade Belt Adjustment

CUTTER DECK ADJUSTMENTS

Duetothemanycuttingconditionsthatexist,itisdifficult

tosuggestacutterdecksettingthatwillworkforevery

lawn.Therearetwoadjustmentsthatcanbemadeon

thesedecks,pitchandheight.

PITCHistheangleoftheblades(comparingfrontto

rear). A1/4"downwardpitch(frontofdeckdown)is

recommendedforbestcuttingperformance.

HEIGHTisthenominaldistancethebladeisoffofthe

ground. Thismeasurementismadewiththeblades

pointedsidetosideanddistanceismeasuredbetween

cuttingtipandground. (AlsoseeBladeHeightAdjust-

ment,nextpage)

Changestothecuttingheightcanbeachievedbyreposi-

tioningthecutterdeck(Thisadjustmentwillalsoeffect

thepitchofthedeck). Therearethreeavailableposi-

tions(seefigure5).

Figure 5. Cutting Height Adjustment

DRIVE CONTROL ADJUSTMENTS

1. Adjustthesteeringcontrolrodssothatthereis

approximately3/4"clearancefromthebottomof

therodtothebottomoftheneutrallatchslotwhen

inthedriveposition. (Seefigure4)

Figure 4. Steering Control Rod Adjustment

2. Adjustthesteeringbrakerodssothatthebrakes

donotapplyuntilthesteeringleversarepulledtight

tothehandles. Whenthesteeringleversare

lockedintheneutralpositionthemachineshould

movefreely.

SC404GB

NEUTRAL LOCK

POSITION

DRIVE POSITION

3/4"

STEERING

BRAKE LEVER

NEUTRAL

LATCH

SC405G

LOW CUT (1 3/4" to 3")

HIGH CUT

(3 1/4" to 4 1/2")

MID RANGE

(2 1/2" to 3 3/4")

CUTTER DECK HEIGHT ADJUSTMENT

TRANSMISSION DRIVE BELT

Adjustthetransmissiondrivebeltsothatthereisabouta

3/16"deflectionwith10lbs.ofpressure. Adjustby

looseningidlerpulleymountingboltandslidingtheidler

leftorrighttochangebelttension.

Otros manuales para SW

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cortacésped de Scag Power Equipment

Scag Power Equipment

Scag Power Equipment FREEDOM Z SFZ36-17KA Manual de usuario

Scag Power Equipment

Scag Power Equipment STC Manual de usuario

Scag Power Equipment

Scag Power Equipment SW32-13BV Manual de usuario

Scag Power Equipment

Scag Power Equipment STHM 59999 Manual de usuario

Scag Power Equipment

Scag Power Equipment STCII-48V-26MX Manual de usuario

Scag Power Equipment

Scag Power Equipment SFW36-16BV Manual de usuario

Scag Power Equipment

Scag Power Equipment SW32-14BV Manual de usuario

Scag Power Equipment

Scag Power Equipment SSZ Manual de usuario

Scag Power Equipment

Scag Power Equipment SW 36 - 13K Manual de usuario

Scag Power Equipment

Scag Power Equipment SW36-14KA Manual de usuario

Scag Power Equipment

Scag Power Equipment Wildcat STWC48V-25CV Manual de usuario

Scag Power Equipment

Scag Power Equipment SWZ Manual de usuario

Scag Power Equipment

Scag Power Equipment STT52A-27CH Manual de usuario

Scag Power Equipment

Scag Power Equipment FREEDOM Z SFZ-48H-24KT Manual de usuario

Scag Power Equipment

Scag Power Equipment Turf Tiger Propane STT52V-25CH-LP Manual de usuario

Scag Power Equipment

Scag Power Equipment MAG Manual de usuario

Scag Power Equipment

Scag Power Equipment SMTZ - 81 Manual de usuario

Scag Power Equipment

Scag Power Equipment STC Manual de usuario

Scag Power Equipment

Scag Power Equipment SW32-15KAI Manual de usuario

Scag Power Equipment

Scag Power Equipment SW32-13KA Manual de usuario

Scag Power Equipment

Scag Power Equipment SWZU Manual de usuario

Scag Power Equipment

Scag Power Equipment SW32-14FS Manual de usuario

Scag Power Equipment

Scag Power Equipment STT Manual de usuario

Scag Power Equipment

Scag Power Equipment SWZ Series Manual de usuario

Manuales populares de Cortacésped de otras marcas

RHINO

RHINO 1958 Manual de usuario

Wolf Garten

Wolf Garten Compact plus 40 B Manual de usuario

Cub Cadet

Cub Cadet LTX 1045 Manual de usuario

Craftsman

Craftsman 917.378461 Manual de usuario

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Manual de usuario

Challenge

Challenge CH18V2 Instrucciones de operación

TALEN TOOLS

TALEN TOOLS AVR HGM30 Manual de usuario

DEWEZE

DEWEZE ATM-725 Manual de operación

Weed Eater

Weed Eater 180083 Manual de usuario

Husqvarna

Husqvarna Poulan Pro PP185A42 Manual de usuario

Better Outdoor Products

Better Outdoor Products Quick Series Manual de usuario

Cub Cadet

Cub Cadet 23HP Z-Force 60 Manual de funcionamiento

MTD

MTD 795, 792, 791, 790 Manual de usuario

Toro

Toro Groundsmaster 3505-D Manual de usuario

Dennis

Dennis FT 610 Manual de usuario

AIRFORCE

AIRFORCE F-15 Gen 3 Manual de usuario

MTD

MTD 126-220-000 Manual de usuario

Toro

Toro 74806 Manual de usuario
