SCA PLU 637450 Manual de usuario
1400W 1500PSI HIGH
PRESSURE WASHER
INSTRUCTIONMANUAL
PLU 637450
2
CONTENTS
Safety Information................................................................................................3
In The Box............................................................................................................6
Accessories..........................................................................................................8
Assembly.............................................................................................................. 8
Material & Paint Selection............................................................... ...................11
Operating Instruction..........................................................................................12
Maintenace.........................................................................................................15
Troubleshooting..................................................................................................16
Technical Data....................................................................................................17
Warranty..............................................................................................................19
3
SAFETY INFORMATION
Important - Please read these instructions fully before starting assembly.
WARNING SYMBOLS
Read the manual
Warning
Warning: Do not direct the
jet at persons, animals and
electrical equipment
Machine not suitable for
connection to the potable
water mains
Double insulation
RCM marking
ABN: Australian Business Number. By this number,
business information such as entity type, status,
business location etc. can be found at website http://
abr.business.gov.au.
ABN of Positec Australia Pty Limited is 14 101 682 357
4
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions.
Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference.
- This machine is not intended for use by persons (including children) with reduced
physical,sensory or mental capabilities, or lack of experience and knowledge.
- Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
ADDITIONAL POWER TOOL SAFETY WARNINGS
WARNING: Do not use the appliance without reading the instruction sheet.
- Safety boots, safety gloves, safety helmets with visors, hearing protection etc. shall be
worn while operating the machine.
- When opening the trigger gun, there is a danger of the kickback force and the sudden
torque on the spray assembly. Please hold the nozzles tightly.
- WARNING This machine has been designed for use with the cleaning agent supplied or
recommended by the manufacturer. The use of other cleaning agents or chemicals may
adversely affect the safety of the machine.
- WARNING During use of high pressure cleaners, aerosols may be formed. Inhalation of
aerosols can be hazardous to health.
- WARNING High pressure jets can be dangerous if subject to misuse. The jet must not
be directed at persons, live electrical equipment or the machine itself.
- WARNING Do not use the machine within range of persons unless they wear protective
clothing.
- WARNING Do not direct the jet against yourself or others in order to clean clothes or
foot-wear.
- Disconnect from the electrical power supply before carrying out user maintenance
- WARNING High pressure cleaners shall not be used by children or untrained personnel.
- WARNING Risk of explosion – Do not spray ammable liquids.
- WARNING To ensure machine safety, use only original spare parts from the
manufacturer or approved by the manufacturer.
- WARNING: High pressure hoses, ttings and couplings are important for the safety
of the appliance. Use only hoses, ttings and couplings recommended by the
manufacturer
- WARNING Water that has own through backow preventers is considered to be non-
potable.
- WARNING The machine shall be disconnected from its power source by removing the
plug from the socket-outlet during leaning or maintenance and when replacing parts or
5
converting the machine to another function.
- WARNING Do not use machine if a supply cord or important parts of the machine are
damaged, e.g. safety devices, high pressure hoses, trigger gun.
- WARNING If an extension cord is used, the plug and socket must be of watertight
construction.
- WARNING Inadequate extension cords can be dangerous. If an extension cord is used,
it shall be suitable for outdoor use, and the connection has to be kept dry and off the
ground. It is recommended that this is accomplished by means of a cord reel which
keeps the socket at least 60 mm above the ground.
- The electric supply connection shall be made by a qualied electrician and comply
with AS/NZS 3000. It is recommended that the electric supply to this machine should
include either a residual current device that will interrupt the supply if the leakage
current to earth exceeds 30 mA for 30 ms or a device that will prove the earth circuit.
6

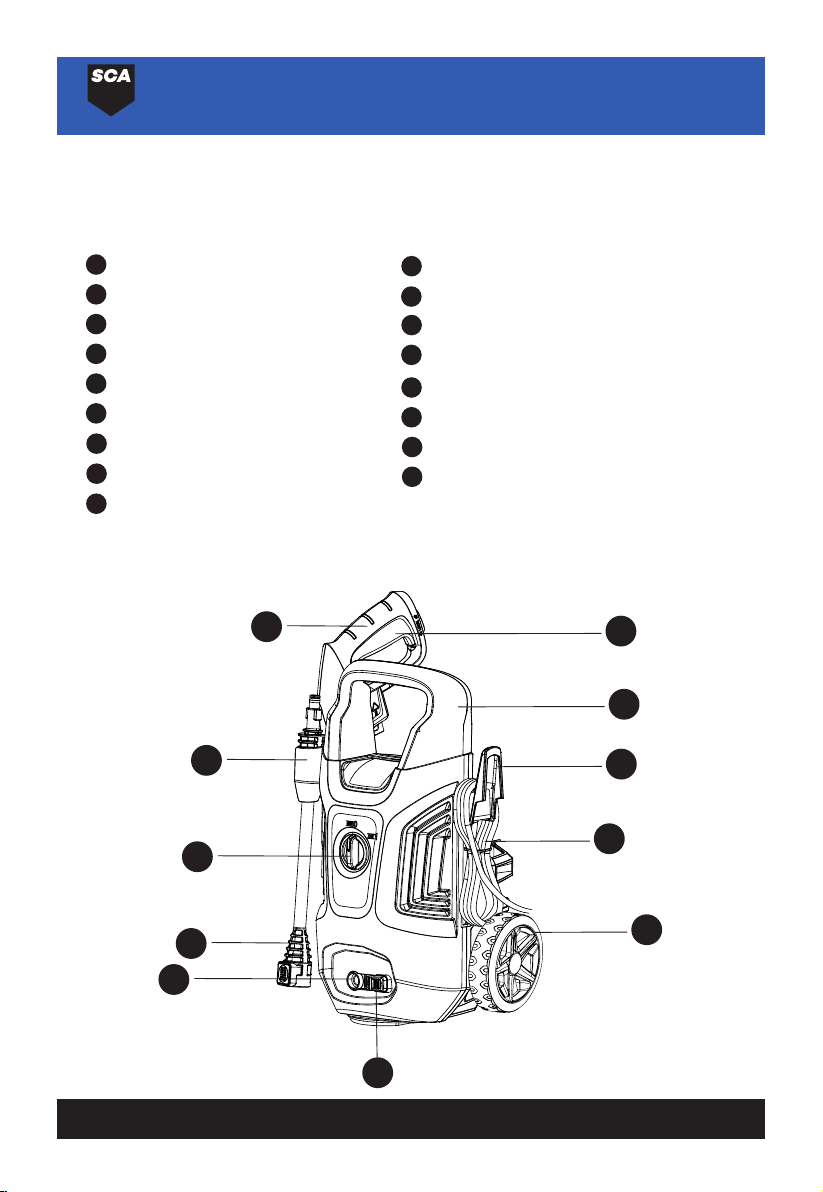

IN THE BOX
1
Spray gun
Spray gun holder
On/Off switch
Connection lance
Outlet
Outlet lock knob
Wheels*2
Electric cable
Holder for electric cable
1
5
2
6
3
4
8
7
11
9
10 Handle
Trigger switch
Hose holder
Inlet water connector
High pressure hose
Nozzle cleaning tool (O ring)
Lance holder fence
Lock-off switch ( See I1)
13
14
16
15
17
12
2
3
4
5
7
8
9
10
11
6
7
16
14
15
16
12
13
8
NOTE: Before using the tool, read the instruction book carefully.
ASSEMBLY

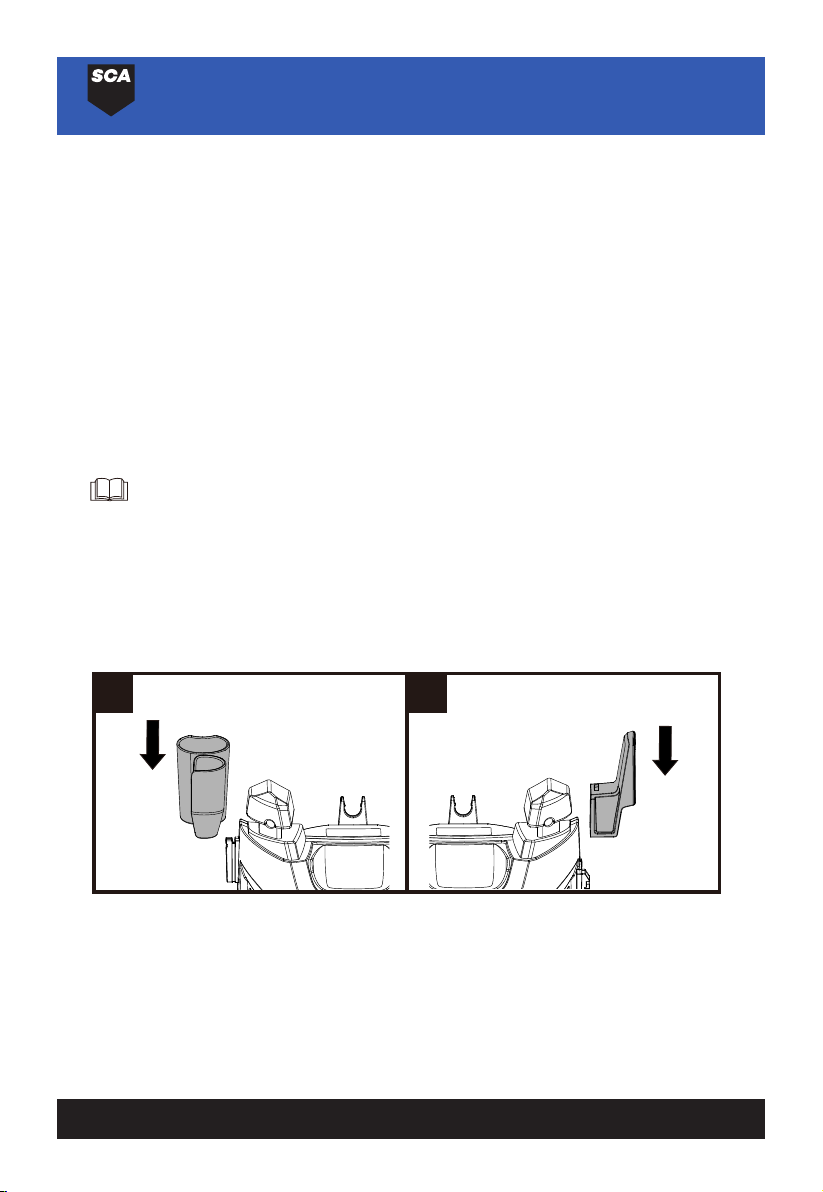

1. Assembling spray gun holder
Press the spray gun holder (2) on to the machine. (Fig. A)
2. Mounting of holder for electric cable
Press the holder for electric cable (9) on to the machine. (Fig. B)
ASSEMBLY
ACCESSORIES
Spray gun 1
Normal nozzle 1
Pressure hose(3M) 1
Soap bottle 1
Spray gun holder 1
Electric cable holder 1
Inlet water connector 1
Connection lance 1
A B
9

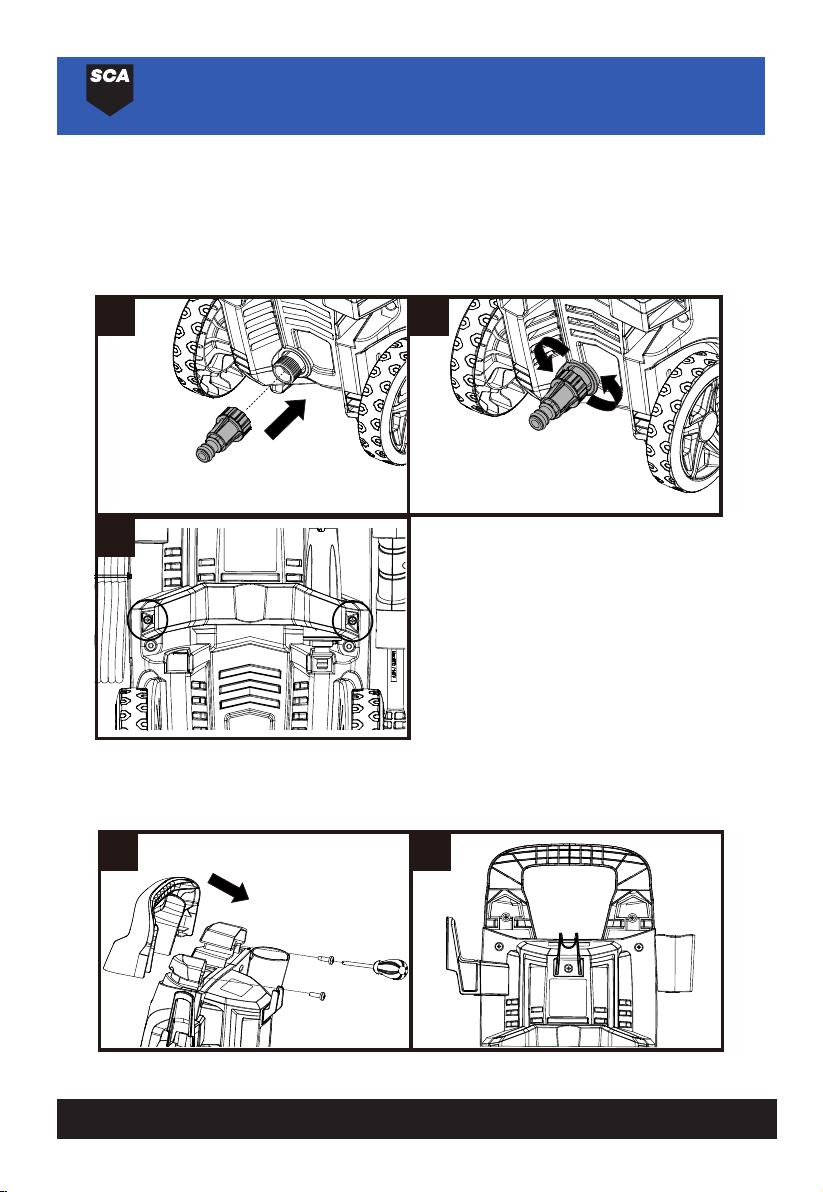

3. Mounting of inlet water connector
Attach inlet water connector (13) to the machine’s inlet. (Fig. C, D)
4. Mounting of adjustable spray nozzle and lance holder
Place the adjustable spray nozzle and lance holder on to the machine, and fix the screws.
(Fig. E)
5. Mounting of handle
Press the handle (10) on to the machine, and fix the screws. (Fig. F1, F2)
C D
E
F1 F2
10
6. Assembling the high pressure hose
1) Make sure that on/off switch (3) is in off position. (Fig. G1)
2) Insert the high-pressure hose (14) to spray gun (1). (Fig. G2)
3) Insert the lance into spray gun (1), and twist 1/4 turn. Then insert the adjustable spray nozzle
into the lance, and twist 1/4 turn until rectangular tab appears. (Fig. G3, G4)
4) Connect the high-pressure hose (14) to the high-pressure outlet (5). (Fig. G5)
NOTE: When remove the high-pressure hose from the spray gun (1), firstly press the button,
then take the hose out of the spray gun (1).
G1 G2
G3 G4
G5
