Keypad

INT-TSG

Brief User Manual

Firmware version 1.00

SATEL sp. z o.o. • ul. Schuberta 79 • 80-172 Gdańsk • POLAND

tel. 58 320 94 00 • [email protected]

www.satel.eu

WARNINGS

Please read this manual carefully before use.

Changes, modifications or repairs not authorized by the manufacturer shall void your rights

under the warranty.

The SATEL's goal is to continually upgrade the quality of its products, which may result in

alterations of their technical specifications and firmware. The current information on

the introduced modifications is available on our website.

Please visit us:

http://www.satel.eu

The declaration of conformity may be consulted at www.satel.eu/ce

The following symbol may be used in this manual:

- note.

We are pleased that you have chosen a product offered by us. We wish you satisfaction with

your choice and would like to assure you that we are always ready to provide professional

assistance and information on our products.

SATEL Ltd. is a manufacturer of a wide variety of dedicated devices for use in alarm

systems. Additional information can be found on our website www.satel.eu or at points of

sale offering our products.

1. Keypad description

1.1 LED indicators

LED Color Description of indications

yellow blinking – trouble or trouble memory (the LED goes off when the

partitions operated by the keypad are armed)

green ON – all partitions operated by the keypad are armed

blinking – some partitions operated by the keypad are armed or exit

delay countdown is running

green blinking – service mode is entered

red ON or blinking – alarm or alarm memory

Information about the armed state can be extinguished after a time period defined by

the installer.

If the installer has enabled the G

RADE

2 (INTEGRA) / G

RADE

3 (INTEGRA Plus)

option:

the LED will indicate alarms only after user authorization (entering the code);

blinking of the LED means that there is a trouble in the system, some zones are

bypassed, or that there was an alarm.

2 INT-TSG SATEL

1.2 Touch screen

The screen enables communication between the user and the alarm system. It displays

information about the system status, while allowing you to operate and program the alarm

system, as well as control the home automation equipment. Intuitive icon-based menu makes

the everyday use easier. Touching an icon will display the next screen or start the specified

function. The icon will bring you back to the previous screen. Touching the icon will

display the main screen.

The display backlight mode is programmed by the installer.

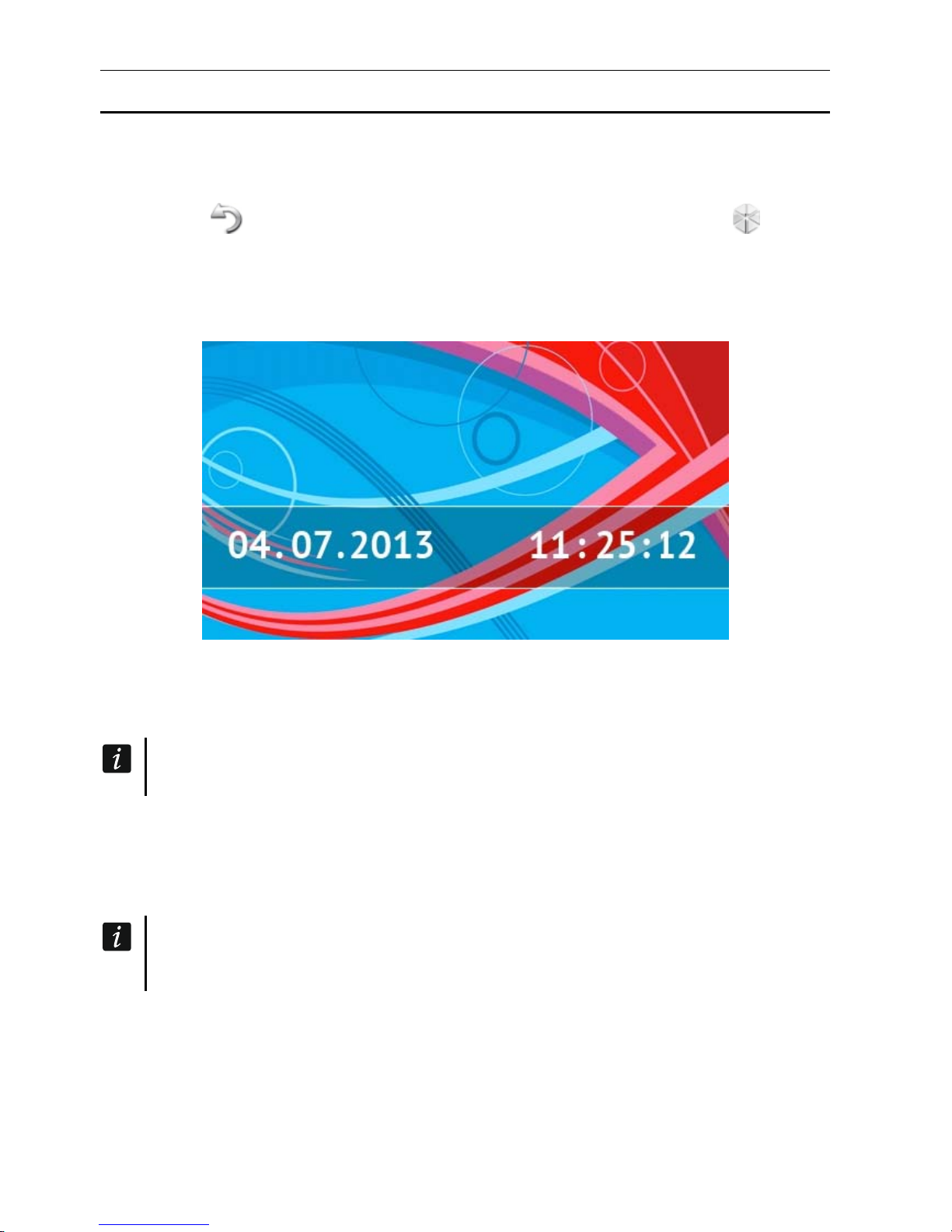

1.2.1 Status screen

The status screen is displayed when the keypad is idle. It will be displayed automatically after

60 seconds have elapsed since the last operation was performed on the screen, unless the

terminal is running (see p. 12). When the terminal is displayed, the status screen may appear

later or even not appear at all (e.g. when the service menu is open).

If the user is logged in, he/she will be automatically logged out a few seconds after the

status screen is displayed.

Information presented on the status screen

The keypad with factory settings presents the date and time on the status screen. The

installer can customize the information displayed to suit the user needs. Information on the

state of selected partitions, zones or outputs, temperature taken by selected temperature

detectors, date and time, as well as any text, can be presented on the status screen.

Icons illustrating the state of partitions are described in section “Partition status” (p. 8).

Icons illustrating the state of zones are described in section “Zone status” (p. 9).

SATEL INT-TSG 3

Icons illustrating the state of outputs are shown in the table below.

Icon Color Output status

grey deactivated

red activated

Additional messages, connected with occurrence of specific events (e.g. arming or disarming,

auto-arming delay countdown, entry / exit delay countdown, alarm, etc.), may also appear on

the status screen.

Functions available from the status screen

Touching the status screen will display the main screen.

The keypad can be configured by the installer so as to display the macro commands

assigned to a corresponding group on touching the corner of status screen. The illustration

below shows the screen parts, the touching of which can display macro commands (the digit

corresponds to the number of macro command group).

Touching any part of the status screen for 3 seconds may trigger the silent panic

alarm. Whether or not this function will be available is to be defined by the installer.

Slide show

Slide show can be displayed as a background of the status screen. The images to be

displayed should be stored on a microSD memory card, which will be inserted in the keypad

slot by the installer.

4 INT-TSG SATEL

1.2.2 Main screen

Presented on the main screen are:

date and time in the format defined by the installer (if some specific events occur, other

messages can be displayed, instead of the date and time, e.g. entry or exit delay

countdown, alarm messages, etc.);

name of the currently logged user;

icons enabling operation of the keypad and alarm system.

Icon Function

Informs you that no user is logged in.

User login.

Informs you that a user is logged in (name of the currently logged user is

displayed below).

User logout.

Displays the “Arming” screen (see pages 5and 13).

Enables disarming / alarm clearing (see pages 6, 15 and 16).

Enables control of the alarm system and home automation devices (see p. 7).

Displays the “System status” screen (see p. 8).

Displays the “Emergency” screen (see p. 10).

Displays the “Advanced” screen (see p. 11).

SATEL INT-TSG 5

1.2.3 Authorization screen

Some screens and functions may only be available after user authorization. The authorization

is code based. Use the number keys to enter the code and then confirm, touching the

icon.

By default, the following codes are preprogrammed in the control panel:

service code: 12345

object 1 master (administrator) code: 1111

When acting under duress, use the D

URESS

type code instead of the regular user

code.

1.2.4 “Arming” screen

6 INT-TSG SATEL

Icon Function

Enables arming in mode “full”.

Enables arming in mode “full + bypasses”.

Enables arming in mode “without interior”.

Enables arming in mode “without interior and without entry delay”.

1.2.5 “Alarm clearing / Disarming” screen

The “Alarm clearing / Disarming” screen will be displayed after you touch the icon on

the main screen, when there is an alarm (alarm memory) and at least one partition is armed.

Icon Function

Enables alarm clearing.

Enables disarming.

SATEL INT-TSG 7

1.2.6 “Control” screen

The “Control” screen will be displayed on touching the icon on the main screen, if

macro commands are assigned to at least two groups of macro commands. It presents the

groups of macro commands. Up to 4 groups can be programmed by the installer. Touching

a group icon will display macro commands assigned to that group. Up to 16 macro

commands can be assigned to one group.

If macro commands are assigned only to one group, touching the icon will display the

macro commands at once. In the keypad with factory settings, two macro commands are

programmed and assigned to the first group (the figure below shows the screen to be

displayed on a keypad with factory settings).

The control panel will execute the factory programmed macro commands, provided

that the alarm system is suitably configured by the installer.

You should consult the installer about which additional macro commands would

facilitate operation of the alarm system or control of the home automation devices

connected to the control panel. Only the installer can program any additional macro

commands.

Icon Function

Quick full arming (without user authorization by using a code) – in a similar way

as after pressing the 0 keys on the keypad with text menu.

Exit delay clearing – in a similar way as after pressing the 9 keys on

the keypad with text menu.

8 INT-TSG SATEL

The keypad can be configured by the installer so as to start the function of output control

from the terminal on touching the icon (touching the icon for about 3 seconds may be

required).

1.2.7 “System status” screen

Icon Function

Displays the “Partition status” screen.

Displays the “Zone status” screen.

Displays the “Troubles” screen, on which the current troubles are presented

(the installer can configure the control panel to display the troubles until

cleared).

Enables viewing the event log.

Displays the “Alarm log” screen, on which alarms stored in the control panel

memory are presented.

Displays the “Trouble log” screen, on which troubles stored in the control panel

memory are presented.

Partition status

The status of partitions is illustrated by means of icons. The number shown next to the icon

corresponds to the partition number. On touching the icon, the full partition name will be

presented at the display bottom.
