Installation Manual V11.0

SBD Series Clock

The Sapling Company, Inc.

670 Louis Drive

Warminster, PA 18974

USA

P. (+1) 215.322.6063

F. (+1) 215.322.8498

www.sapling-inc.com

Manuals may change without prior notice

SBD Series Clock - Table of Contents

Interactive Hyperlinked PDF – Click on the topic and the document will go to the relevant page.

Clicking on the logo will take you back to the table of contents.

Table of Contents 2

Important Safety Instructions 3

Identify Your Clock 4 - 5

Preparing for the Installation 6

Flush Mounted Clock Mechanical Installation 7 - 9

Wall Mounted Clock Mechanical Installation 10 - 14

Dual-Faced / Flag Mounted Digital Clocks Overview 15

Dual-Faced / Flag Mounted Clock Mechanical Installation 16 - 23

Uniform Stage Installation 24 - 26

Jumper Switch Settings 27

Temperature Sensor Installation (3200/3300 Only) 28

Buzzer Installation (3300 Only) 29

Wiring Instructions 30

- 2-Wire Digital Communication Protocol 31

- RS485 Communication Protocol 32

- Sync-Wire 110/230VAC Communication Protocol 33

- Sync-Wire 24VAC Communication Protocol 34

- Connecting to the Clock 35

Time Input - Clock Settings

- Sync-Wire Communication Protocol (3300 Only) 36 - 39

Inputs - Clock Settings - User Inputs (3300 Only) 40

Outputs (3300 Only) 41

Manual Controls (3300 Only) 42 - 48

Accessing the Clock After it has been Installed 49

sbdconfig Installation 50 - 58

- Task Bar 59 - 60

- Display Settings 61

- Brightness Schedule 62

- Clock Settings 63

- Outputs 64

- Elapsed Timer 65

- Inputs 66 - 67

- Daylight Saving Time (DST) 68

Reading the Display 69

Frequently Asked Questions 70

Troubleshooting 71

Warranty 72

Available with 3200 and 3300 models

Available with 3300 model only

The Sapling Company, Inc.

670 Louis Drive

Warminster, PA 18974

USA

P. (+1) 215.322.6063

F. (+1) 215.322.8498

www.sapling-inc.com

Important Safety Instructions

NOTICE

• Do not install the clock outdoors.

Damage to the clock if placed outdoors

voids the warranty.

• Do not hang objects from the clock or clock

mounting parts. The clocks are not designed

to support the weight of other objects.

• The clock face and housing may be cleaned

with a damp cloth or disinfectant. Test

other cleaning products on a small part of

the clock housing before attempting to use

on the rest of the clock. Avoid bleach and

chemicals known to dissolve plastics.

VERY IMPORTANT:

KNOW YOUR COMMUNICATION PROTOCOL

Depending on its series (3100, 3200 or 3300) the SBD clock supports different time protocols. In order

to properly function and synchronize, it is very important to follow the correct wiring diagram which is

provided in this manual. For example: if your system includes converter boxes which are only used for the

2-wire system, then you should only follow the instructions that relate to the 2-wire digital communication

protocol wiring.

WARNING

FIRE HAZARD

• Always follow your national and regional

electrical codes or ordinances.

• The AC power circuit for the clock must

be attached to a circuit breaker that can

be reset by the user.

PHYSICAL INJURY HAZARD

• If you are standing on an object while

installing your clock, make sure that the

object can support your weight, and will not

sway or move as you stand on it.

• Take precautions to avoid injury by potential

safety hazards near the point of installation

including (but not limited to) heavy

machinery, sharp objects, hot surfaces, or

exposed cables carrying an electric current.

• Follow all mounting instructions exactly as

stated in this manual. Failure to do so may

result in the device falling off the point of

installation.

• Packaging materials and mounting items

include plastic bags and small pieces, which

pose a suffocation hazard to young children.

DANGER

SHOCK HAZARD

• Keep the electricity to this device turned

OFF until the clock installation

is complete.

• Do not expose the clock movement to

water, or install the clock in a location

where it may be exposed to water.

The Sapling Company, Inc.

670 Louis Drive

Warminster, PA 18974

USA

P. (+1) 215.322.6063

F. (+1) 215.322.8498

www.sapling-inc.com

Identify Your Clock

A label containing the part number of your clock is attached to the clock packaging

If your part number begins with SBD-31, it is a 3100 Series clock

If your part number begins with SBD-32, it is a 3200 Series clock

If your part number begins with SBD-33. it is a 3300 Series clock

If the second group in your part number ends in S (31S, 32S, 33S), it is a Surface Mount Clock, which can

be attached to a pole as a Flag Mount or a Double Mount.

If the second group in your part number ends in F (31F, 32F, 33F), it is a Flush Mount Clock, which can only

be used in a ﬂush mount conﬁguration.

VERY IMPORTANT:

The SBD Wired Digital Clock supports different Time Protocols and is offered at different voltage inputs.

Familiarize yourself with the speciﬁc clock wiring diagram that is relevant to your wired clock system so that

the pre-wiring in the wall is correctly done and matches the type of wired clock system used. The different

wiring diagrams and instructions are presented in this manual.

The Sapling Company, Inc.

670 Louis Drive

Warminster, PA 18974

USA

P. (+1) 215.322.6063

F. (+1) 215.322.8498

www.sapling-inc.com

The digital clocks are offered at either 3100, 3200, or 3300 Series number. The higher the series

number indicates that the clock has higher feature set and capabilities.

3100 Series clock electric board layout:

3200 Series clock electric board layout:

3300 Series clock electric board layout:

Additional Ports

Interface Port for

USB Programming

Cable or RS485 Sync

Environment

Relay Output Ports

Identify Your Clock

Interface Port for Elapsed

Timer Control Panel or

Temperature Sensor Port

Interface Port for Elapsed

Timer Control Panel or

Temperature Sensor Port

Interface Port for

USB Programming

Cable or RS485 Sync

Environment

Power Connector

The Sapling Company, Inc.

670 Louis Drive

Warminster, PA 18974

USA

P. (+1) 215.322.6063

F. (+1) 215.322.8498

www.sapling-inc.com

Preparing for the Installation

Consideration should be made for various factors such as their location, type of mounting (ﬂush, surface, dual-

faced or ﬂag mounted), electrical wiring run, and more. Please read the manual including all relevant sections

for your speciﬁc installation conﬁguration to understand the steps, how to wire, and how to install the clock. In

addition, please note what hardware you may need to supply.

The clock can be Flush Mounted (for inside the wall installation), Surface (wall) Mounted, Dual-Faced or

Flag Mounted.

Mounting the clock housing for these different conﬁgurations is different from one another; however, clock

display installation and wiring is similar. Therefore, each mounting will have its own initial installation instructions

section followed by a “Uniform Stage Installation” section.

For installing the clocks, the installer will need to have the below items which are not provided with the clocks:

• A #2 Phillips-head screwdriver

• Electrical wires for power (Recommended 12, 14 or 16 AWG)

• A drill and a drill bit (size depending on wall anchor)

• A ﬂat-head screwdriver

In Addition:

For a Flush Mounted Clock:

• There are multiple holes in the clock metal back box that would accommodate (up to) size #10 screws

for ﬁxating it to the wall. Hardware to ﬁxate the clock’s metal back box to the wall, depending on the

type of wall, is to be provided by the installer.

For a Surface (wall) Mounted Clock:

• A double gang (utility) box

For a Dual-Faced or a Flag Mounted Clock:

• A double gang (utility) box

• There are 4 holes in the pole base plate that would accommodate size #8 screws for ﬁxating it to the

ceiling or to the wall. Hardware to ﬁxate the pole base plate to the ceiling or to the wall depending on

the type of wall is to be provided by the installer.

The Sapling Company, Inc.

670 Louis Drive

Warminster, PA 18974

USA

P. (+1) 215.322.6063

F. (+1) 215.322.8498

www.sapling-inc.com

Flush Mounted Clock Mechanical Installation

Included in Package

Included with the Clock Wiring Kit

Power/grounding wire harness

and connector

Grounding wire

#6-32x1/2 Phillips ﬂat head black

machine screw

Hex nut 6-32

#6 Internal-tooth lock washer

Description

SBD Digital Clock

Digital Clock

Quantity


110V / 230V 24V

Flush Mount Housing

(for inside the wall installation)

The Sapling Company, Inc.

670 Louis Drive

Warminster, PA 18974

USA

P. (+1) 215.322.6063

F. (+1) 215.322.8498

www.sapling-inc.com

[

3) Once a hole in the wall is cut, place the clock

gang box in the wall and make sure that it is leveled

with the ﬂoor. You may need to make a ﬁxture

to secure the gang box in between the studs in

the wall, nail it to the cinderblock, or take needed

actions to secure it to the wall depending on the

type of wall. The gang box has pre-punched holes

on all sides, allowing to secure the gang box to the

wall.

Flush Mounted Clock Mechanical Installation

1) This clock is offered at different sizes and

based on its size, its metal back gang box will be

compatible with its display size. Once you have the

ﬂush mounted housing (dimensions are available in

the speciﬁcations), cut a hole in the wall, making

sure to leave at least 1.0” (2.54 cm) between the

top of the clock gang box and the celling.

4) Since the ﬂush mounted digital clocks are offered

at different voltages and are made out of metal,

depending on the local codes and regulations, you

may also need to ground the clock gang box to the

facility grounding bus using the provided hex nut

and internal-tooth lock washer.

2) Plan where the wires are going to be run into

the clock and knockout the semi pre-punched

designated wiring holes on the clock gang box.

The clock gang box comes with semi pre-punched

wiring holes in all sides.

1.0” [

1.0”

grounding wire included in wiring kit

x = knockout holes for wiring

y = nailing holes for securing the gang box to the wall

x x

6 7

The Sapling Company, Inc.

670 Louis Drive

Warminster, PA 18974

USA

P. (+1) 215.322.6063

F. (+1) 215.322.8498

www.sapling-inc.com

Flush Mounted Clock Mechanical Installation

5) Run the power / data wires from the wall into the clock gang box through one of the knockout holes

as shown in the below image.

6) To proceed with the installation instructions,

please follow the “Uniform Stage Installation”

section in this manual. Once done, to complete the

ﬂush mounted clock installation, follow step 7.

7) With the clock powered and properly

functioning, the last step would be to remove the

adhesive clear protective ﬁlm from the clock ﬁlter,

as shown in the below image.

The Sapling Company, Inc.

670 Louis Drive

Warminster, PA 18974

USA

P. (+1) 215.322.6063

F. (+1) 215.322.8498

www.sapling-inc.com

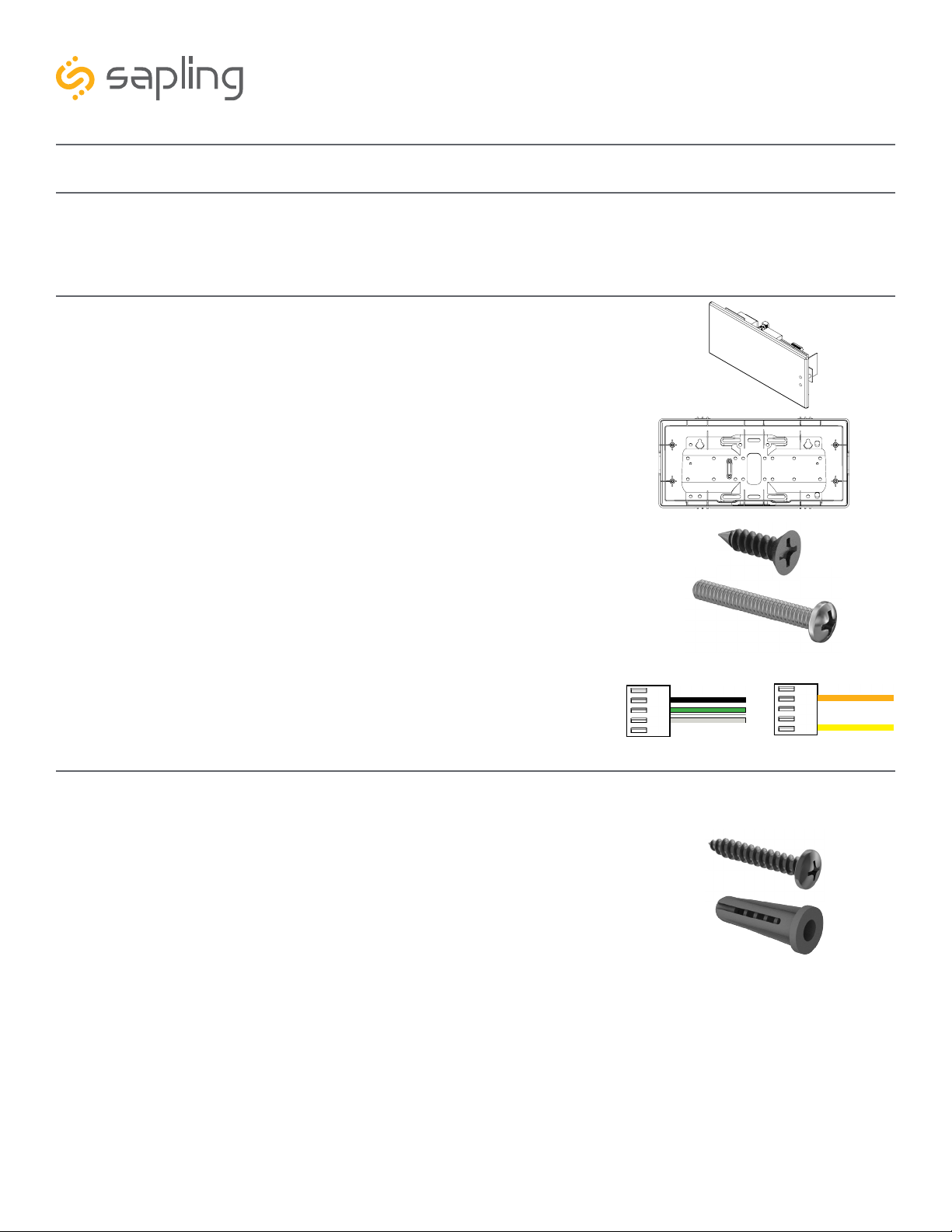

Wall Mounted Clock Mechanical Installation

Included in Package

Description

SBD Digital Clock

Digital Clock Wall Housing

#6-19x1/2 screw

#6-32x1 screw

Quantity


Included with the Clock Wiring Kit

If not mounting the clock to a double gang box, the installer needs to provide:

Power/grounding wires

and connector

#8 self-tapping screws

Wall anchors

110V / 230V 24V

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reloj de Sapling

Sapling

Sapling SAL-2 Series Manual de usuario

Sapling

Sapling SBL Series Manual de usuario

Sapling

Sapling NTP 8000 Series Manual de usuario

Sapling

Sapling SBD 1000 Series Manual de usuario

Sapling

Sapling SDLG Series Manual de usuario

Sapling

Sapling SBP-31 Manual de usuario

Sapling

Sapling SMA 5000 Series Manual de usuario

Sapling

Sapling SAL-2 Series Manual de usuario

Sapling

Sapling SAP Series Manual de usuario

Sapling

Sapling 3100 series Manual de usuario

Sapling

Sapling SLD Premium Series Manual de usuario

Sapling

Sapling SMA 3000 Series Manual de usuario

Sapling

Sapling SAI Series Manual de usuario

Sapling

Sapling SSM Series Manual de usuario

Sapling

Sapling SBP 3000 Series Instrucciones de montaje

Sapling

Sapling SMA 2000 Series Manual de usuario

Sapling

Sapling SBP Series Manual de usuario

Sapling

Sapling SAM Series Manual de usuario

Sapling

Sapling Saw 4 Manual de usuario

Sapling

Sapling SMA 6000 Series Manual de usuario

Sapling

Sapling SBT Series Manual de usuario

Sapling

Sapling NTP 7000 Series Manual de usuario

Sapling

Sapling Prayer Clock Manual de usuario

Sapling

Sapling SMC 3000 Series Manual de usuario

Manuales populares de Reloj de otras marcas

Silicon Laboratories

Silicon Laboratories SI5324 Manual de usuario

Heathkit

Heathkit GC-1005 Manual de usuario

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manual de usuario

Andrew O'Malley

Andrew O'Malley DOTKLOK Manual de usuario

ALGE-Timing

ALGE-Timing ASC3 Manual de usuario

Bodet

Bodet Profil 960 Manual de usuario

Nixie Clock

Nixie Clock Divergence Meter Manual de usuario

La Crosse Technology

La Crosse Technology WS-8256-AL Manual de usuario

Mini Gadgets

Mini Gadgets MCPro Manual de usuario

Casio

Casio TMR-200 Manual de usuario

Progetti

Progetti ILTEMPOSTRINGE Manual

BVItech

BVItech BV-101 Manual de usuario

Progetti

Progetti KALIMERO Manual

La Crosse Technology

La Crosse Technology WT-3141b Manual

La Crosse Technology

La Crosse Technology W86531 Manual de usuario

Sharp

Sharp SPC900 Manual de usuario

La Crosse Technology

La Crosse Technology 404-50447 Manual de usuario

Datexx

Datexx DF0063 Manual de usuario
