Sapling SBL 3000 Series Instrucciones de montaje

SBL 3000 Series Wireless Clock

The Sapling Company, Inc.

1633 Republic Road

Huntingdon Valley, PA 19006

USA

+1 215.322.6063 P.

+1 215.322.8498 F.

www.sapling-inc.com

Installation and Programming Manual V7

The Sapling Company, Inc.

1633 Republic Road

Huntingdon Valley, PA 19006

USA

+1 215.322.6063 P.

+1 215.322.8498 F.

www.sapling-inc.com

Table of Contents

SBL 3000 Series Wireless Clock

Table of Contents—2

Installation

Included in the Kit—3

ABS Surface (Wall) Mount Installation—4

ABS Surface (Wall) Mount Installation (continued)—5

ABS Double Mount Installation—6

ABS Double Mount Installation (continued)—7

ABS Double Mount Installation (continued)—8

Wiring Information

Wiring and Jumper Settings (3100 Series)—9

Wiring and Jumper Settings (3200 Series)—10

Wiring and Jumper Settings (3300 Series)—11

Using the Output Sync Relay on the SBL 3300—12

Temperature Sensor Wiring (Optional)—13

Buzzer Installation (3300 Series)—14

Programming

Setting the Time on the SBL 3300 - Programming the SBL 3300—15

Programming the SBL 3300 (continued)—15-22

Software

Installing the Sbdconfig.exe Software—23-26

Sbdconfig Software - Task Bar Functionality—27-28

Sbdconfig Software - Display Settings—29

Sbdconfig Software - Brightness Schedule—30

Sbdconfig Software - Clock Settings—31

Sbdconfig Software - Outputs—32

Sbdconfig Software - Elapsed Timer—33-35

Sbdconfig Software - Inputs—36-37

Sbdconfig Software - DST—38-39

Support

Reading the Display—40

Frequently Asked Questions—41

Troubleshooting—42

FCC Statements—43

*Manuals may change without prior notice

The Sapling Company, Inc.

1633 Republic Road

Huntingdon Valley, PA 19006

USA

+1 215.322.6063 P.

+1 215.322.8498 F.

www.sapling-inc.com

Included in the Kit

Surface Mount – 24VAC Kit

Kit will be labeled: D-PK-3-24-S

• 24VAC Power Harness (18 AWG), Orange, Green, Yellow

Kit will be labeled: D-MK-WLL-PLTC-1

• 4 - 6-32 x 1” Machine Flat Screws

• 4 - 6-19 x 1/2” Flat Head Screws

• 4 - 8-32 x 7/19” Screws

• 2 - 8-32 x 7/16” Screws

Surface Mount - 120VAC or 240VAC Kit

Kit will be labeled: D-PK-3-110-S

• 120VAC or 240VAC Harness (18 AWG), Black, Green, White

Kit will be labeled: D-MK-WLL-PLTC-1

• 4 - 6-32 x 1” Machine Flat Screws

• 4 - 6-19 x 1/2” Flat Head Screws

• 4 - 8-32 x 7/19” Screws

• 2 - 8-32 x 7/16” Screws

Below is a list of all the items included in the SBL 3000 installation kit. The items in the kit will correspond to the type of mounting and voltage

option chosen.

Installation

The Sapling Company, Inc.

1633 Republic Road

Huntingdon Valley, PA 19006

USA

+1 215.322.6063 P.

+1 215.322.8498 F.

www.sapling-inc.com

ABS Surface (Wall) Mount Installation

Installation

The Sapling Company, Inc.

1633 Republic Road

Huntingdon Valley, PA 19006

USA

+1 215.322.6063 P.

+1 215.322.8498 F.

www.sapling-inc.com

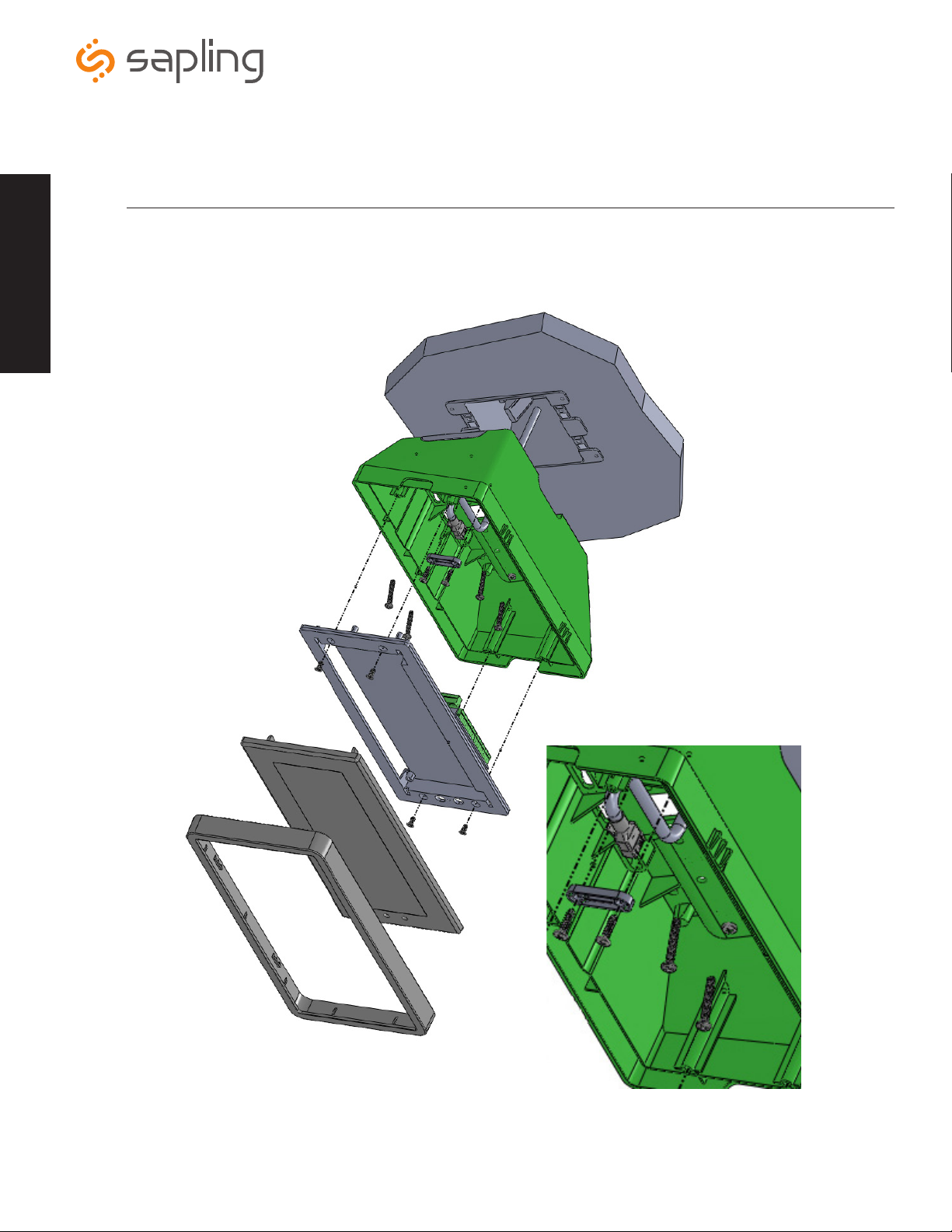

1. Mount Housing to Wall and/or Gang Box - To mount the housing to the wall, install two (2) wall anchors into the wall (not supplied

in kit) and take two pan head screws no larger than #8 (also not supplied in kit) and drive them into the anchors leaving an 1/8th inch

gap between the head of the screw and the wall. Mount the housing to the wall by lining up the two keyholes in the back of the housing

with the two screws with the 1/8 inch gap and slide the housing onto the heads of the screws. Next, mark the 2 mounting holes at the

bottom of the housing on the wall. Remove the housing and install wall anchors at this location. Hang the housing on the keyholes and

install the bottom screws. To mount the housing to the gang box, take the four (4) 6-32 x 1” screws (supplied in kit) and screw them

through the four holes in the center of the inside of the housing and the four holes in the gang box.

Note: If using a metal gang box, a ground must be provided to the gang box.

2. Feed Wiring Into the Housing - Take the wire coming from the inside of the gang box and feed it through the hole in the middle of

the housing.

3. Plug and Secure Wiring - Loosen the provided wire clamp (comes attached to the inside of the housing) and slip excess wiring

through and tighten the clamp. After securing excess wiring, connect the wiring into the appropriate connector on the back of the

display board. (See the Wiring and Jumper Settings on page 9-11).

4. Mount Display Board to Housing - Using the four (4) self tapping, 6-19 x 1/2” flat head screws (supplied in the assembly kit), take

the display board and screw it to the front side of the clock housing (4 screws per clock).

5. Snap on Filter - Take the red filter bezel and snap it on to the front side of the housing.

6. Snap on Frame - Take the gray frame and snap it on to the front side of the housing.

ABS Surface (Wall) Mount Installation (continued)

Installation

The Sapling Company, Inc.

1633 Republic Road

Huntingdon Valley, PA 19006

USA

+1 215.322.6063 P.

+1 215.322.8498 F.

www.sapling-inc.com

ABS Double Mount Installation

Installation

The Sapling Company, Inc.

1633 Republic Road

Huntingdon Valley, PA 19006

USA

+1 215.322.6063 P.

+1 215.322.8498 F.

www.sapling-inc.com

ABS Double Mount Installation (continued)

*For metal mounting bracket: Use a wall anchor that can support 50 lbs or more with a maximum

screw size of #8

1. Install metal mounting bracket - First, remove the metal mounting bracket from the inside of the double mount base by unscrewing

the two (2) 6-32 x 1/2” screws located on the underside of the base (save these screws for step #5). Next, screw the metal mounting

bracket to the wall or ceiling in which the clocks are being installed. To mount to the double gang switch box, screw the four (4) 6-32 x

1” screws (supplied in the assembly kit) through the inner four holes of the metal mounting bracket. Use the outer four holes to mount to

the anchors in the wall (both anchors and screws are not supplied in kit).

Note: If using a plastic switch box, a ground wire must be routed through the switch box and into one (1) of

the four (4) metal mounting bracket screws in order to provide ground to the metal mounting bracket. The metal

mounting bracket

MUST

be secured by both the screws going to the switch box

AND

the anchors going into the

wall.

2. Mount clock housings to pole - Align the hole in the center each housing with one of the three holes on the mounting pole where

the wiring will be routed (the installer will choose which hole at the end of the pole to use based on how far they want the clock to sit

from the wall). Screw from the inside of the housing into the four holes surrounding the hole in the center of the housing using the four

(4) 8-32 x 7/16” screws (supplied in the assembly kit - 4 screws per clock), securing both housings to the mounting pole.

Note: End caps from one side of each clock must be removed to mount both clocks to the mounting pole.

Remove one end cap from each clock from the side in which the mounting pole enters the clock.

*Instructions continued on next page

3. Screw both housings together - Using the two (2) self tapping, 6-19 x 7/16” screws (supplied in the assembly kit), screw both back

sides of the clock housings together (2 screws per clock).

Installation

The Sapling Company, Inc.

1633 Republic Road

Huntingdon Valley, PA 19006

USA

+1 215.322.6063 P.

+1 215.322.8498 F.

www.sapling-inc.com

ABS Double Mount Installation (continued)

4. Feed wiring through base and pole - Take the wiring coming from the switch box and begin to feed it through the center of the

base of the mounting assembly until it emerges from the hole in the center of the clock housing.Make sure there is roughly 1.5’ of

wiring coming from the switch box. Perform this task for both clocks.

5. Snap and screw base to metal mounting bracket - Snap the base to the metal mounting bracket by first making contact with

the lip in the upper side of the base and the metal mounting bracket. When the base has been snapped onto the bracket, take

the two (2) 6-32 x 1/2” pan head screws that originally came installed on the base and screw them back into the two holes on the

underside of the base to secure the base to the metal mounting bracket.

6. Connect switch box wires to clock harness - Take the wiring harness supplied with the clock and make all necessary

connections between the wiring harness and the switch box wires using wire nuts. Perform this task for both clocks.

7. Plug and secure wiring - Loosen and slip excess wiring through provided wire clamp (comes attached to each housing) and

tighten the clamp. After securing excess wiring, connect the wiring harness into the appropriate connector on the back of the

display board. Perform this task for both clocks. (See the Wiring and Jumper Settings on page 9-11).

8. Mount display board to housing - Using the four (4) self tapping, 6-19 x 1/2" flat head screws supplied in the assembly kit,

take the display board and screw it to the front side of the clock housing (4 screws per clock).

9. Snap on filter - Take the red filter bezel and snap it on to the front side of each clock housing.

10. Snap on frame - Take the gray frame and snap it on to the front side of each clock housing.

Installation

The Sapling Company, Inc.

1633 Republic Road

Huntingdon Valley, PA 19006

USA

+1 215.322.6063 P.

+1 215.322.8498 F.

www.sapling-inc.com

Wiring Information

Wiring and Jumper Settings (3100 Series)

**Jumper Position

JP 1

JP 4

JP 5

JP 6

JP 2

JP 3

Power Settings

24VAC @ 0.35A (ORG)

120VAC or 240VAC @ 0.1A (BLK)

No Connection

120VAC or 240VAC @ 0.1A (WHT)

24VAC @ 0.35A (YEL)

Note: When setting up the jumpers, Pin 1 & Pin 2 must be jumpered together OR

Pin 2 & Pin 3 must be jumpered together. Below are the Jumper Positions and what

function each corresponds with.

1 2 3

Jumper Position Pin 1 & Pin 2 Pin 2 & Pin 3

JP 1 12 Hour Time 24 Hour Time

JP 2 Bright Dim

JP 3 Time Display Only Alternating Date/Time Display

JP 4 Normal Configuration

JP 5 Real Time Clock 60Hz

JP 6 Sync RS485 Select

Wiring Information

Note: Pin 1 will always be

the square pad.

The Sapling Company, Inc.

1633 Republic Road

Huntingdon Valley, PA 19006

USA

+1 215.322.6063 P.

+1 215.322.8498 F.

www.sapling-inc.com

Wiring Information

Wiring and Jumper Settings (3200 Series)

**Jumper Position

JP 1

JP 4

JP 5

JP 6

JP 2

JP 3

Power Settings

24VAC @ 0.35A (ORG)

120VAC or 240VAC @ 0.1A (BLK)

No Connection

120VAC or 240VAC @ 0.1A (WHT)

24VAC @ 0.35A (YEL)

Elapsed Timer

No Connection

TXD (Blue&Blue/White)

Common (Green&Green/White)

RXD (Orange&Orange/White)

3.3V@0.1A (Brown&Brown/White)

P1 - Sync Inputs P2 - User Inputs

P3 - Relay Output

*Relay 1 N.O.

*Relay 2 N.O.

Note: When setting up the jumpers, Pin 1 & Pin 2 must be jumpered together OR

Pin 2 & Pin 3 must be jumpered together. Below are the Jumper Positions and what

function each corresponds with.

1 2 3

Jumper Position Pin 1 & Pin 2 Pin 2 & Pin 3

JP 1 12 Hour Time 24 Hour Time

JP 2 Bright Dim

JP 3 Time Display Only Alternating Date/Time Display

JP 4 Normal Configuration

JP 5 Real Time Clock 60Hz

JP 6 Sync RS485 Select

Cat 5

Cable

Wiring Information

J7 - RS485

1 2 3 4

Input A

Input B

Output A

Output B

Note: Pin 1 will always be

the square pad.
