INSTRUCTION MANUAL

VACUUM CLEANER

HOUSEHOLD USE ONLY

IMPORTANT SAFETY INSTRUCTIONS

NAMES OF EACH PART

PREPARATIONS BEFORE USE

USING THE VACUUM CLEANER

USING THE ATTACHMENTS

EMPTYING THE DUST COMPARTMENT

CLEANING THE FILTERS

CLEANING THE SECONDARY FILTERS

CLEARING BLOCKAGES AND

CLEANING THE AGITATOR ASSEMBLY

REPLACEMENT INSTRUCTIONS

TROUBLESHOOTING

REPLACEMENT PARTS

Contents

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be

followed, including the following.

READ ALL INSTRUCTIONS

BEFORE USING THIS VACUUM CLEANER

WARNING

-To reduce the risk of fire, electric shock or injury:

1. Do not leave the vacuum cleaner when plugged in. Unplug it from the outlet

when not in use and before servicing.

2. Do not use outdoors or on wet surfaces.

3. Do not allow it to be used as a toy. Close attention is necessary when used

by or near children or infirmed persons.

4. Use only as described in this manual. Use only the manufacturer's

recommended attachments.

5. Do not use with a damaged cord or plug. If the vacuum cleaner is not

working as it should, or if it has been dropped, damaged, left outdoors or

dropped into water, return it to a service center.

6. Do not pull or carry by the cord, use the cord as a handle, close a door on the

cord, or pull the cord around sharp edges or corners. Do not run the vacuum

cleaner over the cord. Keep the cord away from heated surfaces.

7. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

8. Do not handle the plug or the vacuum cleaner with wet hands.

9. Do not put any objects into the openings. Do not use with any opening

blocked: keep free of dust, lint, hair and anything that may reduce air flow.

10. Keep hair, loose clothing, fingers and all the parts of your body away from

openings and moving parts.

11. Do not pick up anything that is burning or smoking, such as cigarettes,

matches or hot ashes.

12. Do not use without dust compartment and/or filters in place.

13. Turn off all controls before unplugging.

14. Use extra care when cleaning on stairs.

15. Do not use to pick up flammable or combustible liquids such as gasoline, or

use in areas where they may be present.

111

16. Do not touch the agitator while it is spinning.

17. Do not place any heavy items on top of the vacuum cleaner.

18. Do not step on the hose or pull it too strongly.

19. Do not pick up items such as pieces of waste paper or cloth which look as

though they may cause the hose to become blocked.

20. Do not clean or store the vacuum cleaner in places where there are high

temperatures.

21. Store the vacuum cleaner away from excessive humidity.

22. When carrying the vacuum cleaner, hold it by the carrying handle.

23. Before servicing the vacuum cleaner, allow all metal parts to cool first.

24. Always place foot on handle release when adjusting the handle position

25. If the supply cord of this appliance is damaged, it must only be replaced by

a repair shop appointed by the manufacturer, because special purpose

tools are required.

of the vacuum cleaner.

SAVE THESE INSTRUCTIONS

This vacuum cleaner is intended for household use only.

NAMES OF EACH PART

Suction Hose

ON/OFF Switch

Dust

Compartment

Carrying Handle

Operate vacuum cleaner only at the voltage specified on name plate.

Crevice Tool

Release Button

FRONT REAR

Fork

Handle

Filter Cover

Cord Storage

Hooks

Wand

Power Cord Plug

Plug shown in

figure may differ

from actual plug

attached to unit

for your area.

Power Cord

Upholstery Tool &

Dusting Brush

Handle Release

WARNING:

Holder

Mount

Hose

Holder

123

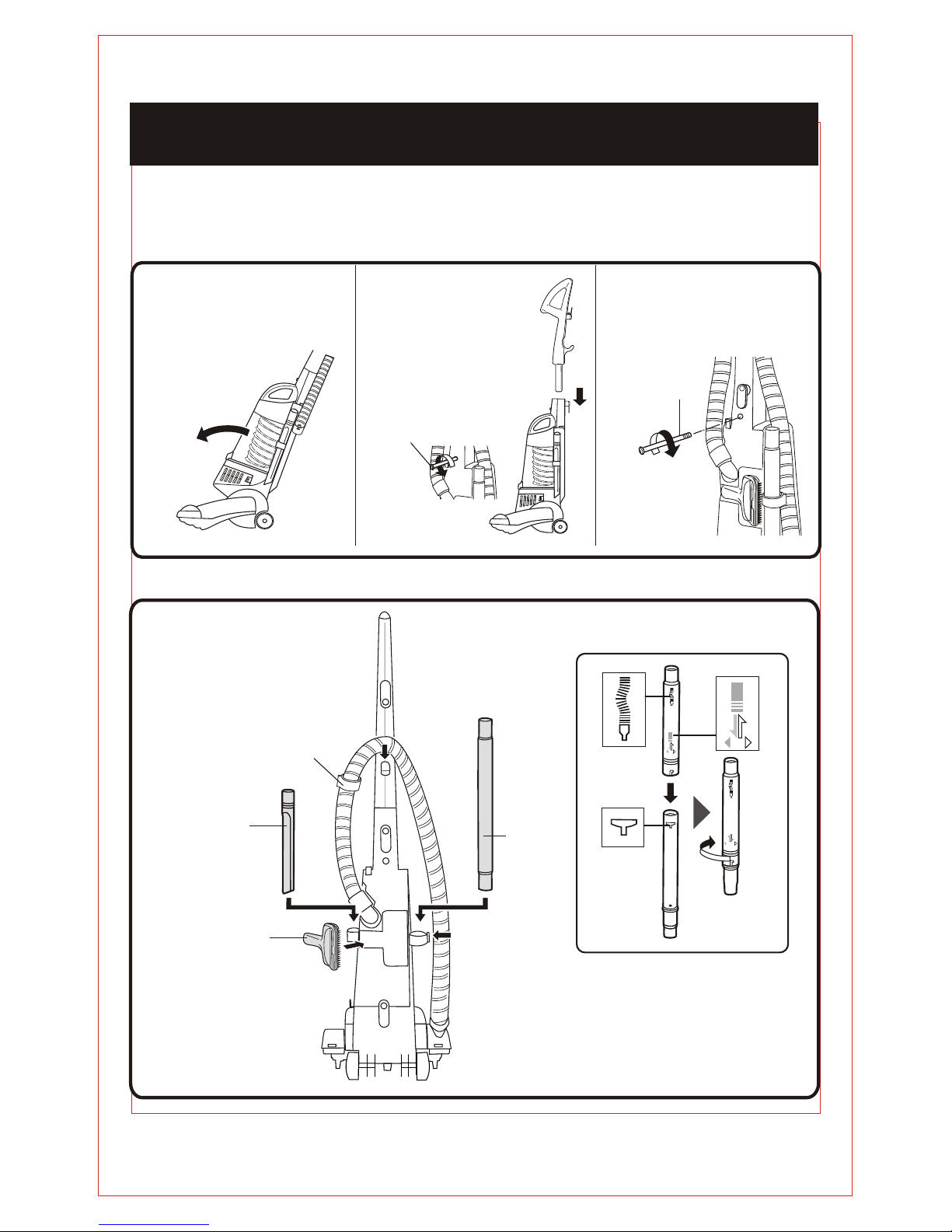

Attaching the handle

PREPARATIONS BEFORE USE

Caution: Do not connect the power cord plug to the wall outlet until assembly

is completed.

Set the vacuum cleaner

to the upright position.

The handle screw has

been installed for

shipping purposes.

Remove the screw

before inserting

handle. Insert the

handle as shown

in the illustration.

Insert the screw that you

removed.Be sure screw

is tightened,but not

over tightened.

Attaching the suction hose & attachments

Handle Screw

Crevice Tool

Upholstery Tool &

Dusting Brush

Wands

Handle Screw

TURN

Hose

Holder

Cord Storage

Hooks

PREPARATIONS BEFORE USE

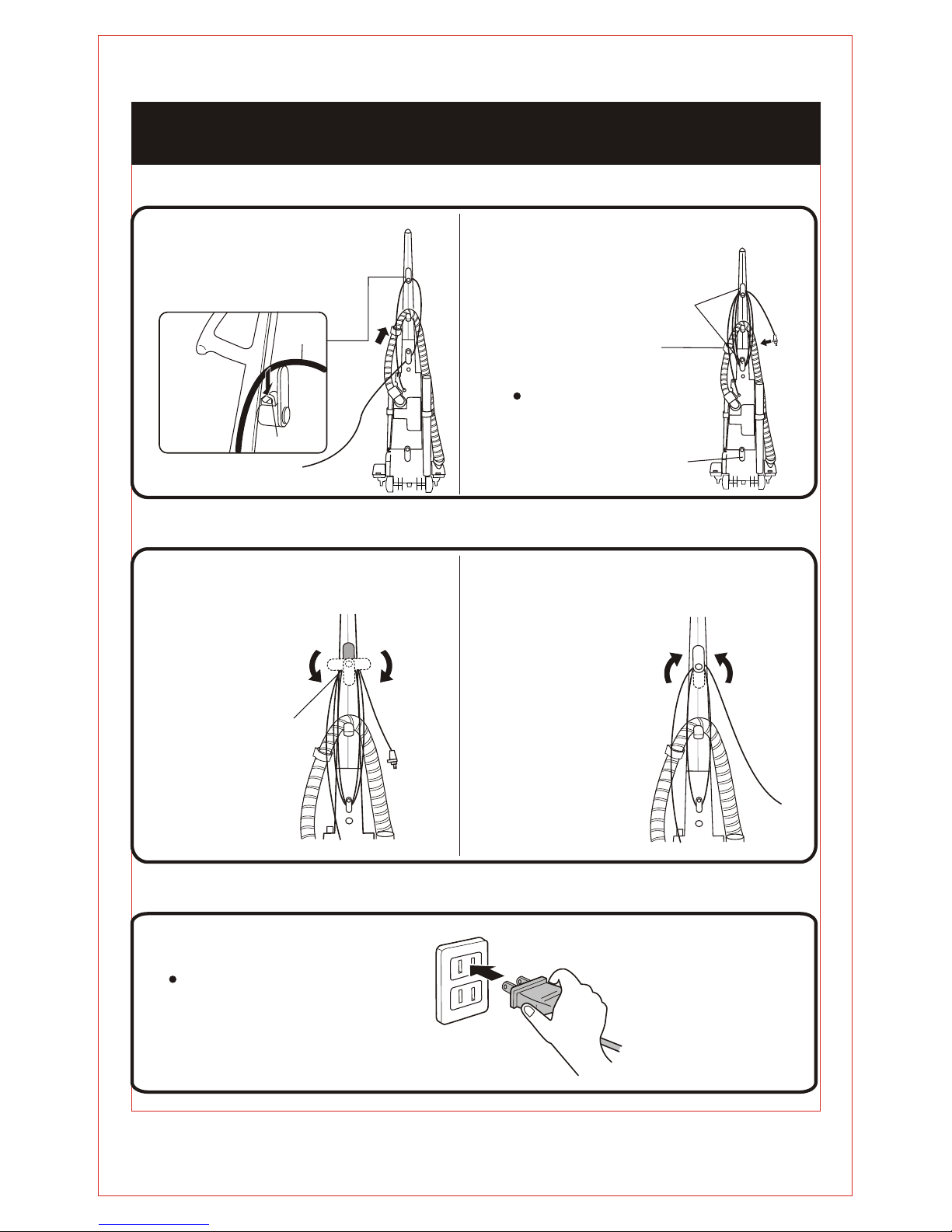

WINDING THE POWER CORD

Hook the power cord over

the clip which is located on

the upper cord storage hook

as shown.

Wind the power cord around the cord

storage hooks.

RELEASING THE POWER CORD

Rotate the upper cord storage hook

downward.

Return the hook to the

upright position before

attempting to rewind the

power cord.

INSERTING THE POWER CORD PLUG

Insert the power cord plug into the

wall outlet.

Plug shown in figure may

differ from actual plug

attached to unit for

your area.

Plug shown in figure may

differ from actual plug

attached to unit for

your area.

Upper Cord

Storage Hook

Plug

Side

Clip

Holder

Mount

Hose

Holder

Handle Release

USING THE VACUUM CLEANER

ON/OFF SWITCH

Start or stop vacuum cleaner

by pushing on the switch.

ADJUSTING THE HANDLE

The handle of this vacuum cleaner can be set to one of

three positions-Upright,Normal,Parallel.Place your foot

on either one of the handle release points as shown and pull

back on the handle until it releases from its upright position.

Upright position

The handle is normally locked in this

position for storage or when using the

attachments.

Push the handle forward

until it locks.

Normal position

This position is used for normal cleaning.

Parallel position

This position is used for cleaning under

furniture.

ON/OFF Switch

EDGE CLEANING

This vacuum cleaner is equipped with an "edge cleaning" function for cleaning carpet edges

near baseboards and stationary furniture.

OFF ON

Install the wand to the hose.

To achieve maximum reach with the attachments,attach the crevice tool to the end of the wand.

Securely and firmly connect the wand to the hose while twisting the wand, as shown in the

illustration below.

The upholstery tool & dusting brush can be attached directly to the wand, hose or the end of the

crevice tool. Refer to the illustration for the correct way to position the upholstery tool &

dusting brush.

The end of the wand whichhas the marking of should be connected to the hose.

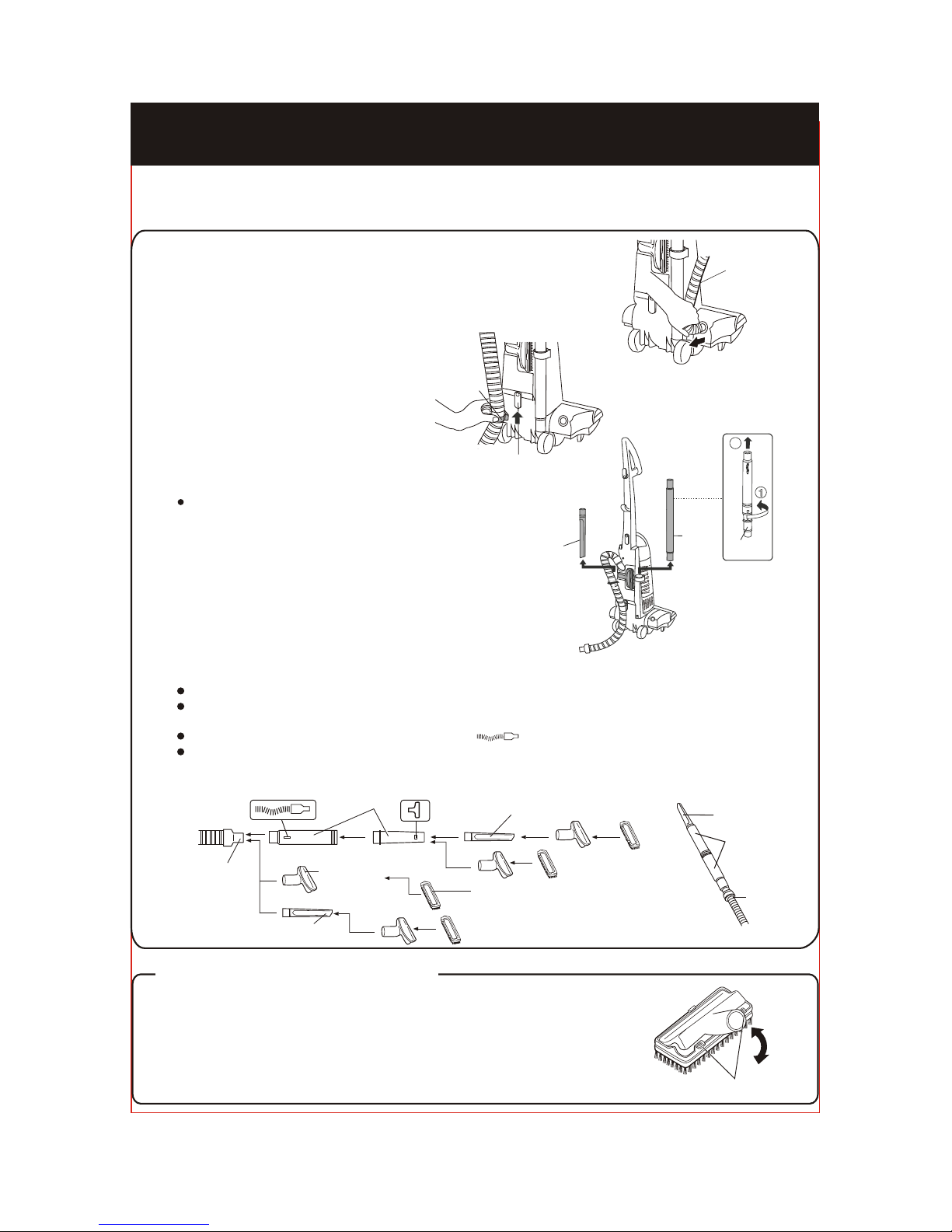

USING THE ATTACHMENTS

Caution: When using the attachments during cleaning, set the vacuum

cleaner to the upright position.

Disconnect the hose from the vacuum

cleaner.

Pull the hose gently in the direction of

the arrow todisconnect it.

Upholstery tool & Dusting brush

To detach the dusting brush from the upholstery tool: Press the

tabs on the brush downward to remove it.

To reattach the dusting brush to the upholstery tool: Insert

the front of the upholstery tool under the hook on the front of the

dusting brush. Press down on the back of the upholstery tool to

snap it into place under the dusting brush tabs.

Tabs

Hose

Hook the hose holder onto the

holder mount.

Caution:

Before using the attachments,

please make sure the hose is

hooked on the holder mount.

Remove the wands from the

vacuum cleaner.

Two wands are contained together.

Pull out the second wand as shown.

Caution:

When removing the attachments,pull

them in the directions shown in the

illustration.Pulling them in the wrong

direction or pulling them forcefully may

cause damage to the attachment ribs.

Holder

Mount

Hose

Holder

Crevice

Tool

Wands

Second

Wand

Hose

Wands

Upholstery

Tool

Crevice Tool

Dusting Brush

Crevice Tool

Wand

Hose

Trapdoor

Release Lever

Duster Handle

Turn the duster handle several times in the

direction shown to empty the dust

compartment.

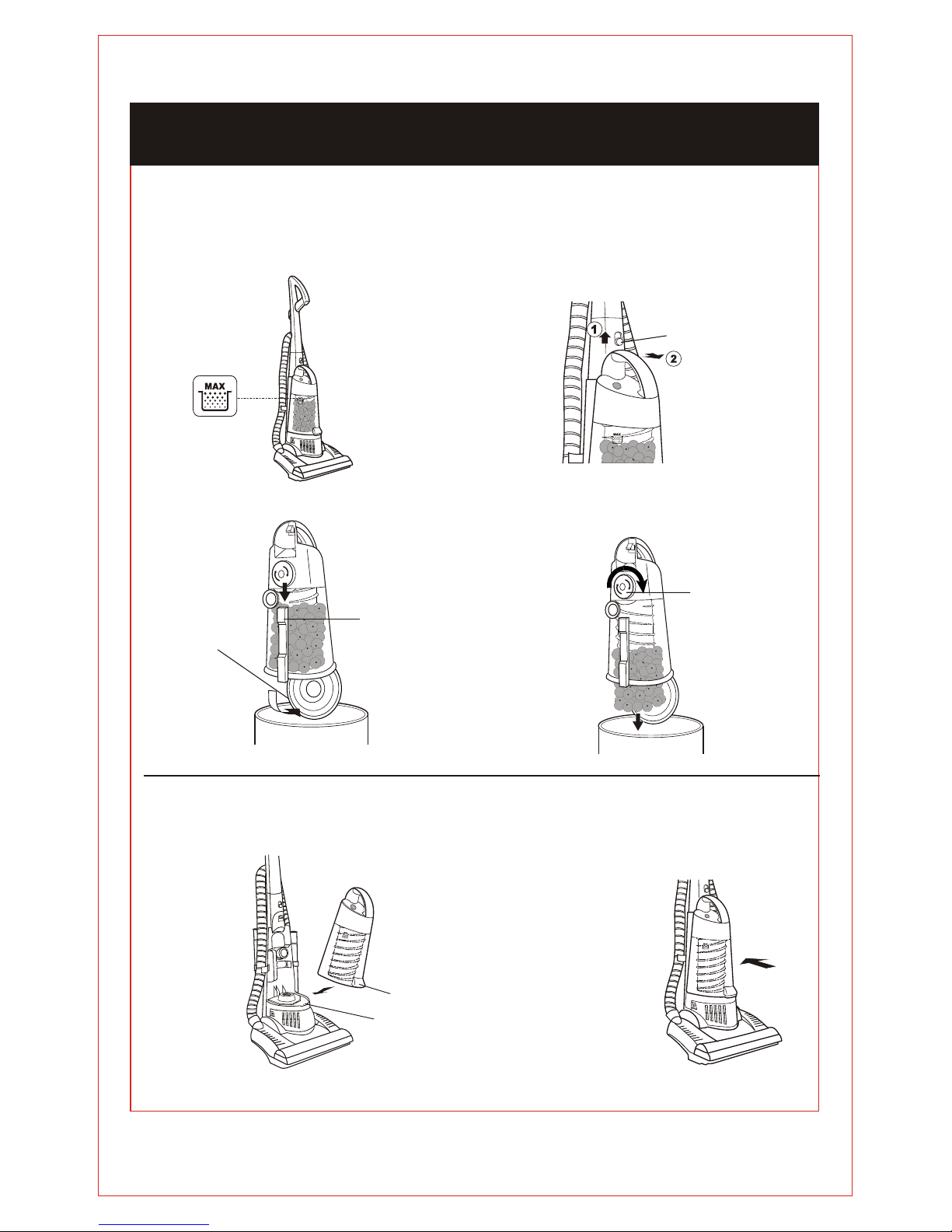

EMPTYING THE DUST COMPARTMENT

Caution: Be sure to turn the ON/OFF switch to the "OFF" position and disconnect the

power cord from the wall outlet before cleaning.

Empty the dust compartment when

contents reach the MAX mark.

Push the release button to remove the

dust compartment.

Press the release lever to open the

trapdoor.

Reattaching the Dust Compartment

Close the trapdoor and insert the projection on the

dust compartment into the groove on the main body.

Push the dust compartment into

the main body as shown to

reattach.

Release Button

Projection

Groove

MAX mark

Dust Compartment

Ribs

CLEANING THE FILTERS

Remove the dust compartment.(refer to page 8)

To maintain optimum suction power, the dust filter fins should be kept clean of dirt.

Clean the filter fins free of dirt with the end of fork as shown.

Set the dust compartment to the

parallel position. Open the trapdoor,

then push the release button B and

pull out the main filter.

The main filter and prefilter will be

removed at the same time.

Caution: Do not push the release

button B at the upright position.

As this may drop or damage the

main filter and prefilter.

Clean the main filter and prefilter with a soft-bristled brush and rinse with cold water.

Allow both items to dry completely.

Caution:

Do not use a hard-bristled brush to clean filters.

This may result in damage to the filters.

Do not attempt to dry with a hair dryer or by

placing in a clothes dryer. Hot air may cause the

filters to warp.

Reattaching the filters

Cleaning utensil

Insert the main filter into the

Close the trapdoor.

prefilter as shown.

Hold onto the main filter and insert into

the dust compartment.

Align the ribs of the main filter to match

the shape of the hole in the dust

compartment and press firmly to insert.

Prefilter

Main Filter

Fork

Release

Button B

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Aspiradora de Sanyo

Sanyo

Sanyo SC-X1000P Manual de usuario

Sanyo

Sanyo SC-F1201 - Upright Bagless Vacuum Cleaner Manual de usuario

Sanyo

Sanyo SC-K140T Manual de usuario

Sanyo

Sanyo SC-WP100 Manual de usuario

Sanyo

Sanyo SC-5006 Manual de usuario

Sanyo

Sanyo SC-B1211 Manual de usuario

Sanyo

Sanyo SC-27R Manual de usuario

Sanyo

Sanyo SC-S700P - Powerhead Canister Vacuum Cleaner Manual de usuario

Sanyo

Sanyo SC-X1000P Manual de usuario

Sanyo

Sanyo SC-A601 Manual de usuario

Sanyo

Sanyo SC 50 Manual de usuario

Sanyo

Sanyo SC-24L Manual de usuario

Sanyo

Sanyo SC 25 Manual de usuario

Sanyo

Sanyo SC-505T Manual de usuario

Sanyo

Sanyo SC-N525T Manual de usuario

Sanyo

Sanyo SC-X2015N Manual de usuario

Sanyo

Sanyo SC-150 Manual de usuario

Sanyo

Sanyo SC-TA3000 - Revo Upright Bagless Vacuum... Manual de usuario

Sanyo

Sanyo SC-27Y Manual de usuario

Sanyo

Sanyo VW-VF10BG Manual

Sanyo

Sanyo SC-X2017 SIL Manual de usuario

Sanyo

Sanyo SC-A127C - Upright Commerical Vacuum Cleaner Manual de usuario

Sanyo

Sanyo SC-X1800 Manual de usuario

Sanyo

Sanyo SC-32 Manual de usuario

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

Panasonic

Panasonic MC-YL637S147-AE Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario
