Sanyo VCC-6592P Manual de usuario
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUEL D’INSTRUCTIONS
VCC-6592P
VCC-6594P
COLOUR CCD camera
CCD-Farbkamera
Caméra CCD COULEUR
CCD
About this manual
• Before installing and using the camera, please read this manual
carefully. Be sure to keep it handy for later reference.
• This manual gives basic connections and operating instructions for 2
PAL models (VCC-6592P, 6594P).
Über diese Bedienungsanleitung
• Lesen Sie bitte vor der Montage und dem Inbetriebnehmen der Kamera
zuerst diese Bedienungsanleitung sorgfältig durch und bewahren Sie
sie zum späteren Nachschlagen auf.
• In dieser Anleitung finden Sie die Anschlüsse und die Grundbedienung
für 2 PAL-Modelle (VCC-6592P und 6594P)
A propos de ce manuel
• Avant d’installer et d’utiliser la caméra, veuillez lire ce manuel
attentivement. Gardez-le à portée de main pour toute référence
ultérieure.
• Ce manuel couvre les branchements et instructions pour l’utilisation
de base pour 2 modèles de format PAL (VCC-6592P et 6594P).
2PAL VCC-6592P, 6594P
L53H2, H4/XE GB 2001, 9, 18
1AC6P1P2424--
L53H2, H4/XE (0901KPS-DSP)
Sanyo Electric Co, Ltd.
Printed in Japan
L53H2, H4/XE GB 2001, 9, 18
Depending on the conditions of use, installation and environment,
please be sure to make the appropriate settings and adjustments. If you
need help with installation and/or settings, please consult your dealer.
CONTENTS
PRECAUTIONS........................................................................................ 2
PARTS NAMES........................................................................................ 3
CONCERNING AUTO-IRIS LENSES......................................................... 6
MOUNTING THE LENS........................................................................... 7
CONNECTIONS....................................................................................... 9
SETTINGS................................................................................................12
TROUBLESHOOTING..............................................................................18
SPECIFICATIONS.....................................................................................19
ACCESSORIES
1Lens iris plug ( -pin)..................................................................1 pc.
2Clamping core A: VCC-659 P...................................................2 pc.
VCC-6592P...................................................3 pc.
3Clamping core B: VCC-659 P...................................................1 pc.
VCC-6592P...................................................2 pc.
123
FEATURES
•Built-in interline transfer method 1/3" CCD, approx. 70,000
picture elements
•Equipped with a DSP (Digital Signal Processor) function
•Horizontal resolution, more than 520 TV lines
•High sensitivity, minimum required illumination is 0.3 lux (F1.2,
AGC HI position)
•Two types of backlight compensation functions (multi-spot
photometry and center focus photometry)
•Low smear, anti-blooming, low lag, no burning and no geometric
distortion using the CCD solid state image device.
•100% solid state components giving excellent immunity to shock
and vibration
•Not subject to interference from magnetic or electrostatic fields
•Power supply: 2 V AC operation (VCC-659 P)
12 V DC operation (VCC-6592P)
L53H2, H /XE GB 2001, 9, 18
English 1
RECAUTIONS
In case of problem
Do not use the camera if smoke or a strange odour comes from the
unit, or if it seems not to function correctly. Disconnect the power
cord immediately, and consult your dealer (or a Sanyo Authorized
Service Centre).
Do not open or modify
Do not open the cabinet, as it may be dangerous and cause damage
to the unit. For internal settings and repairs, consult your dealer (or a
Sanyo Authorized Service Centre).
Do not put objects inside the unit
Make sure that no metal objects or flammable substance get inside
the camera. If used with a foreign object inside, it could cause a fire,
short-circuits or damages.
If water or a liquid gets inside the camera, disconnect the power cord
immediately, and consult your dealer (or a Sanyo Authorized Service
Centre). Be careful to protect the camera from rain, sea water, etc.
Be careful when handling the unit
To prevent damages, do not drop the camera or subject it to strong
shock or vibration.
Install away from electric or magnetic fields
If installed close to a TV, radio transmitter, magnet, electric motor,
transformer, audio speakers the magnetic field they generate will
distort the image.
rotect from humidity and dust
To prevent damages to the camera, do not install it where there is
greasy smoke or steam, where the dampness may get too high, or
where there is a lot of dust.
rotect from high temperatures
Do not install close to stoves, or other heat generating devices, such
as spotlights, etc., or where it could be subject to direct sunlight, as
that could cause deformation, discoloration or other damages.
Be careful when installing close to the ceiling, in a kitchen or boiler
room, as the temperature may raise to high levels.
Install where the temperature range will stay between –10˚C and
50˚C.
(no condensation)
Cleaning
•Dirt can be removed from the cabinet by wiping it with a soft
cloth. To remove stains, wipe with a soft cloth moistened with a
soft detergent solution and wrung dry, then wipe dry with dry
soft cloth.
•Do not use benzine, thinner or other chemical product on the
cabinet, as that may cause deformation and paint peeling.
Before using a chemical cloth, make sure to read all
accompanying instructions. Make sure that no plastic or rubber
material comes in contact with the cabinet for a long period of
time, as that may cause damage or paint peeling.
ENGLISH
L53H2, H /XE GB 2001, 9, 18
2 English
ARTS NAMES
1Video output connector (VIDEO OUT: BNC type)
Connect this connector to a device such as a VCR or monitor with a VIDEO IN connector.
2ower input terminal
•VCC-6592P: 12 V DC input terminal (12 V DC, GND)
•VCC-659 P: 2 V AC input terminal (AC 2 V, AC 2 V, GND)
3Y/C OUT connector (4 pin)
Separate Y (luminance) and C (chroma) signals are output from this terminal.
A better picture quality is obtained if the monitor or VCR is connected to this connector.
1Y signal ground 2C signal ground
3Y signal: 1.0 Vp-p, 75 ohms, unbalanced, negative sync
4C signal: 0.3 Vp-p, 75 ohms, unbalanced
4ower indicator ( OWER)
Comes on when the power to the camera is on.
5External sync composite video signal input connector
(VBS IN: BNC type)
Connect to this connector the synchronizing signal output from a synchronizing signal device or the composite
signal of a video distributor.
6Line phase adjustment volume (LINE HASE) (VCC-6594 only)
When using two cameras or more, the image on the monitor may roll vertically when switching sources. This
rolling can be minimized by turning this volume.
14
2
5
3
12
4
3
14
6
2
(VCC-6594P)
(VCC-6592P)
L53H2, H /XE GB 2001, 9, 18
English 3
ARTS NAMES
7Lens mount cap
The cap is installed to protect the lens mount section.
Remove the lens mount cap before installing a lens (sold separately).
8Flange-back adjustment screw (FLANGE BACK ADJ.)
9Flange-back lock screw (FLANGE BACK LOCK)
FCamera installation bracket
The bracket can be fixed at the top or bottom of the camera. When fixing the bracket, be sure to use the
longer screws and install the shorter screws on the opposite side to seal the openings.
CAUTION:
When installing the camera support, select a location that can support the total weight of the
camera and accessories.
1Shorter screws: M3 x 4
2Longer screws: M3 x 6
3Camera mounting screw
hole: 1/4"-20 UNC
1232
1
F
78
9
L53H2, H /XE GB 2001, 9, 18
4 English
ARTS NAMES
GLens iris output connector (LENS)
This -pin connector is used to send the DC control signal and power supply to an auto-iris type lens.
HCamera setup section (under the cover)
These settings are for when using a 1/3 inch CS mount DC (without EE internal amplifier) type lens. However,
if due to installation conditions or environment the settings may need to be modified for best results (see
"SETTINGS"). To access the controls, remove the cover fixing screw, then remove the cover.
NOTE: When using a 1/2 or 2/3 inch C mount VIDEO (with EE internal amplifier) auto-iris type lens, set the
A.I. LENS switch to the VIDEO position.
H
G
L53H2, H /XE GB 2001, 9, 18
English 5
CONCERNING AUTO-IRIS LENSES
DC type auto-iris lens
A lens without amplifier circuit that operates only on a DC power source. In general, this type of lens is
referred to as DC type coil lens or DC type non-amplifier lens.
(Set the A.I. LENS switch to the DC position.)
VIDEO type auto-iris lens
A lens with amplifier circuit that operates on video signal and DC power source. In general, this type of lens is
referred to as EE amplifier type lens.
ALC and LEVEL volume level controls are available on the lens for iris adjustments.
(Set the A.I. LENS switch to the VIDEO position.)
Compatible auto-iris lenses
1/3 inch Sanyo DC type lens VIDEO type lens
VCL-CS8LY: Standard angle, f= 8 mm Standard angle, f= 9 mm
VCL-CS LY: Wide angle, f= mm Telephoto angle, f= 12 mm
VCL-CS2LY: Ultra-wide angle, f= 2.8 mm Greater telephoto angle, f= 16 mm
If using a VIDEO type auto-iris lens
•Set the ALC and LEVEL controls on the lens to adjust the iris. Normally the ALC volume should be turned
all the way to Av (Average).
•Depending on the type of lens used, the lens may not perform properly. In such a case, adjust the LEVEL
volume on the lens casing to correct.
DC
VIDEO
A. I.
LENS
VR301
L53H2, H /XE GB 2001, 9, 18
6 English
MOUNTING THE LENS
Please se a DC type a to-iris lens (sold separately).
Check the lens mount
Do not use a lens if the length “L” is more than 5 mm. That may damage the
camera and prevent proper installation.

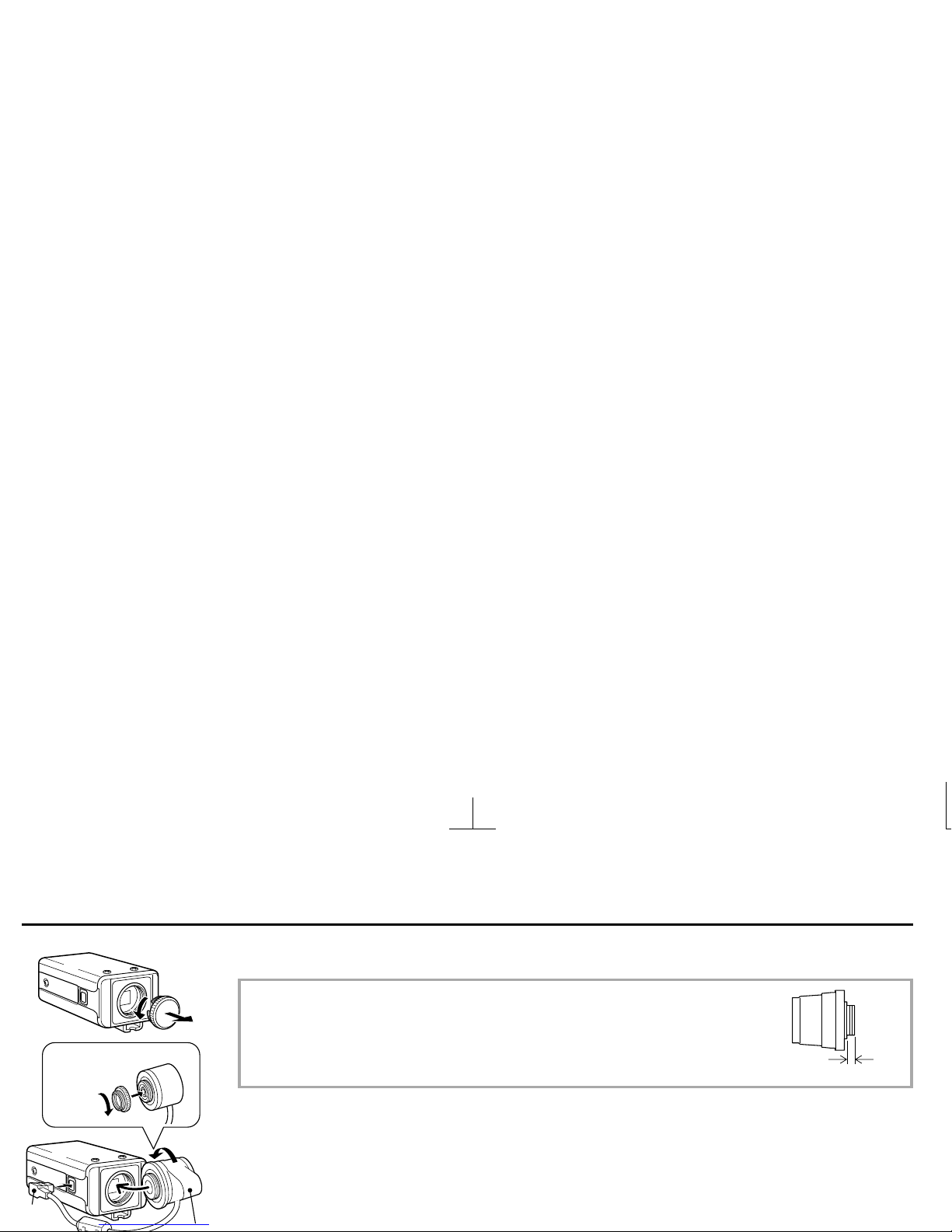

1Remove the lens mount cap from the camera.
2Install the auto-iris lens.
CS mount type lens
Carefully align the lens mount with the camera opening, then turn the lens slowly to install it.
C mount type lens
To allow for flange-back adjustment, install the C-mount adaptor (option) on the lens mount, then carefully
align the lens mount with the camera opening and turn the lens slowly to install it.
3Connect the lens plug to the lens iris output connector (LENS) on the side of the camera.
When using lenses from other makers, the plug shape may not correspond to the terminal on the camera.
In such a case, remove the original plug and using a soldering iron, connect the supplied lens iris plug
according to the diagram. (Refer to page 8.)
NOTE: When using an auto-iris lens, the supplied clamping core B must be installed on the lens wire, in
order to prevent electromagnetic interference to the other devices connected.
L
C mount type lens
1
2
2
3
CS mount
type lens
L53H2, H /XE GB 2001, 9, 18
English 7
MOUNTING THE LENS
Rewiring the lens cable in the lens iris pl g
1repare the lens cable.
Cut the cable at the plug, then remove approx. 8 mm of the cable sheath and strip about 2 mm from each wire.
2Install the lens iris plug.
Solder the cable to the pins following the correct pin layout (refer to the table and illustrations), then close
the plug cover.
in layout
DC type lenses VIDEO type lenses
1Brake coil (–) +12 V DC (50 mA max.)
2Brake coil (+) Not used
3Drive coil (+) Video output (1.0 Vp-p, high impedance)
4Drive coil (–) Ground (for video signal and DC power)
Flange-back adj stment
If the pick-up surface is not correctly positioned with relation to the lens focal point, the picture will be out of
focus (in particular when using auto-iris power zoom lenses, sold separately). If that is the case, adjust the
flange-back position as described below.
1Using a + screwdriver, loosen the FLANGE BACK LOCK screw (M2:+).
2Set the zoom lens to the maximum telephoto position, set the focus using the focus ring on the lens.
3Set the zoom lens to the maximum wide angle position, set the focus using the FLANGE BACK ADJ. screw.
4Repeat steps 2 and 3, until the image stays in focus when changing from a telephoto shot to a wide angle shot.
When the setting is complete, tighten the FLANGE BACK LOCK screw.
1
2
43
1
43
1
22
2, 3
1
4
LOCK
3
ADJ.
L53H2, H /XE GB 2001, 9, 18
8 English
Otros manuales para VCC-6592P
2
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Cámara de seguridad de Sanyo
Sanyo
Sanyo VDC-HD3100 - Full HD 1080p Vandal Dome... Manual de usuario
Sanyo
Sanyo VCC-P7574 - 1/4" Color CCD Indoor Mini Dome... Manual de usuario
Sanyo
Sanyo Security Camera Manual de usuario
Sanyo
Sanyo VCC-6974 Manual de usuario
Sanyo
Sanyo VCC-6584E - 1/3" Color CCD DSP High-Resolution... Manual de usuario
Sanyo
Sanyo VCC-WD8874 - Wide Dynamic Range Color Manual de usuario
Sanyo
Sanyo VDC-DP7584N - 1/4" Color CCD Vandal-Resistant Dome... Manual de usuario
Sanyo
Sanyo VCC-HD2500 - Full HD 1080p Network Camera Manual de usuario
Sanyo
Sanyo VCC-6584 Manual de usuario
Sanyo
Sanyo VCC-4312P Manual de usuario
Sanyo
Sanyo VCC-6592PC Manual de usuario
Sanyo
Sanyo VCC-HD2100 - Full HD 1080p Network Camera Manual de usuario
Sanyo
Sanyo VCB-3574IRP Manual de usuario
Sanyo
Sanyo VDC-D1785IRVP Manual de usuario
Sanyo
Sanyo VCC-WD8874 - Wide Dynamic Range Color Manual de usuario
Sanyo
Sanyo VCC-4795P Manual de usuario
Sanyo
Sanyo VCC-P7574N - 1/4" Color CCD Indoor Mini Dome... Manual de usuario
Sanyo
Sanyo VCC-HD5400 Guía del usuario
Sanyo
Sanyo VCC-9300 Manual de usuario
Sanyo
Sanyo VCC-WD8574 Manual de usuario
