Sanyo RM-5090 Manual de usuario
RM-5090
INSTRUCTION MANUAL

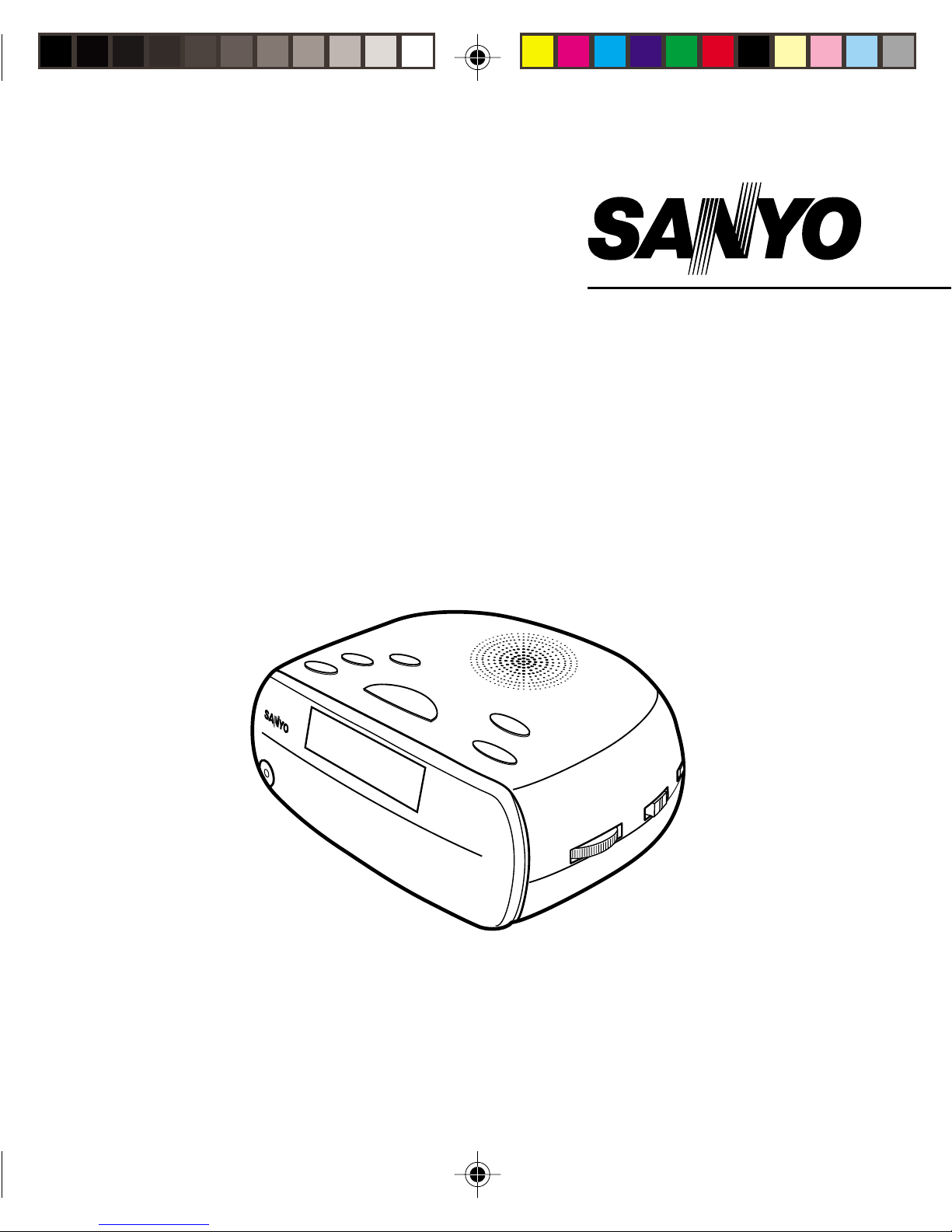

AM/FM Digital Alarm Clock Radio
RM-5090/AU 10/05/2003, 9:481
1
PRECAUTIONS
CAUTION:
THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING. NO OB-
JECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE
APPARATUS.
The rating label is located on the bottom of the unit.
- Keep the radio away from heating appliances and electric sources that could cause
static on the radio such as fluorescent lamps and motors.
- Do not play your earphone at a high volume level. Hearing experts advise against
continuous extended play.
If you experience a ringing in your ears, reduce the volume or discontinue use.
- To keep the cabinet clean, wipe off dust and stains with a soft damp cloth.
DO NOT USEA SOLUTION CONTAINING BENZOL OR PETROLEUM PRODUCTS.
- Do not install this equipment in a confined space, such as a book case or built in cabinet.
RM-5090/AU 10/05/2003, 9:482
2
1
3
456 7 8
9
10
11
12
13
14
2
CONTROLS
1. Earphone socket (EAR)
2. PM indicator (PM)
3. Time button (TIME)
4. Volume control (VOLUME)
5. Alarm button (ALARM)
6. Sleep button (SLEEP)
7. Snooze button (SNOOZE)
8. Display
9. Hour button (HOUR)
10. Minute button (MIN)
11. Function switch (ON/OFF/ALARM-RADIO/ALARM-BUZZER)
12. Band switch (AM/FM)
13. Tuning control ( bTUNING a)
14. Alarm indicator (ALARM)
RM-5090/AU 10/05/2003, 9:483
NOTE:
If the time display is blinking when the mains returns after a failure, the back-up battery
is exhausted and must be replaced.
BATTERY BACK-UP SYSTEM
This unit incorporates a battery back-up system which protects the clock, sleep timer and
wake-up alarm functions from the mains failure with the battery installed. During the
mains interruption, the clock display will go out, but the clock movement remains in
operation. The time display will be resumed when the mains return.
Reset the time if the display time is incorrect.
When the mains lead is connected to the AC outlet for the first time, or when the mains
returns after a failure longer than the battery life, the display will blink.
In this case, set the clock and timer again.
3
BACK-UP BATTERY INSTALLATION
Connect a standard 9V (006P/6F22) battery (not included) to the snap-on terminal match-
ing the polarity.
1. 2.
RM-5090/AU 10/05/2003, 9:484
PM
POWER SUPPLY
Connect the mains lead to an AC 230-240V, 50Hz wall outlet.
- The function switch is mounted on the secondary side. The unit is not disconnected
from mains, even switched off.
Earphone
Connect earphone (not supplied) to the EAR socket for monitoring or for private listening.
The speakers are automatically disconnected when earphone is connected,
ADJUSTING THE CLOCK
Example:
To set “PM 6:30”
1. Set the function switch to OFF.
2. While holding the TIME button down, push the HOUR or MIN button respectively to
select the current time.
3. Release the TIME button.
4
RM-5090/AU 10/05/2003, 9:495
LISTENING TO THE RADIO
1. Set the function switch to ON.
2. Set the BAND switch to AM or FM.
3. Turn the TUNING control to tune in a station.
4. Adjust the VOLUME control as desired.
5. To turn the radio off, set the function switch to OFF.
Aerials
- For AM reception, rotate or relocate the unit to a different position to improve the recep-
tion of a distant or weak station.
- For FM reception, a short wire aerial is provided. Unwind the short wire aerial and
extend it to full length.
WAKE-UP TIME SETTING
Example:

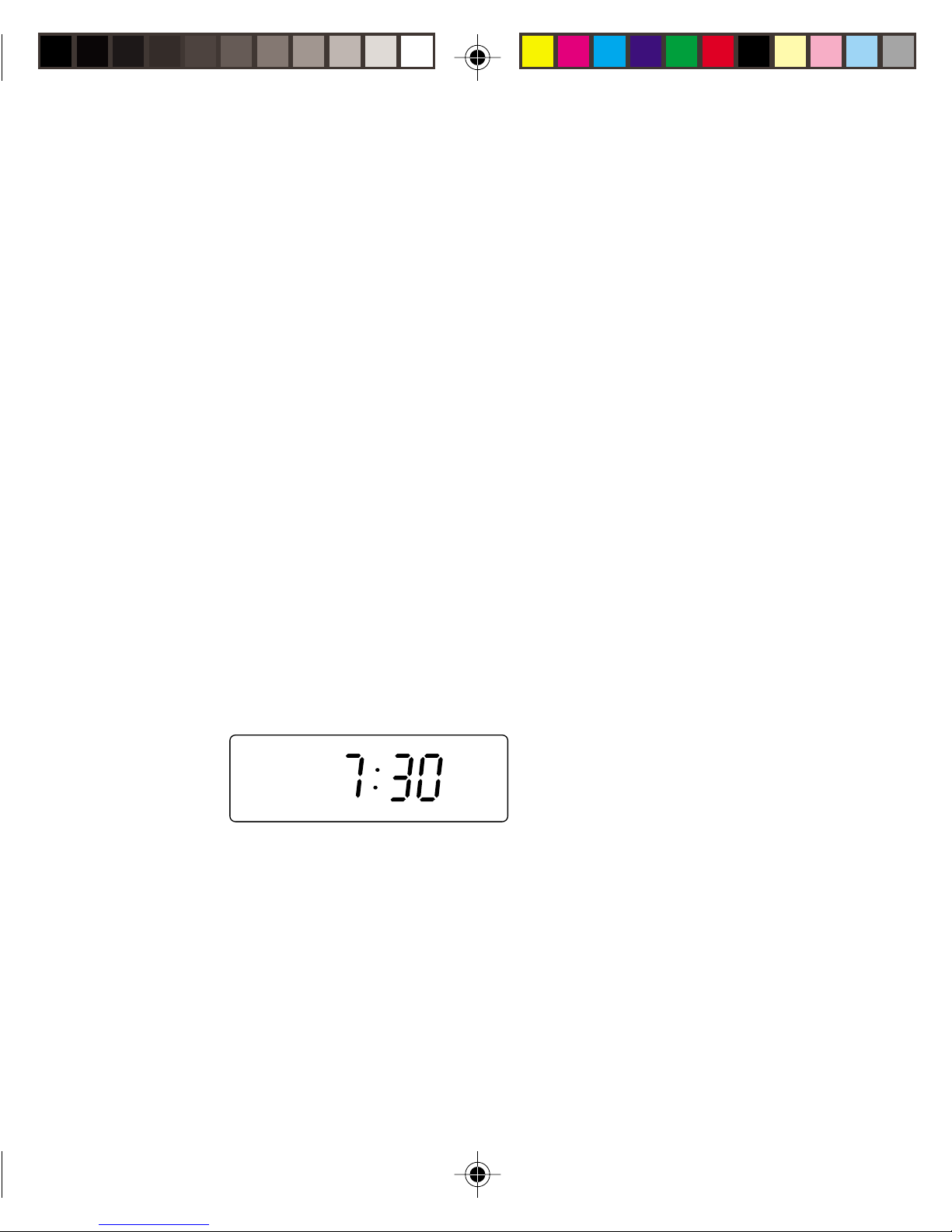

To set the wake up time AM 7:30
1. Set the function switch to OFF.
2. While holding the ALARM button down, push the HOUR or MIN button respectively to
select the wake-up time.
3. Release the ALARM button.
NOTE:
If you want to check the time setting, simply push the ALARM button.
5
PM
RM-5090/AU 10/05/2003, 9:496
USING THE WAKE-UP TIMER
1. If you want to wake up with the radio, tune in the station and adjust the volume level
first.
2. Set the wake-up time. (See “WAKE-UP TIME SETTING”.)
3. Set the function switch to ALARM-RADIO or ALARM-BUZZER.
ALARM-RADIO: Wake up with the radio
ALARM-BUZZER: Wake up with the buzzer.
The ALARM indicator lights. The timer is set.
When the timer ON time arrives, the radio or buzzer will sound for approximately 1 hour and
59 minutes and then turn off automatically. The wake-up timer will function every day un-
less it is released.
To stop the radio or buzzer, push the ALARM button.
To release the timer, set the function switch to OFF.
SNOOZE MODE
During the wake-up timer is operating, press the SNOOZE button. The radio or buzzer
will stop for approximately 9 minutes but will start again and this will be repeated.
NOTES:
- If the SNOOZE button is not pressed, the radio or buzzer will sound for approxi-
mately 1 hour and 59 minutes and then turn off automatically.
- To cancel the snooze mode, push the ALARM button or set the function switch to
OFF.
6
RM-5090/AU 10/05/2003, 9:497
USING THE SLEEP TIMER
1. Set the function switch to OFF, ALARM-RADIO or ALARM-BUZZER.
2. Push the SLEEP button.
“0:59” (59 minutes) appears. The radio turns on and will turn off automatically after 59
minutes.
- To select the desired time, while holding the SLEEP button down, push the HOUR
(once) or MIN button repeatedly to select the sleep time (up to 1 hour and 59
minutes). Release the SLEEP button.
NOTES:
- To release the sleep timer while in operation, push the SNOOZE button.
- If the SLEEP button is pushed while in operation, it returns to “0:59” as above.
USING THE SLEEP TIMER AND WAKE-UP TIMER
1. Set the wake-up time and select ALARM-RADIO or ALARM-BUZZER.
(See “WAKE-UP TIME SETTING” and “USING THE WAKE-UP TIMER”.)
2. Set the sleep time. (See “USING THE SLEEP TIMER”.)
3. Tune in a station and adjust the volume level as desired.
7
RM-5090/AU 10/05/2003, 9:498
(AU) 1AD6P1P1922-- SANYO Electric Co., Ltd.
Printed in China
SPECIFICATIONS
Output power:
400 mWatts (AC max.)
Speaker
6 cm
Tuning ranges:
AM: 526.5 - 1605.5 kHz
FM: 87.5 - 108 MHz
Antennas:
Built-in ferrite bar and antenna lead
wire
Power source:
AC: 230-240V, 50 Hz
DC: 9 V (Clock back-up, 006P type,
not supplied)
Power consumption:
7 Watts
Dimensions
Approx. 182 x 142 x 62 mm
Weight:Approx. 620 g (Without battery)
Specifications subject to change without
notice.
RM-5090/AU 10/05/2003, 9:499
