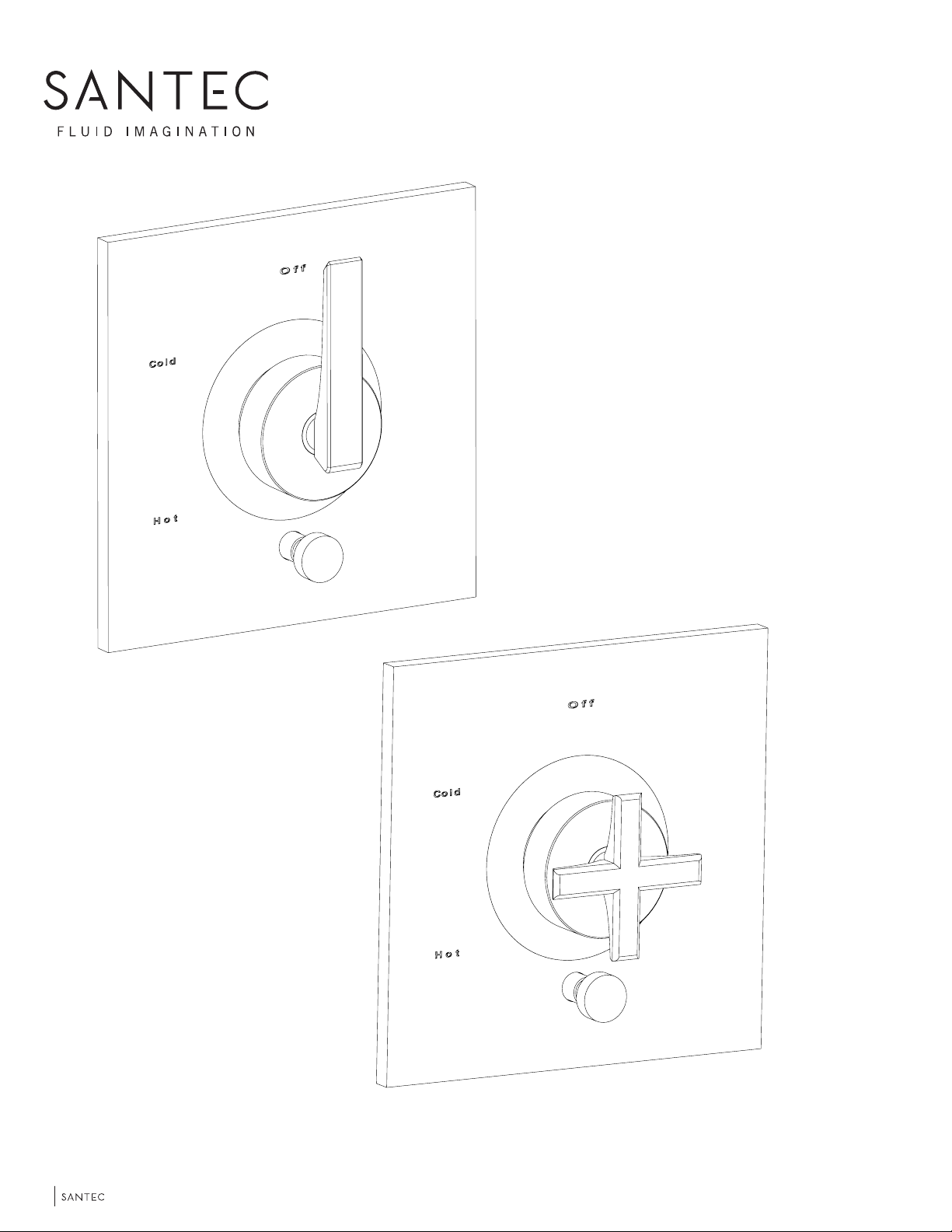

Santec KATANA E Series Manual de usuario

E-SERIES: KATANA COLLECTION

PRESSURE BALANCEDWITH DIVERTER/TRIM ONLY

MODEL: 4735SQ

4735SR

K E EP THIS INST R U CTIONBOOKLET FOR FU T U R E REFERENC E

0 1

*4735SQ

*4735SR

0 2

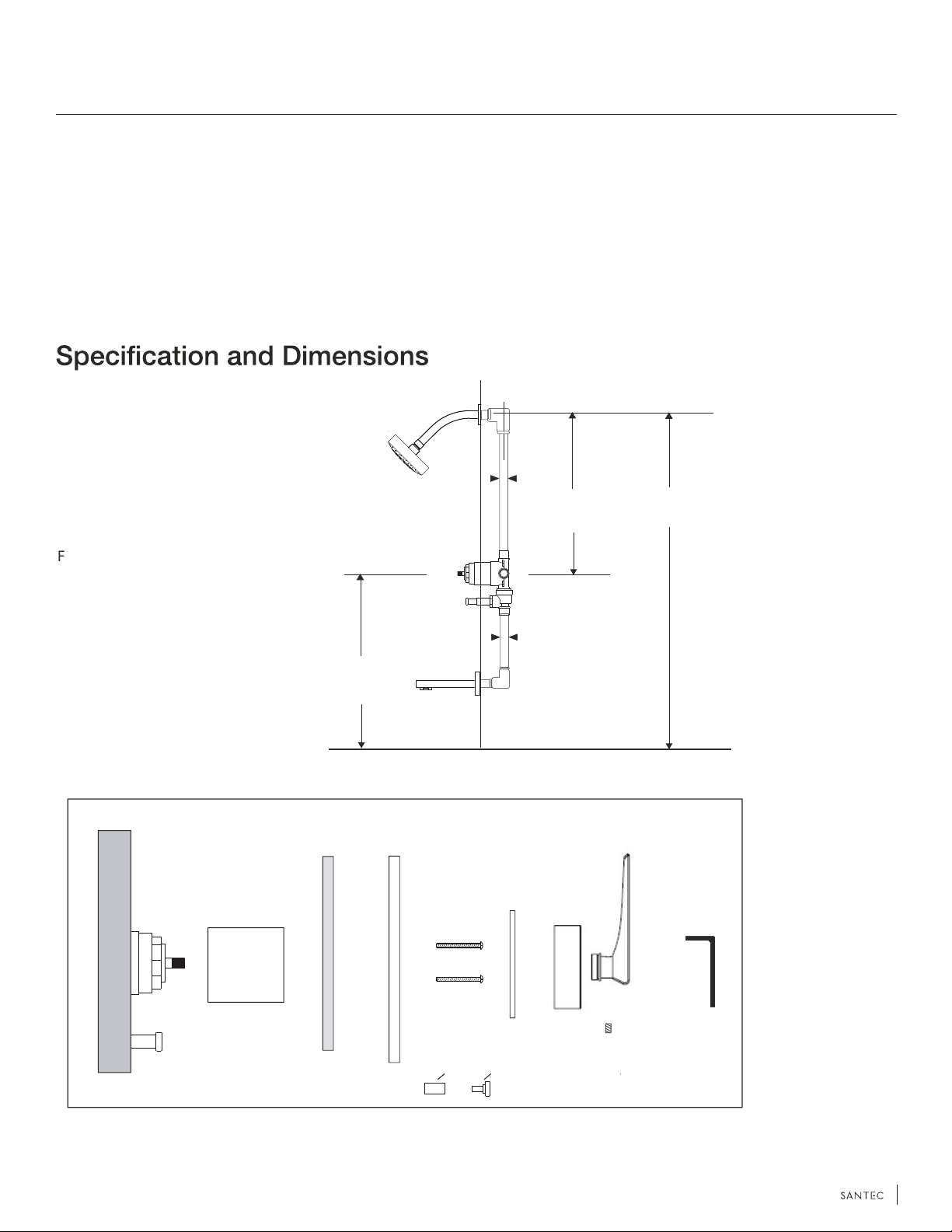

Specications

Description

This product is precision engineered to provide satisfactory performance provided it is installed and

operated in accordance with our recommendations contained in this manual. In order to fully enjoy the

comfort, safety, and the reliability of your pressure balancing valve, be certain to familiarize yourself with the

contents of this manual.

Minimum operating pressure 20 psi

Maximum operating pressure 145 psi

Maximum test pressure 500 psi

Hot and cold water inlets ½" IPS

Shower outlet ½" IPS

Flow capacity 5 USgpm @ 50 psi

WALL LINE

78"

(914 mm) (1981 mm)

FLOOR

LINE

½”

33"

Min 36"

Trim

plate

Handle

Set screw

Allen

key

Foam

strip

Sleeve

Finished Wall

Plate

screws

Plate

cover

(838 mm)

Diverter

sleeve Diverter

knob

Bell

Thread the diverter knob through the sleeve onto the valve-

0 3

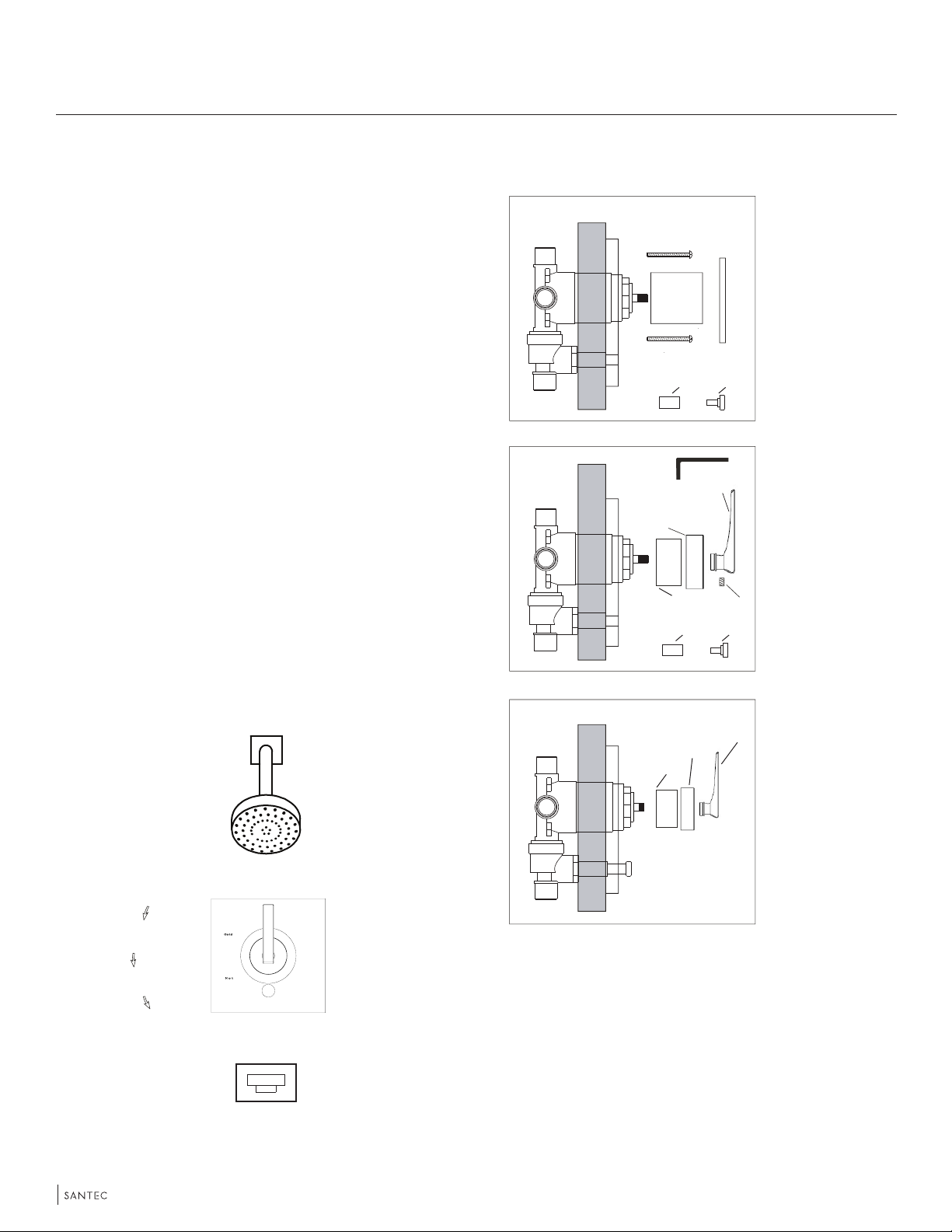

Trim

TRIM PLATE & PLATE COVER

Fit sleeve onto valve until it bottoms out.

Place foam strip around the inner edge of the shower plate.

Press the shower plate against the wall.

Screw the 2 plate screws through the plate holes and onto the

valve’s screw holes. Tighten both screws rmly.

Fit the plate cover over the sleeve and press it all the way into

the trim plate.

DIVERTER

Thread the diverter sleeve onto the valve-

HANDLE

Insert the handle onto the valve stem. Turn the handle

clockwise until it reaches the end. Reposition the handle to

Using the provided Allen key, insert the set screw onto the

handle, then press the handle against the valve’s stem tighten

rmly.

Adjust the height of the handle if it is scraping against the

shower plate.

Insert the plug into the handle set screw hole.

Plate cover

Handle

Set screw

Allen key

Bell

Trim plate

Sleeve

Finished wall

Plate screws

Trim plate

C O LD

WARM

WARMER

HOT

Sleeve

Handle

Sleeve

Diverter

knob

Diverter

Sleeve

Diverter

knob

Diverter

Sleeve

Bell
