Sanremo F18SB Installation & Quick Start Guide

Disclaimer: Installation must be performed by professional technician. Improper installation can void warranty, permanently damage equipment and/or present burn

& electrical hazard to installer/user. Consult with local municipality for official electrical and plumbing codes/guidelines.

Consult user manual for expanded installation, operation, and safety guidelines.

Dimensions

Water Requirements

Electrical Requirements

2 Group

3 Group

Receptacle & Plug Configuration

•Volts: 220 (voltage range of 208-240) 60Hz

•Single phase / 3 wire (2 hot + 1 ground)

•Watts: 3200

•Amp draw: 15A

•Receptacle / plug: NEMA 6-30

•Plug included

•Volts: 220 (voltage range of 208-240) 60Hz

•Single phase / 3 wire (2 hot + 1 ground)

•Watts: 5650

•Amp draw: 24A

•Receptacle / plug: TBD

•Plug included

2 Group

3 Group

Connection & Counter Hole Diagrams

3” hole in counter recommended for passage of

electrical cord & water/drain lines.

Counter hole placement recommended to be

center of machine and 12.5” inward from edge of

the drip tray.

First start (boiler fill) procedure

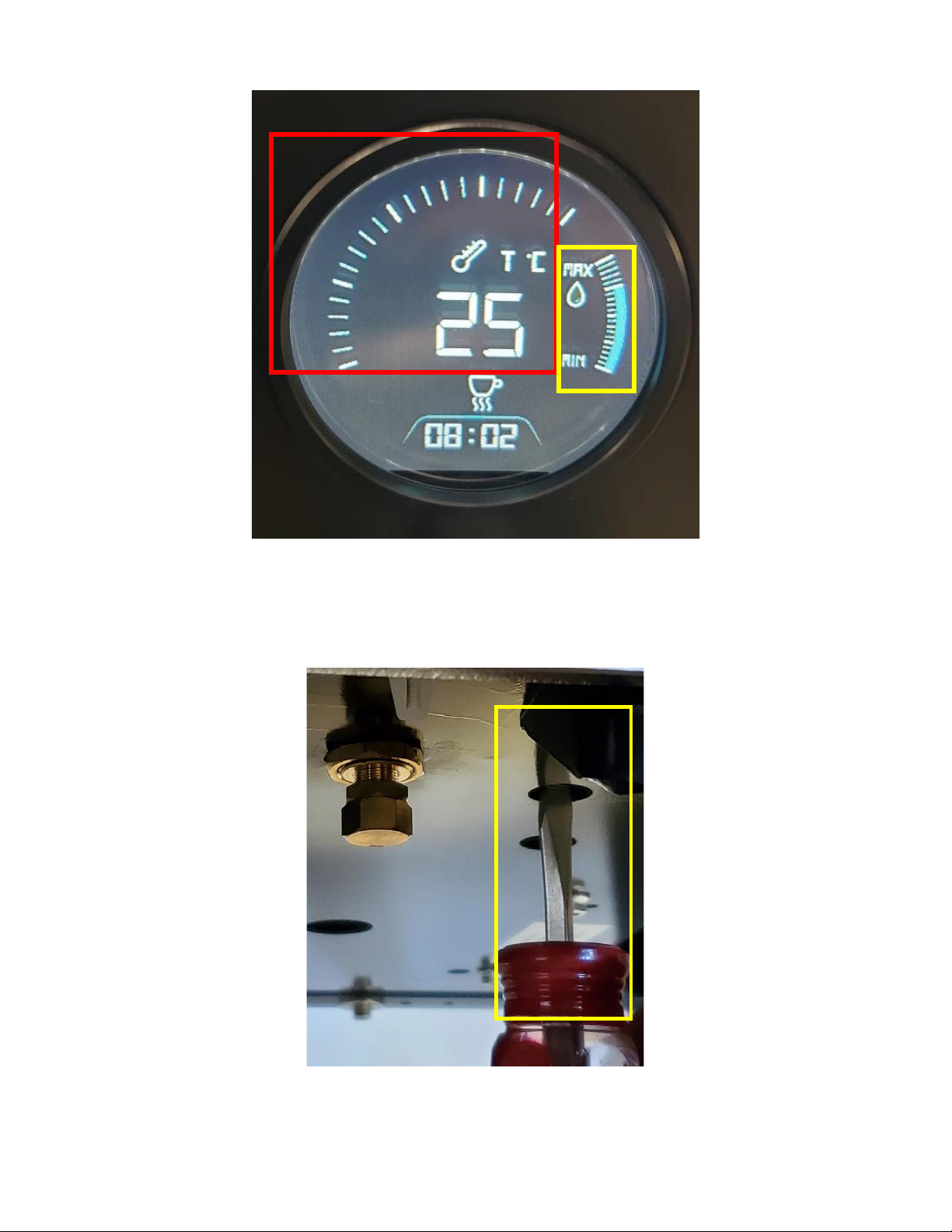

Display readout

Pump adjustment

Prepare a portafilter with coffee at the desired dose/grind calibration and insert into the group. Turn group on by

selecting the continuous (SR logo) button, insert stubby screwdriver into pump hole and adjust WHILST the group is

extracting the coffee.

STEAM BOILER TEMPERATURE

OR PRESSURE (USER CAN SET)

STEAM BOILER

WATER LEVEL

Adjusting water mix for hot water tap

Water mix valve located near water pipe connection

Group Volumetric Programming

•Press and hold Sanremo logo (continuous) button on group 1 (left most group) until touchpad LED’s

begin flash and pressure display reads ‘DOSES SETTING SELECT DOSE IN 30 S’.

•Insert coffee prepped portafilter into group and select dose button for programming.

•When desired volumetric dose has been reached, press the same dose button to store volumetric

program.

•Repeat steps 2 & 3 for remaining dose buttons.

•Follow same procedure to program hot water tap dispensing volume.

•When finished, do not touch any of the group buttons for 30 seconds. Machine will then store program

and transfer to the remaining groups.

PRESS AND HOLD TO ENTER

VOLUMETRIC PROGRAMMING

Individual Group Cleaning Mode

Accessing Programming Menu

•Press and hold Sanremo logo (continuous) button on group 1 (left most group) until ‘HEATING CUP’ is read on pressure display.

•If continuous button is released when display reads ‘DOSES SETTING SELECT DOSE IN 30 S’, DO NOT press group buttons or volumetric

programming will be overwritten. Please wait for volumetric programming to time out after 30 seconds (Doses setting message will

disappear from pressure display) and re-try holding the continuous button to enter programming menu.

Programming Menu Options

Cup warmer settings

Barista lights (if equipped)

Eco modes & settings

Fine tune group recipes

Pre-brew settings

Group flush notification to

maintain optimal extraction

temperature

Date/time settings & auto

on/off settings

Machine counters

Deep clean all groups.

*NOTE* Once started, it

cannot be interrupted.

Exit programing

Navigating Programming

Long dose buttons to change category

Short dose buttons will light up when category is

selected. These are used to change category values.

Continuous (Sanremo logo) button to enter categories / store values

HOLD

PRESS

Warranty Terms and Conditions

*** Submit at time of installation ***

Client Name

Date

Machine Model

Machine Serial N°

N°ofGroups

Supply Voltage

Location Address

Type

Install Date

Installed By

Water Quality Report (Before & After Filtration)

TDS:

ppm

Total Hardness:

ppm

pH:

Chlorides:

ppm

Total Alkalinity:

ppm

Total Chlorine:

ppm

Iron:

ppm

TDS:

ppm

Total Hardness:

ppm

pH:

Chlorides:

ppm

Total Alkalinity:

ppm

Total Chlorine:

ppm

Iron:

ppm

Recommended Water Specifications

•

Dedicated cold water line with shut-oﬀ valve

•

Minimum incoming line pressure of 29 PSI / 2

BAR and max line pressure of 65 PSI / 4.5 BAR

Total Dissolved Solids (TDS):

30-150 ppm

Total Hardness:

Below 85 ppm

pH:

6.5-8

Chlorides:

*Any presence of Chlorides can causecorrosion*

5-15 ppm

Total Alkalinity:

35-75 ppm

Total Chlorine:

0 ppm

Iron:

0 ppm

Water levels outside of these parameters can void warranty.

Consult with a water filtration professional for water testing

and recommended systems.

E-mail Form and supporting

media to tech@sanremous.com

I have read and acknowledge the above

Client Name:

Client Signature:

Date:

SANREMO Coﬀee Machines USA

99 Grand Street - Unit 20

Moonachie, NJ 07074 Direct Technical Department Line: 201-856-1705

Water Filtration Make

Model

Details (Please Send Photos of Installation and Filtration Setup)

SANREMO Srl guarantees that the machines and the components

supplied are free from defective material and / or workmanship

for a period of twelve (12) months from invoice date.

The warranty does not cover any faults or malfunctions due to

normal wear and tear, inappropriate use and / or use not in

accordance with normal operation, the use of non-original spare

parts and non-compliance with what is indicated in the use and

maintenance manual delivered together with the machine,

accidental events, unauthorized modiﬁcations or adaptations,

tampering, anomalies caused by electrical and hydraulic systems

or inadequate water ﬁltering and insects infestation.

In the case a failure is found; labor, diagnosis fees, travel fees

are not included in the warranty, nor are freight costs in cases of

shipping.

During the warranty period, all parts that are deemed defective

based on the judgment of SANREMO TSD (Technical Service

Department) will be replaced.

SANREMO Srl has the right to make changes to its products at any

time necessary for technical and / or aesthetic reasons, reserving

all rights deriving from these changes.

Consult with Sanremo TSD prior to performing any warranty

repairs.

Terms & Conditions
