Sangean WR-12 Manual de usuario

中文

Rersion 1

WR-12

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

Do not install near any heat sources such as radiators, heat

registers, stoves, or other apparatus (including ampliers) that

produce heat.

Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than

the other. A grounding type plug has two blades and a third

grounding prong. The wide blade or the third prong is provided

for your safety. If the provided plug does not t into your outlet,

consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

Important Safety Instructions

10.

Only use attachments/accessories specified by the

manufacturer.

Use only with the cart, stand, tripod, bracket, or table specied

by the manufacturer, or sold with the apparatus. When a cart is

used, use caution when moving the cart/apparatus combination

to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused

for long periods of time.

Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged. liquid has been

spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate

normally, or has been dropped.

To Reduce the Risk of Fire or Electric Shock, Do not Expose

This Appliance To Rain or Moisture.

The Shock Hazard Marking and Associated Graphical Symbol

is provided on the bottom panel of unit.

11.

12.

13.

14.

15.

16.

Apparatus shall not be exposed to dripping or splashing and no

objects lled with liquids, shall not be placed on the apparatus.

Excessive sound pressure on ear- and headphones could

impair the hearing ability. Higher setting that idle on the

equalizer leads to higher signal voltages on the output for ear

and headphones.

The power plug should be close to the radio, and easy to be

approached that during the emergency, to disconnect the power

from the radio, just unplug the power plug from the AC power

slot.

Where the MAINS plug or an appliance coupler is used as the

disconnect device, the disconnected device shall remain readily

operable.

17.

18.

19.

20.

/ 50W / 50W

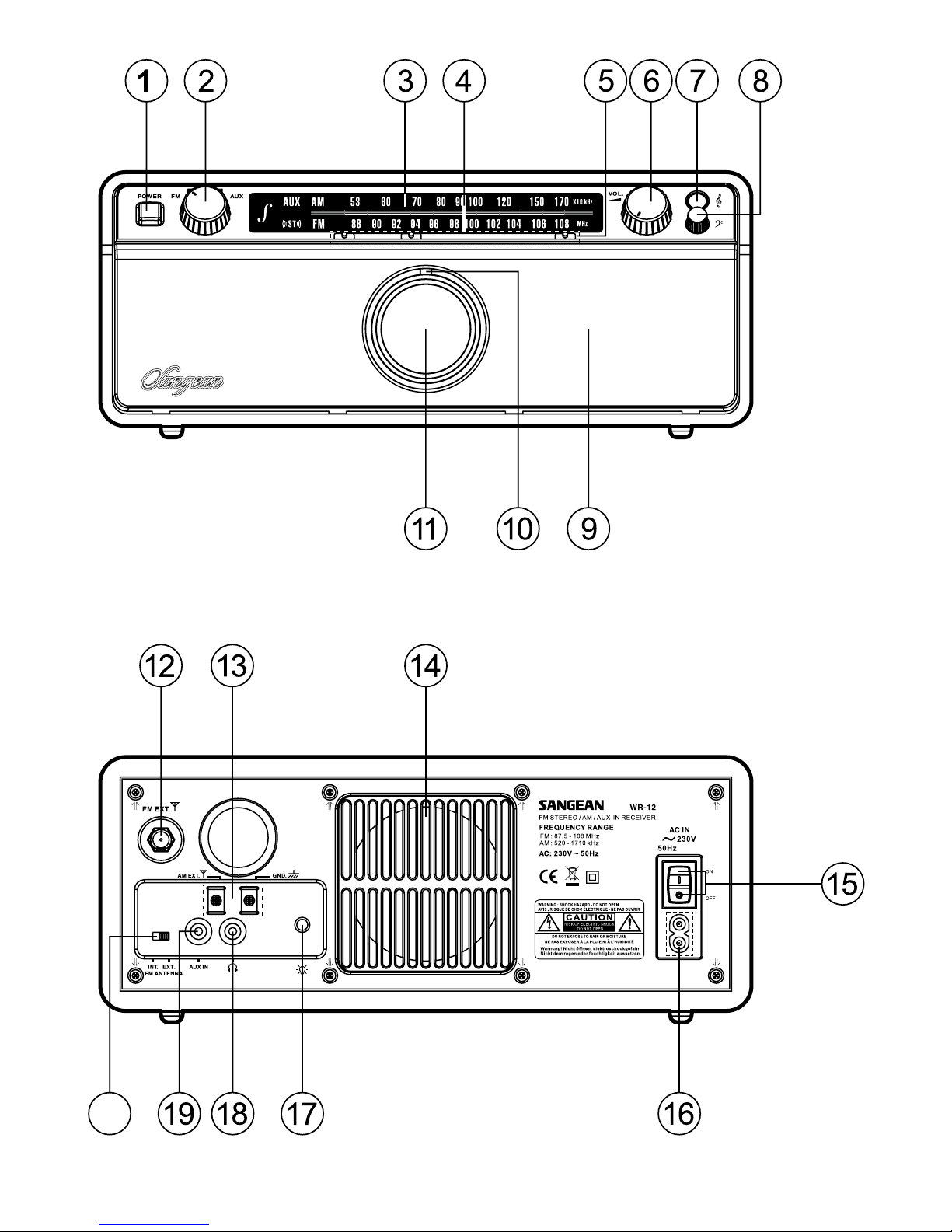

Controls

Power button

Band selecting rotary

Dial scale

Dial indicator

Dial marker

Volume control

Treble control

Bass control

Speaker

Tuning LED indicator

Tuning control

F-type external antenna terminal

AM external antenna terminal

Subwoofer speaker

AC main power switch

AC power cord socket

Dimmer control

Headphone socket

AUX IN socket

External / internal antenna switch

Power your radio

AC operation

Before you plug the AC cord into the radio, make sure the AC

voltage is correct. Insert the plug on the end of the supplied power

cord into the AC power socket on the back of the radio and turn on

the main power switch.

Antenna setup for FM reception

The radio comes with built-in AM/FM antenna and external

antenna.

To use FM internal antenna, make sure to switch FM external/

internal antenna switch in the back of your radio to internal antenna

position (i.e. INT. FM ANTENNA). As for external antenna, you

can use to improve FM reception. Two types of antenna can be

used. You can connect the supplied FM wire antenna to the F-type

antenna terminal and adjust the wire for best reception.

You can also connect a 75 ohm coaxial cable of outdoor antenna

to the terminal. Make sure to switch external/internal antenna

switch to external position while using the supplied wire antenna

or connecting the outdoor antenna. In some of the European

countries, you may have to connect the supplied antenna terminal

adaptor to connect with the outdoor antenna.

Operating your radio FM

1. Make sure you have set up the FM antenna in advance and turn

on the main power switch in the rear of the unit.

2. Press the power button located in the front panel.

3. Rotate the band selecting rotary to the FM (MONO) or ST(FM

stereo).

Note: If the FM radio station being listened to has a weak signal,

some hiss may be audible. It is possible to reduce this hiss by

forcing the radio to play the station in mono rather than stereo.

4. Rotate the Tuning Control to select the desired station. In FM

mode, the tuning scale is marked in MHz (Megahertz). The tuning

LED indicator will appear brightest when best tuning has been

achieved. In ST mode, the ST tuning LED indicator will illuminate

when a stereo station is tuned.

5. Adjust the Volume Control for comfortable listening.

6. Press the power button to turn off the radio.

Antenna setup for AM reception

The radio comes with built-in AM antenna which should be enough

for normal listening. To improve the AM reception, you may connect

the outdoor AM antenna with AM external antenna terminal.

Operating your radio AM

1. Press the power button located in the front panel.

2. Rotate the Tuning Control to select the desired station. In AM

mode, the tuning scale is marked in kHz (Kilohertz). The tuning

LED will appear brightest when best tuning has been achieved.

3. Rotate your radio for best reception.

4. Adjust the Volume Control for comfortable listening.

5. Press the power button to turn off the radio.

Dial marker

This device allows you to mark 3 of your favorite station frequency,

so that you can find the particular station immediately next time

when tuning the stations.

Headphone use

Headphone use with this radio should be tted with a 3.5 mm jack

plug. Insert the headphones plug into the socket marked on the

rear side of the radio. When the headphones are plugged in, the

loudspeaker is automatically disconnected.

AUX IN socket

Connect a stereo or mono audio source (like CD walkman, iPod or

digital media music player) to this input to listen the audio program

via the speaker.

Dimmer control

The brightness of the dial scale may be adjusted. If you use the

unit in the bedroom, you may prefer a higher brightness level than

the standard setting.

Treble / Bass control

The sound on your radio can be adjusted to suit your personal taste

for the material that you are listening to. You can set the treble and

bass levels to your own preferences.

Note: To adjust the volume without physical interference, you can

press down the treble and bass button. It will not change your

treble/ bass setting.
