Samsung VAC-7713SP Hoja de instrucciones

Operating lnstructions

Models

VAC-7700 SERIES

For household use only

Before operating this unit, please read the instructions carefully.

VACUUM CLEANER

DJ68-00079M(US) 7/28/01 2:06 PM Page 1

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed,

including the following :

READ ALL INSTRUCTIONS BEFORE USING

THIS VACUUM CLEANER

WARNING

To reduce the risk of fire, electric shock, or injury.

1. Do not leave appliance when plugged in. Unplug from outlet when not in use and

before servicing.

2. Do not use outdoors or on wet surfaces.

3. Do not allow to be used as a toy. Close attention is necessary when used by or

near children.

4. Use only as described in this manual. Use only manufacturer’s recommended

attachments.

5. Do not use with damaged cord or plug. If appliance is not working as it should,

has been dropped, damaged, left outdoors, or dropped into water, take it to a ser-

vice center.

6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull

cord around sharp edges or corners. Do not run appliance over cord. Keep cord

away from heated surfaces.

7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

8. Do not handle plug or appliance with wet hands.

9. Do not put any object into openings. Do not use with any opening blocked : keep

free of dust, lint, hair, and anything that may reduce air flow.

10. Keep hair, loose clothing, fingers, and all other parts of the body away from open-

ings and moving parts.

11. Do not vacuum anything that is burning or smoking, such as cigarettes, matches,

or hot ashes.

12. Do not use without dust bag and filters in place.

13. Turn off all controls before unplugging.

14. Use extra care when cleaning on stairs.

15. Do not use to vacuum flammable or combustible liquids such as gasoline or use

in areas where they may be present.

16. Store your vacuum cleaner indoors in a cool, dry area.

DJ68-00079M(US) 7/28/01 2:06 PM Page 2

17. Do not use extension cords or an outlet with inadequate current carrying capacity.

18. Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewind-

ing.

19. Unplug electrical appliances before vacuuming them.

20. The hose contains electrical wires. Do not use if damaged, cut, or punctured. Avoid

picking up sharp objects.

21. Always turn off this appliance before connecting or disconnecting either hose or

motorized nozzle.

SAVE THESE INSTRUCTIONS

To reduce the risk of electric shock, this appliance has a polarized plug(one blade is

wider than the other). This plug will fit in a polarized outlet only one way. If the plug

does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified

electrician to install the proper outlet. Do not change the plug in any way

DJ68-00079M(US) 7/28/01 2:06 PM Page 3

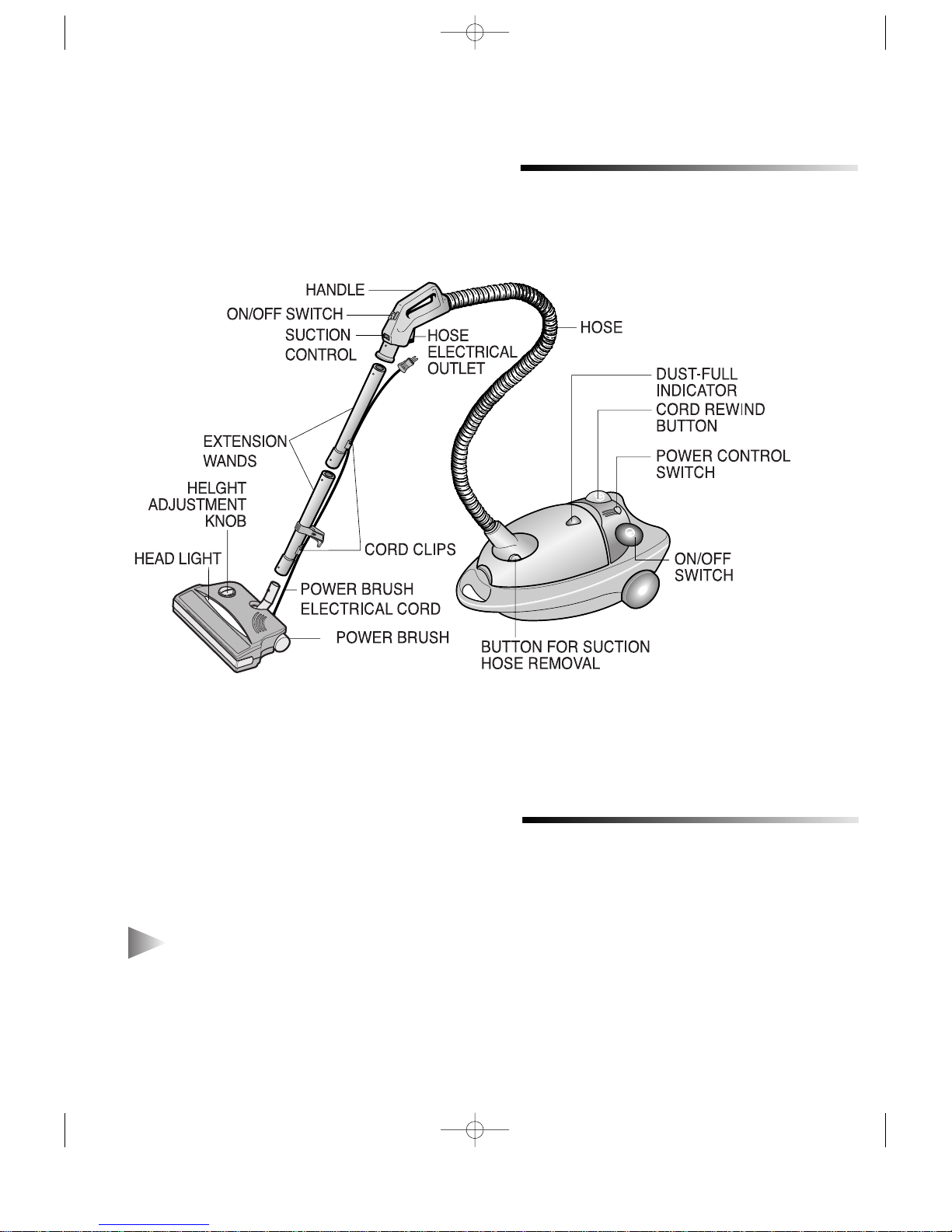

PARTS IDENTIFICATION

DUST-FULL INDICATOR

If the “Dust-Full” indicator switches to “RED” while you are cleaning, the dust bag is full

and must be replaced.

If the “Dust-Full” indicator continues to display “RED” even after changing

the dust bag, turn the cleaner off and check whether the hose, tube or noz-

zle is clogged.

NOTE :

DJ68-00079M(US) 7/28/01 2:06 PM Page 4

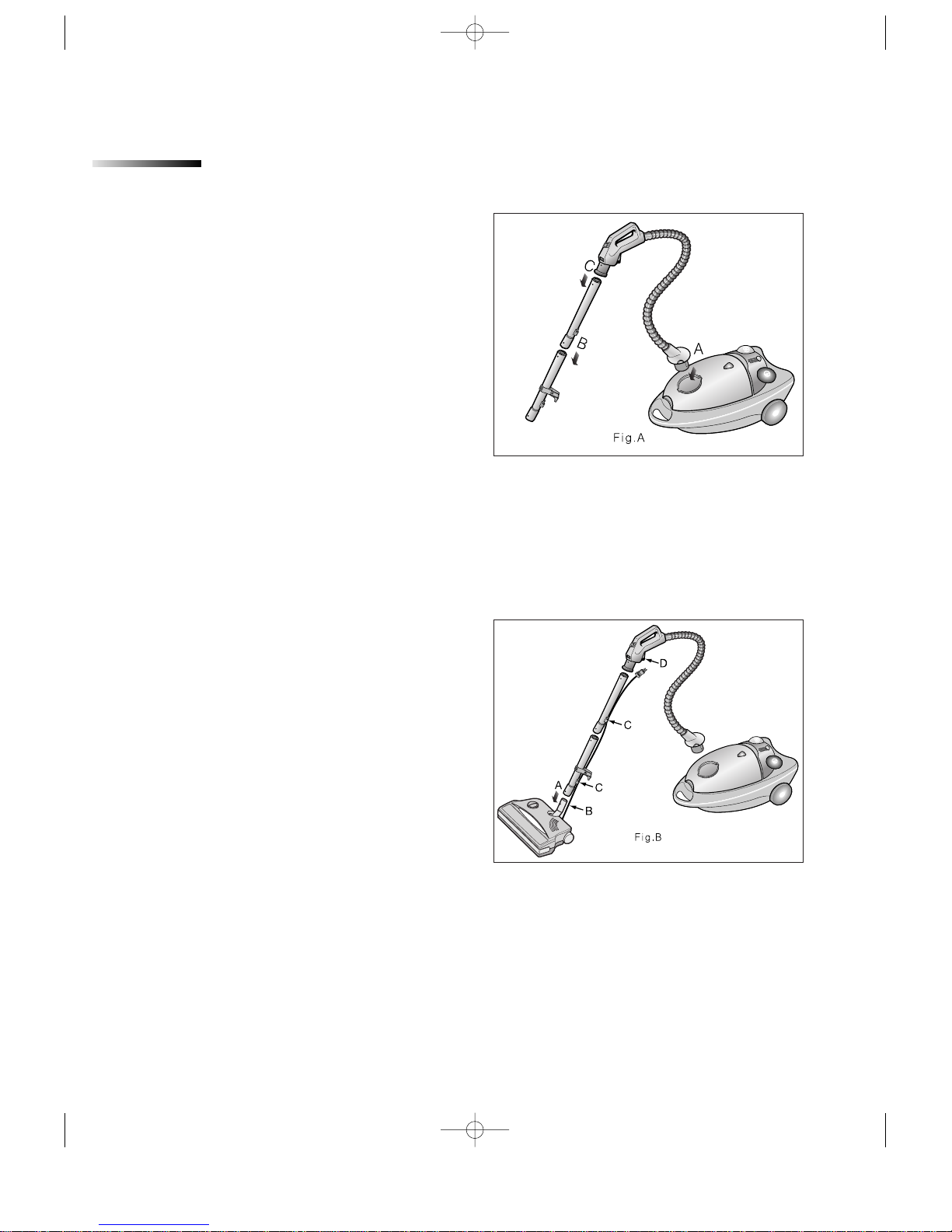

ASSEMBLING THE VACUUM CLEANER FOR USE

Attaching the Hose to the Canister

Slide the Hose Clamper into the Canister lnlet

until it “clicks” into place.(Fig. A-A)

Assembling the Extension Wand

Slide the narrow end of one Extension Wand

section into the other Wand Extension.(Fig. A-

B)Depress the locking button with your thumb

and continue sliding the Extensions

together.Turn the Wands in opposite directions

until the locking button snaps into the hole in

the other Wand. Make sure the locking button

snaps into place completely.

Attaching the Extension Wand to the

Hose

Slide the handle end of the Hose over the end

of the Wand with a locking button.(Fig A-C)

Turn the Hose and Wand in opposite directions

until the locking button on the Wand snaps into

the hole on the Hose. Make sure the locking

button snaps into place completely.

Attaching the Power Brush

Slide the free end of the Extension Wand onto

the Power Brush Wand until the locking button

“clicks” into place.(Fig. B-A) Hold Power Brush

Electrical Cord against the back of the

Extension Wand.(Fig. B-B) Press Power Brush

Cord into the grooves of the Cord Clips.(Fig. B-

C) Plug the Power Brush Cord into the Hose

Electrical Outlet.(Fig. B-D)Your vacuum cleaner

is ready for use.

DJ68-00079M(US) 7/28/01 2:06 PM Page 5

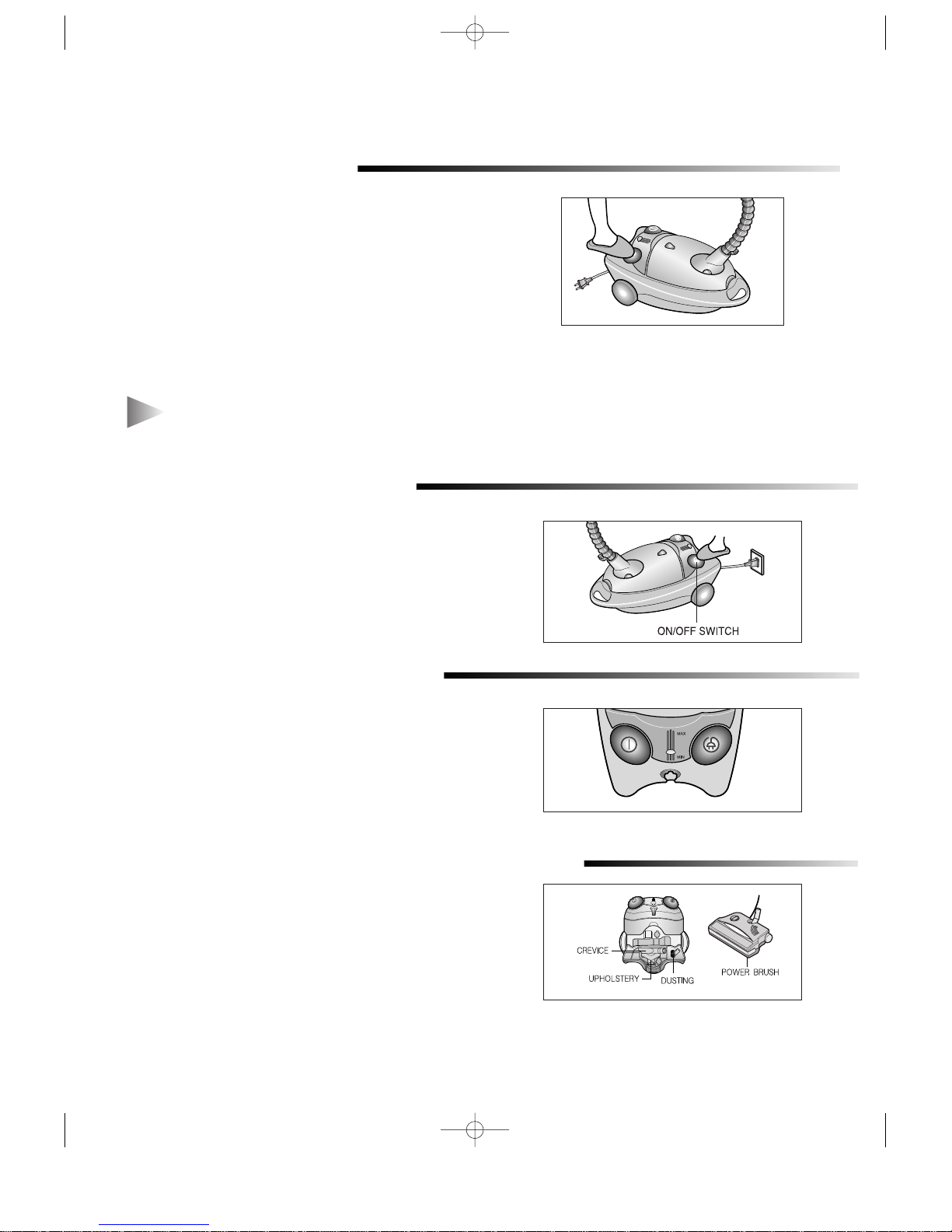

ON/OFF SWITCH

USING THE ACCESSORIES

With the cord plugged into an electrical outlet,

start or stop the vacuum cleaner by stepping

lightly on the switch button.

• Dusting brush - for furniture,shelves,books,etc.

• Upholstery brush - for cushions and drapery.

• Crevice tool - for radiators,crevices,corners,

between cushions.

• Power brush -The rotating brush ensures that

cleaning is carried out more thoroughly.

POWER CONTROL

Vacuuming power can be adjusted to suit differ-

ent situations using the power control.

MIN = For delicate fabrics, like net curtains.

MAX = For hard floors and heavily soiled

carpets.

POWER CORD

1) PULLING OUT

The power cord is long enough to be drawn out for

convenience.

2) REWINDING

Upon finishing cleaning, disconnect the plug from the

electri cal outlet and press the cord rewind button lightly

with your toe.

When removing the power cord from the electrical outlet, grasp the plug,

not the cord.

NOTE :

DJ68-00079M(US) 7/28/01 2:06 PM Page 6

TRANSPORTING AND STORING THE VACUUM CLEANER

For easy storage and transportation, this vac-

uum cleaner has a clip system built onto the

body, which will keep the tube, hose and noz-

zle in a vertical position.

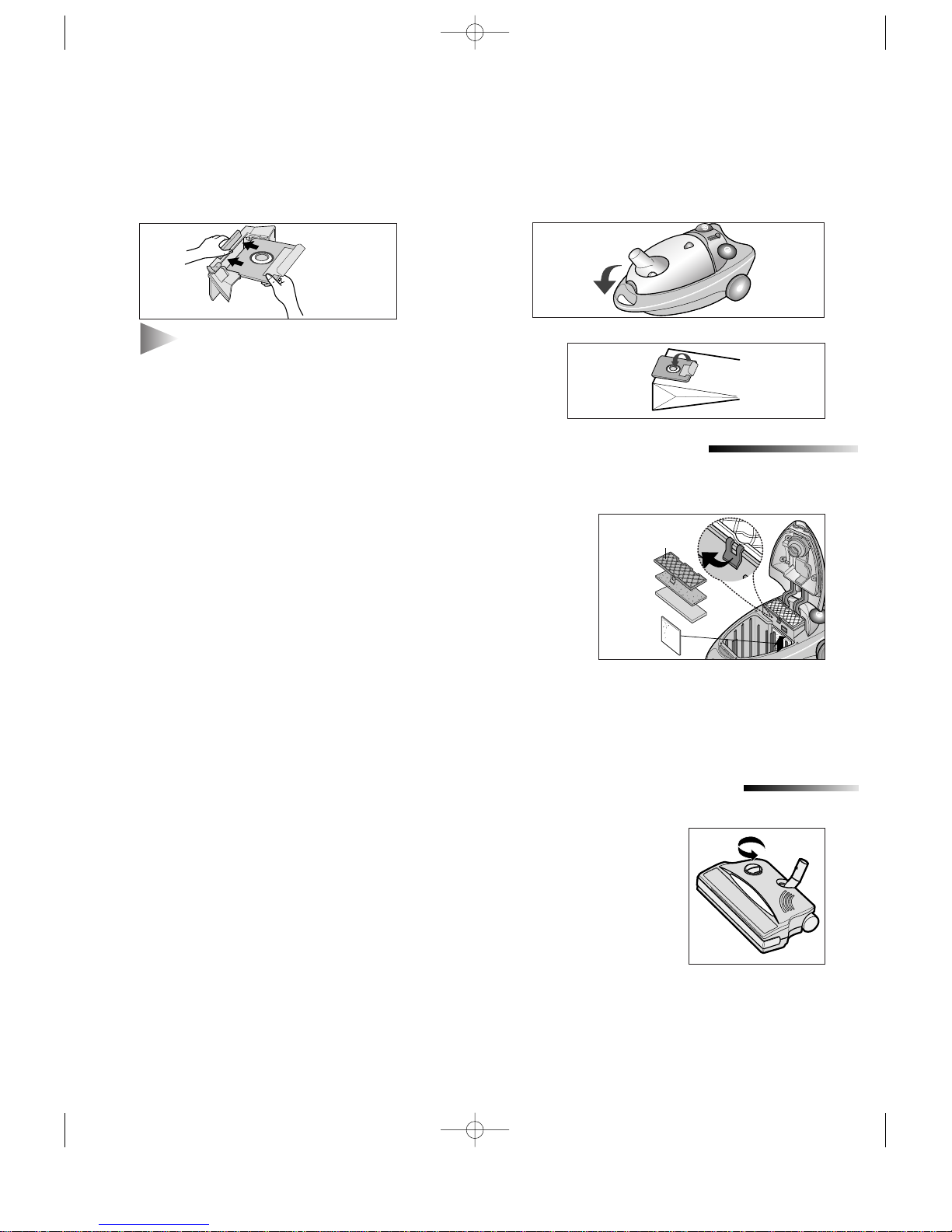

REPLACING THE DUST BAG

2) Remove the dust bag from the

cleaner.

1) To open the dust cover of the dust

bag com partment, press the clamp

upward located at the side of the

dust cover.

OPERATING THE BRUSH HEAD

PARK POSITION

Push the ON/OFF switch(A) down.

(The brush switches on)

Located in the top rear side of the vacuum

cleaner, there is a support for a convenient

park position during pauses when using the

nozzle.

DJ68-00079M(US) 7/28/01 2:06 PM Page 7

VACUUMING WITH THE POWER BRUSH

1. Attaching the Power Brush

The hose must be plugged into the canister and the power brush

must be plugged into the hose and extension wand (see page 3).

2. Vacuuming

• For best results, move the power brush slowly using short,overlap-

ping strokes.

• For heavily soiled areas, repeat strokes in several directions.

• Turn height adjustment knob to match the surface being cleaned.

(optional)

Used dust bag can be sealed by remov-

ing the film from the paper and sticking

the latter over the suction

opening.(ONLY PAPER BAG)

4) Press the dust cover down gently

until the clamp relocks.

3) After removing the used dust bag, insert

the cardboard bag collar of the new dust

bag into the suction inlet all the way.

MAINTENANCE OR REPLACEMENT OF THE FILTERS

1) INLET-FILTER.

• Open the dust cover.

• After detaching the filter, wash it lightly with water, dry it

in the shade, and then insert it in its original position.

• Close the dust cover.

2) OUTLET-FILTER.

• The outlet-filter which the air comes out from the vacu-

um-cleaner.

• Open the dust cover, and then pull the hook upward

located at the front of the grille filter.

• Remove and replace the exhausted outlet-filter.

• Close the grille filter, and then close the dust cover.

NOTE :

GRILLE-FILTER

OUTLET-

FILTER

INLET-

FILTER

DJ68-00079M(US) 7/28/01 2:06 PM Page 8

3. Replacing the Brushroller Belt

Use with caution when replacing the that drives the brushroller. Tension on the

belt is high.

3. Checking the Performance of the Power Brush

You may check whether the power brush is operating correctly by lifting up the

extension tube slightly to view the back of the brush.

The Power Brush will not operate when it is jammed or the unit is turned off.

If the Power Brush is jammed, Unplug the power cord from the electrical outlet.

Turn power brush over and remove the jammed object.

Turn the power brush back to vacuuming position and resume vacuuming

CAUTION:

Do not invert the power brush while it is running

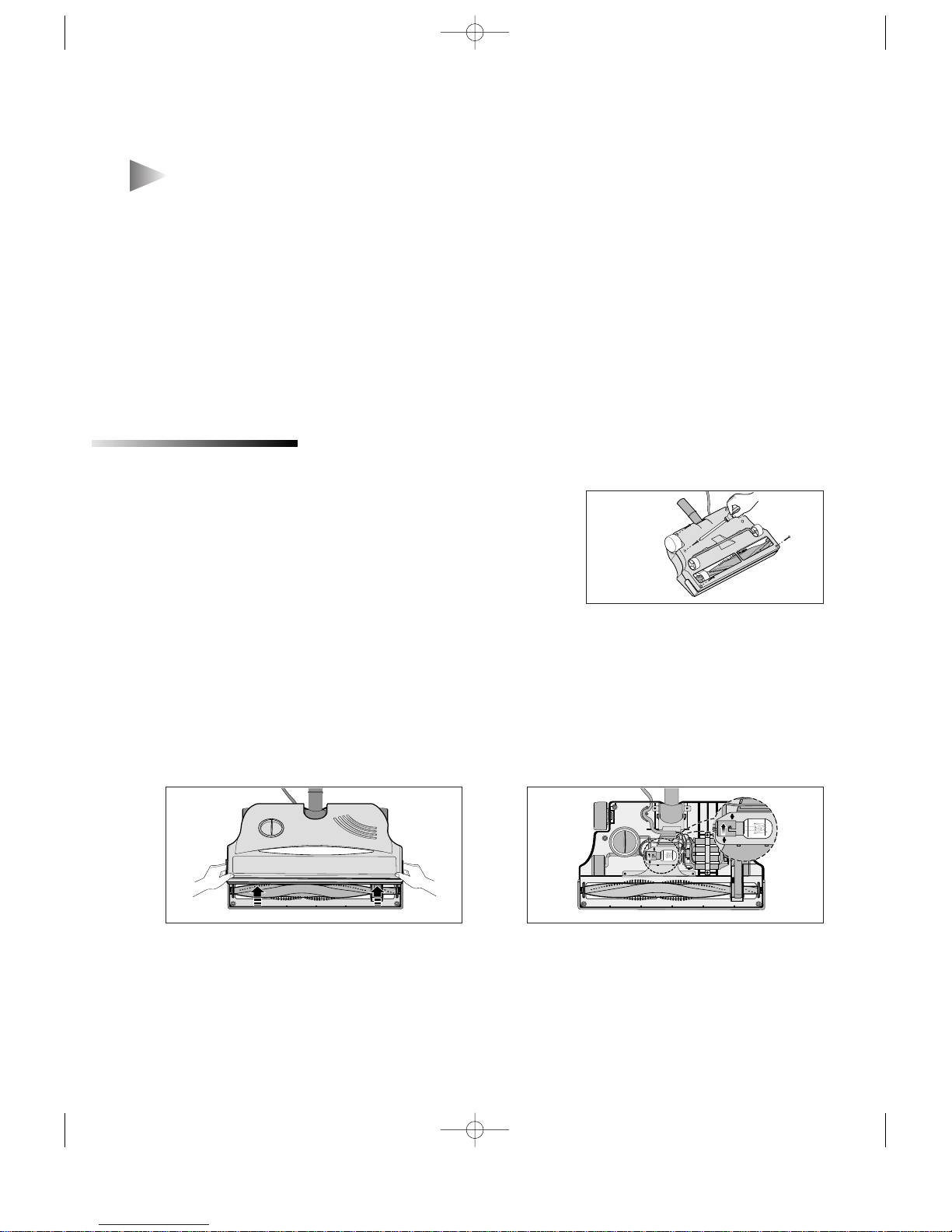

MAINTAINING THE POWER BRUSH

1. Removing the Brush Cover

•Before replacing any parts, unplug the vacuum clean-

er from the electrical outlet.

•Remove 6 screws from the bottom plate and open the

brush cover.

2. Replacing the Headlight Bulb(optional)

2) Remove the old bulb from the bulb

socket. Insert the new bulb. You can

use a vacuum cleaner lamp rated

120V, 20W.

1) Remove the Brush Cover as described

below.

DJ68-00079M(US) 7/28/01 2:06 PM Page 9

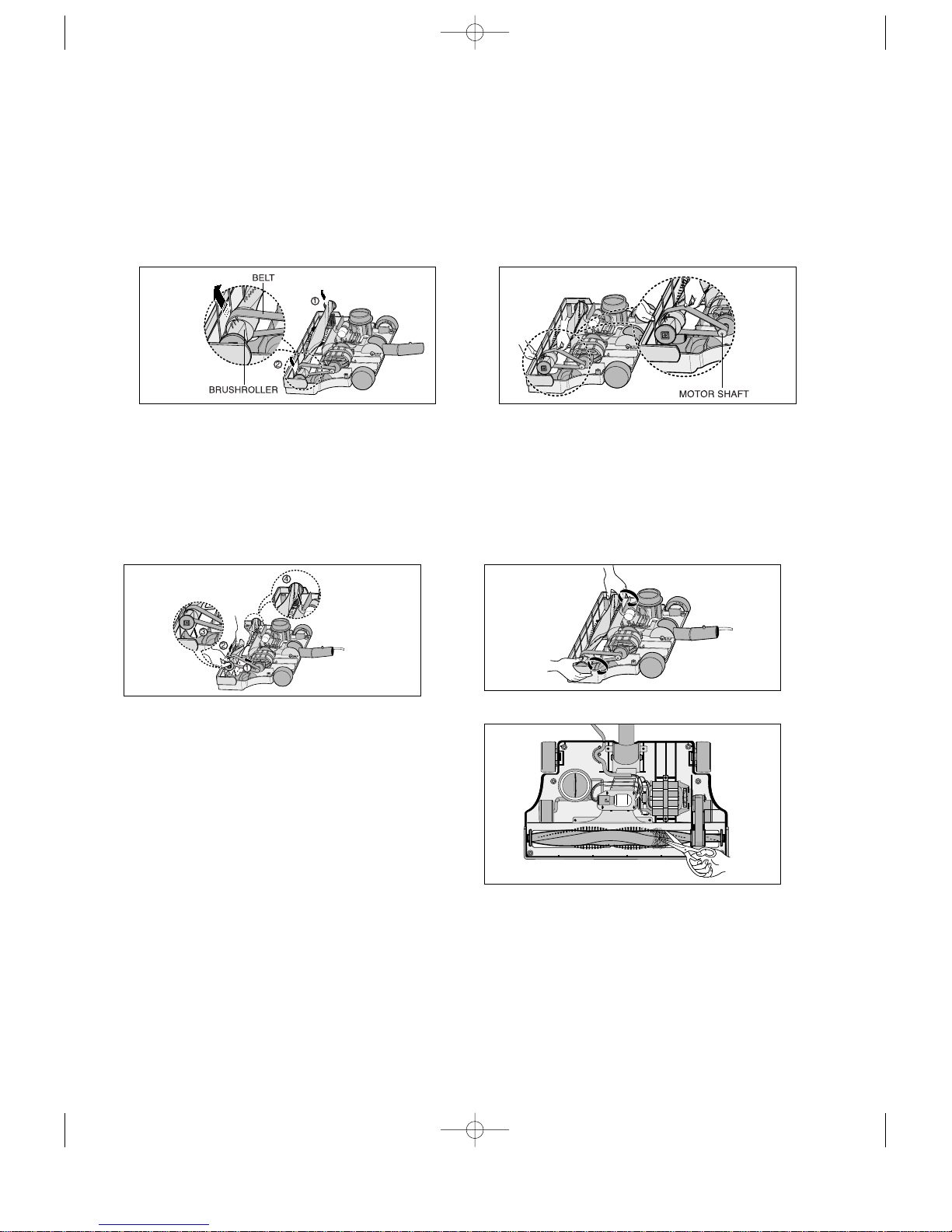

4. Cleaning the Brushroller

1) Turn off the vacuum cleaner and

unplug the power cord.

2) Remove the cover to expose the

brushroller.

3) Cut off any lint, carpet pile or hair that

has accumulated around the

brushroller with a pair of scissors.

Replace the brush cover.

3) Reinsert the brushroller, making

sure that both ends of the

brushroller are fitted into the

grooves of the nozzle head.

4) Be sure that the is not twisted. Rotate

the belt 3 or 4 times to position it correct-

ly on the roller and to make sure all rotat-

ing parts move smoothly. Replace the

brush cover.

1) Remove the brush cover, Grasp the

brushroller firmly, and pull it out. 2) Remove the flat belt from the motor

shaft and the brushroller, Loop the new

belt around the motor shaft and then

loop it around the brushroller.

DJ68-00079M(US) 7/28/01 2:06 PM Page 10
