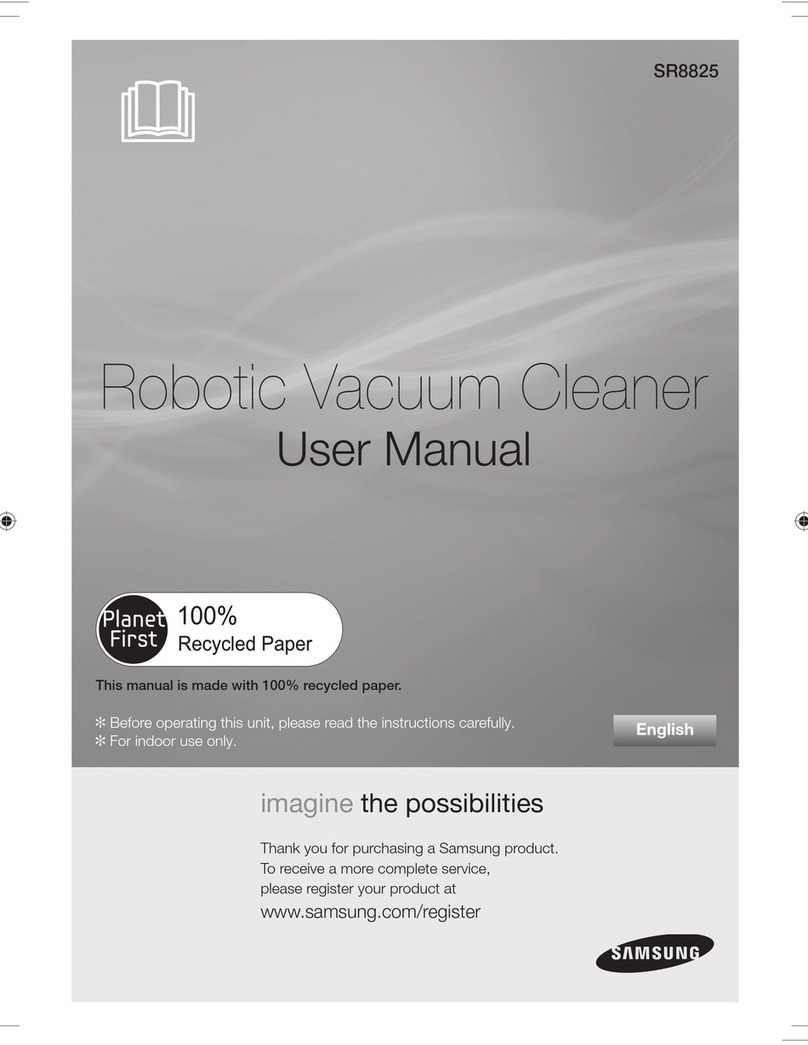

Robotic Vacuum Cleaner

User Manual

✻ Before operating this unit, please read the instructions carefully.

✻ For indoor use only.

English

imagine the possibilities

Thank you for purchasing a Samsung product.

To receive a more complete service,

please register your product at

www.samsung.com/register

SR8850

SR8855

DJ68-00518F.indb1 2010.2.231:19:58PM

2_ Safety information

Safety information

CAUTION/WARNING SYMBOLS USED

WARNING Indicates that a danger of death or serious injury exists.

CAUTION Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED

NOTE Explains terms to help users understand how use the product properly.

SAFETY INFORMATION

• Before operating the appliance, please read this manual thoroughly and retain

it for your reference.

• Because these following operating instructions cover various models, the

characteristics of your vacuum cleaner may differ slightly from those described

in this manual.

WARNING

DJ68-00518F.indb2 2010.2.231:19:59PM

Safety information _3

Safety information

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be observed, including the

following:

READ ALL INSTRUCTIONS BEFORE USING YOUR ROBOTIC VACUUM CLEANER.

Unplug from outlet when not in use and before conducting maintenance.

WARNING: to reduce the risk of ﬁre, electric shock, or injury:

GENERAL

• Use only as described in this manual.

•

Do not operate the robotic vacuum cleaner or charger if it has been damaged in any way.

• If the cleaner is not working as it should, has been dropped, damaged, left outdoors,

or dropped in water, return it to a customer care center.

• Do not handle the charger or robotic vacuum cleaner with wet hands.

• Use only on dry, indoor surfaces.

• This appliance is not intended for use by persons (including children) with reduced

physical,sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instruction concerning use of the appliance by a

person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

BATTERY CHARGER

• Do not modify the polarized plug to t a non-polarized outlet or extension cord.

• Do not use outdoors or on wet surfaces.

• Unplug the charger from the outlet when not in use and before servicing.

• Use only the charger supplied by the manufacturer to recharge.

• Do not use with a damaged cord or plug.

• Do not pull or carry by the cord, use the cord as a handle, close the door on the cord,

or pull the cord around sharp edges or corners. Keep the cord away from heated

surfaces.

• Do not use extension cords or outlets with inadequate current carrying capacity.

• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

• Do not mutilate or incinerate batteries as they will explode at high temperatures.

• Do not attempt to open the charger. Repairs should only be carried out by a qualied

customer care centre.

• Do not expose the charger to high temperatures or allow moisture or humidity of any

kind to come into contact with the charger.

DJ68-00518F.indb3 2010.2.231:19:59PM

4_ Safety information

Safety information

ROBOTIC VACUUM CLEANER

• Do not pick up hard or sharp objects such as glass, nails, screws, coins, and etc.

• Do not use without a lter in place. When servicing the unit, never put ngers or other

objects into the fan chamber in case the unit accidentally turns on.

• Do not put any objects into openings. Do not use with any openings blocked; keep

openings free of dust, lint, hair, and anything that may reduce air ﬂow.

• Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).

• Do not pick up anything that is burning or causing a smoke, such as cigarettes,

matches, or hot ashes.

• Do not use to pick up ammable or combustible liquids such as gasoline, nor use on

areas where they may be present.

• Do not use robotic vacuum cleaner in an enclosed space lled with vapours given off

by oil based paint, paint thinner, moth proong substances, ammable dust, or other

explosive or toxic vapours.

• Leaks from battery cells can occur under extreme usage or temperature conditions.

If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes,

ﬂush them immediately with clean water for a minimum of 10 minutes. Seek medical

attention.

DJ68-00518F.indb4 2010.2.231:19:59PM

Contents _5

Contents

SAFETY INFORMATION

06 Power related

07 Before use

10 In use

11 Cleaning and maintenance

PRODUCT FEATURES

13 Product Features

TROUBLESHOOTING

43 Checklist before svc calls

45 Troubleshooting for Error Codes

ASSEMBLING THE CLEANER

15 Components

16 Name of each part

OPERATING THE CLEANER

20 Installing robotic vacuum cleaner

20 Installation order

20 Turning the power switch on or off

21 Installing the charger

22 Charging

23 About the battery

24 Setting the Time

25 Installing the VIRTUAL GUARD

27 Using robotic vacuum cleaner

27 Starting/stopping cleaning

28 Recharging

29 Auto cleaning

30 Spot cleaning

31 Max cleaning

32 Manual cleaning

33 Edge cleaning

34 Scheduled cleaning

35 Setting daily cleaning

MAINTAIN TOOLS AND FILTER

36 Cleaning robotic vacuum cleaner

36 Please keep the cleaning and

maintenance methods in mind

36 Cleaning the sensor window and the

camera

37 Emptying the dust bin quickly

37 Cleaning the dust bin and the lter

39 Cleaning the power brush

41 Cleaning the edge-cleaning side rotating

brush

42 Cleaning the driving wheel

PRODUCT SPECIFICATION

46 Product specication

DJ68-00518F.indb5 2010.2.231:19:59PM

6_ Safety information

Safety information

POWER RELATED

Do not bend the power cord forcefully or place a

heavy object on it that could break it.

- This may result in re or electric shock.

Do not use a damaged power cord, plug, or a loose

power outlet.

- This may result in re or electric shock.

Do not use multiple plugs in a single socket.

(Do not leave the cord lying exposed on the ﬂoor.)

- This may result in re or electric shock.

Do not pull the power plug by the cord or touch the

plug with wet hands.

- This may result in re or electric shock.

Make sure to remove any dust or water from the

power plug.

- Failing to do so may result in a malfunction or electric

shock.

WARNING

DJ68-00518F.indb6 2010.2.231:20:6PM

Safety information _7

Safety information

01 SAFETY INFORMATION

CAUTION

BEFORE USE

Before activating the robotic vacuum cleaner, make sure

that the dust bin is assembled.

- If the dust bin is not inserted, robotic vacuum cleaner will not

operate.

Never use robotic vacuum cleaner in locations with

combustible material such as:

- Locations with candles or desk lamps on the oor.

- Locations with unattended res (re or embers).

- Locations with gasoline, distilled alcohol, thinner, ashtrays

with burning cigarettes, and etc.

Robotic vacuum cleaner is for domestic use only. Do not use it in the following

locations.

- Attics, basements, warehouses, industrial buildings, separate rooms distant from the

main building, locations exposed to wet or damp conditions such as bathrooms or

wash rooms, and narrow and highly situated locations such as tables or shelves. Critical

damage (abnormal operation and breakage) may occur when used in these locations.

Open all doors to clean all rooms.

- When a door is closed, the robotic vacuum cleaner will not be able to enter that room.

However, make sure to close the doors to the main entrance, the veranda and the

bathroom, and any other rooms where the robotic vacuum cleaner may fall to a lower ﬂoor.

For carpets with long tassels, fold the tassels under the

carpet.

- Unfolded tassels may result in critical damage to the carpet

and the machine itself, as they get caught in the driving wheel

or the power brush.

When the cliff sensor is polluted, robotic

vacuum cleaner may be falling down from

entrance of stairs, handrail etc.

This may cause an injury of people and the

critical damage to the product.

For preventing from the risk, install the

VIRTUAL GUARDs(Fence Mode setting) in

front of dagerous areas. And clean the sensor

window and camera not to make a wrong

orders.

DJ68-00518F.indb7 2010.2.231:20:9PM

8_ Safety information

Safety information

BEFORE USE

Remove objects scattered on the ﬂoor before cleaning.

Robotic vacuum cleaner is designed to detect obstacles 5cm away

from them.

- Bath towels, pads in front of bathrooms and sinks, entrances, utility

rooms, power cords, table cloths or belts can become entangled in

the driving wheel or power brush. This can cause objects to fall from

the table.

Remove small objects or brittle items from the area to be

cleaned in advance.

- Make sure to clear any objects before cleaning.

- Make sure to remove fragile items such as china, glass objects,

ﬂowerpots, and etc.

- Robotic vacuum cleaner does not recognize coins, rings or other

valuable items such as jewelry.

Inform all family members (or relevant parties) to be cautious

before cleaning or when using the Scheduled Cleaning Mode.

- Robotic vacuum cleaner may run into children, causing them to fall.

Ensure that children do not step or sit on the robotic vacuum.

- Children may fall and injure themselves or critical damage may occur

to the product.

When a child or pet is left alone, make sure to turn off the

Power Switch of the robotic vacuum cleaner.

- Robotic vacuum cleaner may attract their attention.

- When the rotating wheel or brush catches ngers, feet, clothing or hair,

this may result in injury.

- If a child or a pet is in the way of the robotic vacuum cleaner, it may be

identied as an obstacle and the area may not cleaned.

- When the Power Switch is turned off, it will cut off the power supply and

deactivate all functions.

When installing the charger station, do not leave the power

cord exposed on the ﬂoor.

- When the robotic vacuum cleaner automatically recharges or passes

by the charger station, it may drag the power cord around with it.

Always keep the power cord of the charger plugged into the

outlet.

- Although the robotic vacuum cleaner has a self-charging function, if

the power cord of the charger station is unplugged, it cannot charge

its battery automatically.

CAUTION

DJ68-00518F.indb8 2010.2.231:20:12PM

Safety information _9

Safety information

01 SAFETY INFORMATION

CAUTION

BEFORE USE

Install the charger in a location that can be easily accessed

by the robotic vacuum cleaner.

- If the charger is installed in a corner, this may cause extra

movements and may disturb the automatic recharging process.

Do not use the charger for other purposes.

- This may result in critical damage to the charger or cause a re.

WARNING

Make sure the robotic vacuum cleaner does not vacuum or

move over liquids such as water, oil or pet litter.

This may result in critical damage to the product.

Liquids may spread through the wheels resulting in contamination.

WARNING

Objects in front of the charger will prevent the robotic

vacuum cleaner from auto-charging itself.

- Clear the area.

CAUTION

There should be no obstacles 0.5 m to the left and

right and within 1 m of the front.

WARNING

Make sure that there is no trace of liquids on the charger

station.

- Failing to do so may result in re or electric shock.

WARNING

Do not short-circuit the charge pins with metal objects such

as chopsticks, screwdrivers, and etc.

- This will result in critical damage to the charger.

WARNING

about 0.5m

about 1m

about 0.5m

DJ68-00518F.indb9 2010.2.231:20:20PM

10_ Safety information

Safety information

NOTE

IN USE

You cannot use the robotic vacuum cleaner on thick carpets.

- This may result in problems with the robotic vacuum cleaner.

- This may result in damage to carpets.

Robotic vacuum cleaner may not be able to continue its

operation if it is stuck at the entrance or veranda doorsill.

- Robotic vacuum cleaner stops operating for safety reasons if it

cannot move for more than 5 minutes.

- To resume operating, turn the Power Switch off and then on again

after moving it to a location where it can continue cleaning.

If an unusual sound, smell or smoke is emitted from the robotic

vacuum cleaner, immediately turn off the Power Switch and call

the customer care center.

WARNING

Do not use the robotic vacuum cleaner on a table or other high

locations.

- This may result in damage when the unit accidentally drops.

CAUTION

Robotic vacuum cleaner may bump into furniture such as

chair legs, table legs, thin and long furniture, and etc. while

operating.

- For a quicker and cleaner performance, place the chairs on top of

the table.

Immediately remove any large pieces of

paper or plastic bags from the machine while cleaning.

- Using the machine for an extended period of time with its inlet port

obstructed, may result in critical damage to the product.

Do not place any objects on top of the robotic vacuum cleaner.

- This may result in malfunction.

CAUTION

DJ68-00518F.indb10 2010.2.231:20:31PM

Otros manuales para SR8855

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Aspiradora de Samsung

Samsung

Samsung SR8F3 Series Manual de usuario

Samsung

Samsung SC4500 Series Manual de usuario

Samsung

Samsung SC5600 Series Manual de usuario

Samsung

Samsung VCDC12 Series Manual de usuario

Samsung

Samsung POWERbot SR20K9350W Series Manual de usuario

Samsung

Samsung VC-7615 Manual de usuario

Samsung

Samsung SC07H40**V SERIES Manual de usuario

Samsung

Samsung SC96P0 Manual del propietario

Samsung

Samsung DJ68-00321K Manual de usuario

Samsung

Samsung VAC7713RP Hoja de instrucciones

Samsung

Samsung VR05R50 Series Manual de usuario

Samsung

Samsung VCMA16 series Manual de usuario

Samsung

Samsung DJ68-00518A Manual de usuario

Samsung

Samsung SC4020 Manual de usuario

Samsung

Samsung VCC88P0H1B Manual de usuario

Samsung

Samsung Jet Bot VR30T80 Series Manual de usuario

Samsung

Samsung Vacuum cleaner Manual de usuario

Samsung

Samsung SC5200 Series Manual de usuario

Samsung

Samsung SC6360 Manual de usuario

Samsung

Samsung SC9150 Manual de usuario

Samsung

Samsung VCC4320S3A/BOL Manual de usuario

Samsung

Samsung VAC9073BP Hoja de instrucciones

Samsung

Samsung POWERbot SR2AJ9250W Series Manual de usuario

Samsung

Samsung SC61 Series Manual de usuario

Manuales populares de Aspiradora de otras marcas

Bissell

Bissell LittleGreen Proheat 1425 Series Manual de usuario

Panasonic

Panasonic MC-YL637S147-AE Manual de usuario

NEFF

NEFF N17XH10 0 Series Manual de usuario

LG A9 Series Manual de usuario

Oreck

Oreck Cordless Captura BK51700 Series Manual de usuario

Kogan

Kogan KAVACROBVWA Manual de usuario

Kränzle

Kränzle VENTOS 50 ID Guía del usuario

EVVO

EVVO Ai35 Manual de usuario

DeWalt

DeWalt DWH200D Manual de usuario

Pontec

Pontec Pondomatic Vacuum Cleaner Manual de usuario

Cleanmaxx

Cleanmaxx PC-P007E Manual de usuario

Exido

Exido 240-114 Manual de usuario

RIDGID

RIDGID WD1685AU0 Manual de usuario

Ezviz

Ezviz RE4P Manual de usuario

STG global

STG global TANVAC HDV3000 Manual de usuario

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manual de usuario

Factory

Factory M3340 Manual de usuario

Shop-Vac

Shop-Vac VN92 SERIES Manual de usuario
